Description:

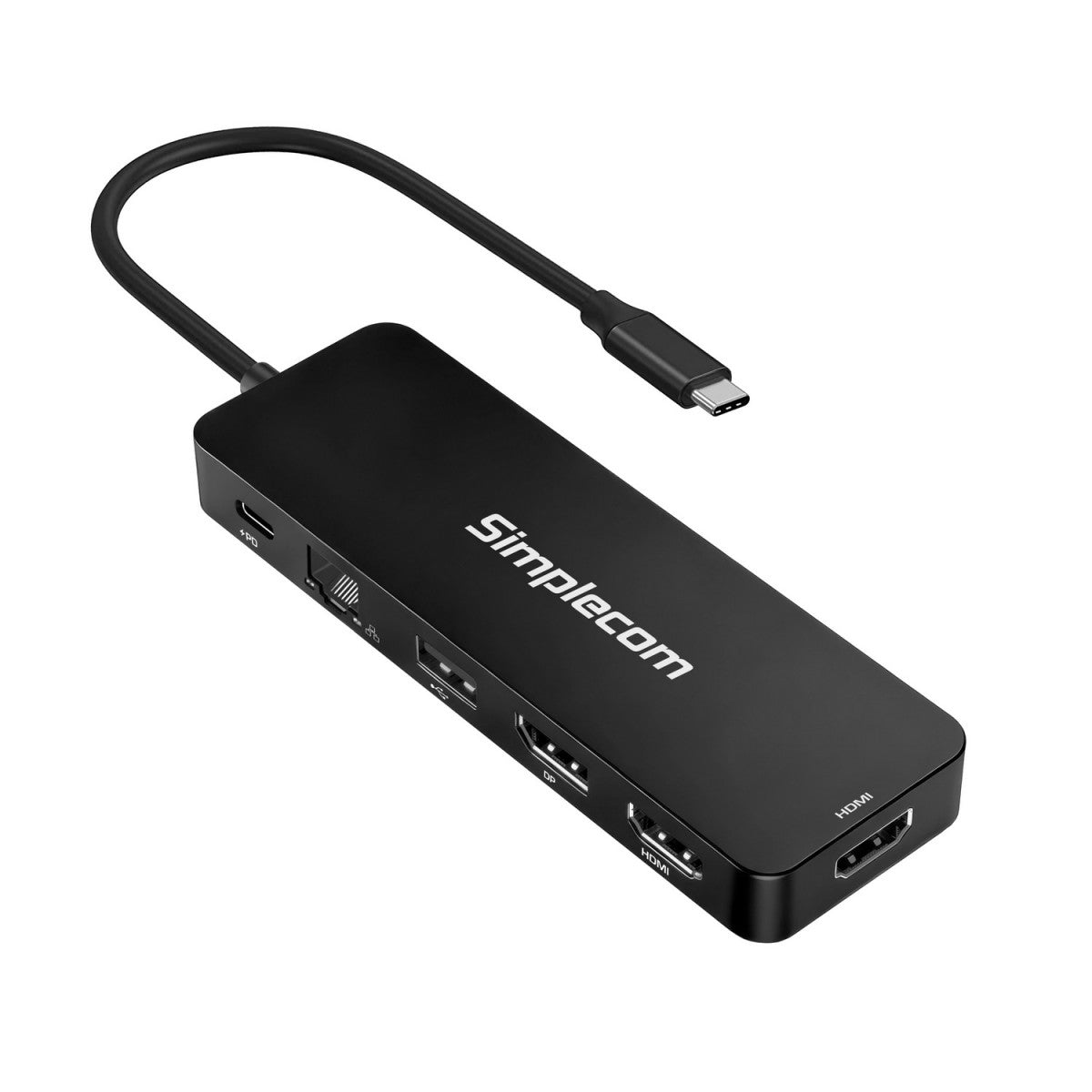

Expand your laptop's connectivity through a single USB-C connection with this compact and portable 11 in 1 docking station. It brings together three USB-A ports, two USB-C data ports, Gigabit Ethernet, a 3.5mm headphone jack and three display outputs (two HDMI and one DisplayPort), making it a versatile all-in-one solution for work and home office use. Connect up to three external 4K displays to extend your desktop or run different tasks on separate screens, and enjoy a true multi-screen workspace. The integrated USB-C Power Delivery port lets you charge your laptop while using your connected accessories, and with plug and play setup there is nothing extra to install.
Important Notes:
- Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
- 4K@60Hz is supported by laptop GPUs with DP 1.4 or higher version (e.g., Intel 12th Gen Core Mobile Processors or later).
- The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
Laptop GPU with DP 1.2 supports 2x extended screens only, laptop GPU with DP1.4 or higher supports 3x extended screens.
Features:
- 11 in 1 laptop docking station for greater productivity
- Triple display outputs for up to three extended monitors
- MST (Multi-Stream Transport) support for mirrored or extended display modes
- Multiple USB-A and USB-C ports for connecting peripherals
- Charge your laptop while using connected accessories
- Stable wired internet connection
- Microphone support for easy headset connection
- Efficient heat dissipation
- Compact and portable, easy to carry with your laptop
- Plug and play with no drivers or software required
Specifications:
- Host Interface: USB-C
- USB-A Data Ports: 1 x USB 480Mbps, 2 x USB 5Gbps
- USB-C Data Ports: 1 x USB 480Mbps, 1 x USB 5Gbps
- Display Ports: 2 x HDMI, 1 x DP
- HDMI Resolution: Up to 4K at 60Hz (3840 x 2160)
- DP Resolution: Up to 4K at 60Hz (3840 x 2160)
- HDCP Support: HDCP 2.3 compliant, backwards compatible
- Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
- Audio Port: 4-Pole TRRS 3.5mm Audio Jack (Stereo and Mic Combo)
- PD Input: USB-C PD (charging only), up to 100W
- Housing Material: Aluminium
- Operating Temperature: 0 to 50°C
- Dimensions: 13.3 x 4.2 x 1.4 cm
- Weight: 0.086 KG
- Operating System: Windows 10 or later, macOS 10.12 or later (no MST support)
- Laptop Port Requirement: Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
- macOS Note: macOS does not support MST technology and will only support one extended mode output
- Laptop GPU: DP 1.4 or higher supports up to 3 x extended displays
- 3 x Extended 4K Screens: DP 1.4 (or higher) and DSC (Display Stream Compression) are required for the laptop GPU
Package Contents:
- 1 x 11 in 1 USB C Triple Display MST Docking Station
