Description

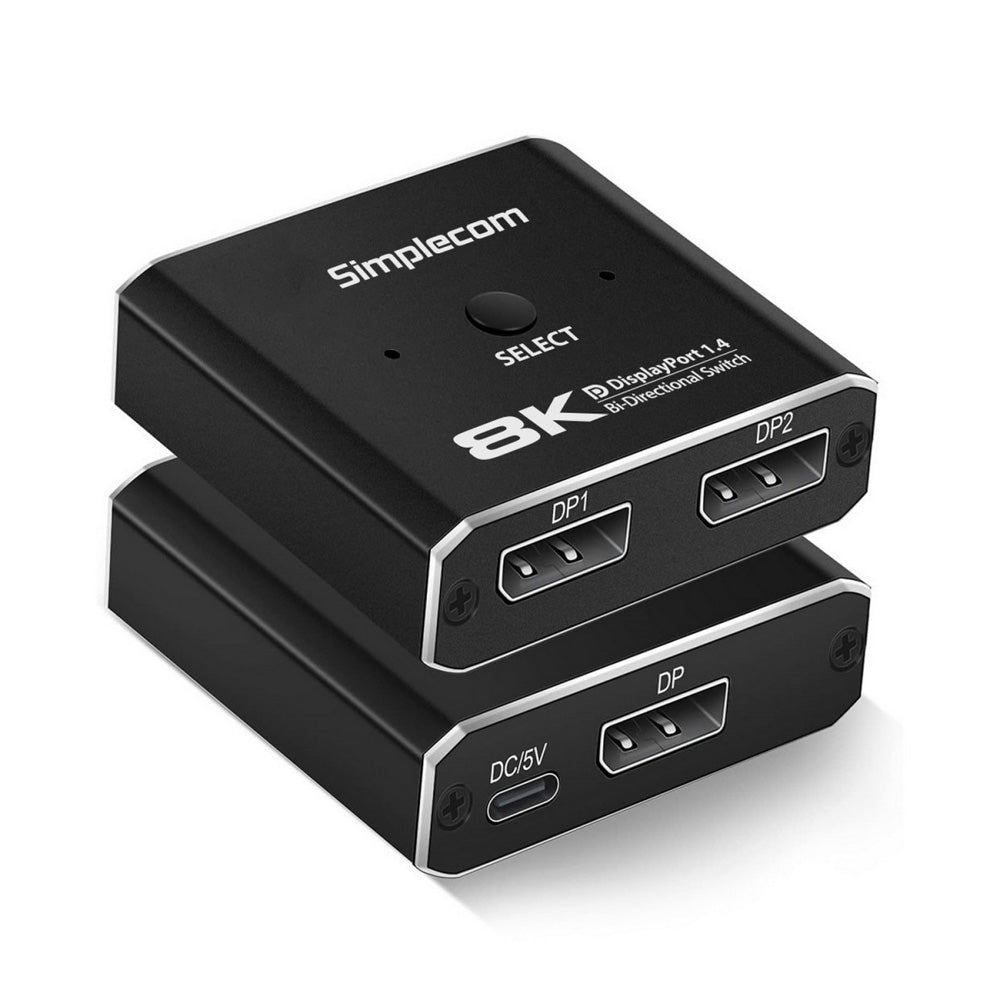

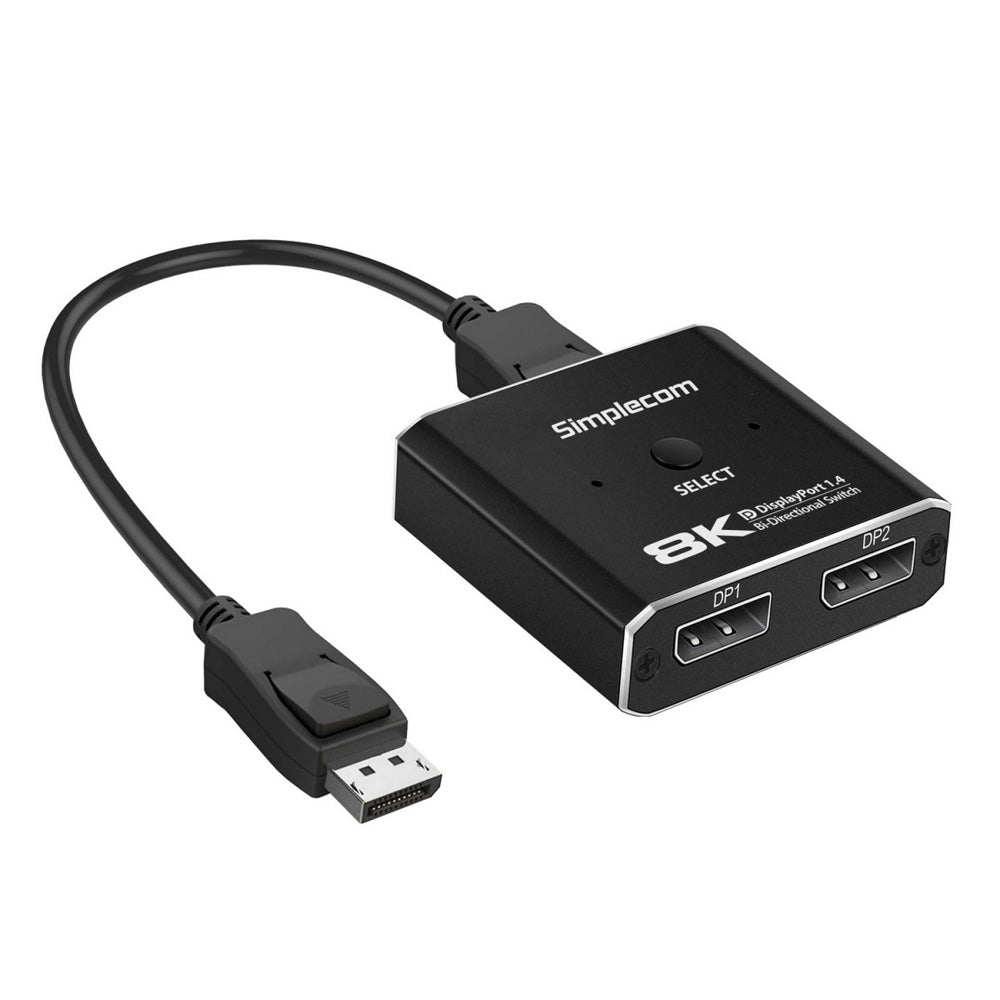

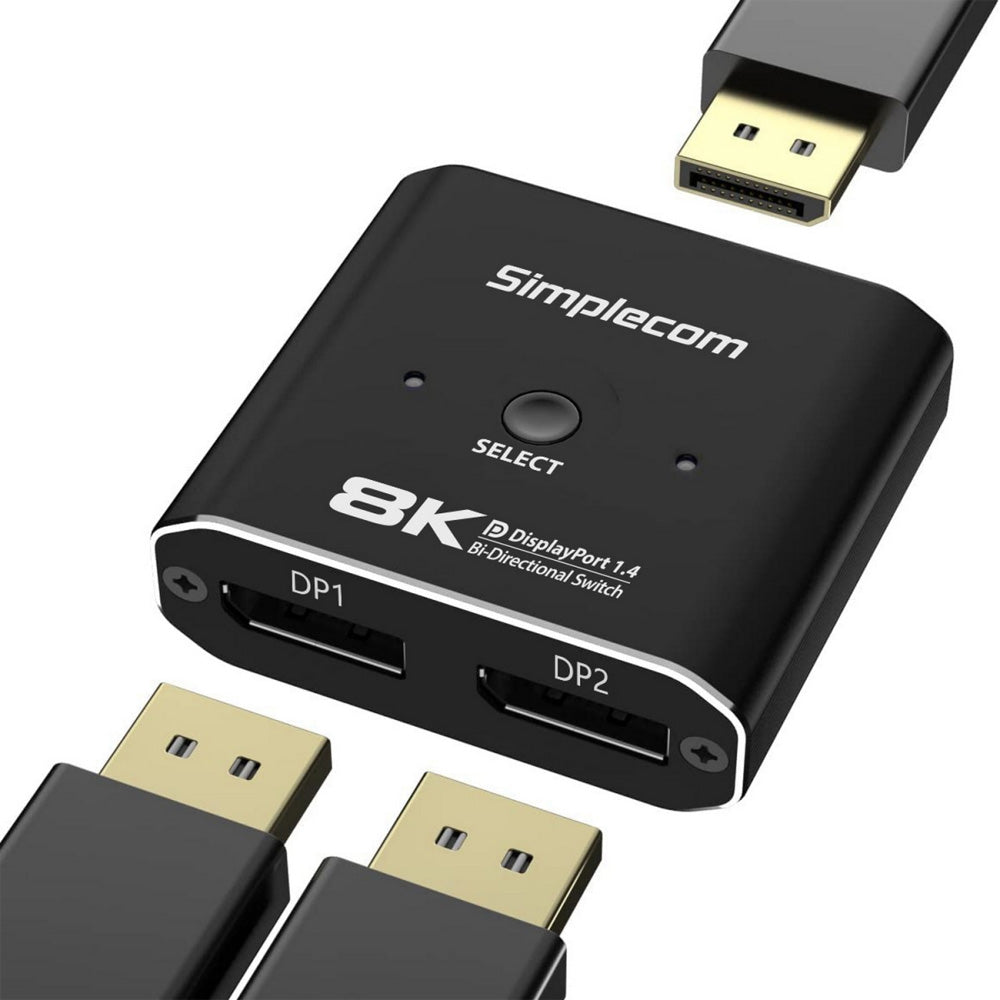

This bi-directional 2-way DisplayPort switch can be used to switch between two different DisplayPort sources or DisplayPort displays. A toggle button lets you quickly select a video source or display without having to swap cables. You can connect two DisplayPort sources, such as a laptop and PC, to one DisplayPort on your monitor so they share it. It also works in the opposite direction, allowing one DisplayPort source to toggle between two monitors. Two screens cannot display simultaneously under 1 input 2 outputs mode. The switch is DisplayPort 1.4 compliant and provides high bandwidth of up to 32Gbps, supporting video output up to 8K@30Hz. Its portable, compact size makes it easy to install, and the durable aluminium alloy housing efficiently dissipates heat to ensure durability and safe usage.
Features
- Bi-Directional Switching: toggles between 2 DisplayPort sources or displays
- Quick Switching: change video sources or displays without having to swap cables
- Durable Aluminium Alloy Casing: efficiently dissipates heat
- Portable and Compact Size: easy to install
- DisplayPort 1.4 Compliant: supports bandwidth up to 32Gbps
- Backwards Compatible: works with previous DP versions
- High Resolution Support: video resolution up to 8K@30Hz
- Plug and Play: powered by USB
Specifications
- DisplayPort Version: DP 1.4
- Video Resolution Support: Up to 8K@30Hz, 4K@120Hz, 2K@144Hz, 1080P@240Hz
- HDR Support: Yes
- Max Bandwidth: 32Gbps
- Max Cable Distance: 3M (Input + Output)
- Max Operation Current: 0.5A
- Power Input: USB-C, DC 5V (power adapter is not included)
- Operating Temperature: -15°C to +55°C
- Dimensions (L x W x H): 59 x 53 x 15mm
- Weight: 35g
Important Notes:
For stable connection, the max total cable lengt
Package Contents
- 1x Bi-Directional DisplayPort Switch
- 1x DisplayPort Cable
- 1x USB Power Cable
