Description
The Simplecom KM490 is a dual monitor KVM switch that allows two computers to share two displays and four USB peripherals. Equipped with both HDMI 2.1 and DisplayPort 1.4 display ports, it supports extended or mirrored display modes with video resolution of up to 8K at 60Hz for crystal-clear visuals. The integrated 4-port USB 3.0 hub toggles together with the displays, and the four SuperSpeed USB ports offer data transfer rates of up to 5Gbps for mice, keyboards, USB drives, printers and more. It is backward compatible with earlier versions of USB, HDMI and DP. Switching between computers is simple using the on-device toggle button or the remote control. Installation is plug and play with no drivers required and multi-platform compatibility. The durable aluminium alloy casing ensures long-lasting use and efficient heat dissipation, while LED indicators show power and active computer status. The switch also works in single monitor mode.
Features
- Dual Monitor KVM Switch: Allows 2 computers to share 2 displays and 4 USB ports
- Dual Display Ports: HDMI and DisplayPort support extended or mirrored modes
- 8K Video Support: HDMI 2.1 and DP 1.4 compliant, up to 8K@60Hz resolution
- Integrated USB 3.0 Hub: 4-port hub toggled with the display simultaneously
- SuperSpeed USB Ports: Data transfer rate of up to 5Gbps for mouse, keyboard, USB drive, printer and more
- Backward Compatible: Works with previous versions of USB, HDMI and DP

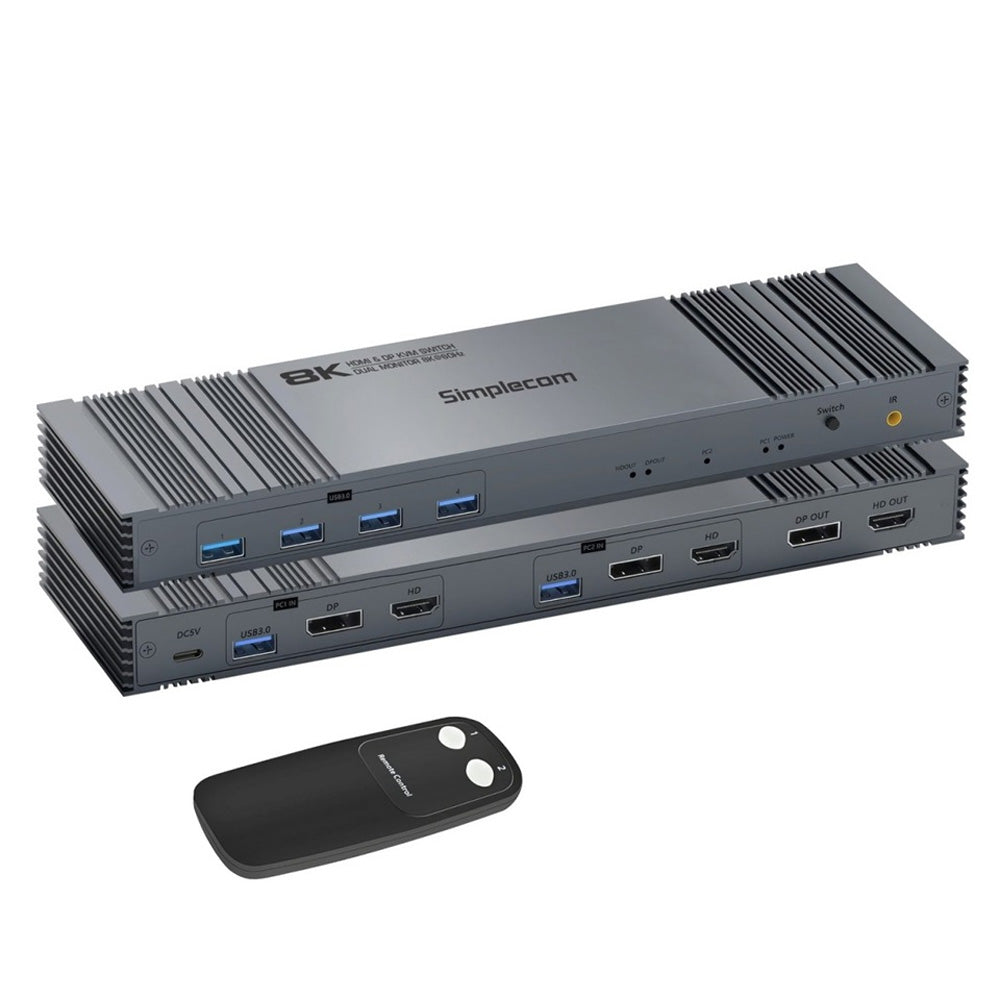

- Easy Switching: Toggle button on the KVM switch or remote control
- Plug and Play: No driver required with multi-platform compatibility
- Aluminium Alloy Casing: Durable with efficient heat dissipation
- LED Indicators: Show power and active computer status
Specifications
- Brand: Simplecom
- Product Type: Dual Monitor KVM Switch

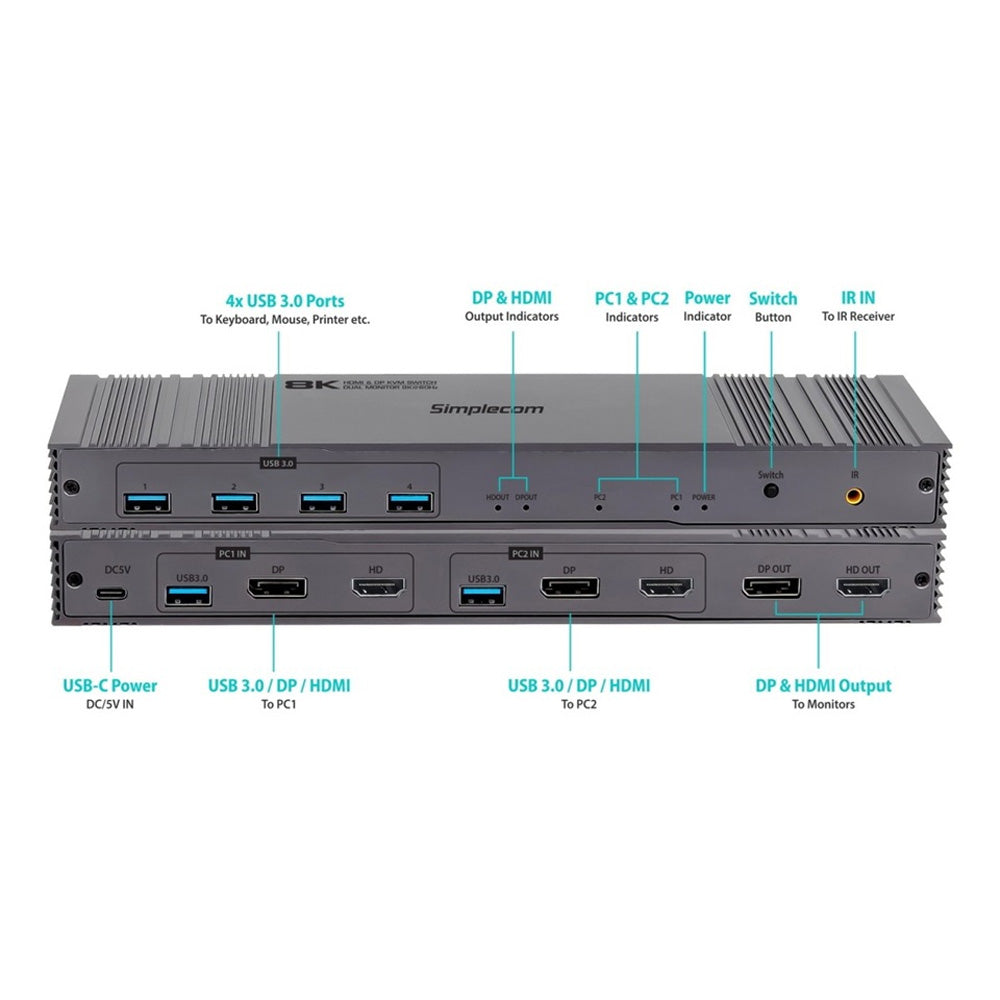

- USB Upstream Ports: USB 3.0 AF x2 (Connect to PC1 and PC2)
- USB Downstream Ports: USB 3.0 AF x4 (Connect USB peripherals)
- Monitor Input: HDMI 2.1 x2, DP 1.4 x2 (Connect to PC1 and PC2)
- Monitor Output: HDMI 2.1 x1, DP 1.4 x1 (Connect to displays)
- Power Input: USB-C, DC 5V (power input only, no data transfer function)
- USB Max Bandwidth: SuperSpeed 5Gbps
- Video Max Bandwidth: Up to 48Gbps
- Max Video Resolution: 8K@60Hz (7680x4320), 4K@144Hz (3840x2160), 2K@165Hz (2560x1440), 1080p@240Hz (1920x1080)
- Max Cable Length for Input/Output: ≤3m for 8K@60Hz, ≤5m for 4K@60Hz
- Operating Temperature Range: -5°C to 45°C
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Dimensions (L x W x H): 25.9 x 7.4 x 2.6cm
- Weight: 468g
- Operating System Support: Windows, MacOS, Linux, Chrome OS
Important Note
- Powered by USB, the USB-C power cable can be plugged into a USB port on the computer for 4K@60Hz or lower resolution
- A USB power adapter is required for 8K@60Hz, 4K@120Hz and higher refresh rates
- For a stable connection, please use high quality DP and HDMI cables
- For 8K compatibility, DP 1.4 and HDMI 2.1 cables are required
- This KVM switch also works in single monitor mode
- It is recommended to adjust to the same resolution and refresh rate on both computers for smooth switching
Package Contents
- 1 x Dual Display KVM Switch
- 2 x USB-A to USB-A 5Gbps Data Cables
- 1 x USB-C Power Cable
- 1 x 5V USB Power Adapter
- 1 x Remote Control
- 1 x IR Receiver Cable for Remote
