Description

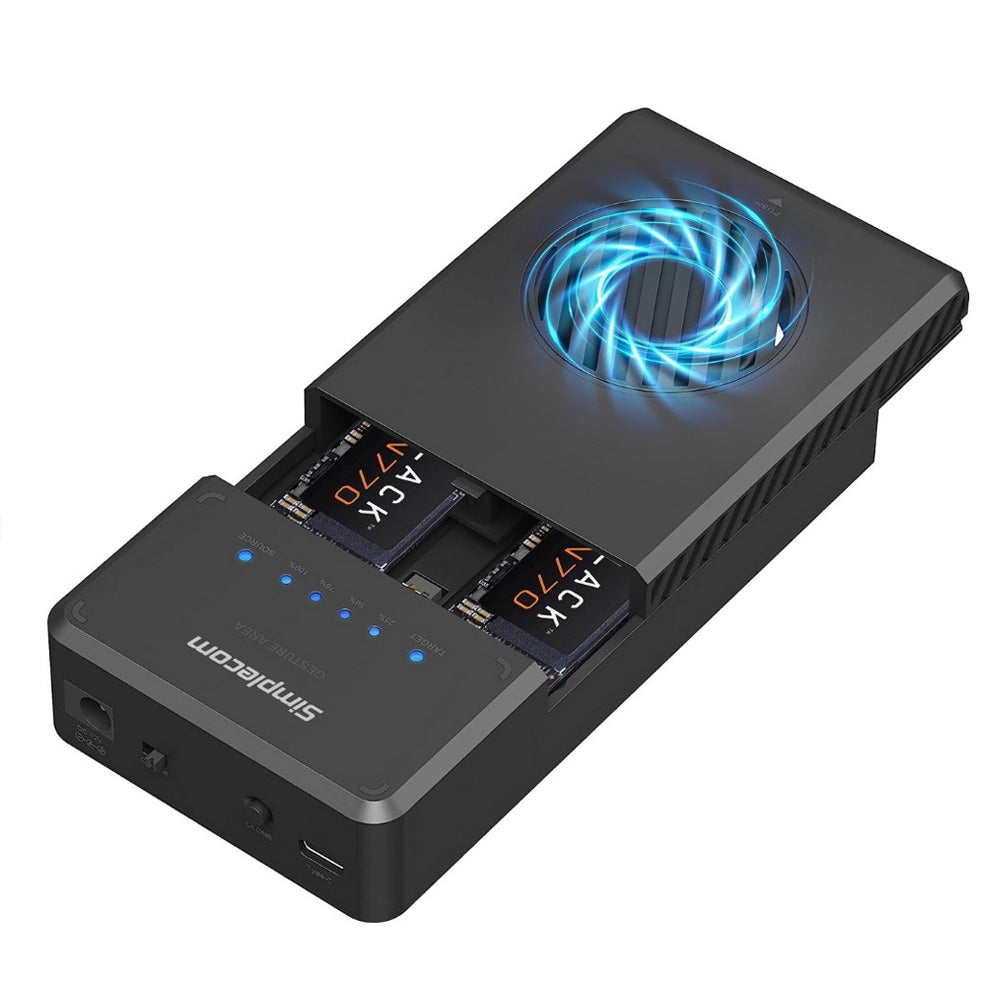

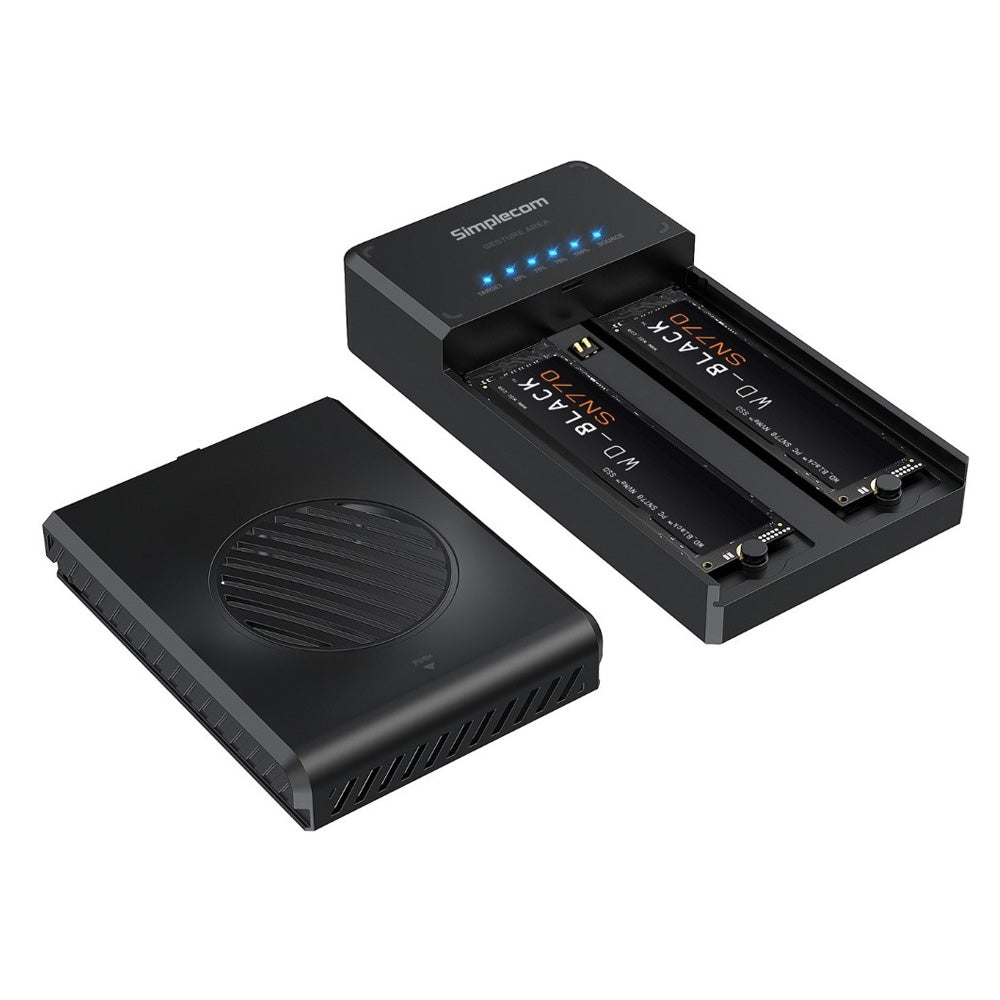

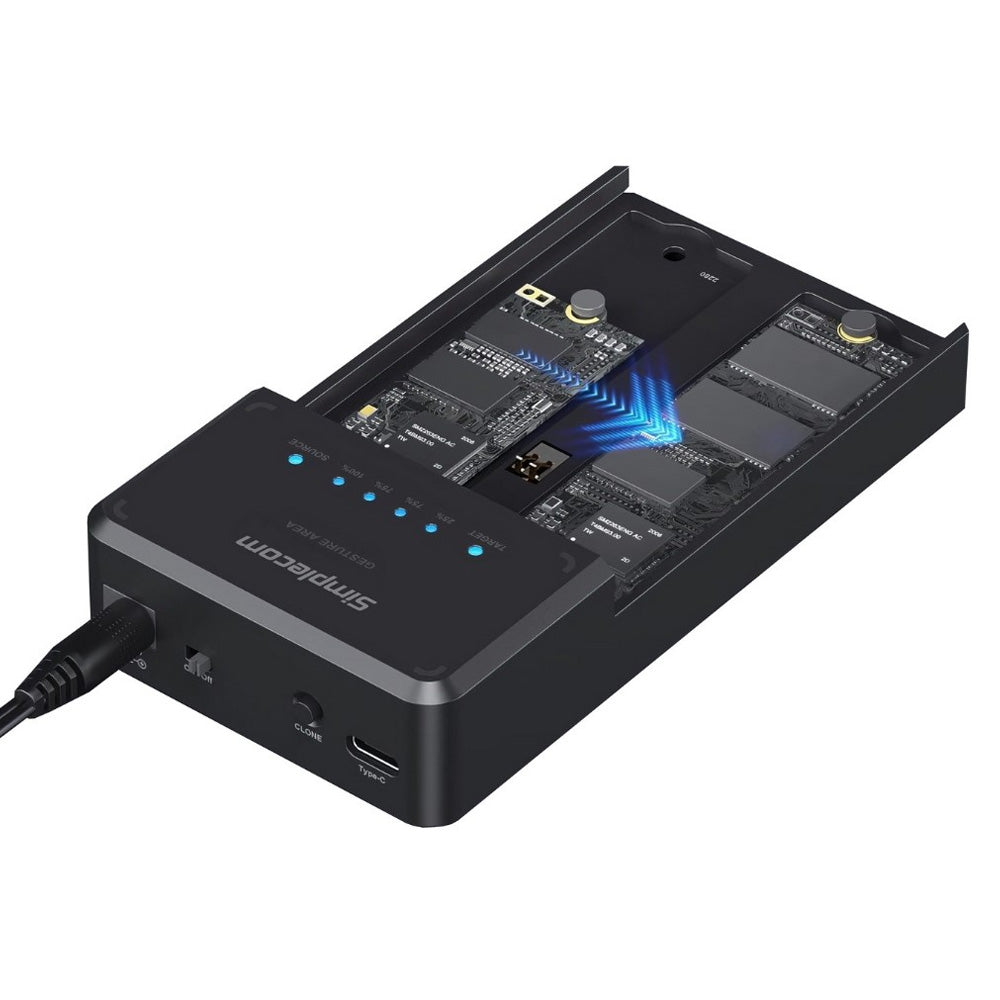

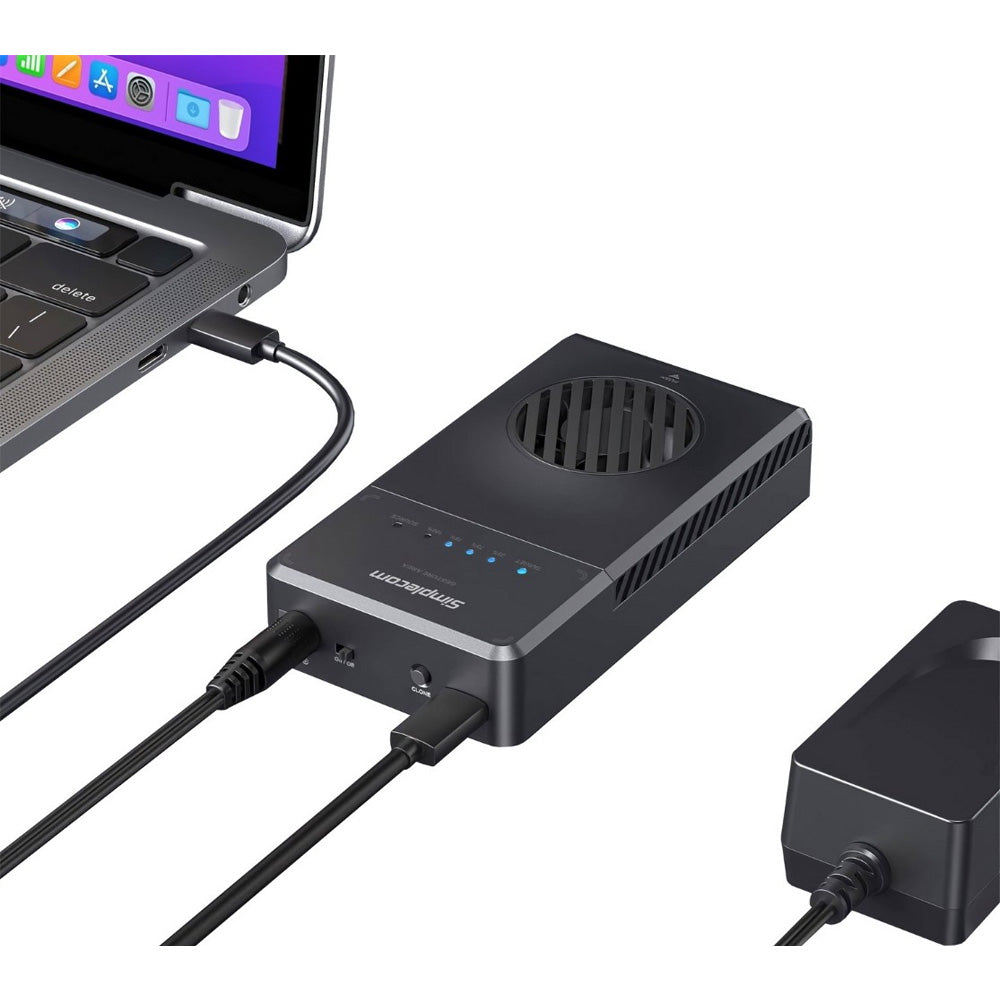

The Simplecom SD560 is a dual bay NVMe M.2 SSD docking station and enclosure that supports NVMe M.2 SSDs only. It lets you access data from two NVMe M.2 slots simultaneously, and with multi-LUN support each slot has its own separate drive letter. The USB 3.2 Gen2 interface delivers data transfer rates of up to 10Gbps. Offline clone support allows standalone duplicating and cloning without a host computer. A built-in cooling fan significantly reduces operating temperature, and intelligent fan control switches it off automatically when the SSD is idle. The compact and portable design saves and tidies your desktop space, while an LED light indicates power and activity status.
Features
- Dual Bay Docking: Supports two NVMe M.2 SSDs, NVMe M.2 SSDs only
- Simultaneous Access: Access data from two NVMe M.2 slots at the same time
- Multi-LUN Support: Each slot has a separate drive letter
- USB 3.2 Gen2 Interface: Supports data transfer rates of up to 10Gbps
- Offline Clone: Standalone duplicating and cloning without a host computer
- Built-in Cooling Fan: Significantly reduces operating temperature
- Intelligent Fan Control: Fan switches off automatically when the SSD is idle
- Compact and Portable Design: Saves and tidies your desktop space
- LED Indicator: Shows power and activity status
Specifications
- Brand: Simplecom
- Product Type: Dual Bay NVMe M.2 SSD Docking Station
- Interface: USB-C (USB 3.2 Gen 2)
- Transfer Rate: Up to 10Gbps
- SSD Support: NVMe M.2 Only
- SSD Size Support: 2230 / 2242 / 2260 / 2280
- Multi-LUN Support: Yes
- DC Input: 12V 2A
- Material: ABS, Aluminium
- Net Weight: 115g
- Dimensions: 125 x 65 x 25mm
- Cooling Fan: 4410 5V Fan (auto-on when SSD is reading or writing, auto-off when SSD is idle)
- Operating System Support: Windows 7 and above, Mac OS 10.8 and above
Package Contents
- 1 x SD560 Docking Station
- 1 x USB-C and USB-A Combo Cable
- 1 x Power Adapter (12V 2A)
- 1 x User Manual
