Description:

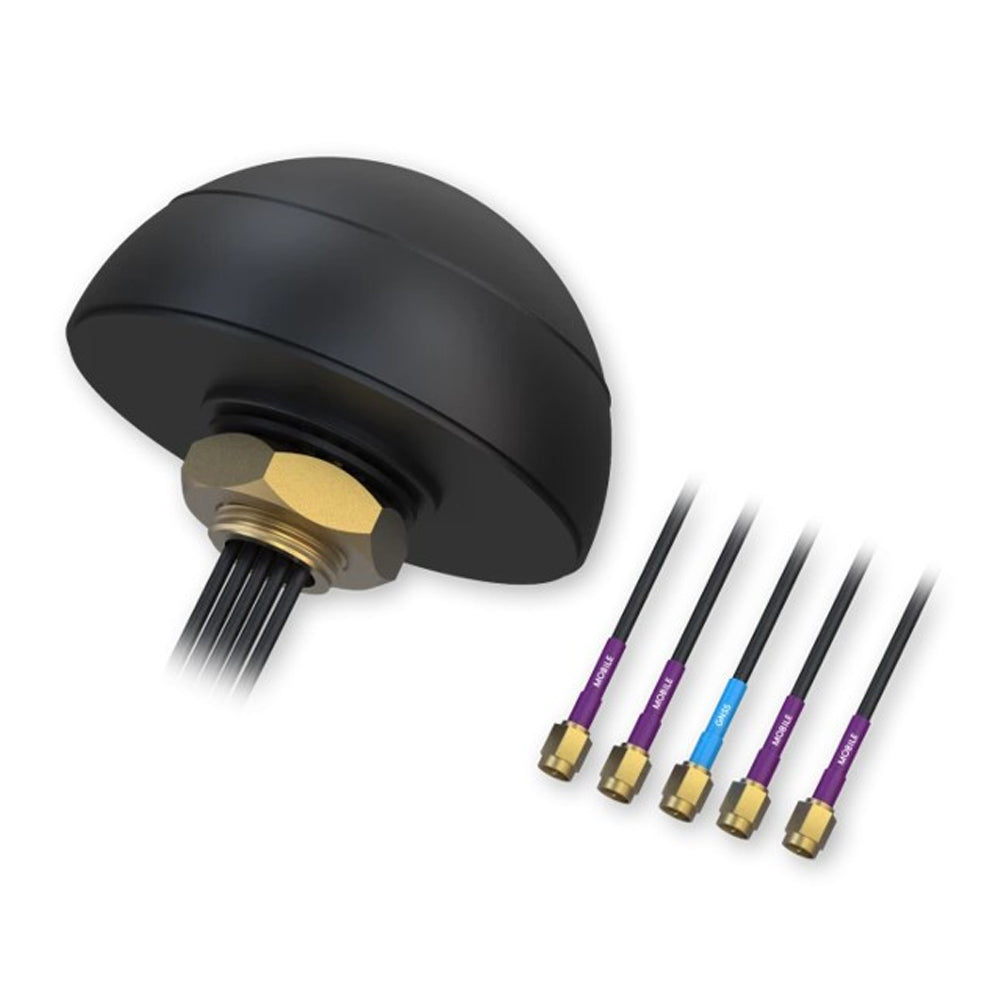

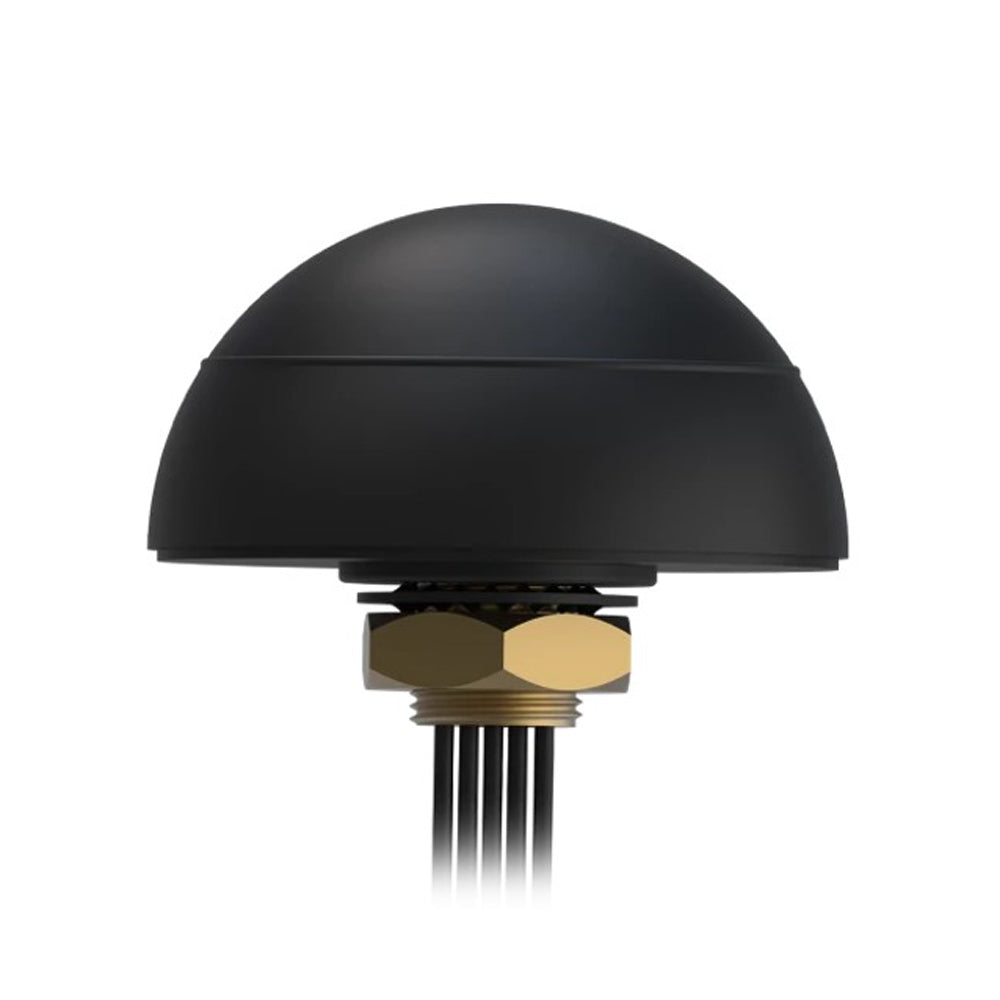

Bring mobile and GNSS connectivity together with this combo quad roof antenna from Teltonika. It combines mobile and GNSS reception in a single roof mounted unit, so you can cover both with one installation. Built with an ABS radome and an IP65 ingress protection rating, it is designed for reliable outdoor use and secure screw mounting.
Features:
- Combo quad antenna for mobile and GNSS
- Roof mounting design
- Covers both LTE and GNSS frequencies
- Durable ABS radome
- IP65 ingress protection rating
- RoHS compliant
Specifications:
- GNSS Frequency Range: 1575.42 MHz
- GNSS Polarisation: RHCP
- GNSS Impedance: 50 Ω
- GNSS LNA Gain: 28 ± 2 dB
- GNSS Supply Voltage: 3 to 5 VDC
- GNSS Current Consumption: Less than 15 mA
- GNSS V.S.W.R: Less than 2.0

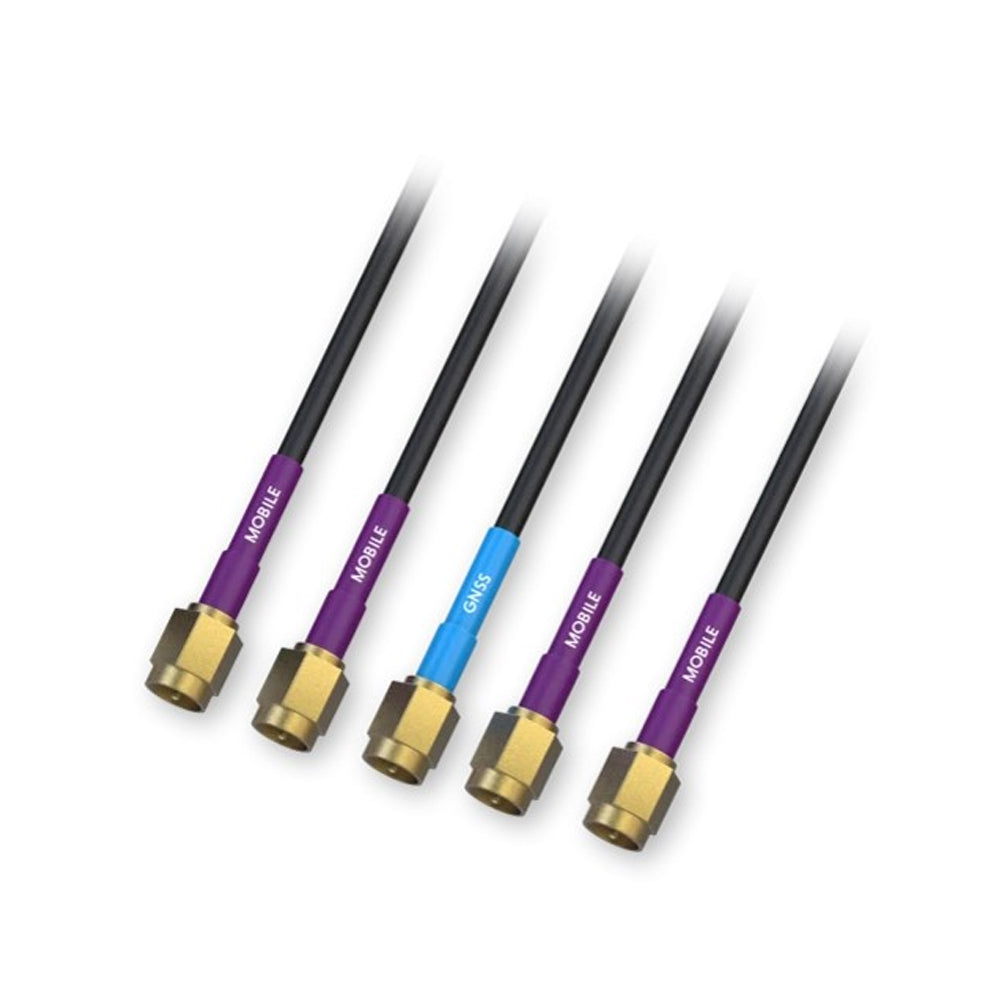

- GNSS Connector: SMA Male
- GNSS Cable: 1 x RG174, 3000 mm
- LTE Frequency Range: 698 to 960 MHz / 1710 to 2690 MHz
- LTE Polarisation: Linear
- LTE Impedance: 50 Ω
- LTE Gain: 3 dB
- LTE V.S.W.R: Less than 3.0
- LTE Connector: SMA Male
- LTE Cable: 4 x RG174, 3000 mm
- Mounting Method: Screw
- Operating Temperature: -40 °C to +85 °C
- Operating Relative Humidity: Less than 95%
- Diameter: 110.6 mm
- Height: 53.0 mm
- Weight: 540 g
Package Contents:
- 1 x Teltonika Combo Quad Mobile/GNSS Roof SMA Antenna
