Description:

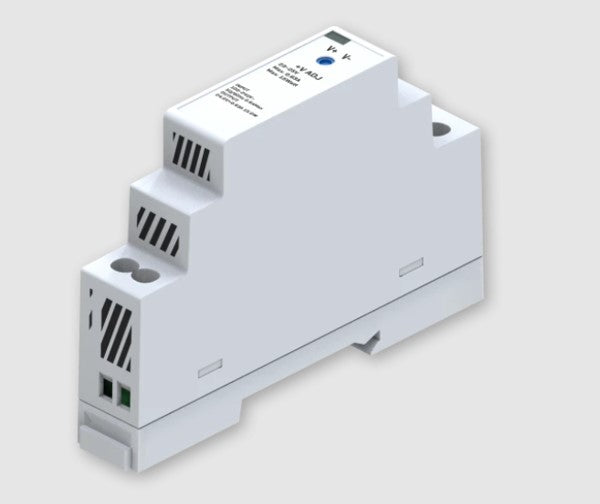

Power your industrial and networking equipment with this 15W DIN rail power supply from Teltonika. It accepts a wide 90 to 264 VAC input at 50/60 Hz and delivers a steady 24 VDC output at 0.63 A. Built-in short circuit protection helps keep connected devices safe, and the screw terminal input and output connectors make wiring simple and secure.
Features:
- Slim DIN rail design
- Built-in short circuit protection
- Screw terminal input connector
- Screw terminal output connector
- Wide input voltage range
- Reliable power for connected equipment
Specifications:
- Output Power: 15 W
- Input Voltage: 90 to 264 VAC
- Input Frequency: 50/60 Hz
- Input Current: 0.5 A
- Output Voltage: 24 VDC
- Output Current: 0.63 A
- Input Voltage Absolute Maximum: 85 to 264 VAC
- Input Frequency Absolute Maximum: 47 to 63 Hz
- Inrush Current: 45 A
- Output Voltage Absolute Maximum: 21.6 to 29 VDC
- HIPOT (Dielectric Withstand Test) Primary to Secondary: 3 kVAC
- Dimensions: 18 x 90 x 58 mm
- Weight: 0.078 KG
- Safety Certification: EN 62368-1:2014+A11:2017, BS EN 62368-1:2014+A11:2017
- EMC Certification: EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, BS EN 55032:2015+A11:2020, BS EN 55035:2017+A11:2020, BS EN IEC 61000-3-2:2019+A1:2021, BS EN 61000-3-3:2013+A1:2019
Package Contents:
- 1 x DIN Rail Power Supply 15W
