Description:

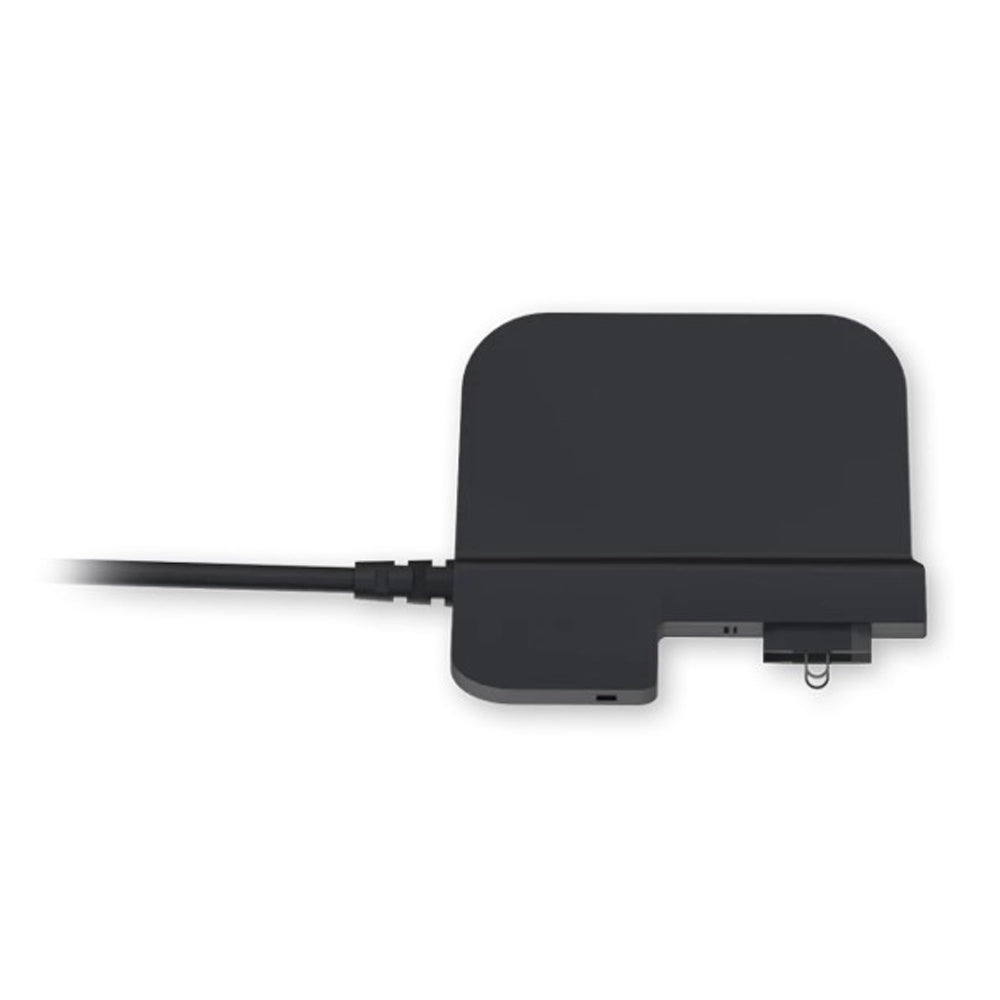

Power your Teltonika devices with this universal 9W power supply from Teltonika. It delivers a stable 9 VDC output and accepts a wide input voltage range of 100 to 240 VAC. Interchangeable plugs for EU, AU, UK and US outlets make it easy to use in different regions, and built-in protection and low standby power add extra reliability for your setup.
Features:
- Universal design for use in different regions

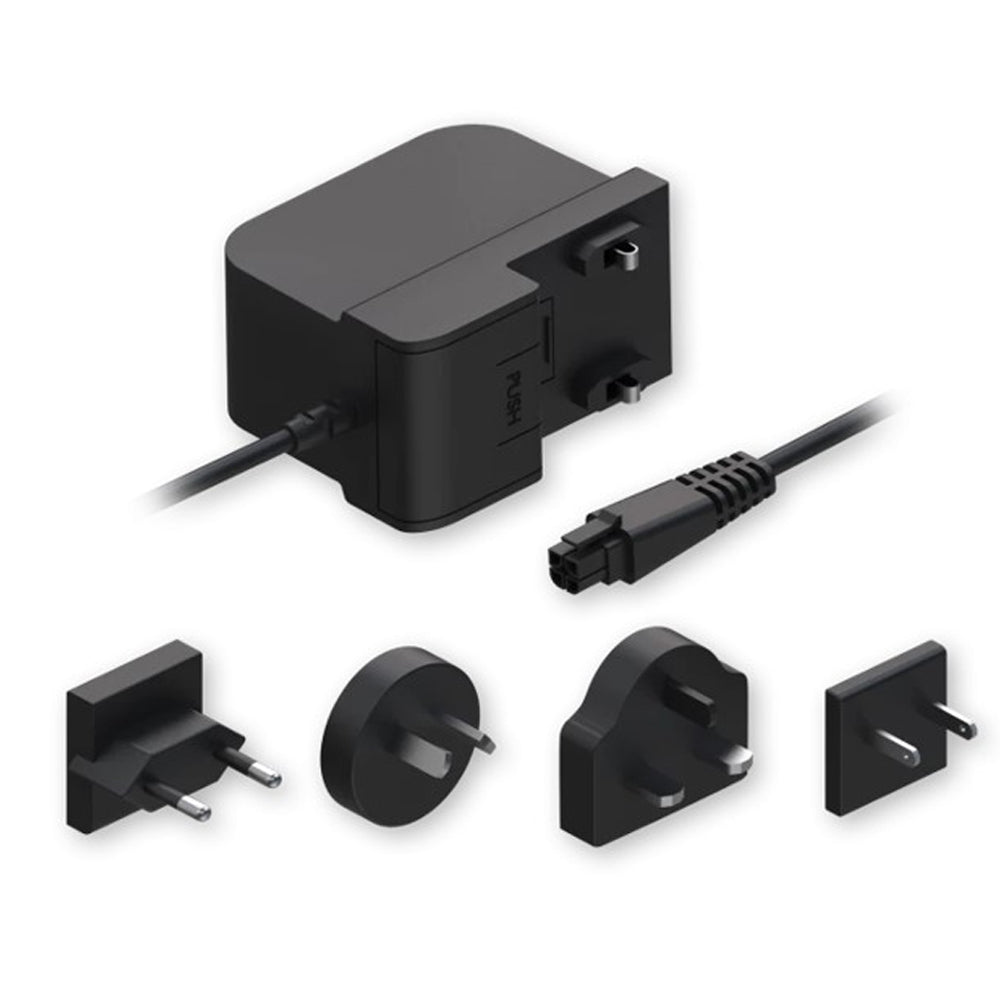

- Interchangeable EU, AU, UK and US plugs

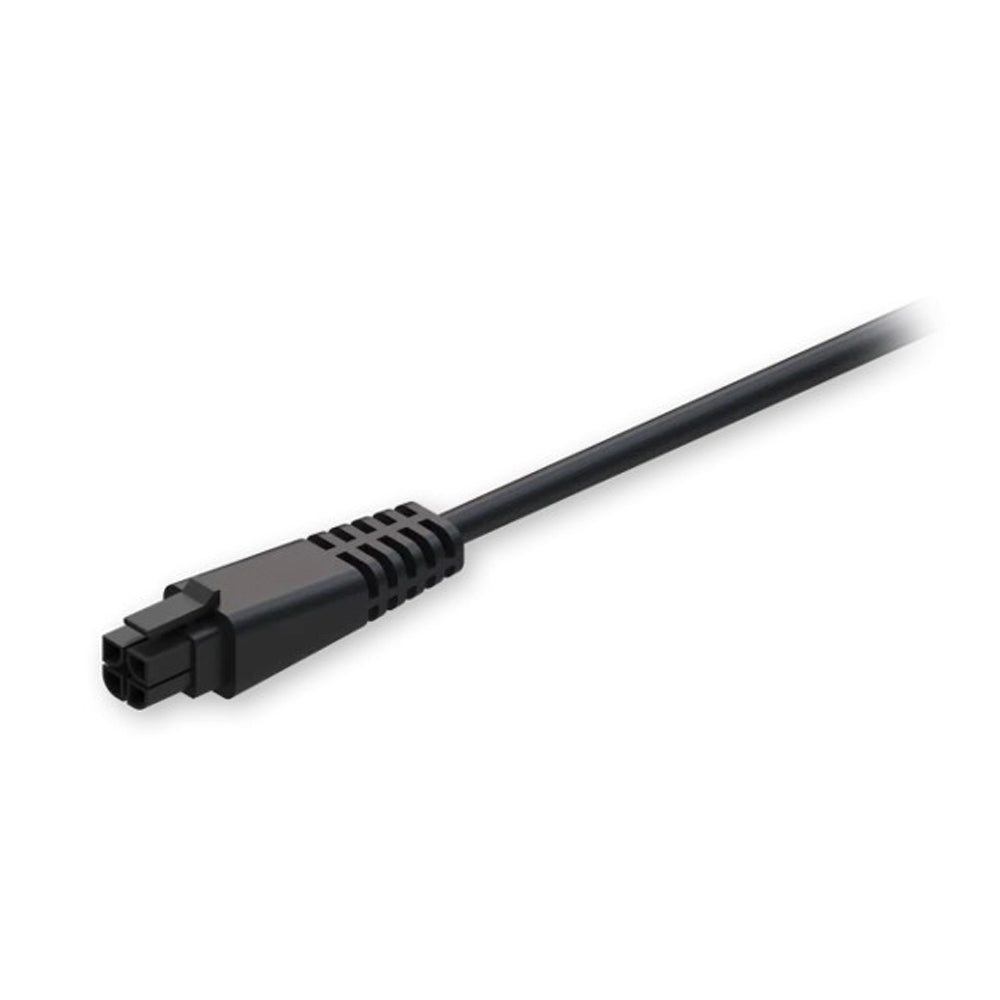

- 4-pin connector
- Output over current protection
- Low standby power
- Long 2 metre output cable
Specifications:
- Power Output: 9W
- Input Voltage: 100-240 VAC (absolute maximum 90-264 VAC)
- Input Frequency: 50/60 Hz (absolute maximum 47-63 Hz)
- Input Current: 0.45 A (absolute maximum)
- Inrush Current: 30 A rated, 60 A absolute maximum
- Leakage Current: 0.25 mA (absolute maximum)
- Output Voltage: 9 VDC (absolute maximum 8.55-9.45 VDC)
- Load Current: 1 A
- Ripple and Noise: 200 mV (absolute maximum)
- Output Over Current Protection: 2 A
- Standby Power: 0.1 W
- Average Efficiency: 81.34% (DoE Level VI)
- Output Connector: 4-pin, 3 mm pitch
- Cable Length: 2000 mm
- Hi-Pot Test: Primary to secondary 4000 VDC
- Lifetime: 30000 hours minimum
- EMC Certification: EN 55032:2015, FCC Part 15B
- EMI Certification: EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004
- Safety Certification: EN 62368-1:2014+A11:2017, UL 62368-1:2014 Ed.2, CSA C22.2 No. 62368-1:2014 Ed.2, AS/NZS 62368.1:2018
Package Contents:
- 1 x Teltonika Universal Power Supply 9W
