Description:

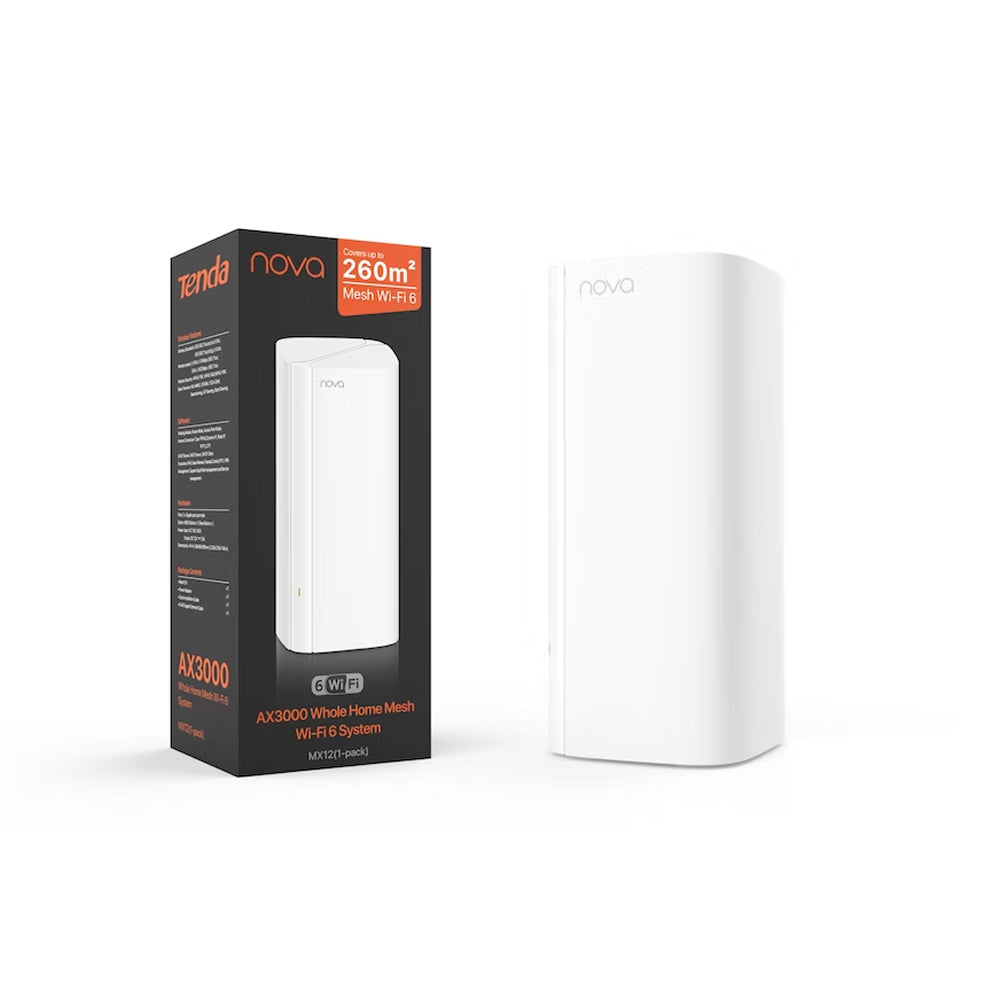

This Tenda Nova product is an AX3000 whole home mesh Wi-Fi 6 system built to deliver ultra-fast, stable coverage throughout your home. Powered by a 1.7GHz quad core Broadcom high performance processor, it reaches dual band concurrent speeds of up to 3000Mbps, supporting smooth streaming, gaming, and multiple device usage. With 160MHz bandwidth support, the MX12 unlocks the true power of Wi-Fi 6 for faster, more responsive connections. One Wi-Fi name and seamless roaming keep your devices connected to the strongest signal as you move through your home, while MU-MIMO and OFDMA technology handle over 160 devices without stress. Compatible with Amazon Alexa, this system supports IPv6, WPA3 security, auto-backhaul, and IPTV for a modern and secure networking experience.
Features:
- AX3000 dual band concurrent speed for fast whole home coverage
- 1.7GHz quad core Broadcom high performance processor
- 160MHz bandwidth support for enhanced Wi-Fi 6 performance
- One Wi-Fi name with seamless roaming across all units
- MU-MIMO and OFDMA technology for smooth multi device connections
- Supports over 160 connected devices simultaneously
- Compatible with Amazon Alexa for voice controlled guest network access
- Additional Gigabit port for more wired connection options
- Flexible management through the Tenda WiFi App
- WPA3-SAE and WPA2-PSK security support
- Supports IPv6, IPTV, and Ethernet backhaul
Specifications:
- Standard and Protocol: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Ethernet Interface: 3 x 10/100/1000Mbps RJ45 ports per node
- Antenna: 4 x 3dBi Internal antenna
- Buttons: 1 x Reset Button, 1 x MESH Button
- Power: Input AC 100-240V, 50/60Hz; Output DC 12V, 1.5A
- Dimension: 86 x 86 x 190 mm (3.39 x 3.39 x 7.48 in)
- LED Indicator: 1 x Tri-colour LED Indicator (Green, Yellow, Red)
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
- Wireless Roaming: Complies with IEEE802.11k/v
- Mesh Network Standard: Wi-Fi EasyMesh
- Rate: 574Mbps at 2.4GHz (802.11ax), 2402Mbps at 5GHz (802.11ax)
- Frequency: CE 2.4G 2412-2472MHz (CH1-CH13), 5G 5150-5350MHz (CH36-CH64); FCC 2.4G 2412-2462MHz (CH1-CH11), 5G 5150-5350MHz (CH36-CH64) and 5725-5850MHz (CH149-CH165)
- Transmission Power: CE less than 20dBm (2.4GHz), less than 23dBm (5GHz); FCC less than 30dBm (2.4GHz), less than 30dBm (5GHz)
- Basic Features: Beam Forming, MU-MIMO, AP Steering, Band Steering, OFDMA, 1024-QAM
- Wireless Security: WPA3-SAE/WPA2-PSK
- Operating Mode: Router Mode, AP Mode
- Internet Connection Type: PPPoE, Dynamic IP, Static IP, PPPoE (Russia), PPTP (Russia), L2TP (Russia)
- DHCP Server: DHCP Server, DHCP Client List
- Virtual Server: Port Forwarding, DMZ Host, UPnP
- Parental Control: Client Filter, URL Filter, Time Limit
- Firewall: Forbid TCP/UDP flood attack
- VPN: PPTP Server, PPTP/L2TP Client
- DNS: Support manually setting DNS server
- Special Features: Ethernet Backhaul, IPv6, IPTV
- Others: Support App and web management, Guest Network, Firmware upgrade online
- Operation Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- App Installation: Available in iOS 9.0 or later, Android 4.4 or later
- Certification: CE, FCC, RoHS
- Colour: White
Package Contents:
1x Mesh12X Unit
1x Power Adapter
1x QIG
1x RJ45 Gigabit Ethernet Cable
