Description

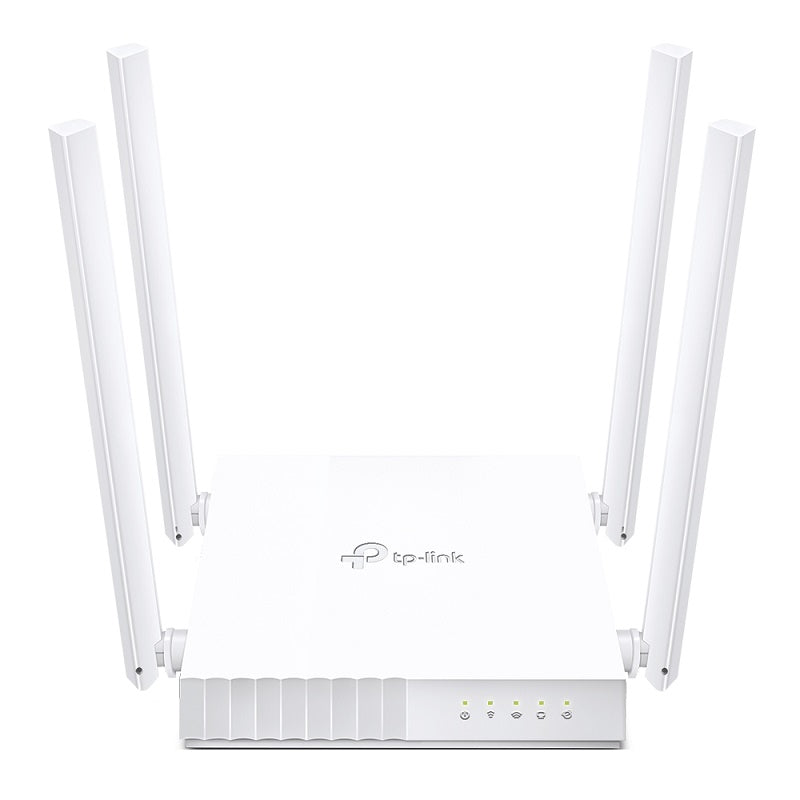

The TP-Link Archer C24 is a compact AC750 dual-band Wi-Fi router designed to deliver reliable wireless connectivity for apartments, small homes, and home offices. With simultaneous 2.4GHz and 5GHz bands, it provides combined wireless speeds of up to 733Mbps, making it ideal for HD streaming, web browsing, online gaming, and everyday internet use.
Equipped with four fixed high-performance antennas, the Archer C24 enhances signal coverage and stability throughout your home. It supports three versatile operating modes—Router, Access Point, and Range Extender—allowing you to adapt your network to different environments and requirements. Advanced features such as parental controls, guest networks, QoS, IPv6 support, and IPTV compatibility ensure secure, flexible, and efficient networking for the whole family.
Features
• AC750 dual-band Wi-Fi delivers combined wireless speeds up to 733Mbps.
• Dual-band technology reduces interference for smoother connections.
• Four fixed antennas improve wireless coverage and signal stability.
• Supports Router, Access Point, and Range Extender operating modes.
• Dedicated 5GHz band provides faster streaming and gaming performance.
• Smart QoS prioritises bandwidth for important devices and applications.
• Guest Network keeps visitor access separate from your private network.
• Built-in parental controls help manage internet access for family members.
• IPv6 support ensures compatibility with modern internet services.
• IPTV and IGMP support enable smooth multimedia streaming.
• Compact design fits neatly into homes, apartments, and small offices.
• Easy setup and management through the TP-Link Tether app.
Specifications
Wireless
- Wi-Fi Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/b/g 2.4GHz
- Wi-Fi Speed: AC750
- 5GHz: Up to 433Mbps
- 2.4GHz: Up to 300Mbps
- Wi-Fi Bands: Dual-Band
- Wi-Fi Range: Four fixed high-performance antennas
- Working Modes: Router Mode, Access Point Mode, Range Extender Mode
Hardware
- Processor: Single-Core CPU
- WAN Port: 1 × 10/100Mbps WAN
- LAN Ports: 4 × 10/100Mbps LAN
- Buttons: WPS, Reset
- Power Input: 5V DC, 0.6A
Security
- Wireless Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
- Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
- Guest Network:
- 1 × 2.4GHz Guest Network
- 1 × 5GHz Guest Network
Software
- Supported Protocols: IPv4, IPv6
- Parental Controls: URL Filtering, Time Controls
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- NAT Features: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping
- DHCP: Server, DHCP Client List, Address Reservation
- Dynamic DNS: NO-IP, Comex, DynDNS
- Management: TP-Link Tether App, Web Interface
Physical
- Dimensions: 115 × 106.7 × 24.3mm
Environmental
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
Certifications
Package Contents
TP-Link Archer C24 Wireless AC750 Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
