Description

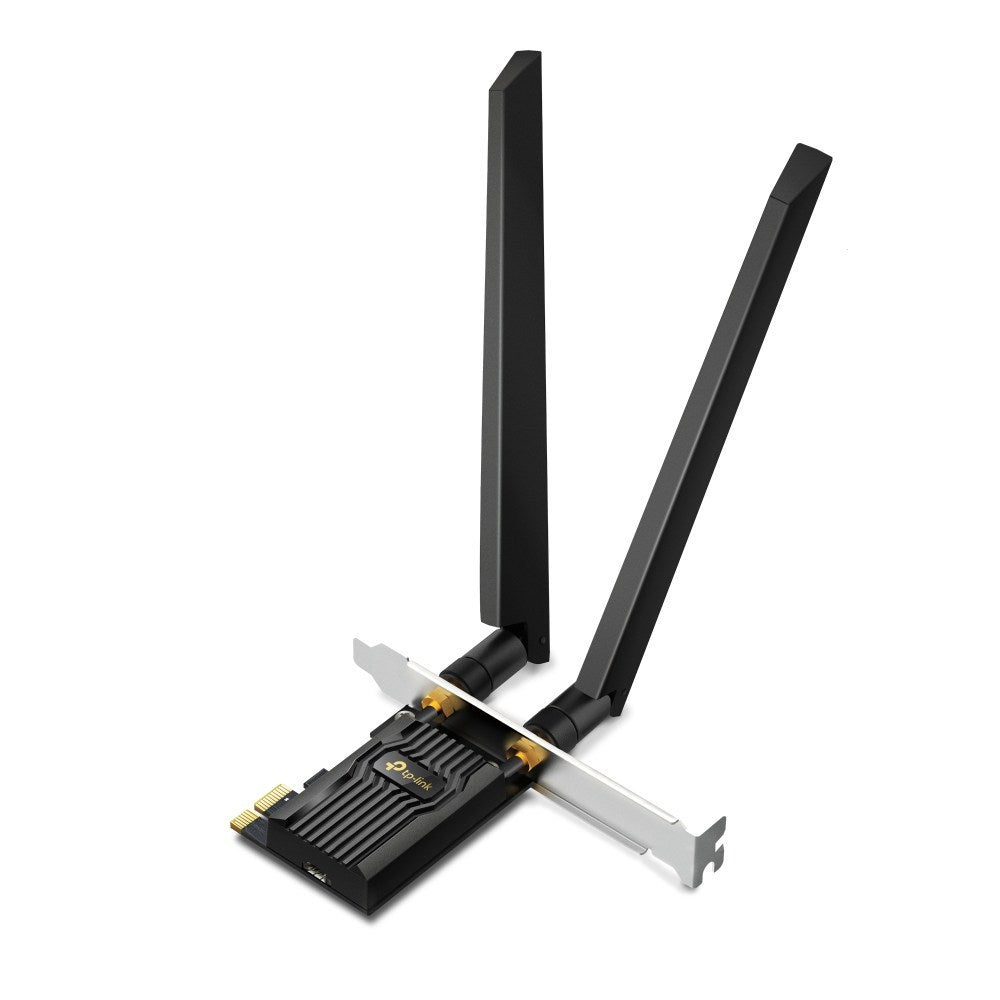

Experience unparalleled tri-band speed with this AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter. Boost your overall wireless speeds up to a combined 2402Mbps on 6GHz, 2402Mbps on 5GHz, and 574Mbps on 2.4GHz, leveraging the latest Wi-Fi 6E standard to expand into the clearer, broader 6GHz band for more bandwidth and faster speeds. Two multi-directional, high-gain tri-band antennas are designed for optimal signal reception, delivering wider signal coverage throughout your space. Bluetooth 5.3 connectivity brings improved security and reliability over previous generation Bluetooth 5.2, while the latest WPA3 security enhancement provides stronger protection for personal password safety. Gold plating on the adapter improves stability and performance even under high CPU temperatures, ensuring reliable long-term operation, and full backward compatibility with 802.11ax/ac/a/b/g/n standards ensures broad device support.
Features
- Tri-band speeds up to 2402Mbps (6GHz) + 2402Mbps (5GHz) + 574Mbps (2.4GHz)
- Wi-Fi 6E standard unlocks the clearer, broader 6GHz band for more bandwidth
- Two multi-directional, high-gain antennas for optimal signal reception and wider coverage
- Bluetooth 5.3 for improved security and reliability over Bluetooth 5.2
- WPA3 security enhancement for stronger personal password protection
- Gold plating for improved stability and performance at high CPU temperatures
- Full backward compatibility with 802.11ax/ac/a/b/g/n standards
Specifications
- Dimensions (W x D x H): 2.2 x 1.4 x 0.4 in (55 x 36 x 11.5mm)
- Antenna: 2x High-Gain Tri-Band Antennas
- Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
- WLAN Signal Rate (6GHz): 11ax up to 2402Mbps
- WLAN Signal Rate (5GHz): 11ax up to 2402Mbps (dynamic), 11ac up to 1732Mbps (dynamic), 11n up to 300Mbps (dynamic), 11a up to 54Mbps (dynamic)
- WLAN Signal Rate (2.4GHz): 11ax up to 574Mbps (dynamic), 11n up to 400Mbps (dynamic), 11g up to 54Mbps (dynamic), 11b up to 11Mbps (dynamic)
- WLAN Reception Sensitivity (6GHz): 11ax HE160 MCS0 -86dBm, 11ax HE160 MCS11 -56dBm
- WLAN Reception Sensitivity (5GHz): 11ax HE80 MCS0 -90dBm, 11ax HE80 MCS11 -59dBm, 11a 54Mbps -77dBm, 11ac VHT80 MCS0 -92dBm, 11ac VHT80 MCS9 -64dBm
- WLAN Reception Sensitivity (2.4GHz): 11ax HE40 MCS0 -91dBm, 11ax HE40 MCS11 -60dBm, 11g 54Mbps -76dBm, 11n HT40 MCS7 -72dBm
- WLAN Transmit Power: 5GHz 20dBm(FCC)/15dBm(CE) (EIRP), 2.4GHz 20dBm(FCC)/16dBm(CE) (EIRP), 6GHz 12dBm(FCC)
- WLAN Modes: Infrastructure mode
- Wireless Security: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
- Certification: FCC, CE, RoHS
- Package Content: 2x High-Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD
- System Requirements: Windows 10, Windows 11 (64-bit); 6GHz band currently supported on Windows 11 only
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
- Accessories Specifications: Bluetooth Header Cable Length 0.3m
