Description:

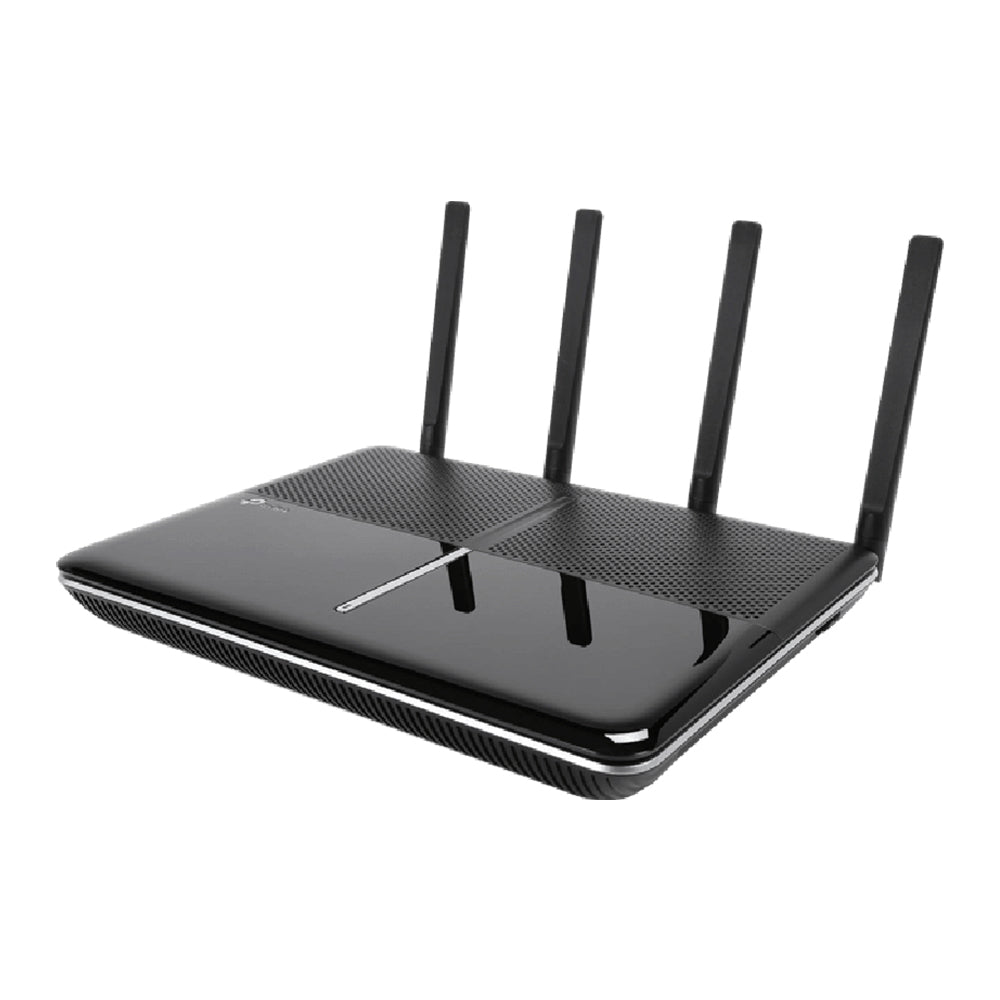

Positioned as the fastest VDSL modem router for the whole home network, the Archer VR2800 delivers wireless speeds of up to 2167Mbps on the 5GHz band and 600Mbps on 2.4GHz, powered by a combination of advanced Broadcom NitroQAM and 4-Stream technology that boosts data transfer speeds for every connected device. VDSL2 technology delivers broadband speeds of up to 100Mbps, with an integrated DSL port supporting all standard DSL connections for compatibility with most ISPs.
Features:
- Wireless speeds up to 2167Mbps (5GHz) and 600Mbps (2.4GHz)
- VDSL2 broadband speeds up to 100Mbps with broad ISP compatibility
- Wave 2 MU-MIMO technology for simultaneous multi-device data streaming
- Up to 4x faster speeds compared to standard AC routers
- Four external detachable dual-band antennas for maximum whole-home coverage
- Power amplifiers, low-noise amplifiers and beamforming for stronger signal reach
- Gigabit Ethernet LAN/WAN ports for high-speed wired connections
- Two USB 3.0 ports for fast file, photo, music and video sharing
- Industry-leading 1GHz dual-core CPU with two co-processors
- TP-Link Tether app for easy setup and remote management
- Parental controls and Guest Network for flexible, secure home network management
Specifications:
- Interface: 3 x 10/100/1000Mbps RJ45 LAN ports, 1 x 10/100/1000Mbps RJ45 WAN/LAN port, 1 x RJ11 port, 2 x USB 3.0
- Buttons: WPS, Wi-Fi, Reset, LED On/Off, Power On/Off
- External Power Supply: 12V/3.3A
- IEEE Standards: IEEE 802.3, 802.3u, 802.3ab
- VDSL2 Standards: ITU-T G.993.2 (up to 17a profile), G.993.5 (G.vector), G.998.4 (G.INP)
- ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), G.992.2 (G.Lite), G.994.1 (G.hs)
- ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)
- ADSL2+ Standards: ITU-T G.992.5
- Dimensions (W x D x H): 263.8 x 197.8 x 37.3 mm (10.4 x 7.8 x 1.5 in)
- Antenna Type: 4 x external detachable dual-band antennas (RP-SMA)
- NBN Compatibility: FTTN, FTTB (DSL modem router mode); FTTP, FTTH, HFC (wireless router mode)
- Wireless Standards: IEEE 802.11ac/n/a (5GHz), IEEE 802.11b/g/n (2.4GHz)
- Frequency: 2.4GHz and 5GHz
- Transmit Power: <20dBm (2.4GHz), <23dBm (5GHz) (CE)
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
- Quality of Service: ATM QoS, traffic control (IP QoS)
- Security: NAT firewall, SPI firewall, access control, service filtering, DoS protection, SYN flooding protection, ping of death protection, IP/MAC address binding
- Management: Web-based configuration (HTTP/HTTPS), remote management, CLI, SSL for TR-069, SNMP v1/2c, firmware upgrade, diagnostic tools
- Port Forwarding: Virtual server, port triggering, DMZ, ALG, UPnP
- VPN Pass-Through: OpenVPN, PPTP VPN, IPSec VPN
- Protocols: IPv4 and IPv6 support
- ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM, PPP over Ethernet, IPoA, MER/IPoE, Bridge, up to 8 PVCs
- Advanced Features: Parental controls, NAT, port mapping/grouping, static routing, DNS relay, DDNS, IGMP V1/V2/V3
- USB Sharing: Samba storage, FTP server, media server, printer server, 3G/4G modem, SFTP server, web storage
- Certification: CE, RCM, RoHS
- System Requirements: Windows 98SE through Windows 10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser; active internet service subscription
- Operating Temperature: 0°C–40°C
- Storage Temperature: -40°C–70°C
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
Package Contents
- 1x Archer VR2800 AC2800 modem router
- 1x External splitter
- 1x RJ11 DSL cable
- 1x RJ45 Ethernet cable
- 1x Power adapter
- 1x Quick installation guide
