Description:

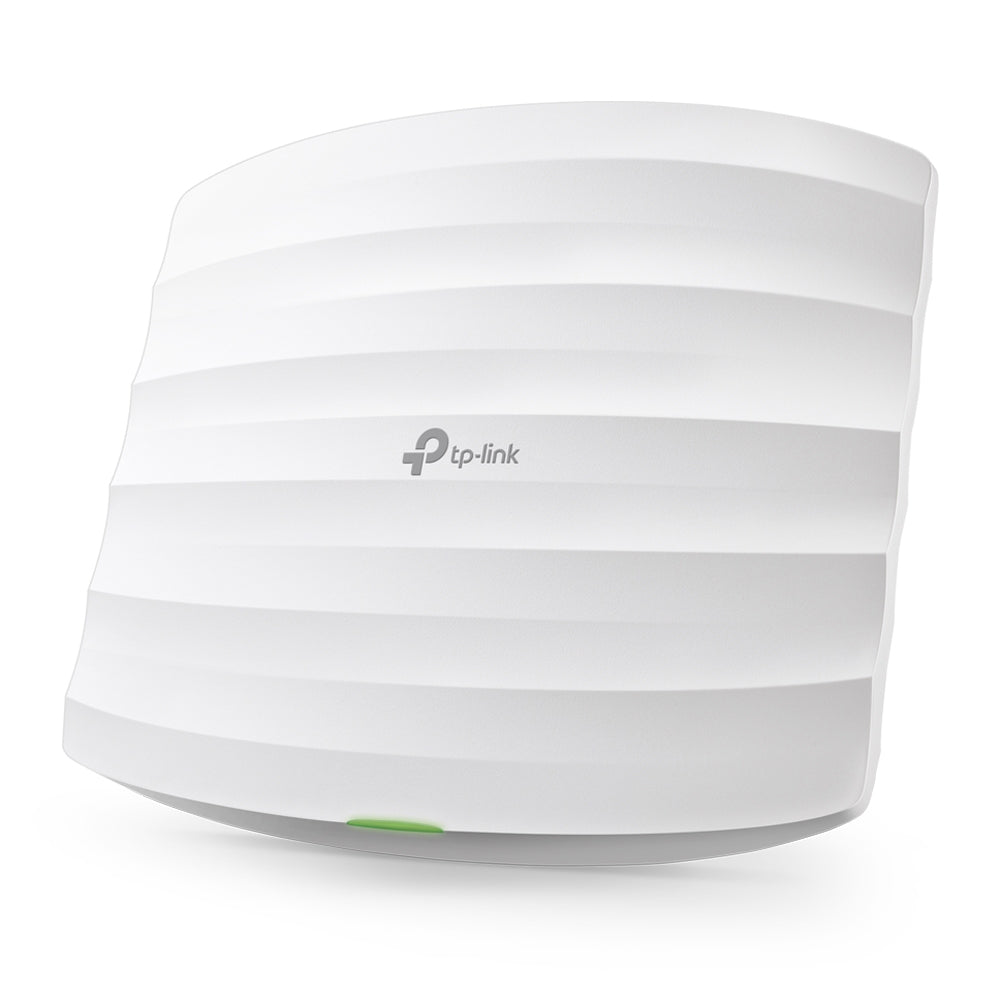

This TP-Link product is a 300Mbps wireless N ceiling mount access point built for business class networking with centralized cloud management. Integrated into the Omada SDN platform, it supports Zero-Touch Provisioning, centralized management, and intelligent monitoring, all controlled from a single interface anywhere. Passive PoE support simplifies deployment, while the compact design allows easy mounting to a wall or ceiling. A secure guest network with multiple authentication options, including SMS and Facebook Wi-Fi, helps maintain authorized access, and load balancing keeps performance steady even with many connected devices. Scheduling features let you automatically reboot the access point or control Wi-Fi availability at set times.
Features:
- Integrated into Omada SDN with Zero-Touch Provisioning
- Centralized cloud management through the Omada app
- Passive PoE support for convenient deployment
- Easy installation with simple wall or ceiling mounting design
- Secure guest network with multiple authentication options
- Load balancing to maintain optimal Wi-Fi performance
- Scheduling for automatic reboot and Wi-Fi on/off control
- Supports up to 8 SSIDs for flexible network segmentation
- Captive portal authentication for guest access management
- Rogue AP detection and SSID to VLAN mapping support
Specifications:
- Interface: Fast Ethernet (RJ-45) Port x1 (Supports Passive PoE)
- Button: Reset
- Power Supply: 24V Passive PoE (+4,5 pins; -7,8 pins, PoE Adapter Included)
- Power Consumption: 2.8W
- Dimensions: 7.5 x 6.8 x 1.2 in (189.4 x 172.3 x 29.5 mm)
- Antenna Type: Internal 2 x 4dBi Omni
- Mounting: Ceiling/Wall Mounting (Kits included)
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4 to 2.4835 GHz
- Signal Rate: 11n up to 300Mbps, 11g up to 54Mbps, 11b up to 11Mbps (dynamic)
- Wireless Functions: Multiple SSIDs (up to 8), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK
- Transmission Power: CE less than or equal to 19dBm (EIRP), FCC less than or equal to 21dBm
- Omada App: Yes
- Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- Management VLAN: Yes
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows 10/8/7/Vista/XP
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
- Colour: White
Package Contents:
1x TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point
1x Passive PoE Adapter
1x Power Cord
1x Mounting Kit
1x Installation Guide
