Description:

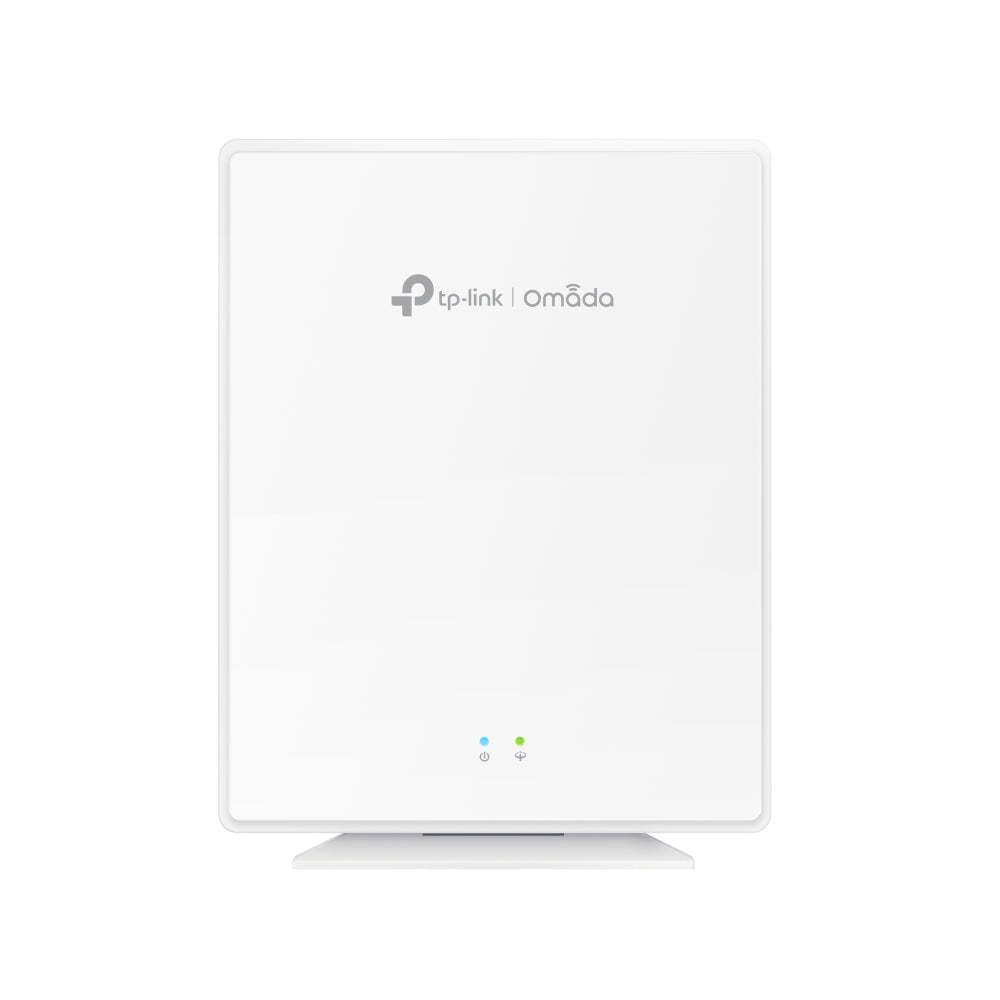

The TP-Link EAP610GP-Desktop is an AX1800 Wi-Fi 6 desktop GPON access point delivering combined speeds of up to 1.8Gbps, with 1201Mbps on 5GHz and 574Mbps on 2.4GHz. Featuring a built-in GPON port, it offers high-speed and ultra-range connectivity through a single fiber connection supporting wired, wireless, voice, VoIP, data, and HD video services. MU-MIMO technology and seamless roaming ensure ultra-broadband Wi-Fi 6 performance, while VoIP call support with multiple accounts and advanced call features goes beyond traditional landlines. One-click pairing and automatic adoption make setup effortless, and centralized management integrates seamlessly with the Unified Optical Solution. The device supports both desktop and wall mounting for flexible installation.
Features:
- AX1800 Wi-Fi 6 with speeds up to 1.8Gbps combined
- Built-in GPON port for high-speed, ultra-range access
- MU-MIMO technology with seamless roaming support
- Single fiber connection for wired, wireless, and voice services
- VoIP calls with support for multiple accounts and call features
- One-click pairing and automatic adoption for easy setup
- PPPSK and multiple portal support for smart operation and maintenance
- Supports both desktop and wall mounting configurations
- Centralized management through the Unified Optical Solution
- Guest network, band steering, and load balancing support
- Captive portal authentication for secure guest access
Specifications:
- Interface: 1 x GPON Port, 1 x FXS Port, 4 x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
- GPON Interface: Port Type SC-APC, Standards ITU-984.x, G.988 Class B+, Data Rate 2.488 Gbps Downstream / 1.244 Gbps Upstream, Fiber Type 9/125 um Single mode, Max Cable Length 20 km
- Button: Reset, LED
- Power Supply: 53.5V/0.81A DC
- Max Power Consumption: 17.3W (PoE Out Off)
- Weight: 492g
- Dimensions (W x D x H): 6.9 x 5.5 x 1.3 in (175 x 140 x 33 mm)
- Antenna: Internal Omni, 2.4GHz 2 x 5dBi, 5GHz 2 x 4.5dBi
- Mounting: Desktop/Wall mounting (Kits included)
- Coverage: 140 m² (1500 ft²)
- Concurrent Clients: 120+
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 1201 Mbps at 5GHz, 574 Mbps at 2.4GHz
- Wireless Functions: 2x2 MU-MIMO, HE80 (80MHz Bandwidth), OFDMA, Seamless Roaming, Multiple SSIDs (16 SSIDs, 8 per band), Enable/Disable SSID Broadcast, Enable/Disable Wireless Radio, Guest Network, Automatic Channel Assignment, Beamforming, Rate Limit, Band Steering, Load Balance, Airtime Fairness, Transmit Power Control, QoS (WMM), RADIUS Accounting, MAC Authentication, Reboot Schedule, Wireless Schedule and Statistics, Static IP/Dynamic IP
- Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power: CE less than 20dBm (2.4GHz), less than 23dBm (5GHz band1 & band2), less than 27dBm (5GHz band3); FCC less than 25dBm (2.4GHz), less than 25dBm (5GHz)
- Omada App: Yes
- Centralized Management: Omada Hardware Controller (OC300, OC200), Omada Software Controller, Omada Cloud-Based Controller
- Cloud Access: Yes, requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: System Log
- SSH: Yes
- Web-based Management: Yes
- Zero-Touch Provisioning: Yes, requires Omada Cloud-Based Controller
- Certification: CE, FCC, RoHS, IC
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- Colour: White
Package Contents:
1x TP-Link EAP610GP-Desktop Access Point
1x Desktop/Wall Mounting Kit
1x Installation Guide
