Description:

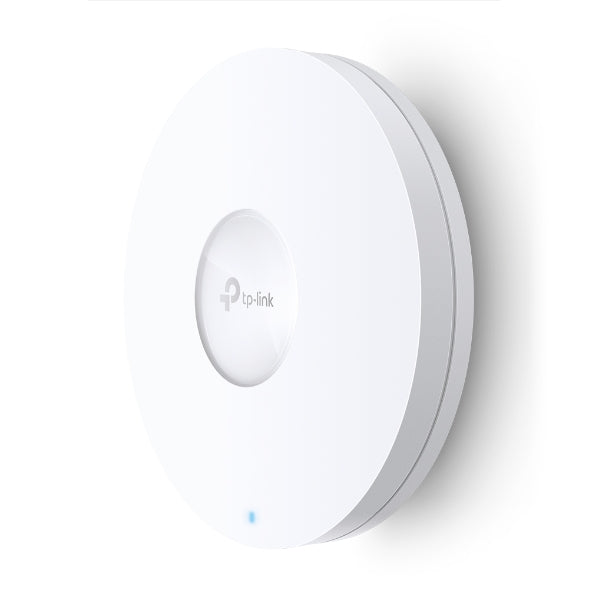

This TP-Link is a high performing AX1800 wireless access point built specifically for high-density environments such as hotels, shopping malls, meeting rooms, and railway stations. With MU-MIMO and OFDMA technology, it increases network capacity by up to 4 times compared to standard Wi-Fi 5, allowing more devices to connect simultaneously without slowdown. Supporting 1024-QAM and 4 spatial streams, it delivers speeds of up to 1201Mbps on 5GHz and 574Mbps on 2.4GHz. Seamless roaming keeps sensitive applications like VoIP and video conferencing running smoothly as users move between access points, while band steering, load balancing, and airtime fairness boost overall network efficiency. The refined industrial design allows quick push and rotate mounting, and secure guest network options with Facebook Wi-Fi and SMS login simplify visitor access.
Features:
- AX1800 Wi-Fi 6 built for high-density environments
- MU-MIMO and OFDMA for up to 4x increased network capacity
- 1024-QAM and 4 spatial streams for advanced speed performance
- Seamless roaming for uninterrupted VoIP and video conferencing
- Band steering for automatic connection to the faster 5GHz band
- Load balancing for smooth performance under heavy usage
- Airtime fairness to improve throughput in congested environments
- Easy push up and rotate to lock mounting design
- Secure guest network with Facebook Wi-Fi and SMS login
- Centralized management through Omada SDN platform
- Compatible with Omada Cloud-Based Controller for zero-touch provisioning
Specifications:
- Interface: 1 x Gigabit Ethernet (RJ-45) Port (Supports IEEE802.3at PoE and Passive PoE)
- Button: Reset
- Power Supply: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC
- Max Power Consumption: EU 14.4W (PoE), 13.1W (DC); US 14.9W (PoE), 13.4W (DC)
- Dimensions (W x D x H): 6.3 x 6.3 x 1.3 in (160 x 160 x 33.6 mm)
- Antenna: Internal Omni Antenna, 2.4GHz 2 x 4dBi, 5GHz 2 x 5dBi
- Mounting: Ceiling/Wall Mounting (Kits included), Junction Box Mounting
- Coverage: 140 m² (1500 ft²)
- Concurrent Clients: 1,020+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: Up to 1201 Mbps at 5GHz, up to 574 Mbps at 2.4GHz
- Wireless Functions: 1024-QAM, 4x Longer OFDM Symbol, OFDMA, Multiple SSIDs (up to 16, 8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power: CE less than 20dBm (2.4GHz), less than 23dBm (5GHz band1/2), less than 25dBm (5GHz band3); FCC less than 25dBm (2.4GHz), less than 25dBm (5GHz)
- Omada App: Yes
- Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller OC300, Omada Hardware Controller OC200, Omada Software Controller
- Cloud Access: Yes, through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes, requires Omada Cloud-Based Controller
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- Colour: White
Package Contents:
1x TP-Link EAP620 HD Access Point
1x Power Adapter
1x Ceiling/Wall Mounting Kit
1x Installation Guide
