Description:
Delivering fast, everyday Wi-Fi, this modem router combines superfast VDSL broadband speeds with 300Mbps wireless performance for reliable home or office connectivity. Versatile connectivity is built in, with DSL and LAN/WAN ports making it fully compatible with VDSL2, ADSL2+, ADSL2 and ADSL standards, while also supporting fibre or cable access via Ethernet WAN. Boosted VDSL2 technology delivers broadband speeds of up to 100Mbps, nearly five times faster than ADSL2+, with an integrated DSL port supporting all standard DSL connections for broad ISP compatibility.
Features:
- 300Mbps wireless N speed on the 2.4GHz band
- Versatile connectivity supporting VDSL2, ADSL2+, ADSL2 and ADSL standards
- 4 x 10/100Mbps LAN/WAN ports plus 1 RJ11 port
- Multi-functional USB 2.0 port for file, storage and media sharing
- Two external 5dBi high-gain antennas for far-reaching wireless coverage
- 6kV lightning protection to guard against electrical damage
- Parental controls to limit online time and device access
- Guest network for a separate, secure visitor Wi-Fi connection
- Intuitive web-based interface for effortless setup and management
Specifications:
- Interface: 4 x 10/100Mbps RJ45 ports, 1 x RJ11 port, 1 x USB 2.0 port
- Buttons: 1 Power On/Off, 1 WPS/Reset, 1 Wi-Fi On/Off switch
- External Power Supply: 12VDC/1A
- IEEE Standards: IEEE 802.3, 802.3u
- VDSL2 Standards: ITU-T G.993.2, G.993.5 (G.vector), G.998.4 (G.INP)
- ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), G.994.1 (G.hs), G.995.1
- ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis)
- ADSL2+ Standards: ITU-T G.992.5
- Dimensions (W x D x H): 195 x 130 x 36 mm (7.7 x 5.1 x 1.4 in)
- Antenna Type: Omni-directional, fixed
- Antenna Gain: 2 x 5dBi
- Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
- Frequency: 2.400–2.4835 GHz
- Transmit Power: <20dBm (EIRP)
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, wireless MAC filtering
- Quality of Service: WMM, bandwidth control (IP QoS)
- Security: NAT firewall, SPI firewall, MAC/IP/URL filtering
- IPv6 Support: IPv6/IPv4 dual stack; DS-Lite, 6RD, 6to4 tunnels; PPPoEv6, DHCPv6, Static IPv6
- Management: Web-based configuration (HTTP), remote management, Telnet management, CLI, SSL for TR-069, SNMP V1/V2C, CWMP (TR-069), diagnostic tools
- Port Forwarding: Virtual server, port triggering, UPnP, DMZ, manage control
- VPN Pass-Through: PPTP, L2TP, IPSec pass-through
- ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM, PPP over Ethernet, IPoA, up to 8 PVCs
- USB Sharing: Storage sharing, FTP server, media server
- IGMP: IGMP snooping V1/V2/V3, IGMP multicast
- IPSec VPN: 10 tunnels, LAN-to-LAN, DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication
- Certification: CE, RoHS
- System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
- Operating Temperature: 0–40°C
- Storage Temperature: -40–70°C
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
Package Contents:

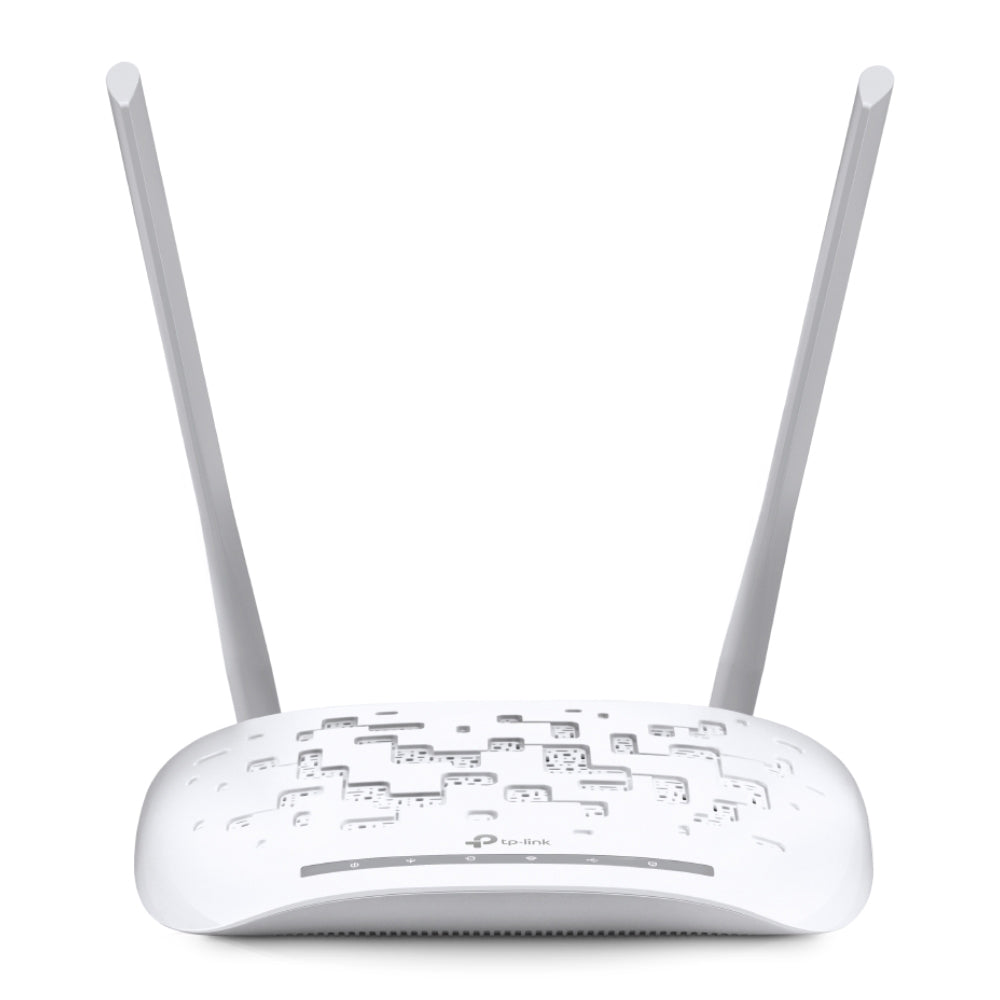

- 1x TD-W9970 modem router
- 1x External splitter
- 1x RJ-11 telephone line
- 1x RJ-45 Ethernet cable
- 1x Quick installation guide
- 1x Power adapter
