Description:

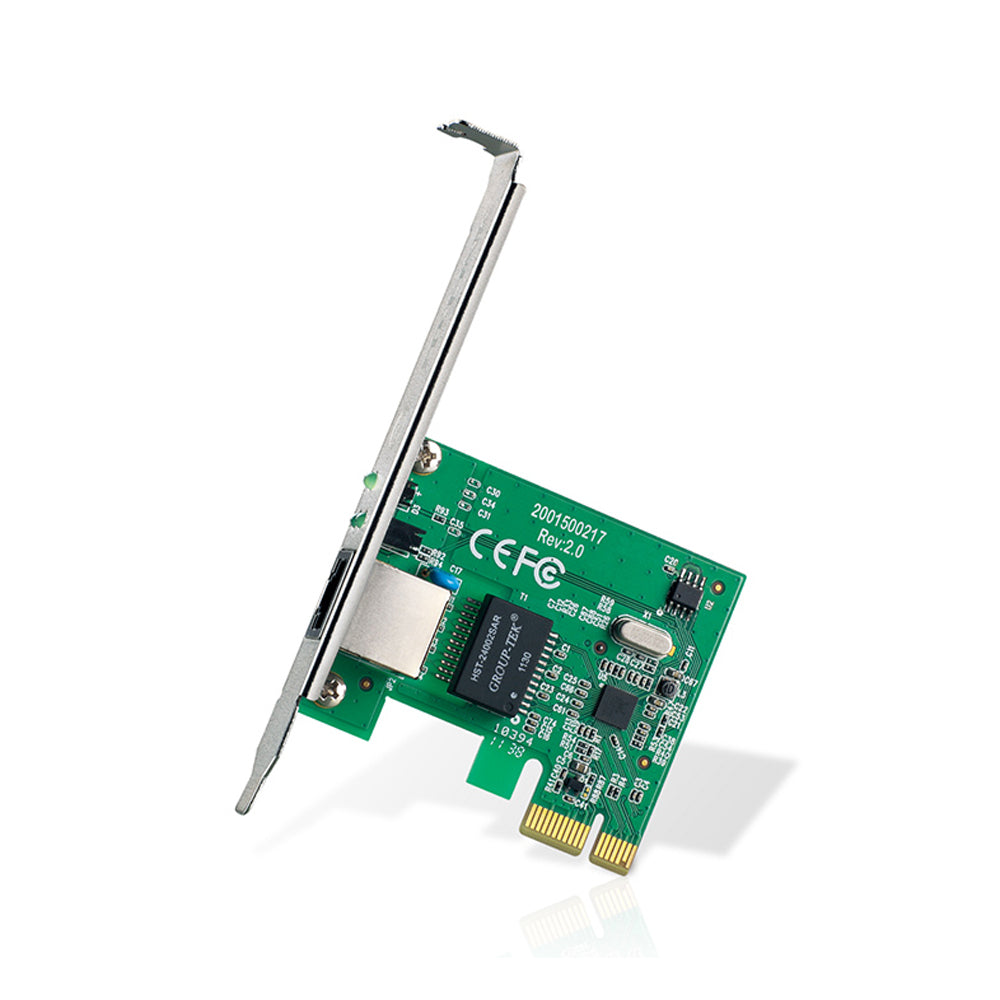

The TP-LINK 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab specifications. This high performance adapter is designed for the high-speed PCI Express Bus Architecture, supporting 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control, and Wake-on-LAN technology, making it a good selection to upgrade your network. Its 32-bit PCIe interface saves finite chassis space, while Wake-on-LAN offers convenient management over LAN.
Features:
- 10/100/1000Mbps PCIe adapter
- 32-bit PCIe interface saving the finite chassis space
- Wake-on-LAN convenient to manage over LAN
- Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab specifications
- Supports Auto-Negotiation and 802.3x flow control
Specifications:
- Brand: TP-LINK
- Standards and protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
- Interface: 32-bit PCI Express, 1 10/100/1000Mbps RJ45 port
- Network media: 10BASE-T UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000Base-T UTP category 5, 5e cable (maximum 100m)
- LED: Status
- Wireless standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- Data rates: 10/100/1000Mbps for half-duplex mode, 20/200/2000Mbps for full-duplex mode
- LED indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
- Flow control: IEEE 802.3x flow control (full-duplex)
- Certification: FCC, RoHS
- System requirements: Windows 11/10/8.1/8/7/XP/Vista (32/64bits)
- Operating temperature: 0°C~40°C (32°F~104°F)
- Storage temperature: -40°C~70°C (-40°F~158°F)
- Operating humidity: 10%~90% non-condensing
- Storage humidity: 5%~90% non-condensing
- Dimensions: 78.5 x 120.8 x 21.5mm (3.1 x 4.8 x 0.8 in)
Package contents:
Gigabit PCI Express Network Adapter
Resource CD
Quick installation guide
