Description:

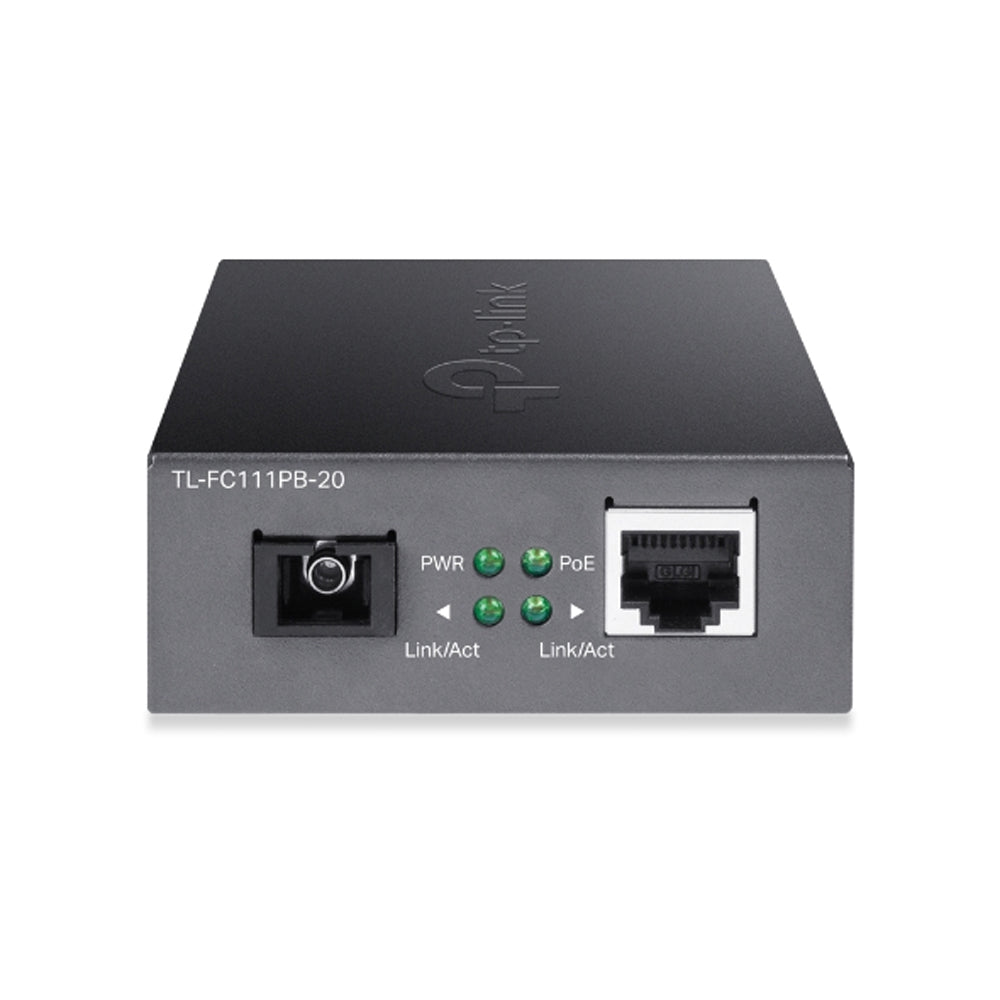

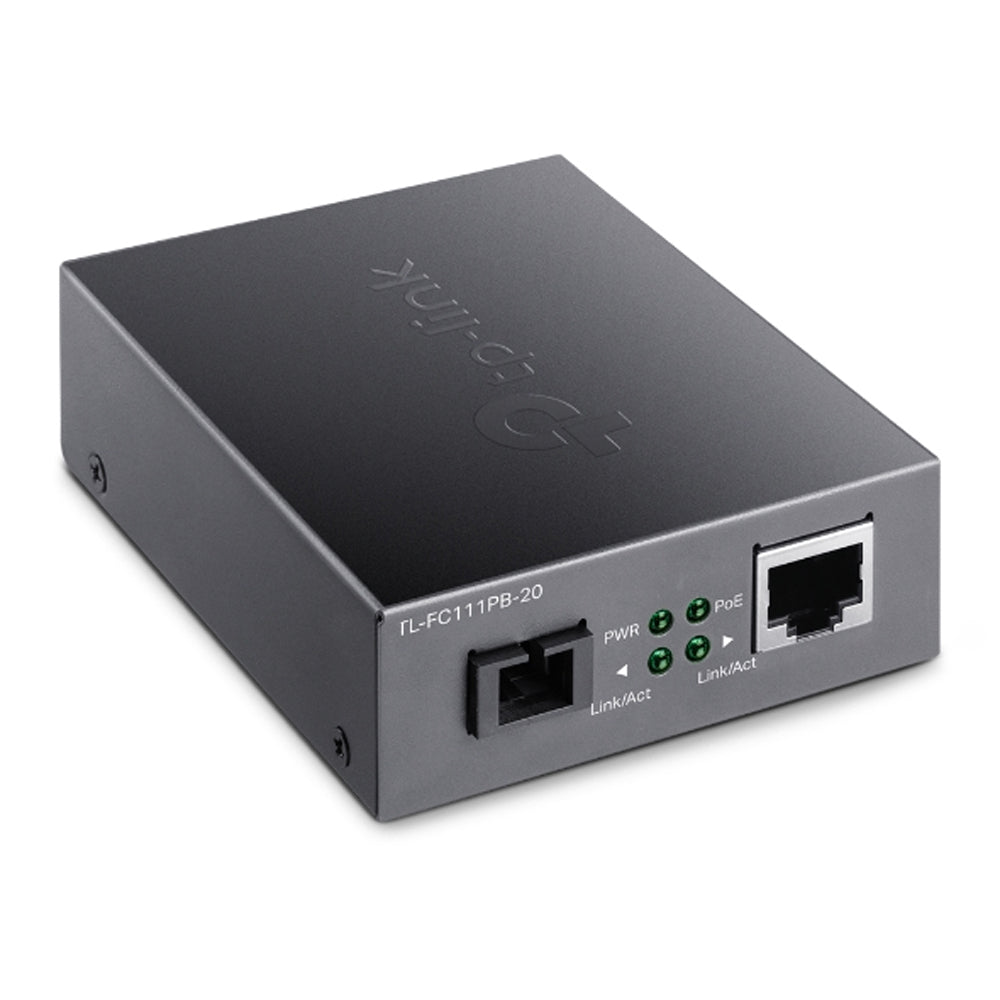

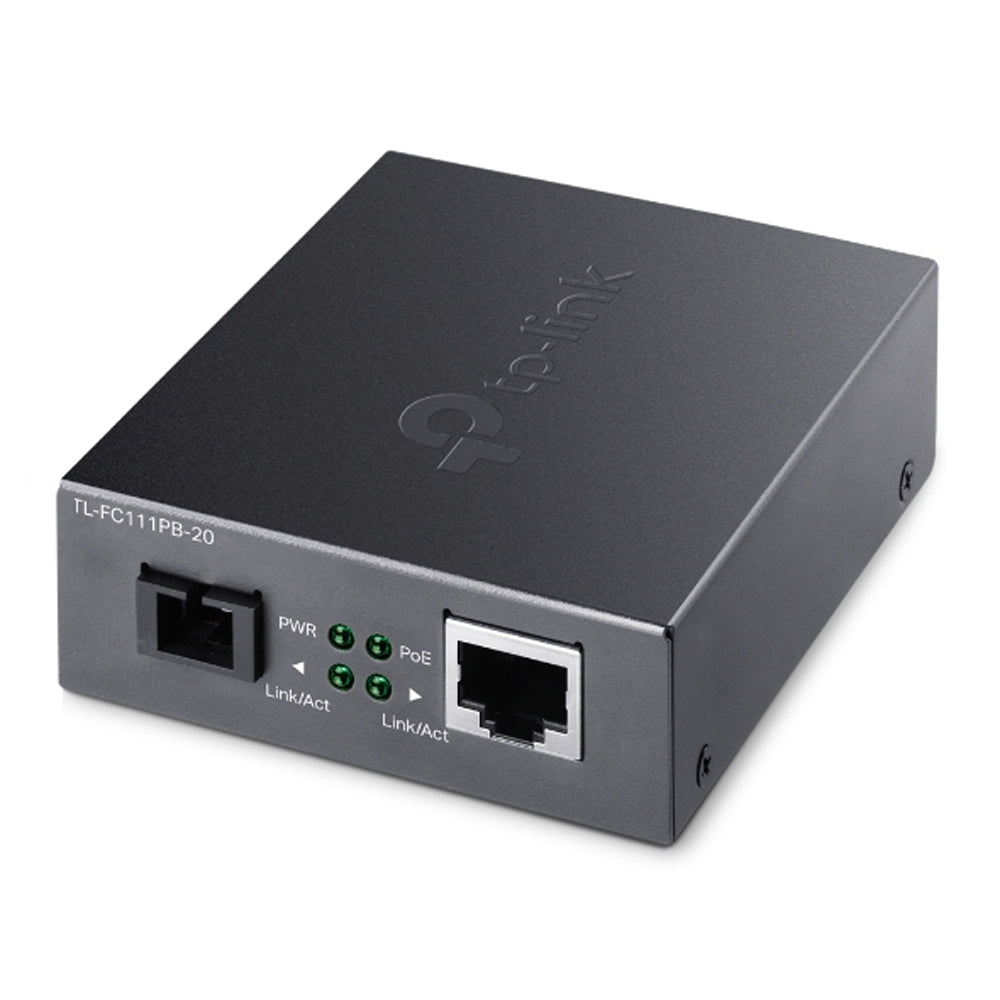

Extend your network over fibre with this WDM media converter from TP-Link. It converts data between fibre and copper, and the 802.3af PoE output makes remote camera deployment easier and more convenient. WDM technology lets you transmit and receive data over a single fibre strand instead of two, extending your fibre distance up to 20 km.
Features:
- Converts data between fibre (optical signal) and copper (electric signal)
- Extends fibre distance for longer network runs
- PoE output for easier, more convenient remote camera deployment
- WDM (Wave Division Multiplexing) technology over a single fibre strand
- Reliable operation across a wide temperature range
- Auto-negotiation of half-duplex and full-duplex transfer mode
Specifications:
- Speed: 10/100Mbps
- Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u
- PoE Output: IEEE 802.3af
- Connectors: 1 x 10/100 Mbps PoE RJ45 port, 1 x 100 Mbps SC fibre port
- Network Media: 100BASE-TX, 2-pair UTP/STP of Cat. 5 or above (100 m or less)
- Fibre Type: 9/125 μm single-mode fibre (20 km or less)
- Wavelength: 1310 nm TX, 1550 nm RX
- Maximum Fibre Distance: Up to 20 km

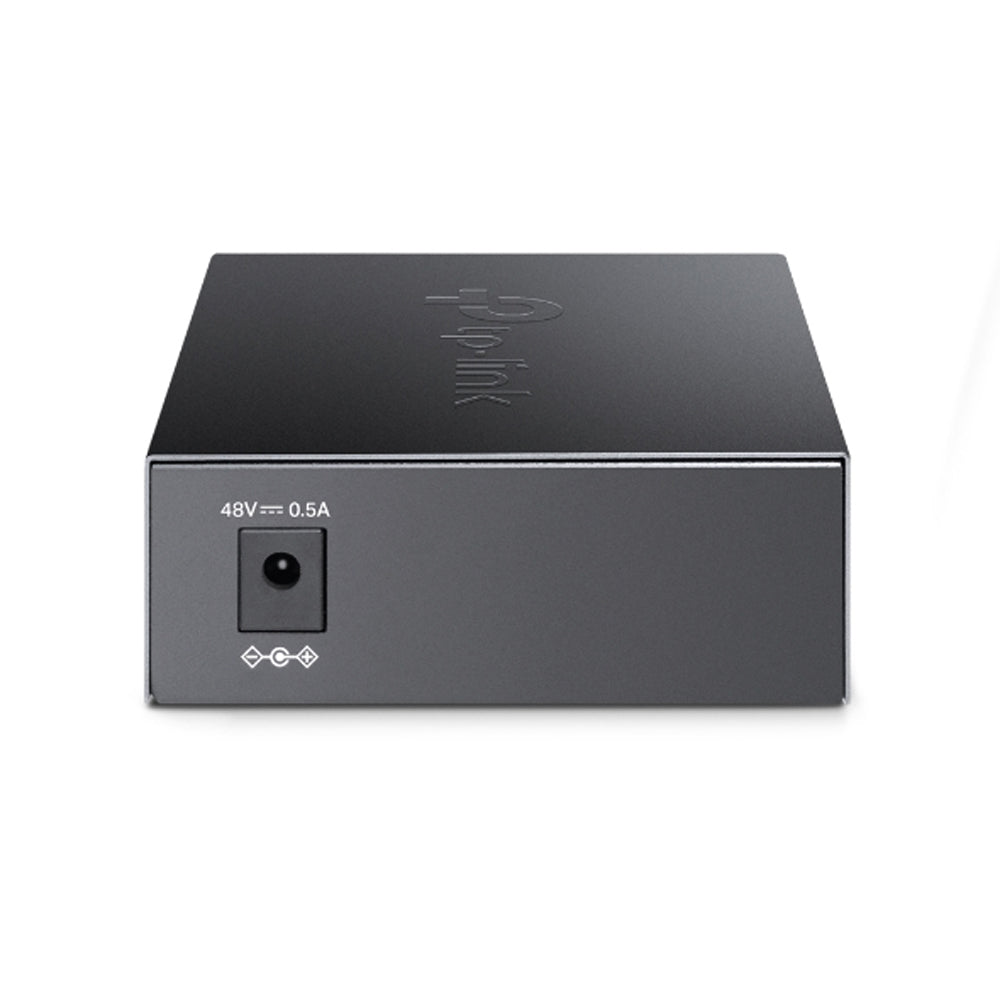

- Power Supply: 48 V / 0.5 A
- LED: PWR, Link/Act, PoE
- Dimensions (W x D x H): 94.5 x 73.0 x 27.0 mm
- Operating Temperature: 0 to 50 °C (32 to 122 °F)
- Storage Temperature: -40 to 70 °C (-40 to 158 °F)
- Operating Humidity: 10 to 90% RH, non-condensing
- Storage Humidity: 5 to 90% RH, non-condensing
Package Contents:
- 1 x TP-Link WDM Media Converter with 1-Port PoE
