Description

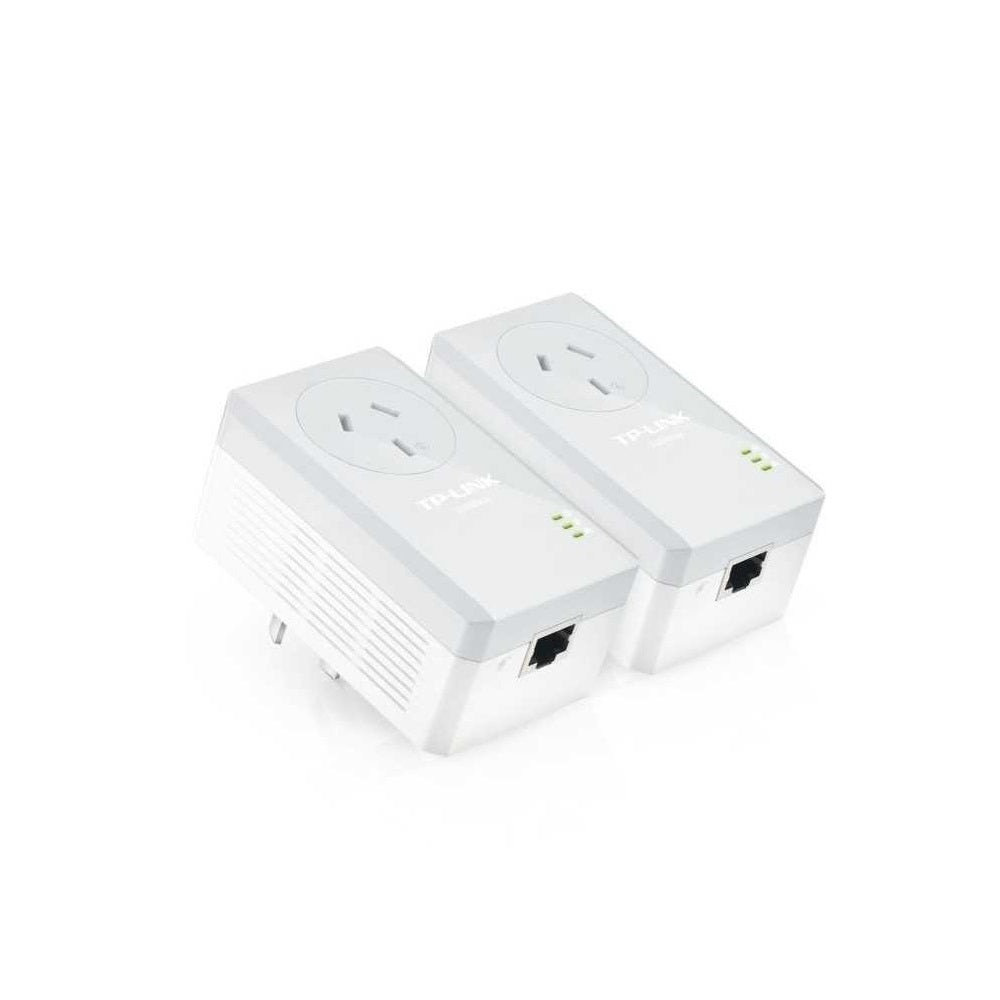

This TP-LINK adapter transforms your existing electrical wiring into a high speed network without the need for new wires or drilling. No configuration is required, simply plug the adapter into a power socket and your networking infrastructure is established in a flash. Using advanced HomePlug AV technology, it delivers stable data transmission rates of up to 500Mbps over a household electric circuit for up to 300 meters, making it ideal for HD video streaming and a whole home solution connecting computers, game consoles, IPTV set-top boxes, printers, and NAS hard drives. It optimises IPTV applications such as Fetch TV, Telstra T-Box, Apple TV, TPG IPTV, Google TV, and FOXTEL on Xbox 360. The integrated power socket allows an additional device or power bar to be connected as though it were a normal wall socket, ensuring no power outlet goes to waste, while the integrated mains filter suppresses noise interference from surrounding electronic equipment so users won't experience sudden speed drops when larger power consuming devices are plugged in. A simple press of the pair button provides easy network security with 128-bit AES encryption, and the environment-conscious Power-Saving Mode automatically reduces energy consumption by up to 85%. Note that powerline adapters should be deployed on the same circuit and in sets of two or more.
Features
- Data transmission rates up to 500Mbps over electrical wires, ideal for HD video streaming
- Range of up to 300 meters in house over household electric wiring
- Integrated power socket ensuring no power outlet goes to waste
- Plug and play design with easy encryption at the push of a pair button
- Power-Saving Mode automatically reducing power consumption by up to 85%
- Integrated mains filter suppressing noise interference for better performance
- Optimises IPTV applications including Fetch TV, Telstra T-Box, Apple TV, TPG IPTV, Google TV, and FOXTEL on Xbox 360
- Advanced HomePlug AV technology for stable high speed connections
Specifications
- Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u
- Interface: 1 x 10/100Mbps Ethernet Port, Power Socket
- Plug Type: AU
- LED Indicators: Power, Powerline, Ethernet
- Button: Pair Button
- Modulation Technology: OFDM
- Encryption: 128-bit AES Encryption
- Range: 300 meters in house
- Power Consumption: Maximum 5.00W (220V/50Hz), Typical 4.60W (220V/50Hz), Standby 0.72W (220V/50Hz)
- Dimensions (WxDxH): 95 x 58 x 42 mm (3.7 x 2.3 x 1.7 in)
- Certification: CE, FCC, RoHS
- System Requirements: Windows 8/7/Vista/XP/2000, Mac OS, Linux
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Package Contents: 2 x Powerline Ethernet Adapter, 2 x Ethernet Cable (RJ45), Resource CD, Quick Installation Guide
