Description:

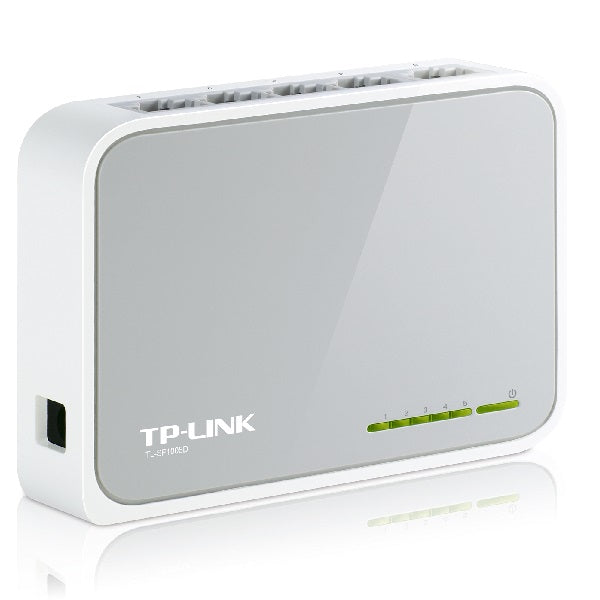

The TP-Link is a 5-port 10/100Mbps desktop switch designed to give home and office networks an easy way to expand wired connectivity. All five ports support Auto-MDI/MDIX, removing the need to worry about crossover cables, while full duplex operation allows data processing at rates up to 200Mbps for demanding wired networks.
Features:
- Full duplex mode processes data at up to 200Mbps for high-performance networking
- Green Ethernet technology reduces power consumption by up to 60%
- IEEE 802.3x flow control and backpressure for reliable data transfer
- Non-blocking switching architecture for full wire-speed packet forwarding
- 10K Jumbo Frame support for improved large file transfer performance
- Plug and play setup with no configuration required
- Compact, fanless plastic desktop design
Specifications:
- Interface: 5x 10/100Mbps RJ45 ports, Auto Negotiation/Auto MDI-MDIX
- External Power Supply: External power adapter (Output 5.0VDC/0.6A)
- Dimensions (W x D x H): 4.1 x 2.8 x 0.9 inches (103.5 x 70 x 22mm)
- Fan Quantity: Fanless
- Power Consumption: Maximum 2.2W (220V/50Hz)
- Transfer Method: Store and Forward
- Advanced Functions: Green Technology (up to 60% power savings), 802.3x Flow Control, Back Pressure, Auto-Uplink on every port
- Certification: FCC, CE, RoHS
- Package Contents: 5-Port 10/100Mbps Desktop Switch, Power Adapter, User Guide
- System Requirements: Windows 8/7/Vista/XP, MAC OS, NetWare, UNIX, or Linux
- Environment: Operating temperature 0°C-40°C (32°F-104°F), storage temperature -40°C-70°C (-40°F-158°F), operating humidity 10%-90% non-condensing, storage humidity 5%-90% non-condensing
