Description:

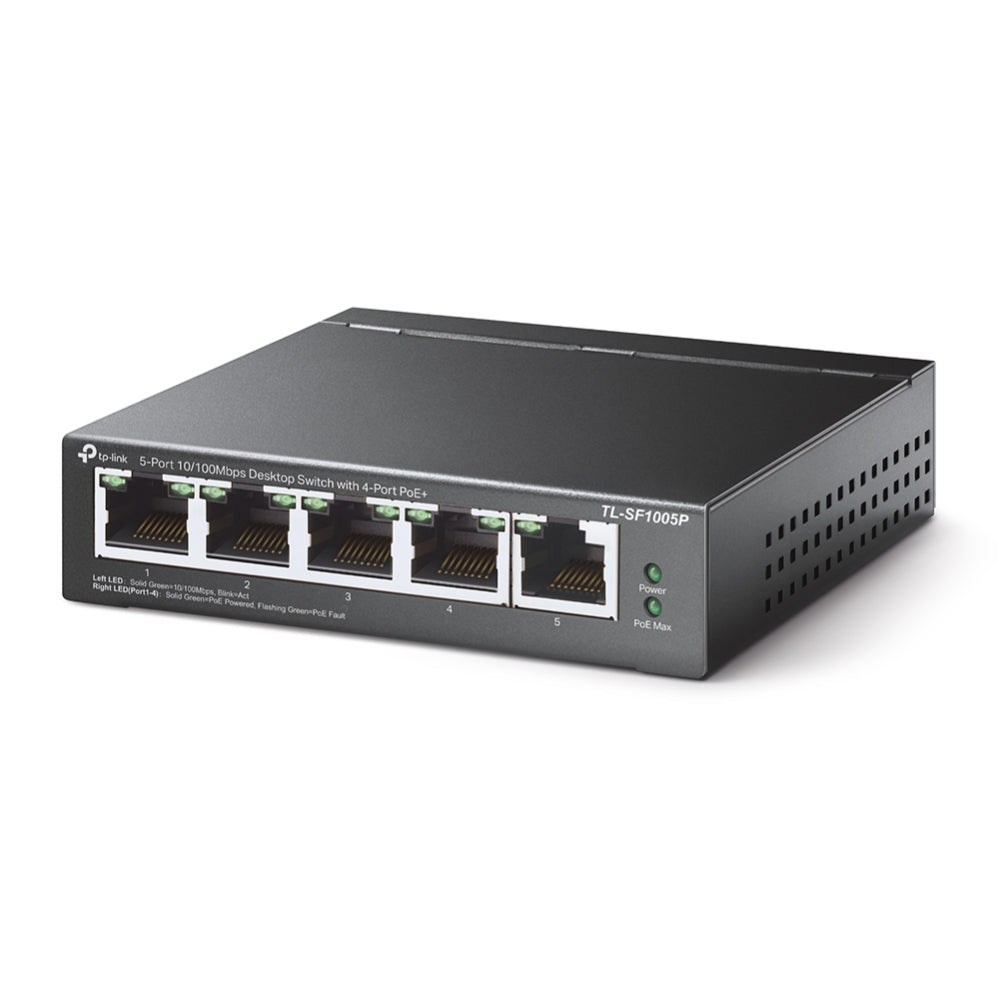

The TP-Link is a 5-port desktop switch built around ultra convenience, with four of its five ports supporting Power over Ethernet to transfer both data and power over a single cable. This makes it well suited for surveillance setups with IP cameras, conference rooms running IP phones, and Wi-Fi coverage extensions using Omada EAPs.
Features:
- Data and power delivered over a single cable for each PoE port
- Up to 15.4W of power per PoE port, up to 58W total across all PoE ports
- Intelligent power management protects against overload conditions
- Compatible with IEEE 802.3af compliant powered devices
- No configuration or installation required, ready to use out of the box
- Sturdy metal casing with shielded RJ45 ports for durability
- Fanless design for quiet operation
- Supports desktop and wall-mounting placement
Specifications:
- Interface: 5x 10/100Mbps RJ45 ports (4x 10/100Mbps 802.3af/at PoE+ ports), Auto Negotiation, Auto MDI/MDIX
- Network Media: 10BASE-T UTP category 3/4/5 cable (max 100m), EIA/TIA-568 100Ω STP (max 100m), 100BASE-TX UTP category 5/5e cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
- Fan Quantity: Fanless
- Physical Security Lock: Yes
- External Power Supply: External power adapter (Output 53.5V DC/1.31A)
- Packet Forwarding Rate: 0.744Mpps
- PoE Ports: 802.3af/at compliant, Ports 1-4, 67W power supply
- MAC Address Table: 2K
- Jumbo Frame: 2KB
- Switching Capacity: 1Gbps
- Dimensions (W x D x H): 3.9 x 3.9 x 1.0 inches (99.8 x 98 x 25mm)
- Max Power Consumption: 1.9W (220V/50Hz, no PD connected), 74W (220V/50Hz, with 67W PD connected)
- Max Heat Dissipation: 6.48 BTU/h (no PD connected), 252.34 BTU/h (with 67W PD connected)
- Transmission Method: Store-and-Forward
- Advanced Functions: Compatible with IEEE 802.3af/at PDs, Extend Mode Button (Ports 1-4), Priority Mode Button (Ports 1-2), MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex and backpressure for half-duplex
- Certification: FCC, CE, RoHS
- Environment: Operating temperature 0-40°C (32-104°F), storage temperature -40-70°C (-40-158°F), operating humidity 10-90% RH non-condensing, storage humidity 5-90% RH non-condensing
Package Contents:
Desktop Switch
Power Adapter
Installation Guide
