Description:

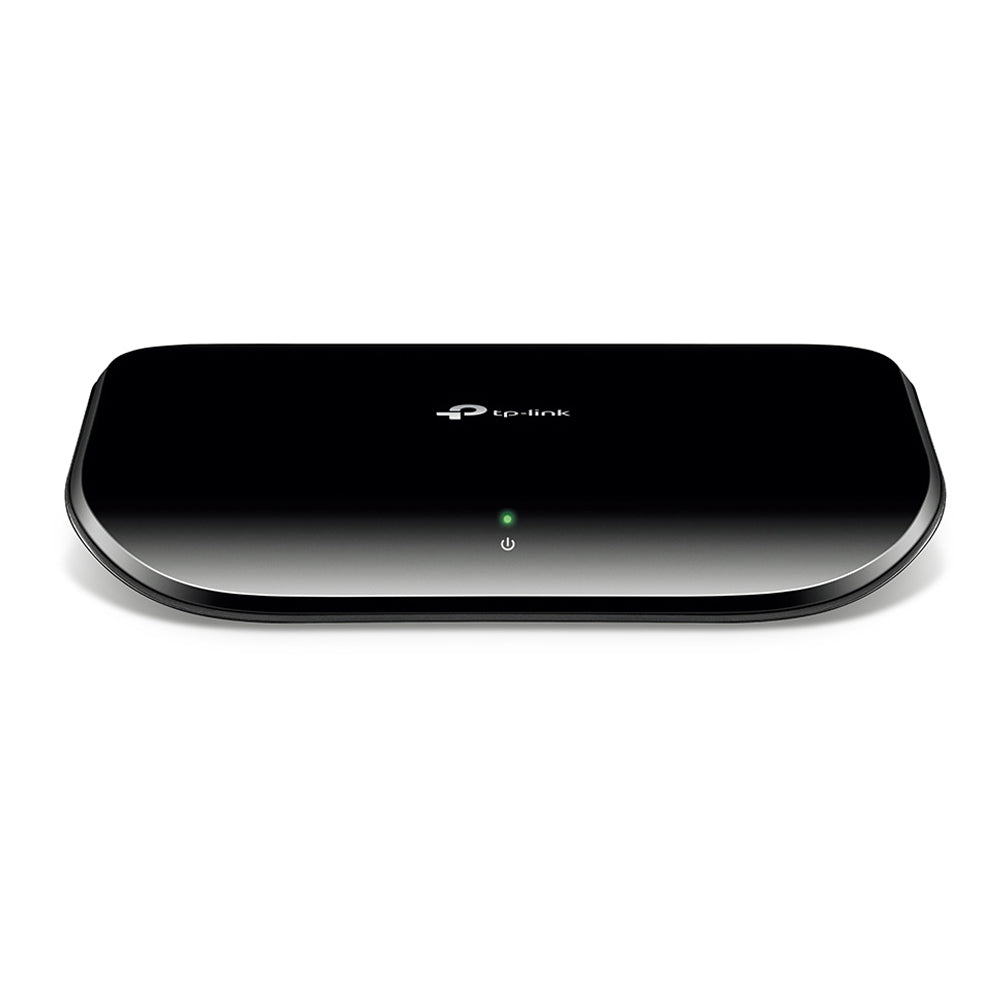

The TP-Link gives home and office networks an easy way to move up to Gigabit Ethernet, boosting the speed of network server connections, backbone links, or desktop workstations.
Features:
- Green Ethernet technology reduces power consumption based on link status and cable length
- Automatically powers down idle ports to save energy
- IEEE 802.3x flow control for reliable data transfer
- Plug and play setup with no configuration required
- Compact plastic case supporting desktop or wall-mounting design
- Fast large file transfer for graphics, CAD, and multimedia workflows
Specifications:
- Interface: 5x 10/100/1000Mbps RJ45 ports, Auto Negotiation/Auto MDI/MDIX
- Fan Quantity: Fanless
- Physical Security Lock: No
- External Power Supply: External power adapter (Output 5VDC/0.6A)
- Dimensions (W x D x H): 5.5 x 3.5 x 0.9 inches (140 x 88 x 23mm)
- Max Power Consumption: 3.1W (220V/50Hz)
- Max Heat Dissipation: 10.57 BTU/hr
- Transmission Method: Store and Forward
- Advanced Functions: Green Technology, 802.3x Flow Control, Back Pressure, 802.1p/DSCP QoS (V7 and later versions)
- Certification: FCC, CE, RoHS
- Environment: Operating temperature 0°C-40°C (32°F-104°F), storage temperature -40°C-60°C (-40°F-140°F), operating humidity 10-90% non-condensing, storage humidity 5-90% non-condensing
Package Contents:
Desktop Switch
Power Adapter
Installation Guide
