Description:
The TP-Link 5-port Gigabit desktop switch offers five 10/100/1000Mbps RJ45 ports, four of which are PoE+ ports that carry data and power on a single cable. The fanless design, compact size and store-and-forward transfer method make it a dependable choice for small network setups.
Features:
- 5 x 10/100/1000Mbps RJ45 ports
- 4 PoE+ ports that transfer data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE power of up to 30W for each PoE port
- Supports PoE power of up to 40W for all PoE ports
- 802.1p/DSCP QoS for smooth latency-sensitive traffic
- Auto negotiation and Auto MDI/MDIX
- MAC address auto-learning and auto-aging
- IEEE 802.3x flow control
- IGMP snooping
- Fanless design
- Plug and play with no configuration and installation required
Specifications:
- Brand: TP-Link
- PoE Ports: Ports 1 to 4
- PoE Standard: 802.3af/at Compliant
- PoE Power Supply: 40W Total, Up to 30W Per Port
- Network Media 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m), EIA/TIA-568 100Ω STP (Maximum 100m)
- Network Media 100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m), EIA/TIA-568 100Ω STP (Maximum 100m)
- Network Media 1000BASE-T: UTP Category 5, 5e, 6 or Above Cable (Maximum 100m), EIA/TIA-568 100Ω STP (Maximum 100m)
- External Power Supply: External Power Adapter (Output 53.5 VDC / 0.81 A)
- Packet Forwarding Rate: 7.44Mpps
- MAC Address Table: 2K
- Jumbo Frame: 16KB
- Switching Capacity: 10Gbps
- Transfer Method: Store-and-Forward
- Dimensions (W x D x H): 99.8 x 98 x 25mm (3.9 x 3.9 x 1.0 in)
- Maximum Power Consumption: 4.12W (220V/50Hz, no PD connected), 47.5W (220V/50Hz, with 40W PD connected)
- Maximum Heat Dissipation: 14.05 BTU/h (no PD connected), 161.98 BTU/h (with 40W PD connected)
- Certification: FCC, CE, RoHS
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Storage Temperature: -40 to 70°C (-40 to 158°F)
- Operating Humidity: 10 to 90% RH Non-condensing
- Storage Humidity: 5 to 90% RH Non-condensing
Package Contents:

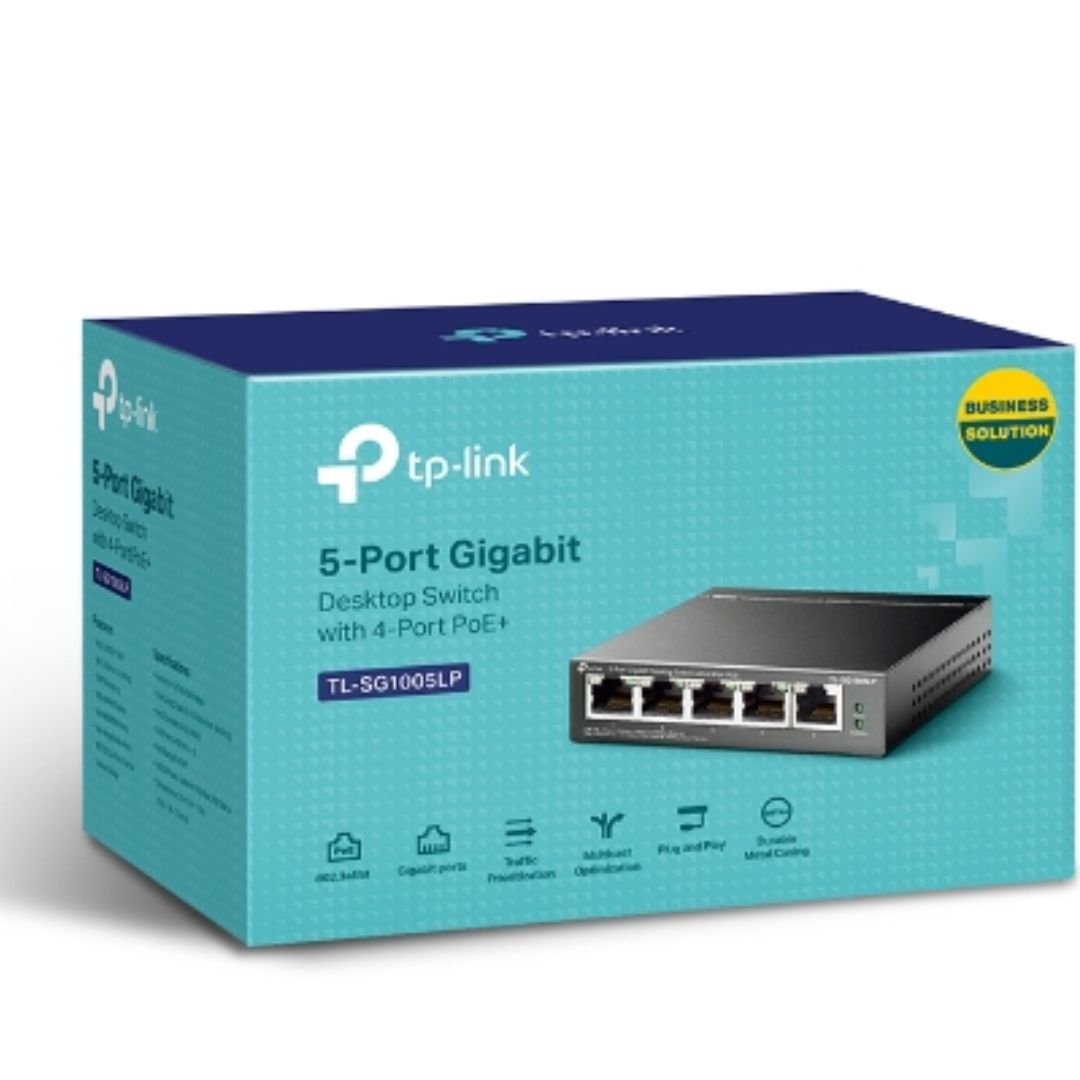

- 1 x TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
- 1 x Power Adapter
- 1 x Installation Guide
