Description:

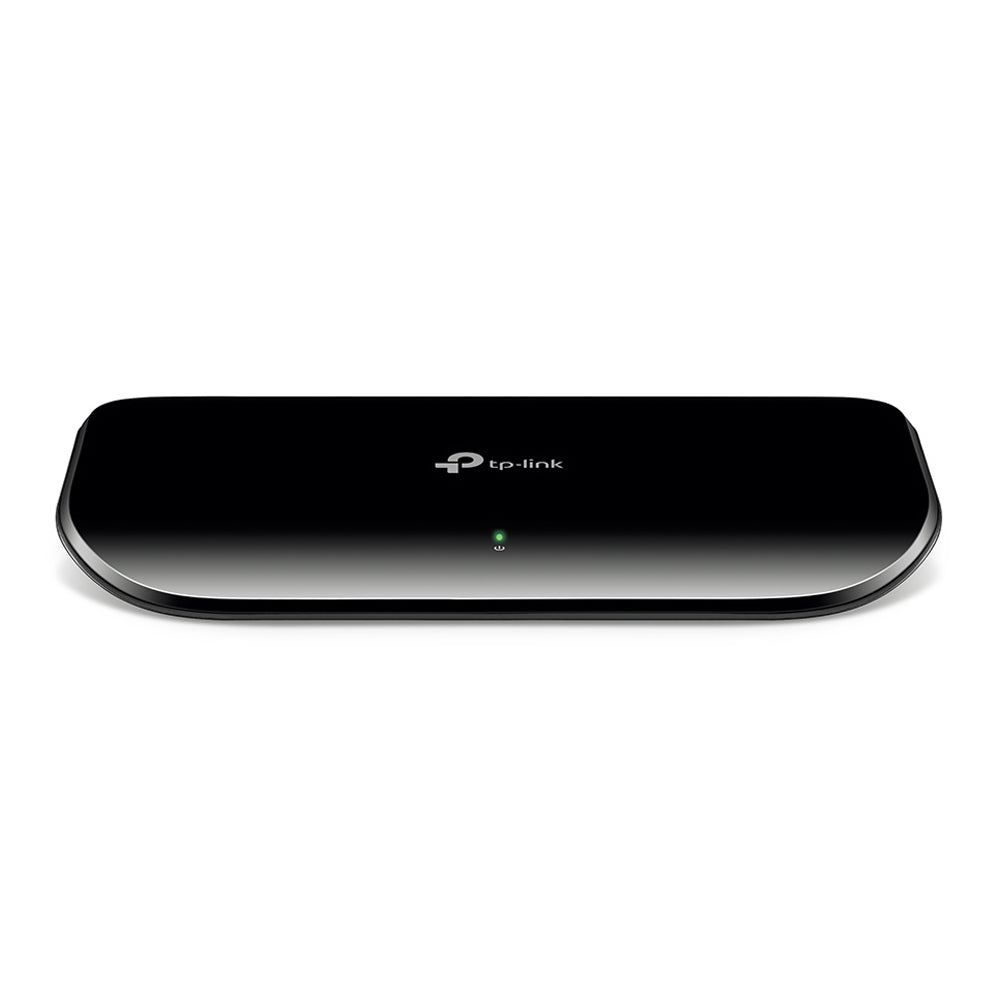

The TP-Link gives home and office networks an easy way to move up to Gigabit Ethernet, boosting the speed of network server connections, backbone links, or desktop workstations. All eight ports support 10/100/1000Mbps speeds with Auto MDI/MDIX, letting large files like graphics, CGI, CAD projects, or multimedia content transfer across the network instantly.
Features:
- Green Ethernet technology reduces power consumption by up to 80%
- Automatically powers down idle ports based on link status and cable length
- IEEE 802.3x flow control for reliable data transfer
- Plug and play setup with no configuration required
- Compact plastic case supporting desktop or wall-mounting design
- Fast large file transfer for graphics, CGI, CAD, and multimedia workflows
Specifications:
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface: 8x 10/100/1000Mbps RJ45 ports, Auto Negotiation/Auto MDI/MDIX
- Fan Quantity: Fanless
- Physical Security Lock: No
- External Power Supply: External power adapter (Output 9VDC/0.6A)
- Jumbo Frame: 15KB
- Switching Capacity: 16Gbps
- Dimensions (W x D x H): 7.1 x 3.5 x 1.0 inches (180 x 90 x 25.5mm)
- Max Power Consumption: 4.63W (220V/50Hz)
- Max Heat Dissipation: 15.80 BTU/h
- Transfer Method: Store and Forward
- MAC Address Table: 4K
- Advanced Functions: Green Technology, 802.3x Flow Control, Back Pressure, 802.1p/DSCP QoS (V7 and later versions)
- Certification: FCC, CE, RoHS
- Environment: Operating temperature 0°C-40°C (32°F-104°F), storage temperature -40°C-70°C (-40°F-158°F), operating humidity 10-90% non-condensing, storage humidity 5-90% non-condensing
Package Contents:
Desktop Switch
Power Adapter
Installation Guide
