Description

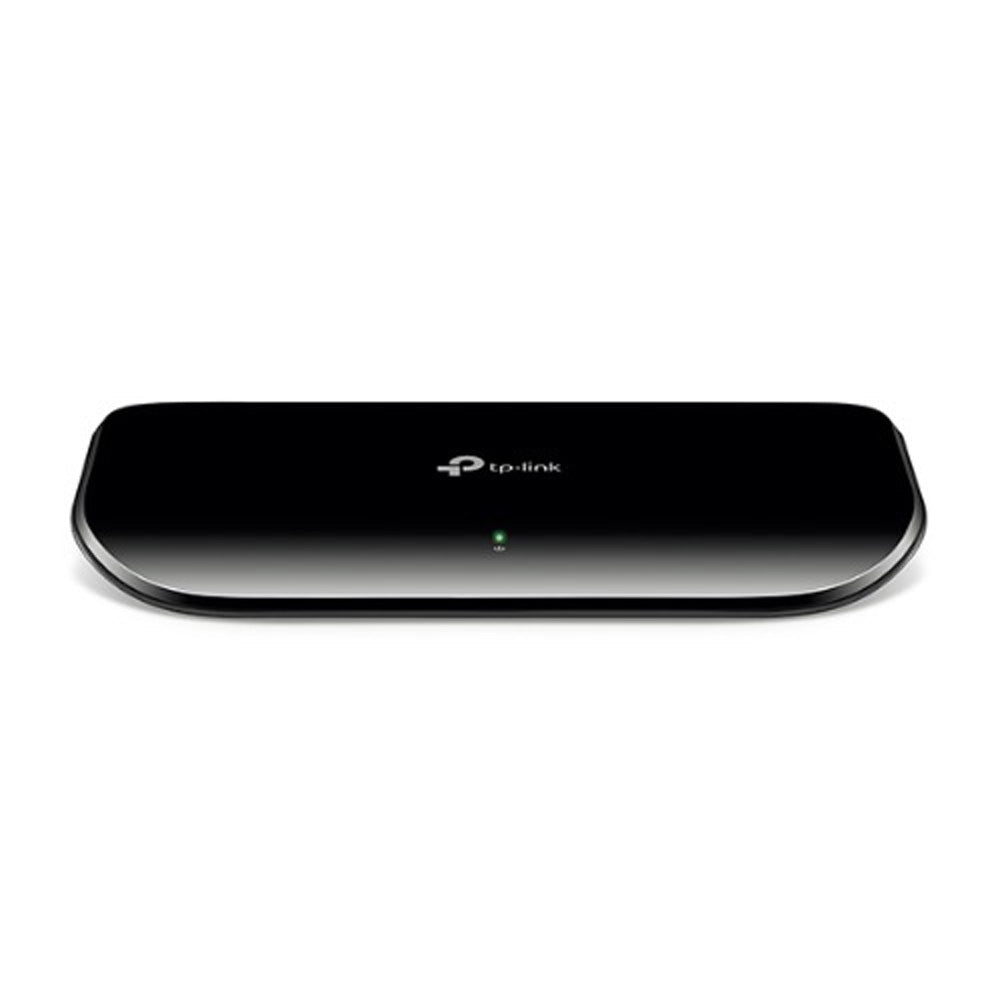

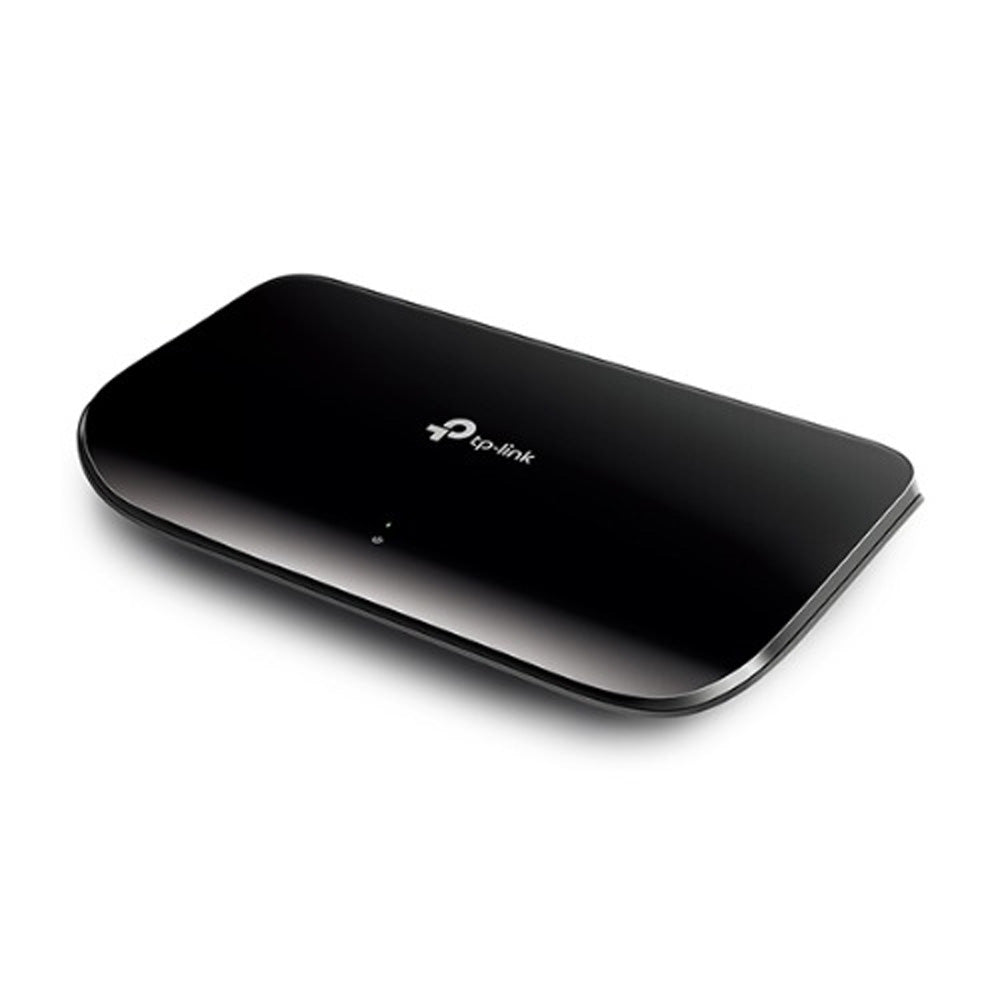

The TP-Link TL-SG1008D is an 8-port Gigabit unmanaged switch with a fanless plastic case designed for desktop or wall-mounting use. It provides 8 Gigabit auto-negotiation RJ45 ports with Auto MDI/MDIX support. Green Ethernet technology saves power by up to 80%, while IEEE 802.3x flow control provides reliable data transfer. It also supports MAC address learning and 802.1p/DSCP QoS (for V7 and later versions). Installation is plug and play with no configuration required.
Features
- 8 Gigabit Ports: 8 Gigabit auto-negotiation RJ45 ports with Auto MDI/MDIX support
- Green Ethernet Technology: Saves power by up to 80%
- IEEE 802.3x Flow Control: Provides reliable data transfer
- Flexible Installation: Plastic case with desktop or wall-mounting design
- Fanless Design: Operates without a fan
- QoS Support: 802.1p/DSCP QoS (for V7 and later versions)
- Plug and Play: No configuration required
Specifications
- Brand: TP-Link
- Product Type: 8-Port Gigabit Unmanaged Desktop Switch
- Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x
- Interface: 8 x 10/100/1000Mbps RJ45 Ports
- Port Function: Auto Negotiation, Auto MDI/MDIX
- Fan Quantity: Fanless
- Physical Security Lock: No
- External Power Supply: External Power Adapter (Output: 9V DC 0.6A)
- Jumbo Frame: 15 KB
- Switching Capacity: 16 Gbps
- Transfer Method: Store and Forward
- MAC Address Table: 4K
- Advanced Functions: Green Technology, 802.3x Flow Control, Back Pressure, 802.1p/DSCP QoS (for V7 and later versions)
- Maximum Power Consumption: 4.63W (220V/50Hz)
- Maximum Heat Dissipation: 15.80 BTU/h
- Dimensions (W x D x H): 180 x 90 x 25.5mm (7.1 x 3.5 x 1.0 in)
- Certification: FCC, CE, RoHS
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% Non-Condensing
- Storage Humidity: 5% to 90% Non-Condensing
Package Contents
- 1 x TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch
- 1 x Power Adapter
- 1 x Installation Guide
