Description:

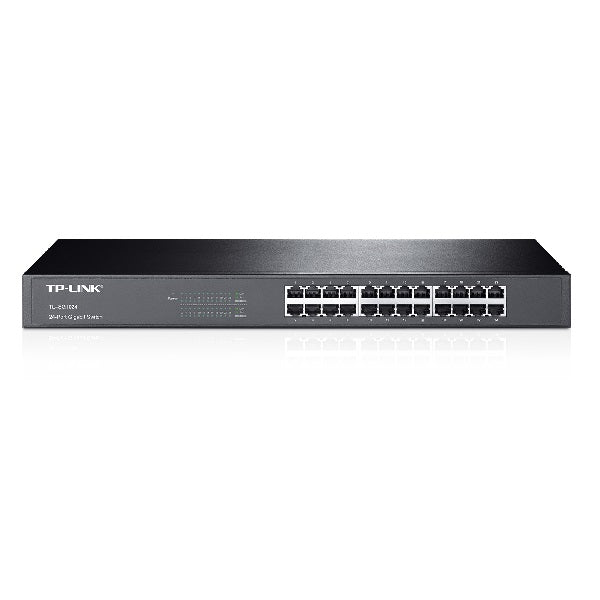

The TP-Link delivers a high-performance, low-cost, and easy-to-use path for upgrading an older network to full Gigabit speeds. All 24 ports support Auto MDI/MDIX, removing any concern about cable type and letting the switch simply be plugged in and used, while remaining compatible with 10Mbps and 100Mbps Ethernet devices for smooth integration into existing setups.
Features:
- Green Technology reduces power consumption by up to 25%
- Non-blocking switching architecture for full wire-speed packet forwarding
- 10KB Jumbo Frame support for improved large file transfer performance
- IEEE 802.3x flow control and backpressure for reliable data transfer
- Eco-friendly design with 80% recyclable packaging material and RoHS compliance
- Standard 19-inch rack-mountable steel case for structured business installs
- Plug and play setup with no configuration required
- MAC address self-learning for simplified network management
Specifications:
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface: 24x 10/100/1000Mbps RJ45 ports, Auto Negotiation/Auto MDI/MDIX
- Network Media: 10BASE-T UTP category 3/4/5 cable (max 100m), 100BASE-TX/1000BASE-T UTP category 5/5e or above cable (max 100m)
- Fan Quantity: Fanless
- Dimensions (W x D x H): 17.3 x 7.1 x 1.7 inches (440 x 180 x 44mm)
- Power Consumption: Maximum 14.6W (220V/50Hz)
- Power Supply: 100-240VAC, 50/60Hz
- Switching Capacity: 48Gbps
- MAC Address Table: 8K
- Packet Forwarding Rate: 35.7Mpps
- Jumbo Frame: 10KB
- Green Technology: Innovative energy-efficient technology saving power up to 25%
- Transfer Method: Store-and-Forward
- Certification: FCC, CE, RoHS
- System Requirements: Windows XP/Vista/7/8, MAC OS, NetWare, UNIX, or Linux
- Environment: Operating temperature 0°C-40°C (32°F-104°F), storage temperature -40°C-70°C (-40°F-158°F), operating humidity 10-90% non-condensing, storage humidity 5-90% non-condensing
Package Contents:
Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
