Description:

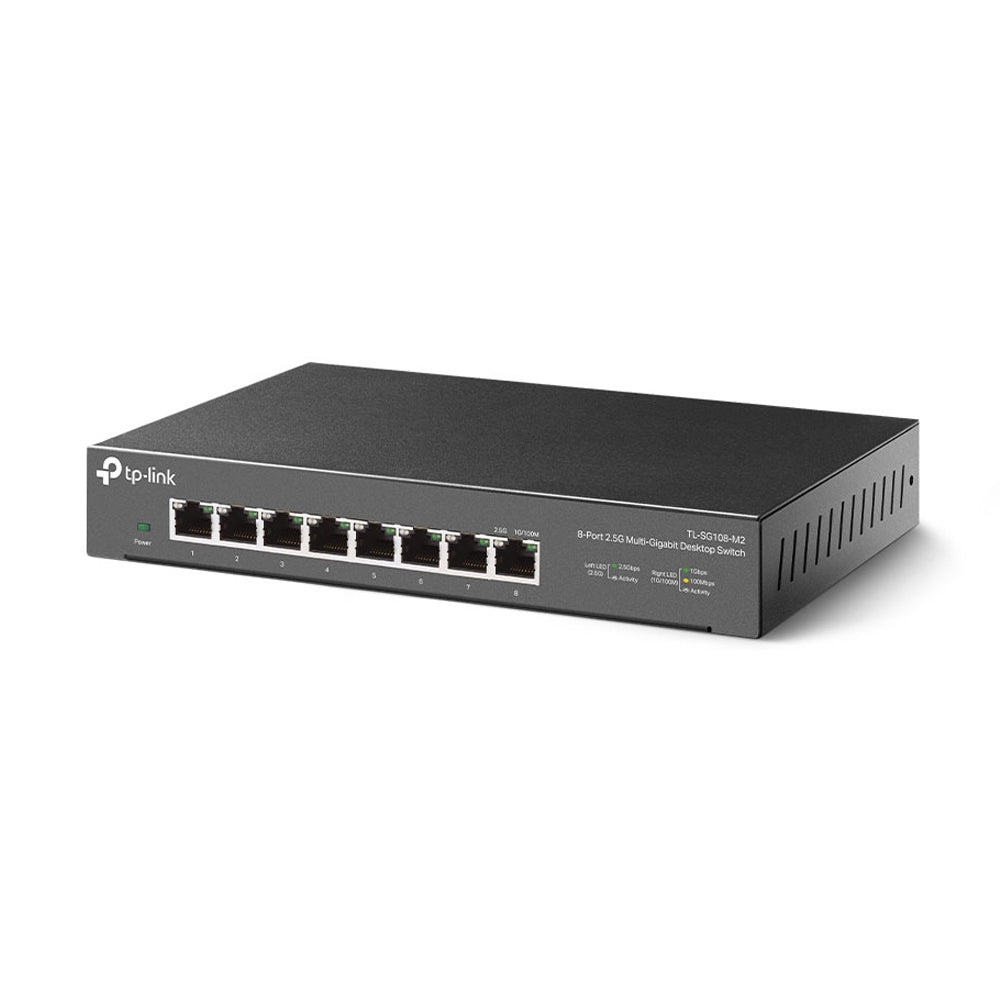

The TP-Link unlocks a super-fast, futuristic network with eight 2.5 Gbps ports that deliver the full multi-Gig bandwidth of modern devices, offering up to 40Gbps of total switching capacity. Auto-negotiation across three speeds (100Mbps/1G/2.5G) senses and adjusts to each connected device automatically, making it ideal for 2.5G NAS, gaming PCs, WiFi 6 access points, 4K video streaming, and more.
Features:
- Up to 40Gbps total switching capacity for multi-Gig bandwidth
- 2.5x faster speeds than standard Gigabit over existing Cat5e cabling
- Ideal for 2.5G NAS, gaming PCs, WiFi 6 APs, and 4K video streaming
- Industry-leading fanless design for completely silent operation
- Durable metal casing supporting desktop or wall-mounting placement
- Plug and play setup with Auto MDI/MDIX, no technician required
- QoS support for prioritizing gaming traffic during LAN parties
Specifications:
- Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
- Interface: 8x 100Mbps/1Gbps/2.5Gbps ports, Auto-Negotiation, Auto-MDI/MDIX
- Fan Quantity: Fanless
- External Power Supply: External power adapter (Output 12VDC/1.5A)
- LED Indicator: 1x System Power, 8x Link/Act (one per port, built into RJ-45)
- Dimensions (W x D x H): 8.9 x 5.2 x 1.4 inches (226 x 131 x 35mm)
- Max Power Consumption: 15.65W
- Max Heat Dissipation: 53.40 BTU/h
- Switching Capacity: 40Gbps
- Packet Forwarding Rate: 29.8Mpps
- MAC Address Table: 16K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame: 10KB
- Advanced Features: 802.3X Flow Control, 802.1p/DSCP QoS
- Transfer Method: Store and Forward
- Certification: CE, FCC, RoHS
- Environment: Operating temperature 0-40°C (32-104°F), storage temperature -40-70°C (-40-158°F), operating humidity 10-90% RH non-condensing, storage humidity 5-90% RH non-condensing
Package Contents:
Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
