Description

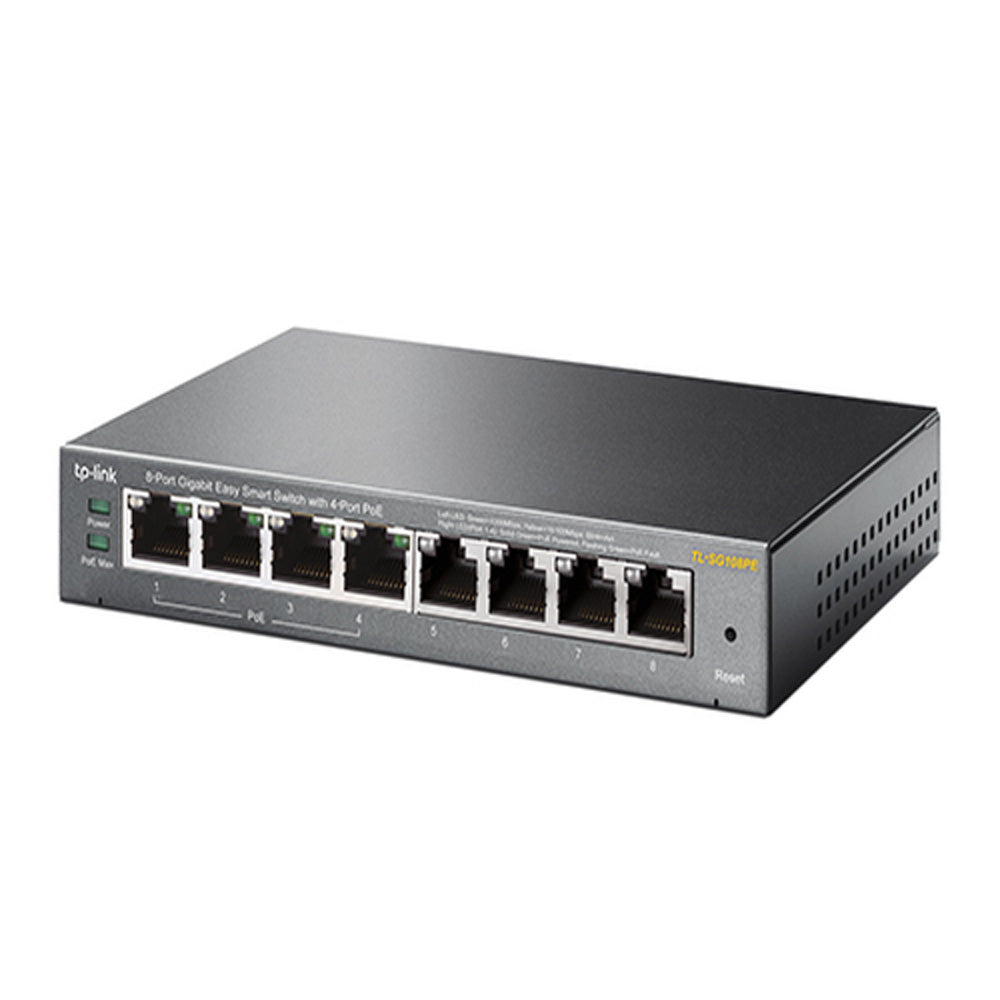

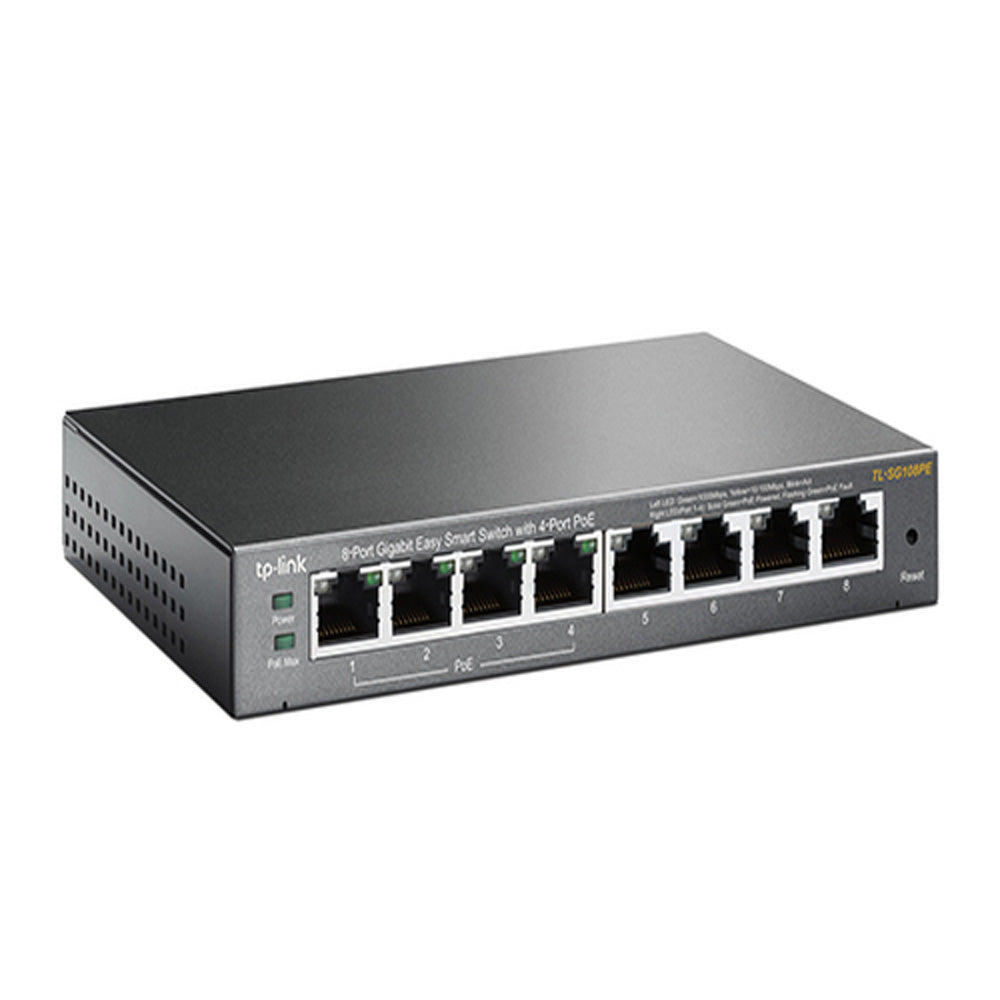

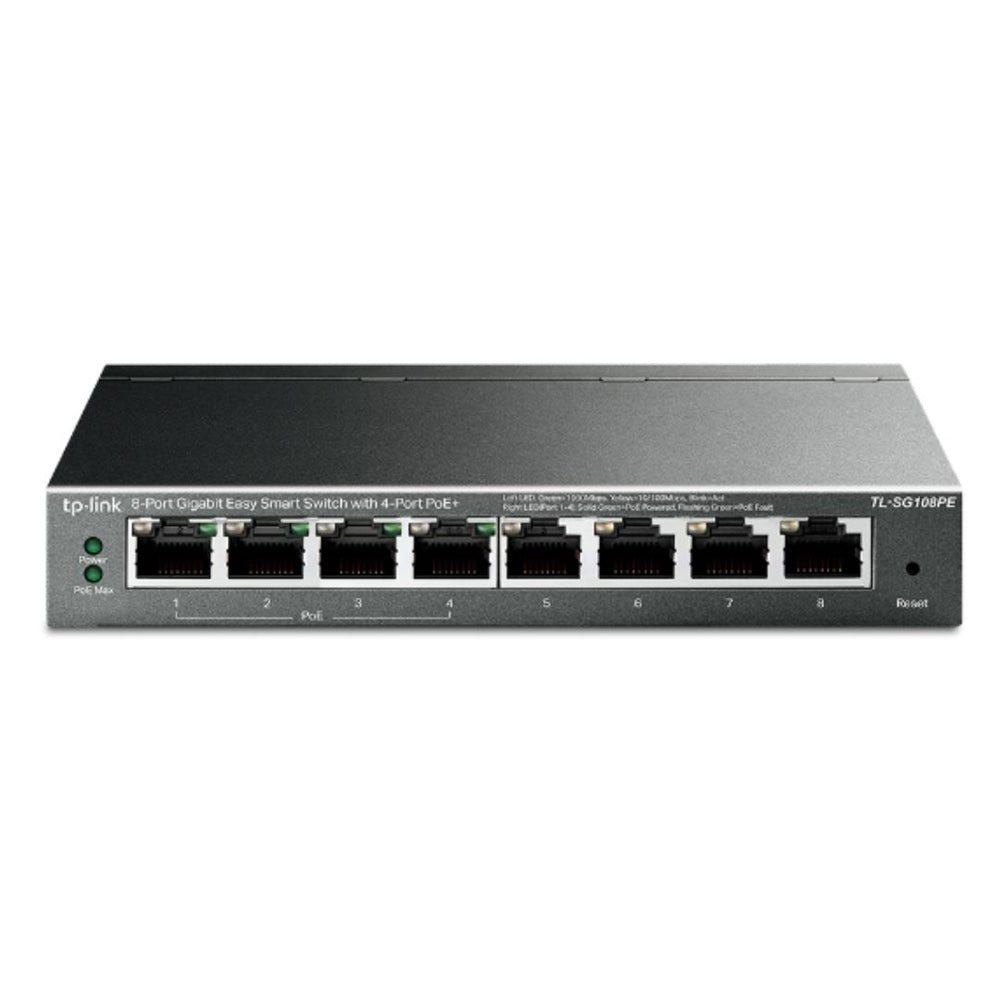

The 8-port Gigabit Easy Smart Switch with 4 PoE ports is a powerful upgrade from an unmanaged switch. It is designed specifically for small businesses that require simple network management and PoE function. It can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras and IP phones, with data and power transferred over a single cable. Through its web-based user interface and management utility, it offers useful features including network monitoring, traffic prioritization and enhanced QoS. With port-based, tag-based and MTU VLAN, it can improve security and meet more network segmentation requirements. Simple network set-up comes on top of plug-and-play connectivity.
Features
- 8 Gigabit Ports: 10/100/1000Mbps RJ45 ports
- 4 PoE Ports: data and power transferred on a single cable
- Network Management: network monitoring, traffic prioritization and VLAN features
- Easy Setup: simple network set-up on top of plug-and-play connectivity
- Easy Configuration: web-based user interface and Easy Smart Configuration Utility simplify configuration
- VLAN Support: port-based, tag-based and MTU VLAN for improved security and network segmentation
- Enhanced QoS support
- Fanless Design
Specifications
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
- Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Network Media 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Network Media 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
- Power Consumption Maximum (PoE On): 65.2W (220V/50Hz)
- Power Consumption Maximum (PoE Off): 5.2W (220V/50Hz)
- PoE Standard: 802.3af compliant
- PoE Ports: Port 1 to Port 4
- PoE Power Budget: 55W
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mb
Package Contents

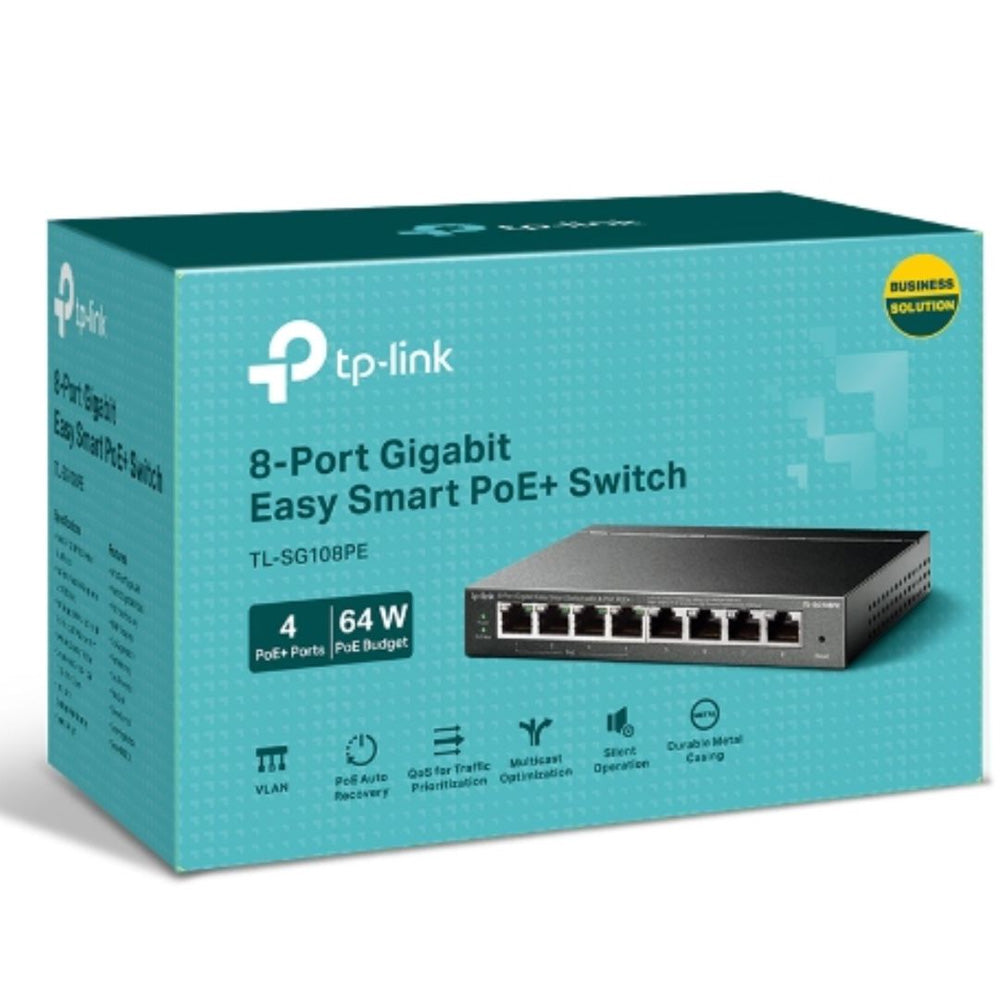

- 1x TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch
