Description

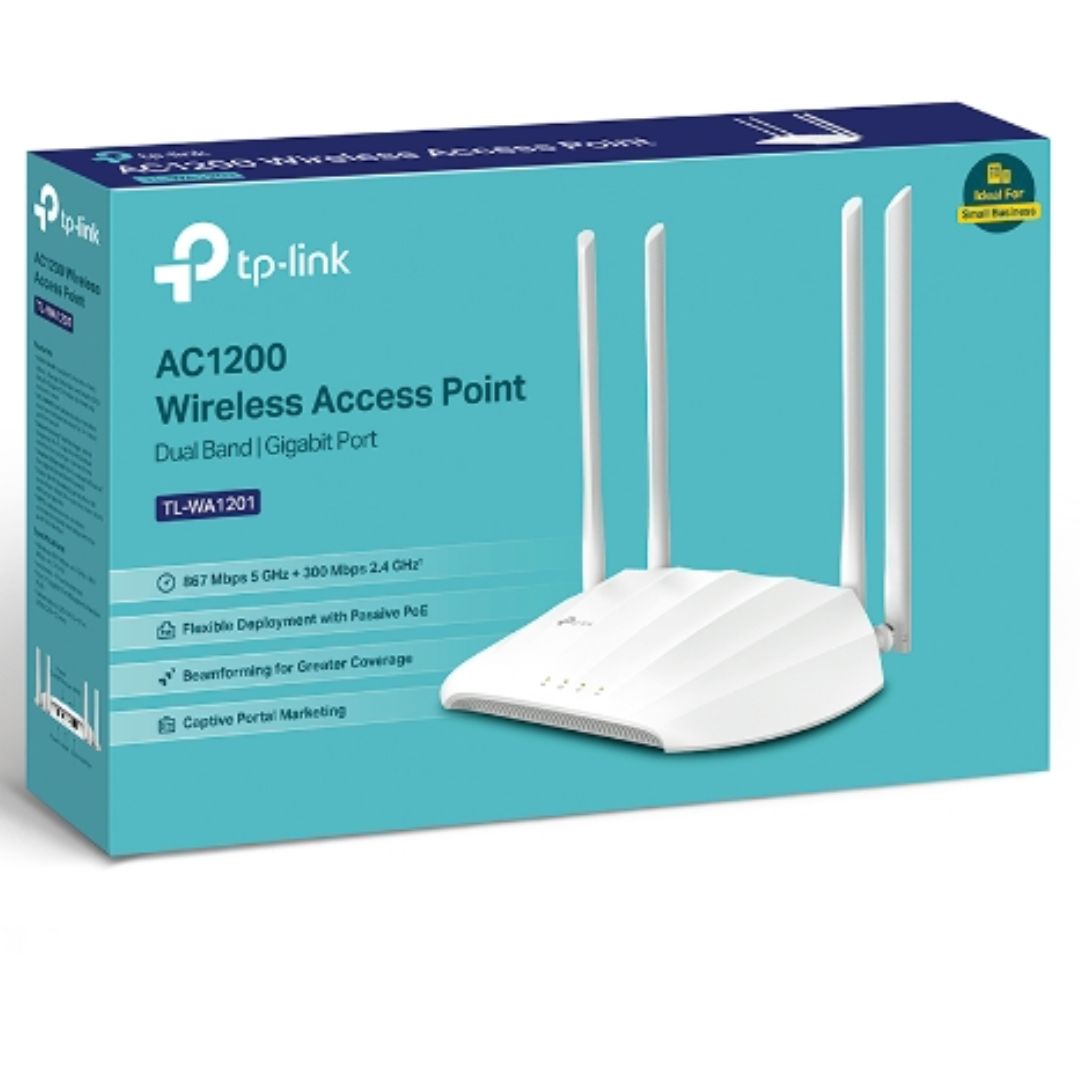

The TP-Link TL-WA1201 is an AC1200 dual-band wireless access point delivering 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz. It supports Passive PoE to carry electrical power and data simultaneously for flexible deployment. Multiple modes, including Access Point, Range Extender, Multi-SSID and Client, meet a wide range of network needs. MU-MIMO technology transfers data to multiple devices simultaneously for 2x faster performance, while four fixed antennas with Beamforming technology extend and concentrate the Wi-Fi signals for boosted coverage. A captive portal offers a designed portal page for heightened security and marketing.
Features
- AC1200 Dual-Band Wi-Fi: 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz
- Flexible Deployment: Supports Passive PoE to carry electrical power and data simultaneously
- Multiple Modes: Supports Access Point, Range Extender, Multi-SSID and Client modes
- MU-MIMO Technology: Simultaneously transfers data to multiple devices for 2x faster performance
- Boosted Coverage: Four fixed antennas with Beamforming technology extend and concentrate Wi-Fi signals
- Captive Portal: Offers a designed portal page for heightened security and marketing
Specifications
- Brand: TP-Link
- Product Type: AC1200 Wireless Access Point
- Interface: 1 x 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
- Buttons: Power On/Off Button, WPS Button, Reset Button
- External Power Supply: 12V 1.5A
- Wireless Standards: IEEE 802.11b/g/n at 2.4 GHz, IEEE 802.11ac/n/a at 5 GHz
- Dimensions (W x D x H): 400 x 255 x 72mm
- Antenna Type: 4 x Fixed High Performance Antennas
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
- Reception Sensitivity (5 GHz): 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm, 11ac VHT20 (MCS0): -94 dBm, 11ac VHT20 (MCS8): -71 dBm, 11n HT40 (MCS0): -91 dBm, 11n HT40 (MCS7): -71 dBm, 11ac VHT80 (MCS0): -88 dBm, 11ac VHT80 (MCS9): -63 dBm
- Reception Sensitivity (2.4 GHz): 11g 54Mbps: -78 dBm, 11n HT20 (MCS0): -92 dBm, 11n HT20 (MCS7): -74 dBm, 11n HT40 (MCS0): -88 dBm, 11n HT40 (MCS7): -72 dBm
- Transmit Power: CE: <20dBm (2.4GHz), <23dBm (5.15GHz to 5.25GHz), FCC: <30dBm (2.4GHz and 5GHz)
- Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
- DHCP: DHCP Server, DHCP Client List
- Quality of Service: WMM
- Advanced Functions: Captive Portal
- Certification: CE, FCC, RoHS
Package Contents
- 1 x TP-Link TL-WA1201 Wireless Access Point
