Description:

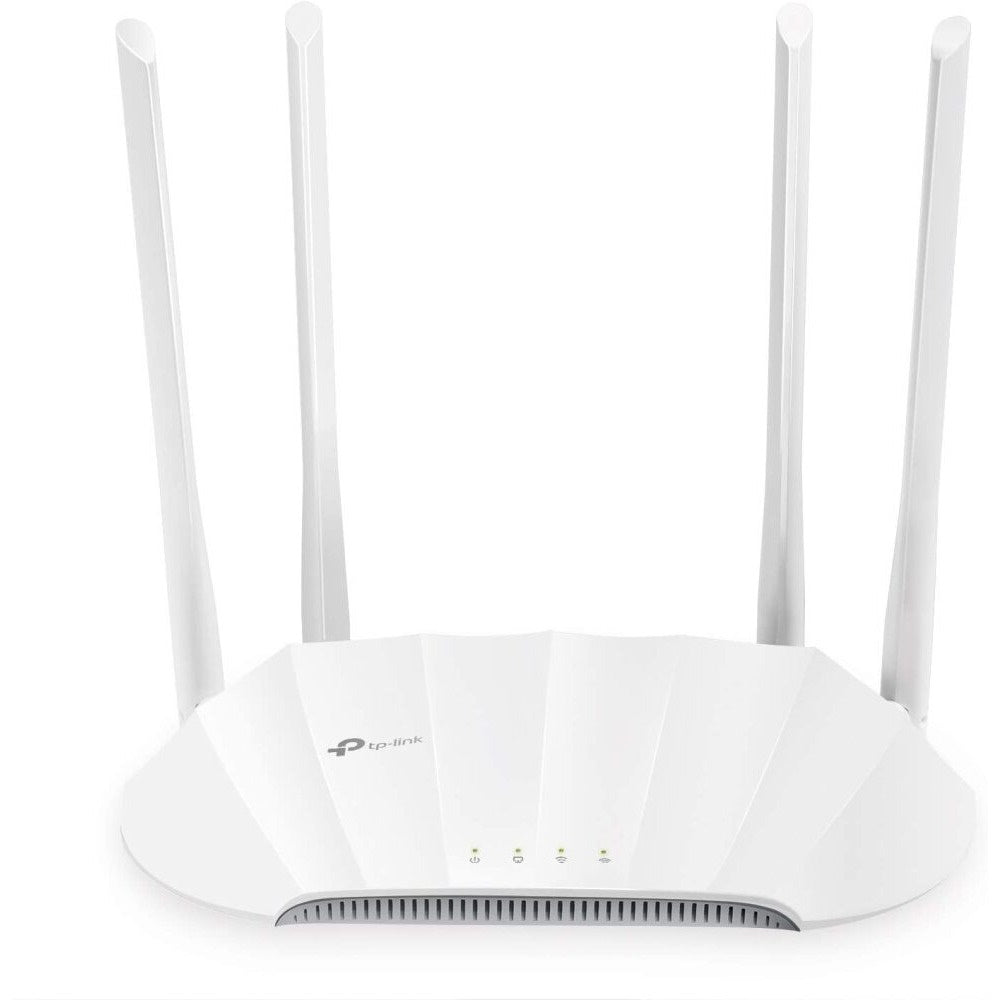

This TP-Link product is an AC1200 dual band wireless access point built for workshops, studios, and small businesses needing reliable coverage. Delivering combined speeds of up to 1200Mbps across 2.4GHz and 5GHz bands, it supports multiple devices simultaneously without congestion using MU-MIMO technology. Four external antennas with beamforming extend strong signal coverage across large spaces, while the gigabit Ethernet port ensures fast, stable wired connections. Passive PoE support allows flexible single cable deployment, and the captive portal feature enables guest network marketing opportunities. With four selectable operating modes and simple setup, this access point adapts to a wide range of network needs.
Features:
- AC1200 dual band Wi-Fi for fast, reliable connectivity
- MU-MIMO technology serves multiple devices without congestion
- Four external antennas with beamforming for extended coverage
- Gigabit Ethernet port for stable wired connections
- Passive PoE support for flexible single cable deployment
- Captive portal marketing feature for guest network engagement
- Supports Access Point, Multi-SSID, Range Extender, and Client modes
- WPS button for quick and secure wireless connection
- Elegant design suitable for wall or desktop mounting
Specifications:
- Interface: 1 x 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
- Buttons: Power On/Off Button, WPS Button, Reset Button
- External Power Supply: 12V/1.5A
- Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
- Dimensions (W x D x H): 400 x 255 x 72 mm
- Antenna Type: 4 Fixed High Performance Antennas
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
- Transmit Power: CE less than 20dBm (2.4GHz), less than 23dBm (5.15GHz to 5.25GHz); FCC less than 30dBm (2.4GHz and 5GHz)
- Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
- DHCP: Server, DHCP Client List
- Quality of Service: WMM
- Advanced Functions: Captive Portal
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java enabled browser
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
- Protocol Support: IPv4, IPv6
- Colour: White
Package Contents:
1x TP-Link TL-WA1201 Wireless Access Point
1x Power Adapter
1x RJ45 Ethernet Cable
1x Quick Installation Guide
1x PoE Power Injector
