Description

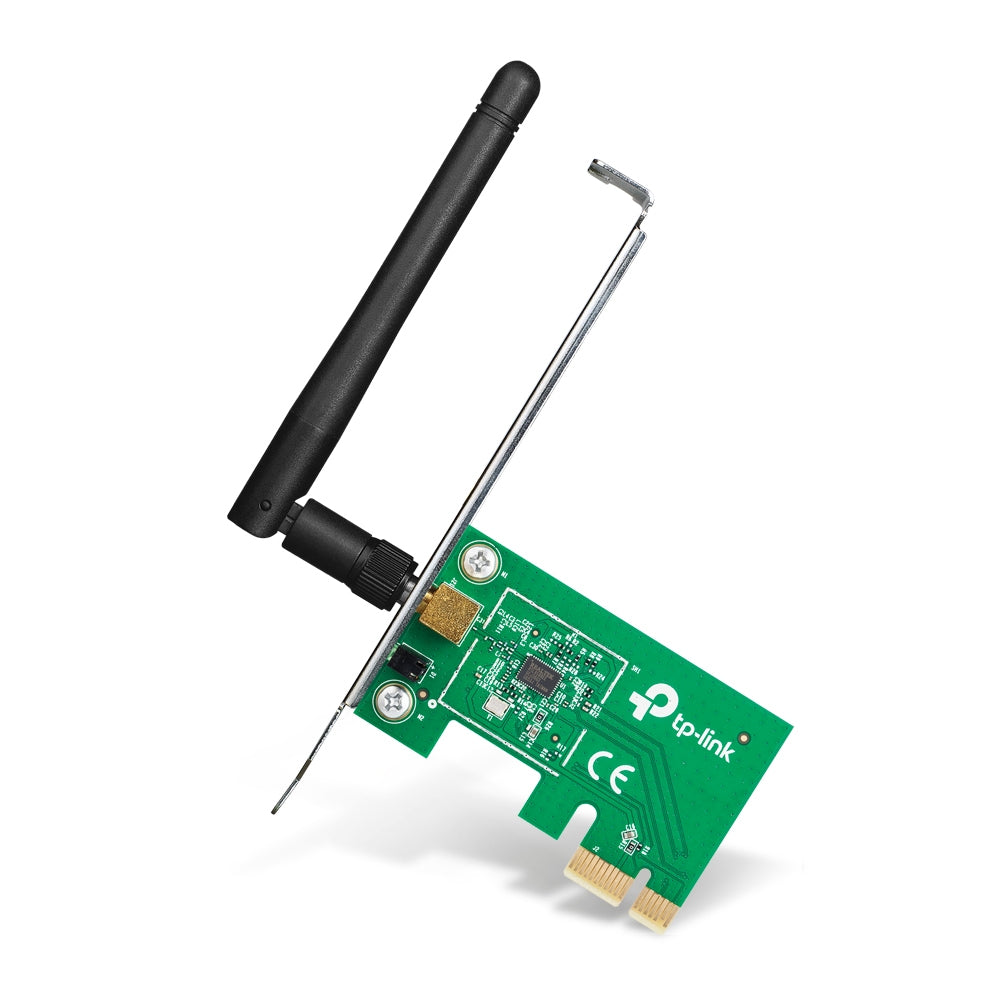

Enjoy a stable wireless connection for a smoother surfing experience with the TP-Link 150Mbps Wireless N PCI Express Adapter. Compared to standard PCI network cards, this adapter offers increased bandwidth, reliability, and functionality, delivering up to 150Mbps wireless transmission rate for a joyful experience sharing files, watching streaming media, and browsing the web. A detachable antenna can be rotated and adjusted in different directions to fit various operating environments, and can even be replaced with alternative indoor or directional antennas for wider wireless coverage. Advanced WPA/WPA2 encryption standards keep your wireless connection secure, while the bundled utility with a friendly user interface on CD enables easy setup and management. The adapter supports both Windows and Linux operating systems, making it a flexible choice for a range of desktop setups.
Features
- Up to 150Mbps wireless transmission rate
- PCI Express interface for easy desktop installation
- Detachable antenna, rotatable and adjustable for various operating environments
- Antenna can be replaced with diverse indoor or directional antennas for wider coverage
- Advanced secure connection with WPA/WPA2 encryption
- Bundled utility with friendly user interface for easy management
- Supports Windows and Linux operating systems
Specifications
- Interface: PCI Express
- Dimensions (W x D x H): 4.8 x 3.1 x 0.8 in (120.8 x 78.5 x 21.5mm)
- Antenna Type: Detachable Omni Directional (RP-SMA)
- Antenna Gain: 2dBi
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.400-2.4835GHz
- Signal Rate: 11n up to 150Mbps (dynamic), 11g up to 54Mbps (dynamic), 11b up to 11Mbps (dynamic)
- Reception Sensitivity: 130M -68dBm@10% PER, 108M -68dBm@10% PER, 54M -68dBm@10% PER, 11M -85dBm@8% PER, 6M -88dBm@10% PER, 1M -90dBm@8% PER
- Transmit Power: <20dBm (EIRP)
- Wireless Modes: Ad-Hoc / Infrastructure mode
- Wireless Security: 64/128 bit WEP, WPA-PSK/WPA2-PSK
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
- Certification: CE, FCC, RoHS
- Package Contents: Wireless Adapter, Detachable Omnidirectional Antenna, Low-Profile Bracket, Resource CD, Quick Installation Guide
- System Requirements: Windows XP/Vista/7/8/8.1/10 (32/64bit), Linux 2.6.24~4.3
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
