Description

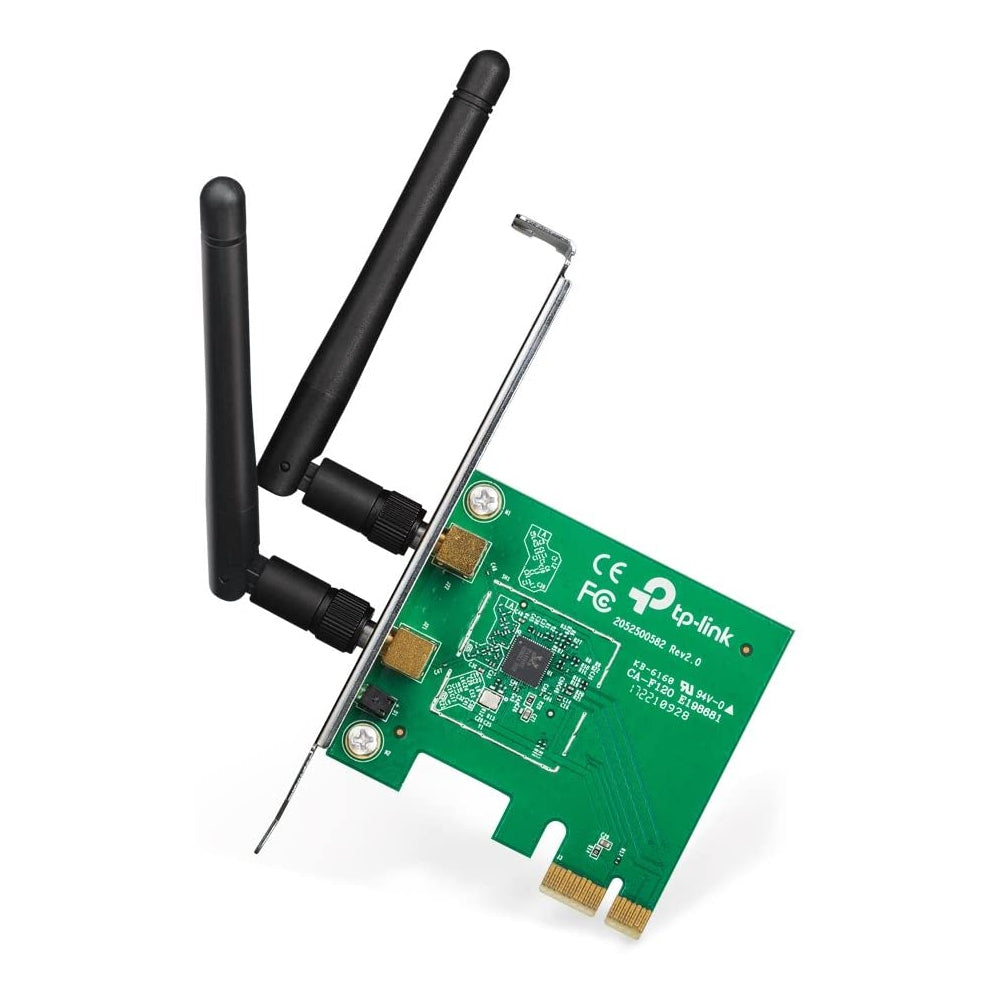

Enjoy steady Wi-Fi for daily entertainment with this 300Mbps Wireless N PCI Express Adapter. This adapter allows you to connect a desktop computer to a wireless network and access high-speed internet, complying with IEEE 802.11n standards to deliver speeds up to 300Mbps, ideal for online gaming and HD video streaming. MIMO (multiple input, multiple output antennas) technology shows excellent ability at mitigating data loss over long distances and through obstacles in small offices, large apartments, or steel-and-concrete buildings, letting you easily pick up wireless signal in long-distance connections where legacy 802.11g products may fall short. Clear Channel Assessment (CCA) technology automatically avoids channel conflicts through clear channel selection, fully realizing the advantages of channel binding and greatly enhancing wireless performance. WPA/WPA2 encryptions, created by the Wi-Fi Alliance industry group, promote interoperability and security for WLAN connections, effectively protecting your wireless network beyond what older WEP encryption can offer. Two detachable antennas can be rotated and adjusted in different directions to fit various operating environments, and can be replaced with alternative indoor or directional antennas for wider wireless coverage. A bundled CD with utility software makes installation and wireless network configuration convenient, even for novice users, and the adapter supports both Windows and Linux operating systems.
Features
- Wireless N speeds up to 300Mbps, ideal for video streaming, online gaming, and internet calls
- MIMO technology for stronger signal penetration and wider wireless coverage
- Easy setup of a highly secured wireless link with WPS (Wi-Fi Protected Setup)
- Clear Channel Assessment (CCA) technology for stable, conflict-free wireless signals
- Advanced WPA/WPA2 encryption for effective wireless network security
- Two detachable antennas, rotatable and adjustable for various operating environments
- Antennas can be replaced with diverse indoor or directional antennas for wider coverage
- Bundled CD utility for easy software installation and network configuration
- Supports Windows and Linux operating systems
Specifications
- Interface: PCI Express (x1)
- Dimensions (W x D x H): 4.8 x 3.1 x 0.8 in (120.8 x 78.5 x 21.5mm)
- Antenna Type: Detachable Omni Directional (RP-SMA)
- Antenna Gain: 2dBi
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.400-2.4835GHz
- Signal Rate: 11n up to 300Mbps (dynamic), 11g up to 54Mbps (dynamic), 11b up to 11Mbps (dynamic)
- Reception Sensitivity: 270M -68dBm@10% PER, 130M -68dBm@10% PER, 108M -73dBm@10% PER, 54M -73dBm@10% PER, 11M -89dBm@8% PER, 6M -87dBm@10% PER, 1M -90dBm@8% PER
- Transmit Power: <20dBm (EIRP)
- Wireless Modes: Ad-Hoc / Infrastructure mode
- Wireless Security: 64/128 bit WEP, WPA-PSK/WPA2-PSK
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
- Certification: CE, FCC, RoHS
- Package Contents: 300Mbps Wireless N PCI Express Adapter, Low-Profile Bracket, Quick Installation Guide, Resource CD
- System Requirements: Windows 10/8.1/8/7, Linux
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
