Description:

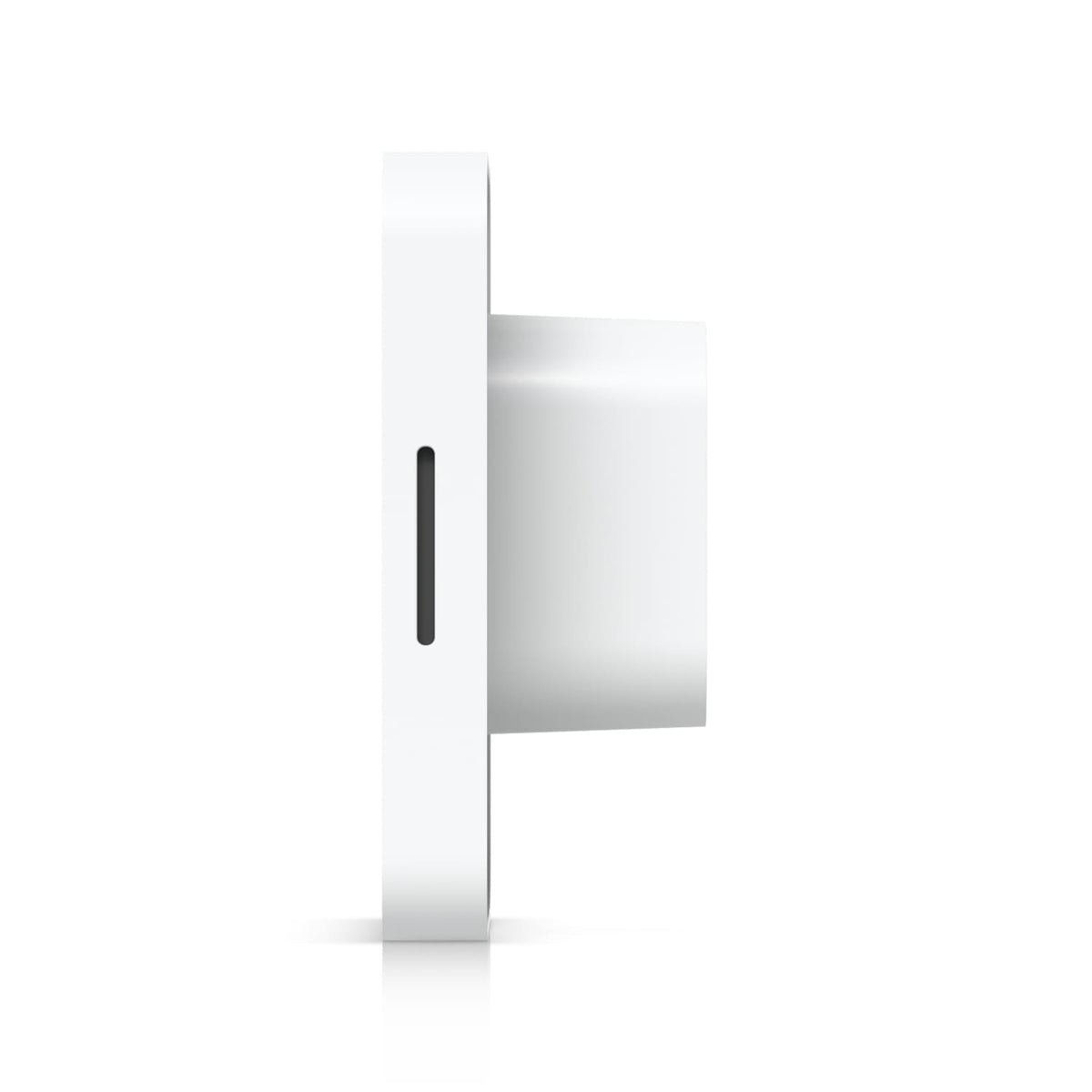

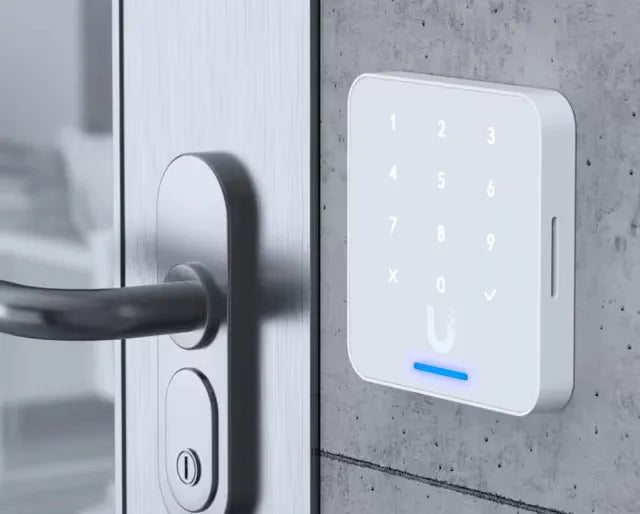

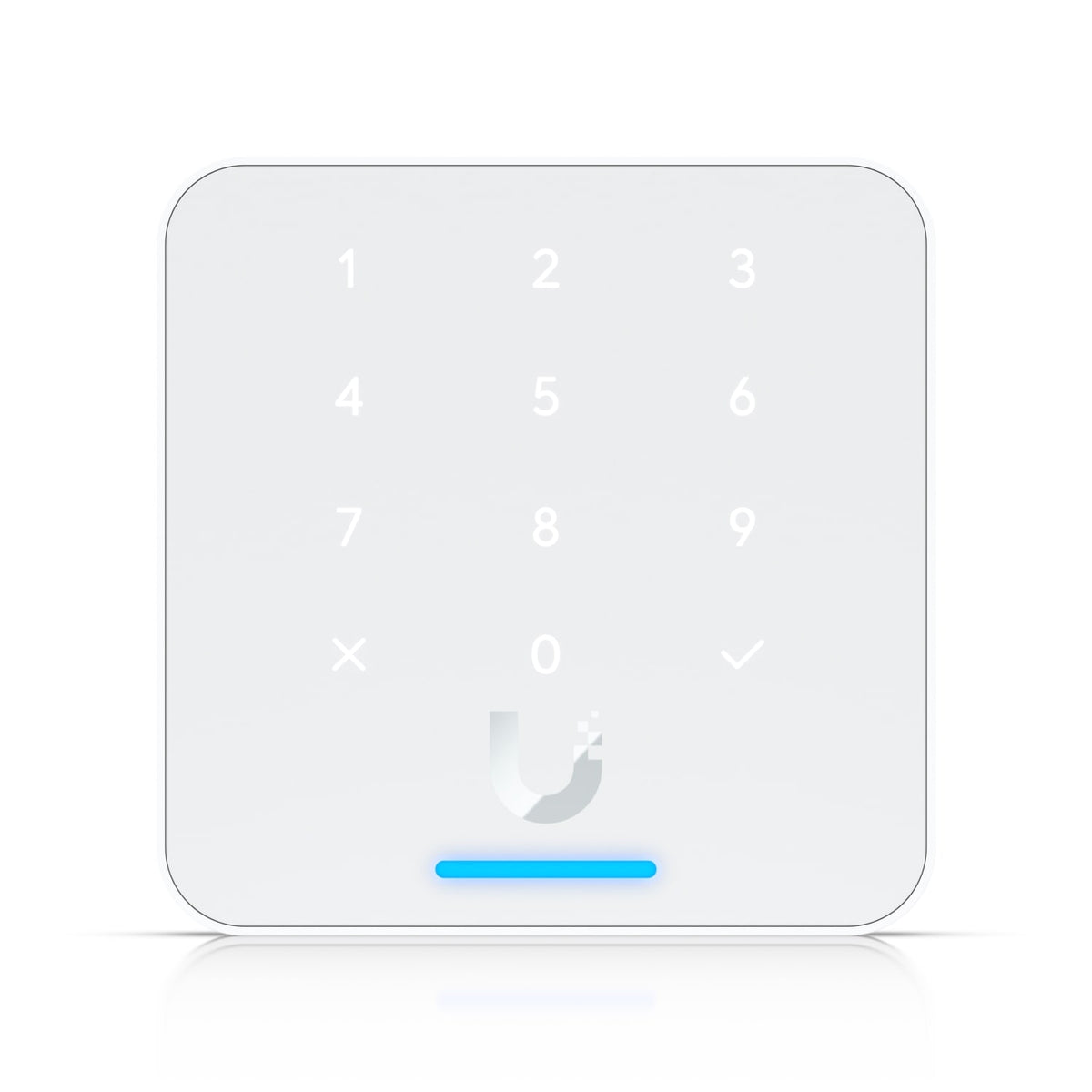

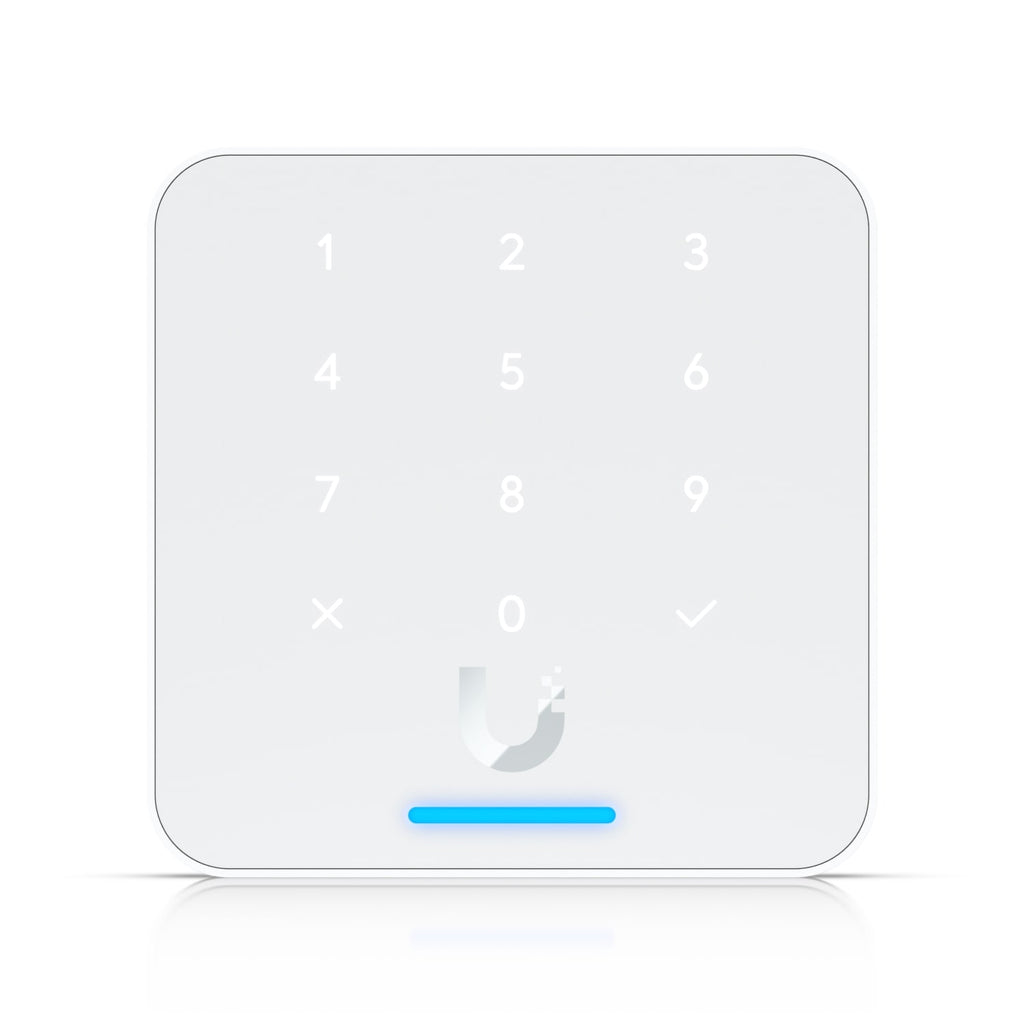

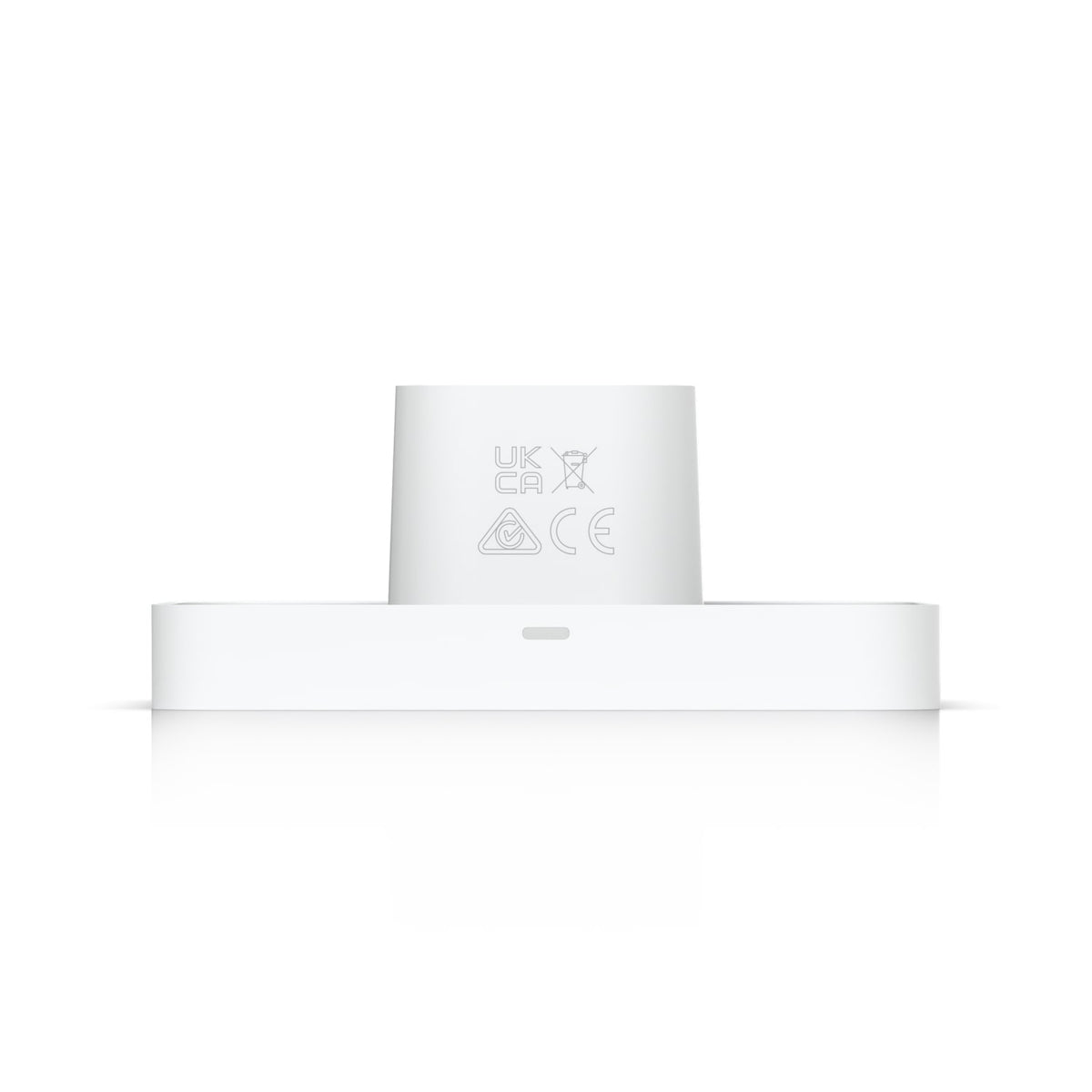

The Reader Flex is a third generation NFC card reader featuring a built in keypad and Touch Pass support for both Apple Wallet and Google Wallet. It offers flexible authentication through PIN access, NFC card and keyfob access, and UniFi Identity mobile access.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- UniFi Identity mobile access
- Outdoor ready design
- Powered via PoE using UniFi Control Hub
- Supports a wide range of NFC cards and mobile credentials including MIFARE 13.56 MHz cards
- Slim, modern profile suited for indoor and covered outdoor installations
Specifications:
- Colour: White
- Dimensions: 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6")
- NFC Card and Keyfob Access: Yes
- PIN Access: Yes
- Apple/Google Wallet: Yes
- Mobile Unlock: Yes
- NDAA Compliant: Yes
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- Weatherproofing: IP55
- Weight: 165 g (5.8 oz)
- Enclosure Material: Polycarbonate, glass, aluminium alloy
- Mount Material: Polycarbonate, aluminium alloy

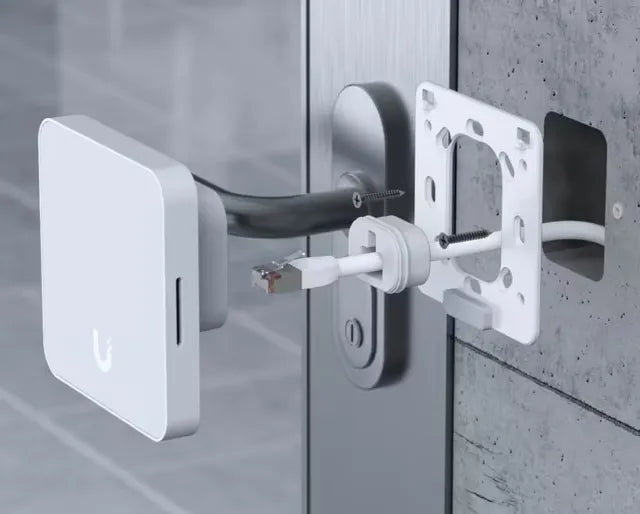

- Mounting: Wall (included), gang box and junction box (optional)
- Indoor and Outdoor Use: Yes
- Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
- Ambient Operating Humidity: 5 to 90% noncondensing

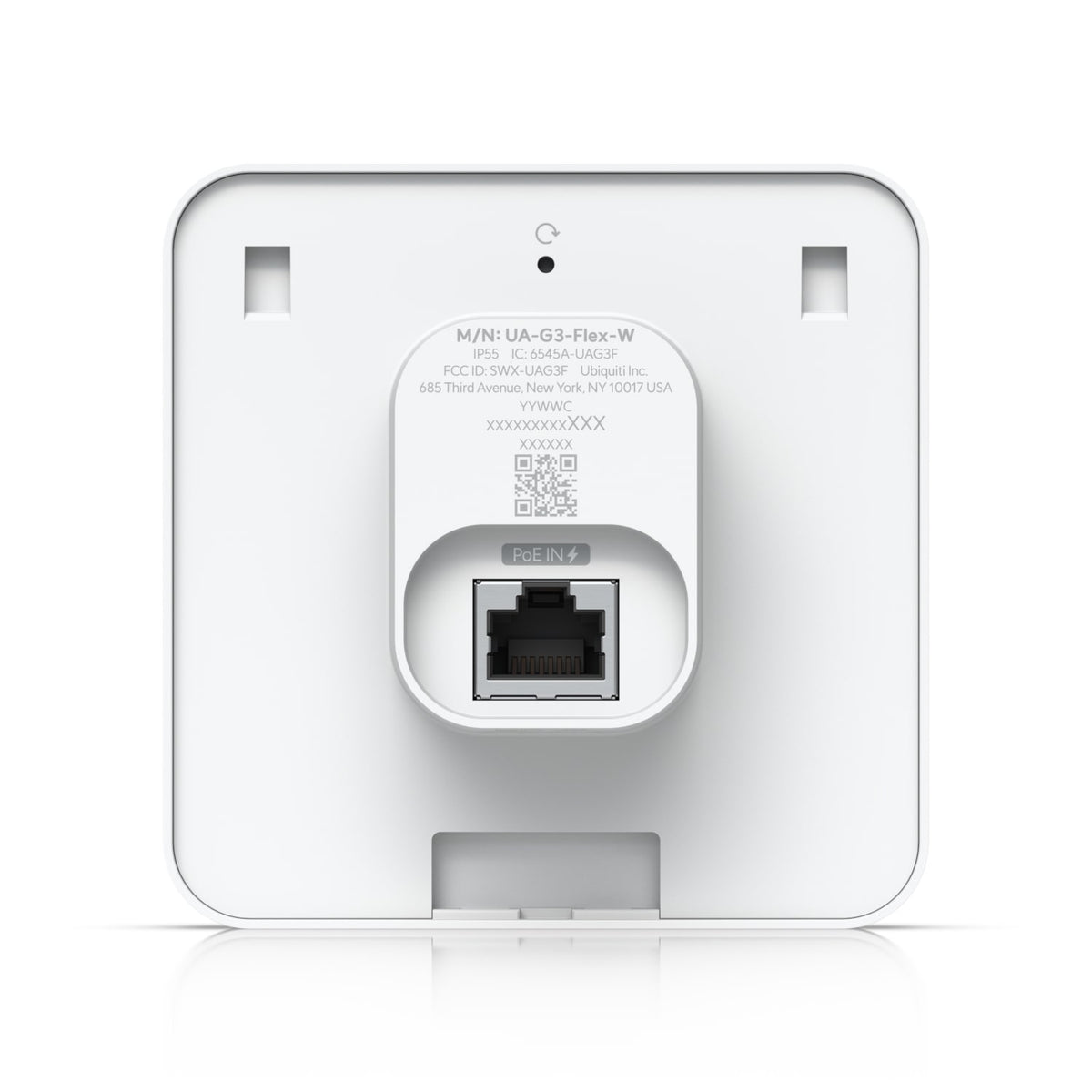

- Networking Interface: One 10/100 MbE RJ45 port
- Connectivity: BLE 4.1, NFC
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 5W
- Supported Voltage Range: 44 to 57V DC
- ESD/EMP Protection: Air ±15kV, contact ±8kV
- Sensors: 12 capacitive buttons
- Speaker: One, 1W
- LEDs: R/G/B/W
- Button: One factory reset button
- NFC Frequency: 13.56 MHz
- NFC Read Range: Less than 30 mm (1.18")
- NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic, MIFARE DESFIRE, Sony FeliCa (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Management Application: Access
