Description

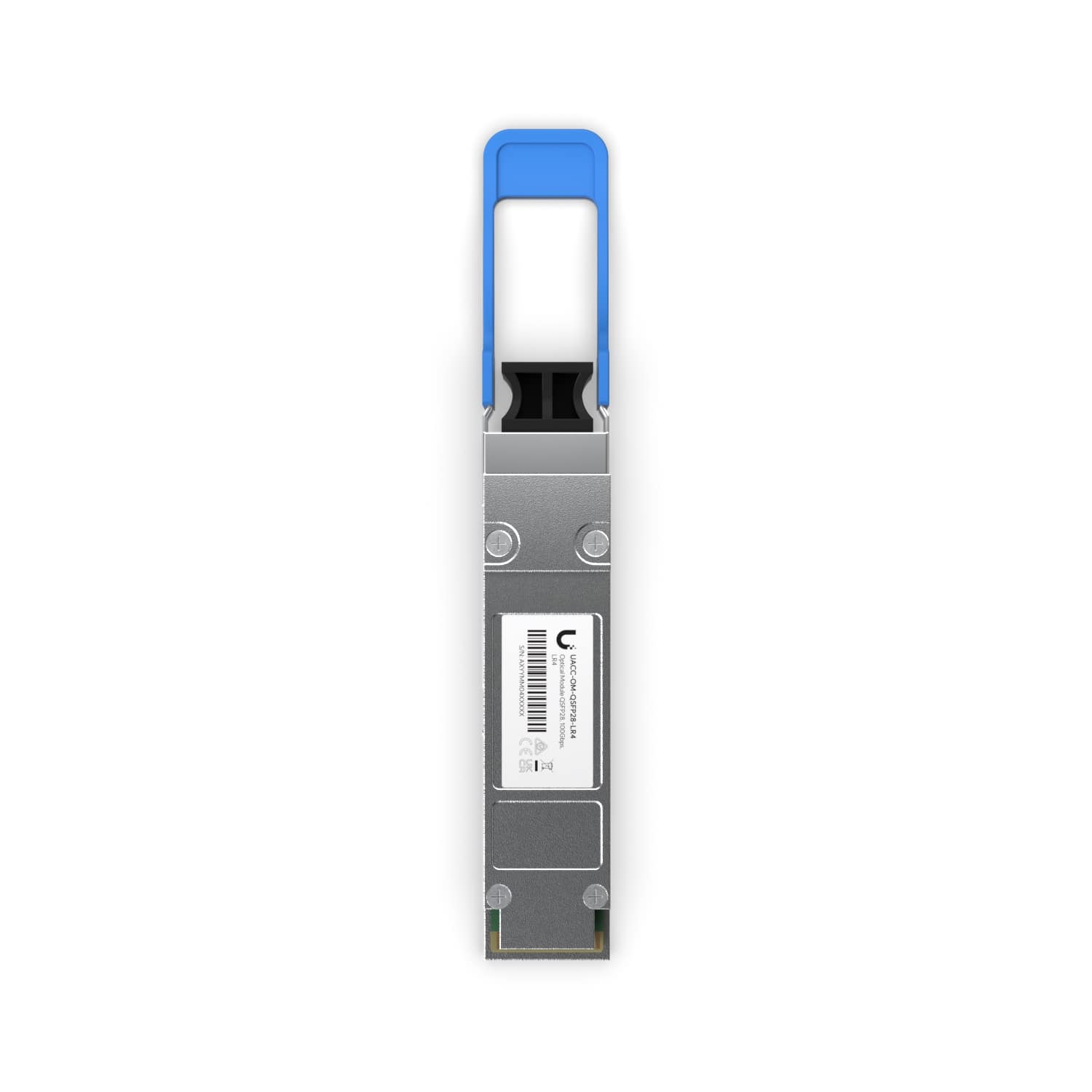

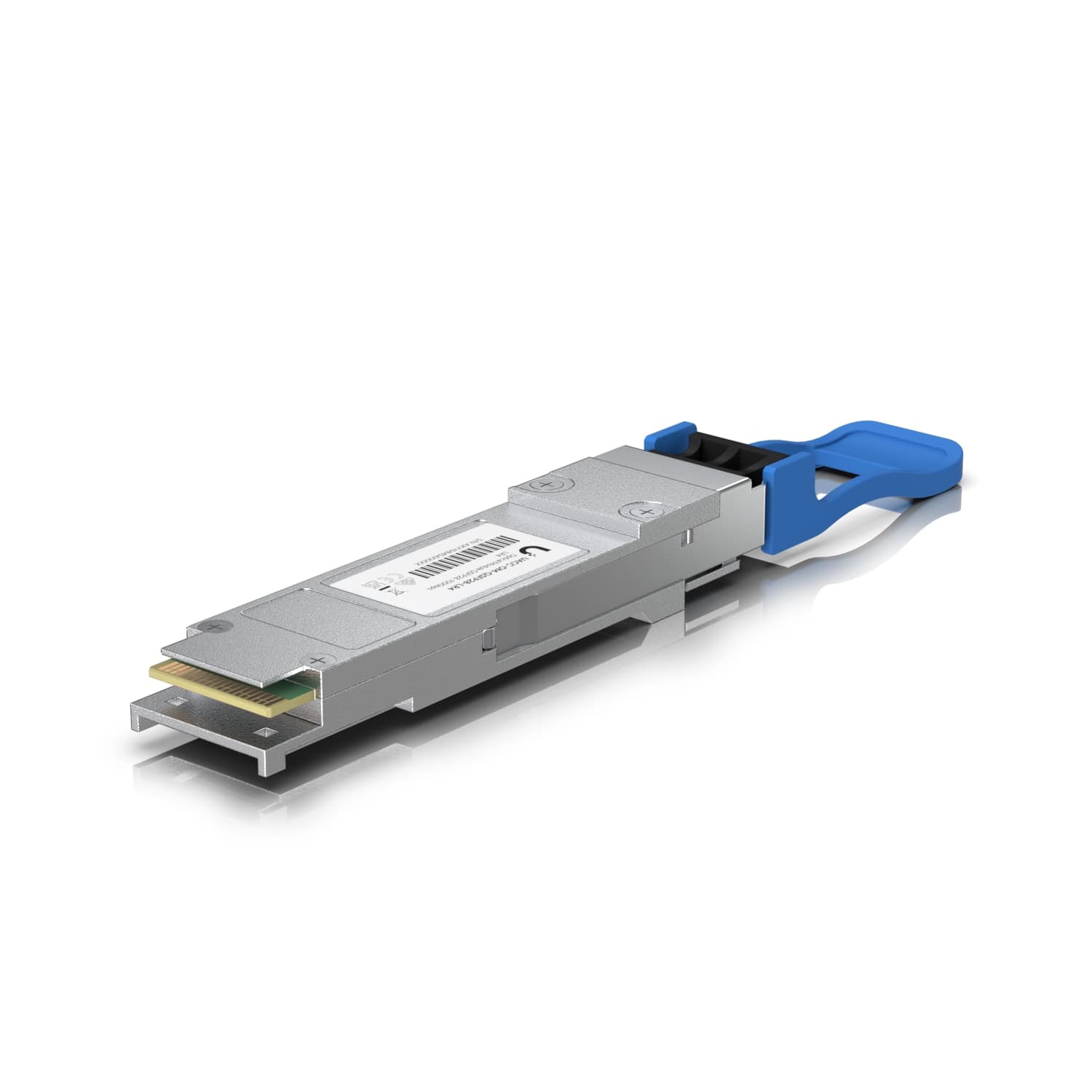

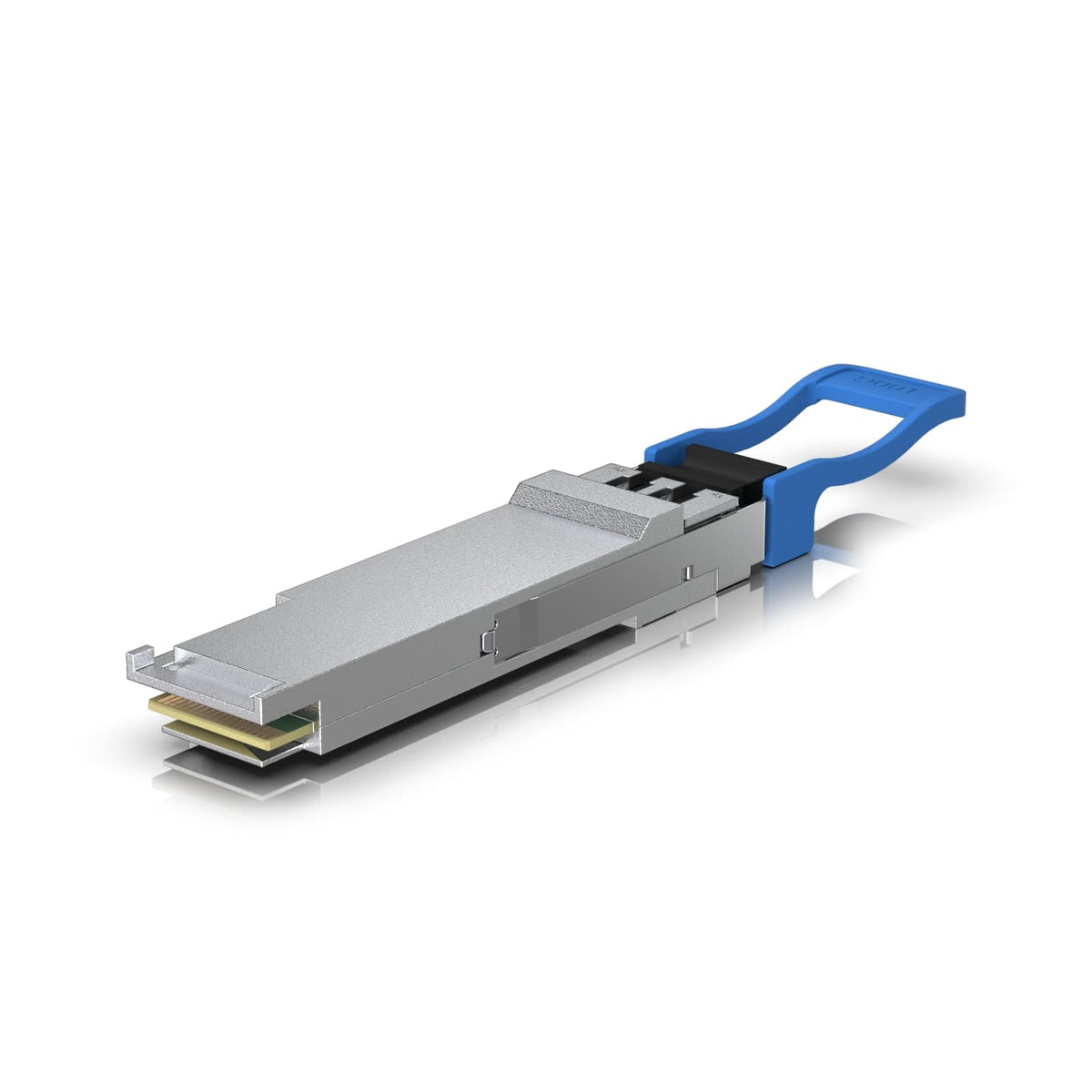

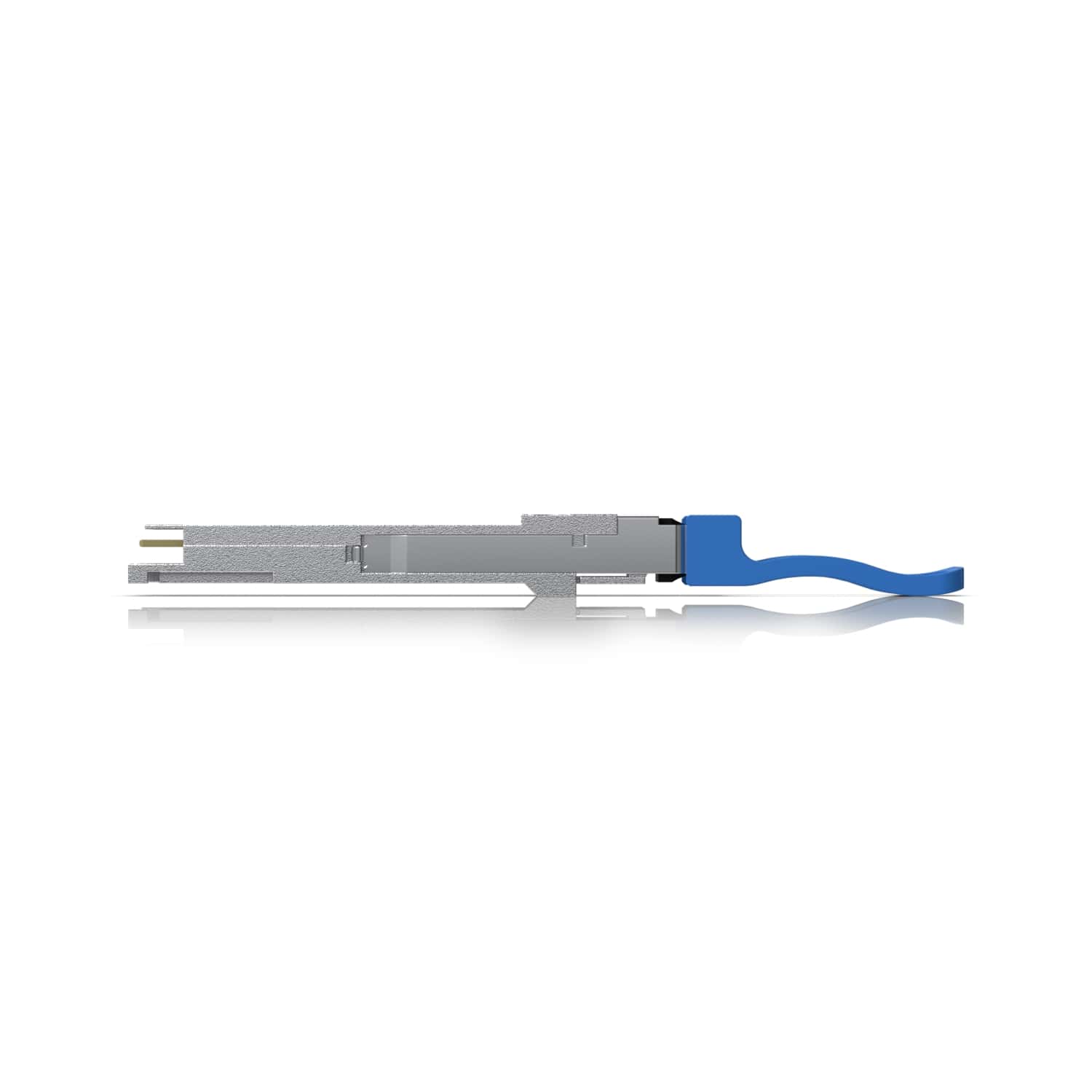

The Ubiquiti 100G LR4 Single-Mode Optical Module is a QSFP28 transceiver that supports 100G connections up to 10 km using single mode fiber with a duplex LC UPC connector. With a maximum data rate of 100 Gbps, it is compatible with QSFP28 and QSFP+ interfaces, operating at 1295/1300/1304/1309 nm wavelengths with a maximum power consumption of 4W. Please note this is a Class 1 laser product per IEC/EN 60825-1:2014; do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Features
- Maximum data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- Duplex LC UPC connector
- Supports single mode fiber connections up to 10 km
Specifications
- Form factor: QSFP28
- Connector: Duplex LC UPC
- Supported media: Single mode fiber
- TX wavelength: 1295 / 1300 / 1304 / 1309 nm
- RX wavelength: 1295 / 1300 / 1304 / 1309 nm
- Supported data rate: 100 Gbps
- Supported cable distance: 10 km (6.2 mi)
- Maximum power consumption: 4W
- Pack options: Single unit
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
- Laser safety: Class 1 laser product, IEC/EN 60825-1:2014
Package Contents
- Ubiquiti 100G LR4 Single-Mode Optical Module
