Description

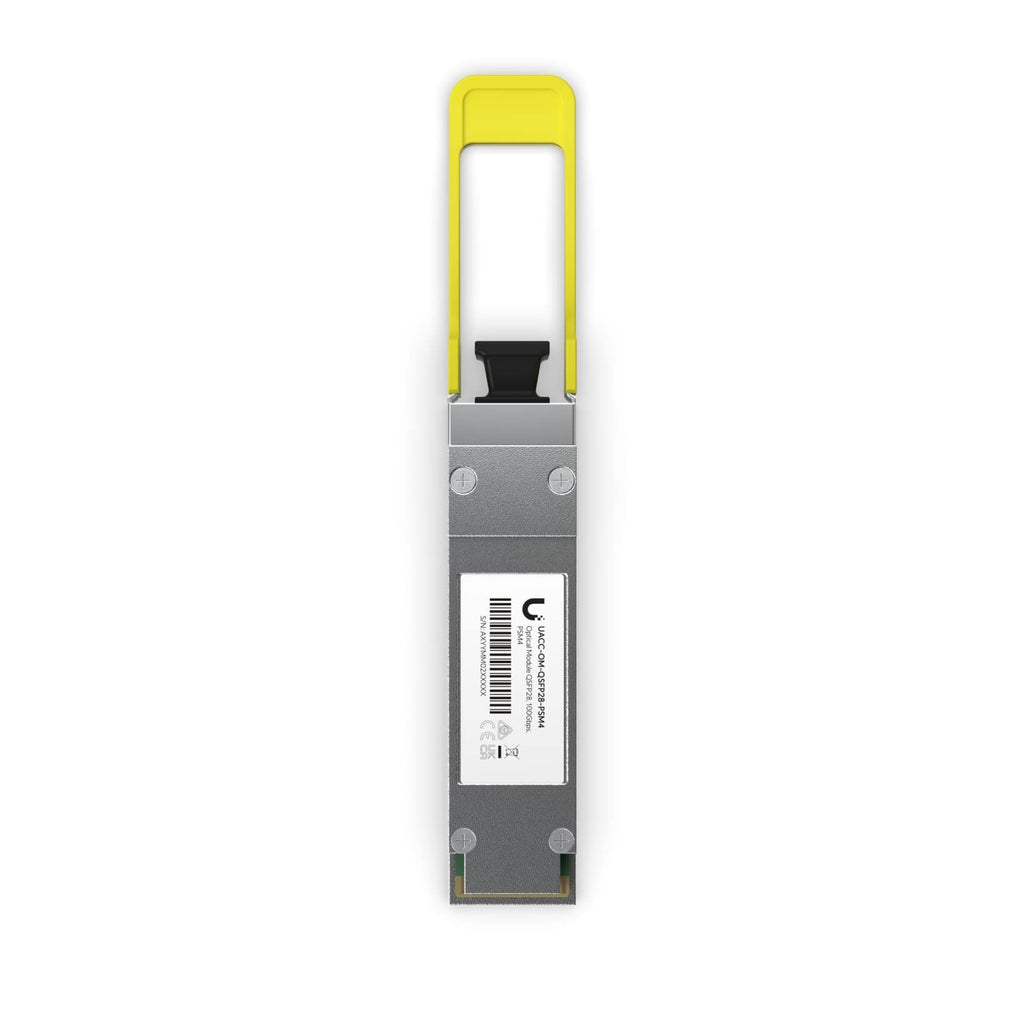

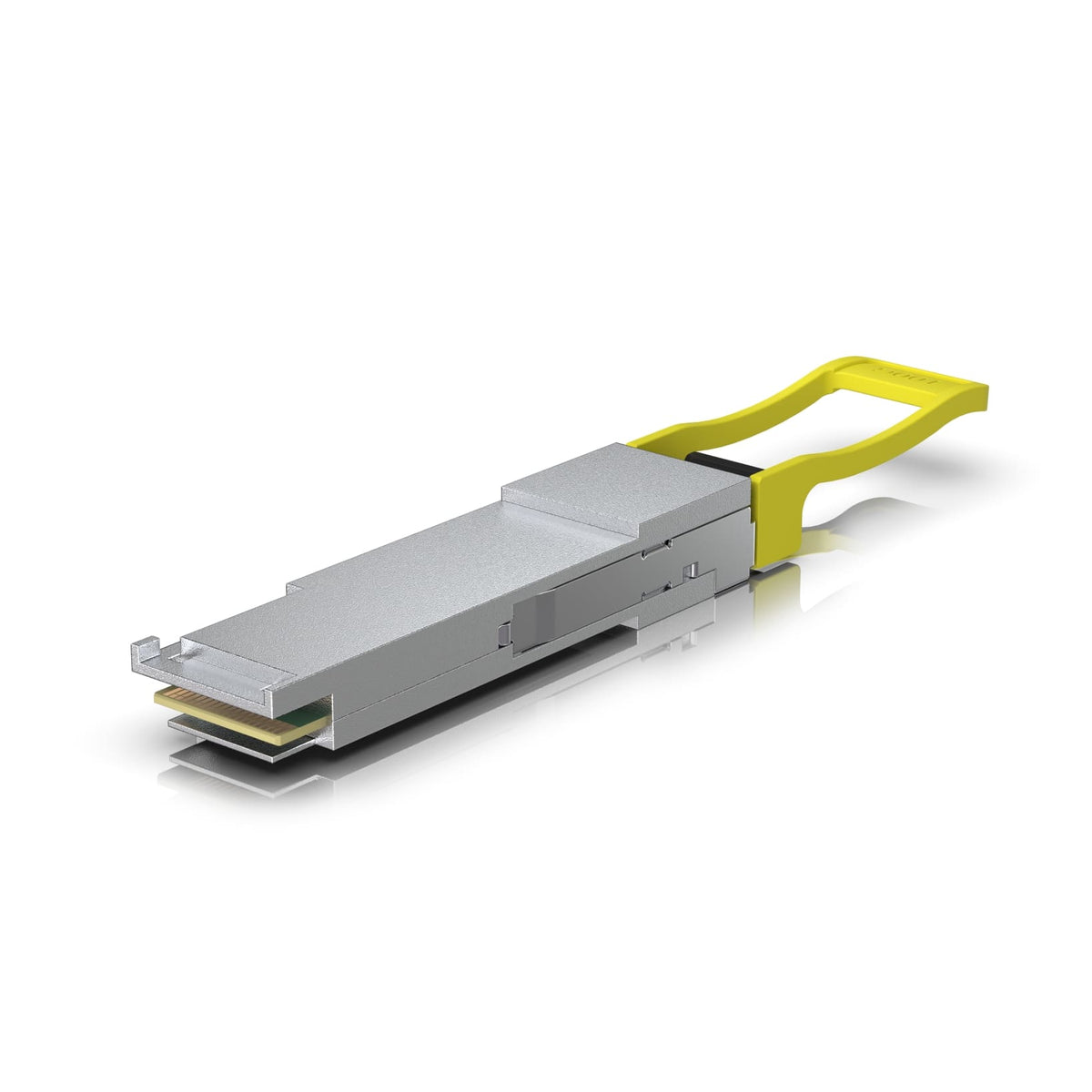

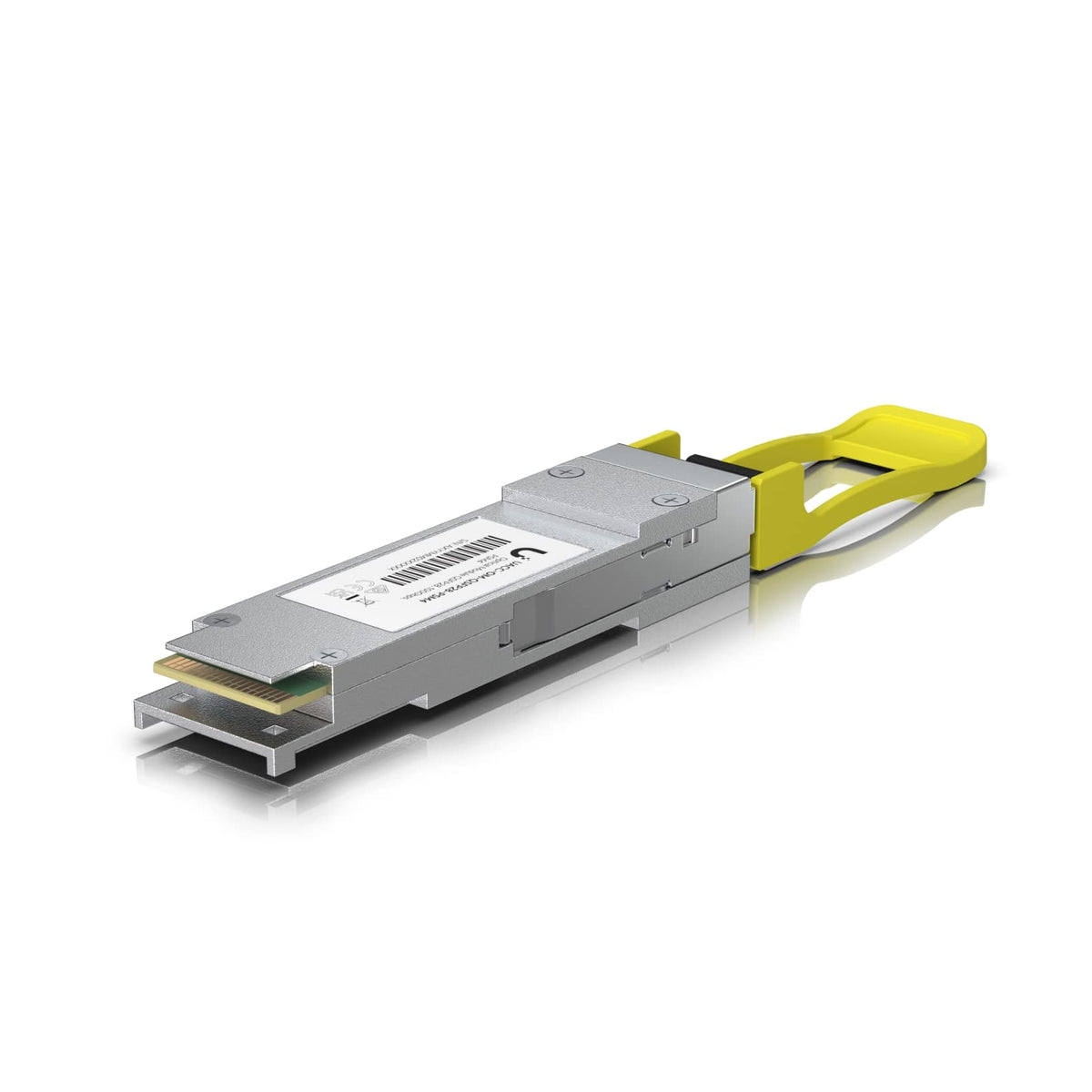

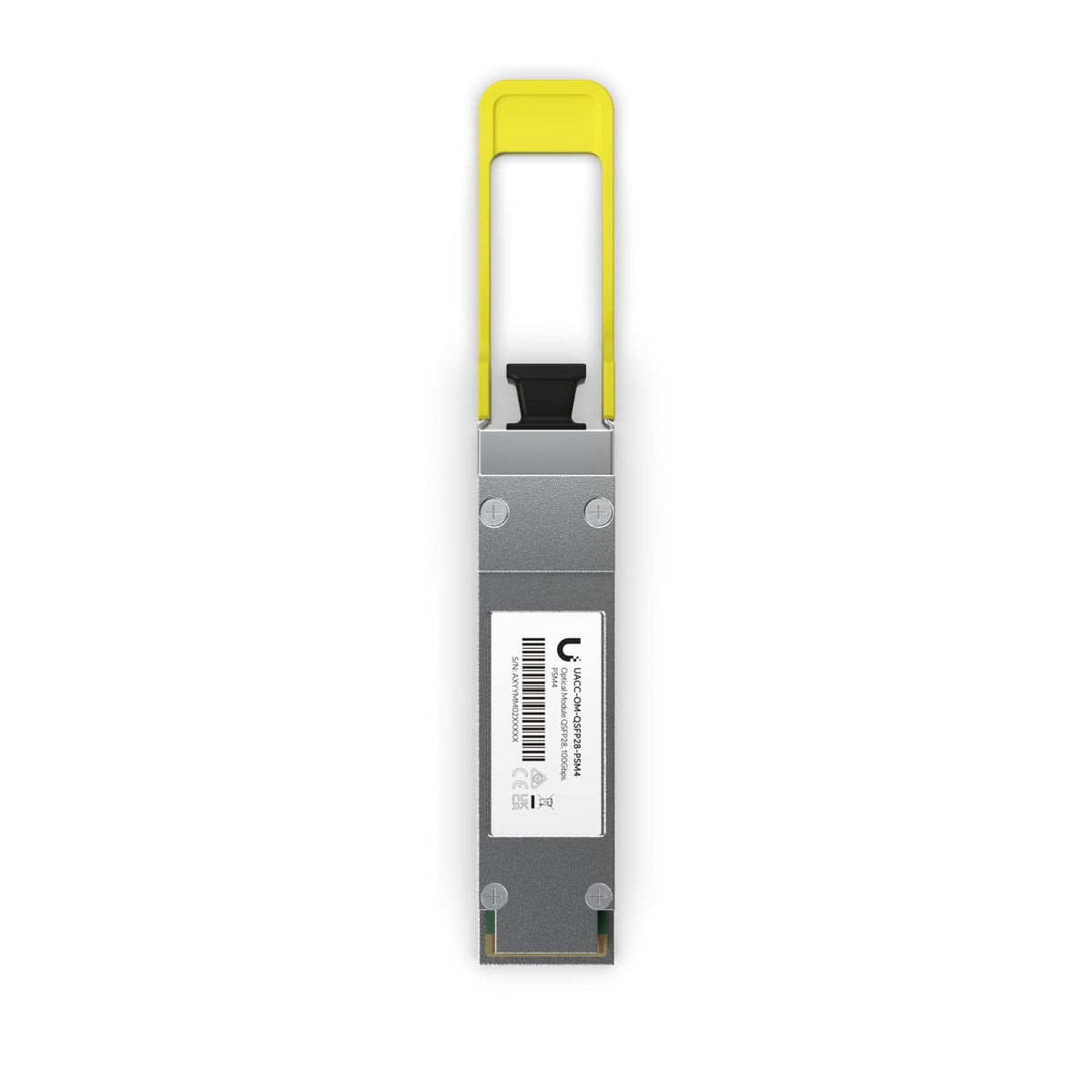

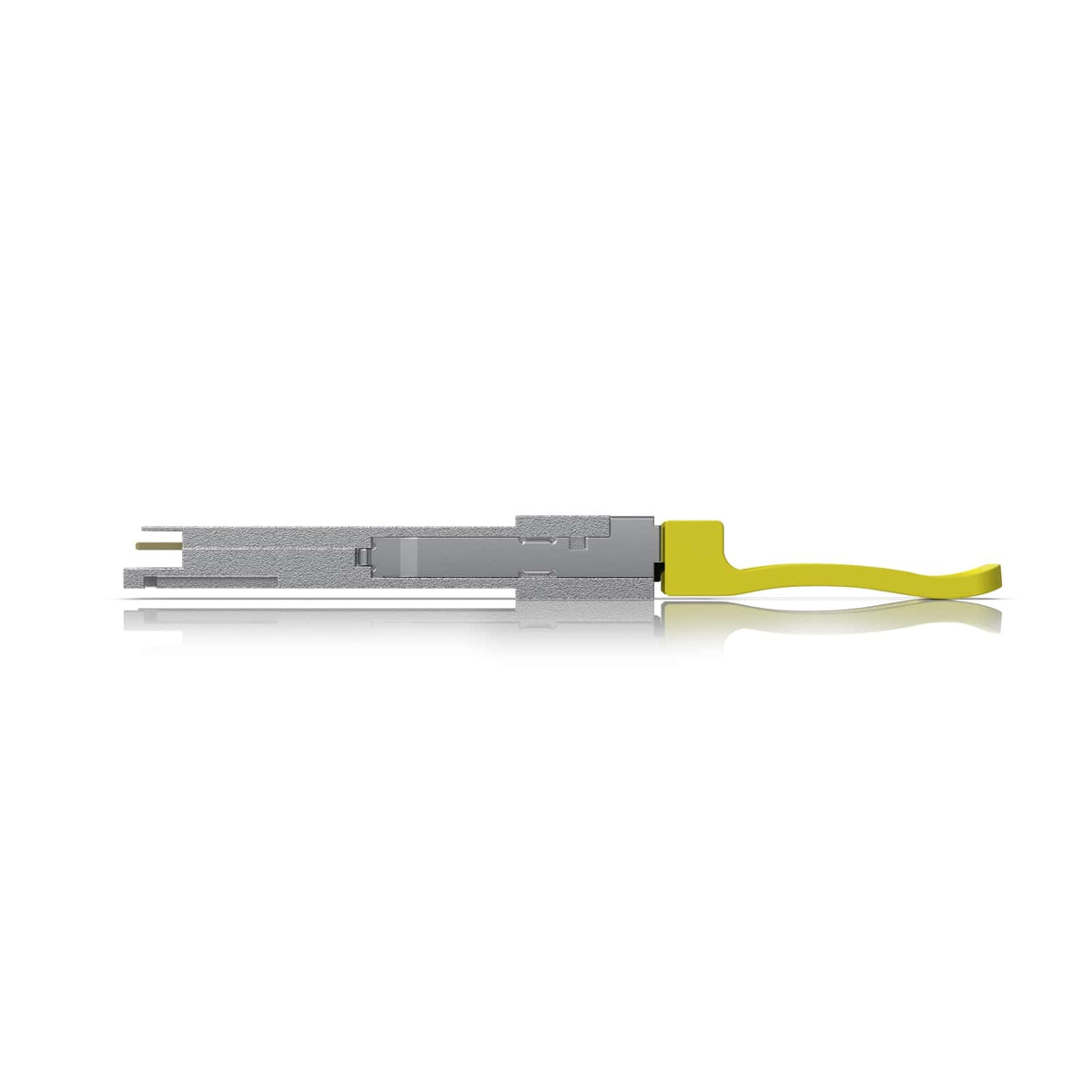

The Ubiquiti 100G PSM4 Single-Mode Optical Module is a QSFP28 transceiver that supports 100G connections up to 2 km using single mode fiber with an MPO-12 APC connector. With a maximum data rate of 100 Gbps, it is compatible with QSFP28 and QSFP+ interfaces and features an MPO-12 Type B APC connector operating at a 1310 nm wavelength with a maximum power consumption of 3.5W. Please note it requires OS2 single mode fiber, with transmission distance limited to 500 m using OS1 single mode fiber, and a fiber cable is not included. This is a Class 1 laser product per IEC/EN 60825-1:2014; do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Features
- Maximum data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- MPO-12 Type B APC connector
- Supports single mode fiber connections up to 2 km (requires OS2 single mode fiber; transmission distance limited to 500 m with OS1 single mode fiber)
- Fiber cable is not included
Specifications
- Form factor: QSFP28
- Connector: MPO-12 Type B APC
- Supported media: Single mode fiber
- TX wavelength: 1310 nm
- RX wavelength: 1310 nm
- Supported data rate: 100 Gbps
- Supported cable distance: 2 km (1.2 mi)
- Maximum power consumption: 3.5W
- Pack options: Single unit
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Package Contents
- Ubiquiti 100G PSM4 Single-Mode Optical Module
