Description

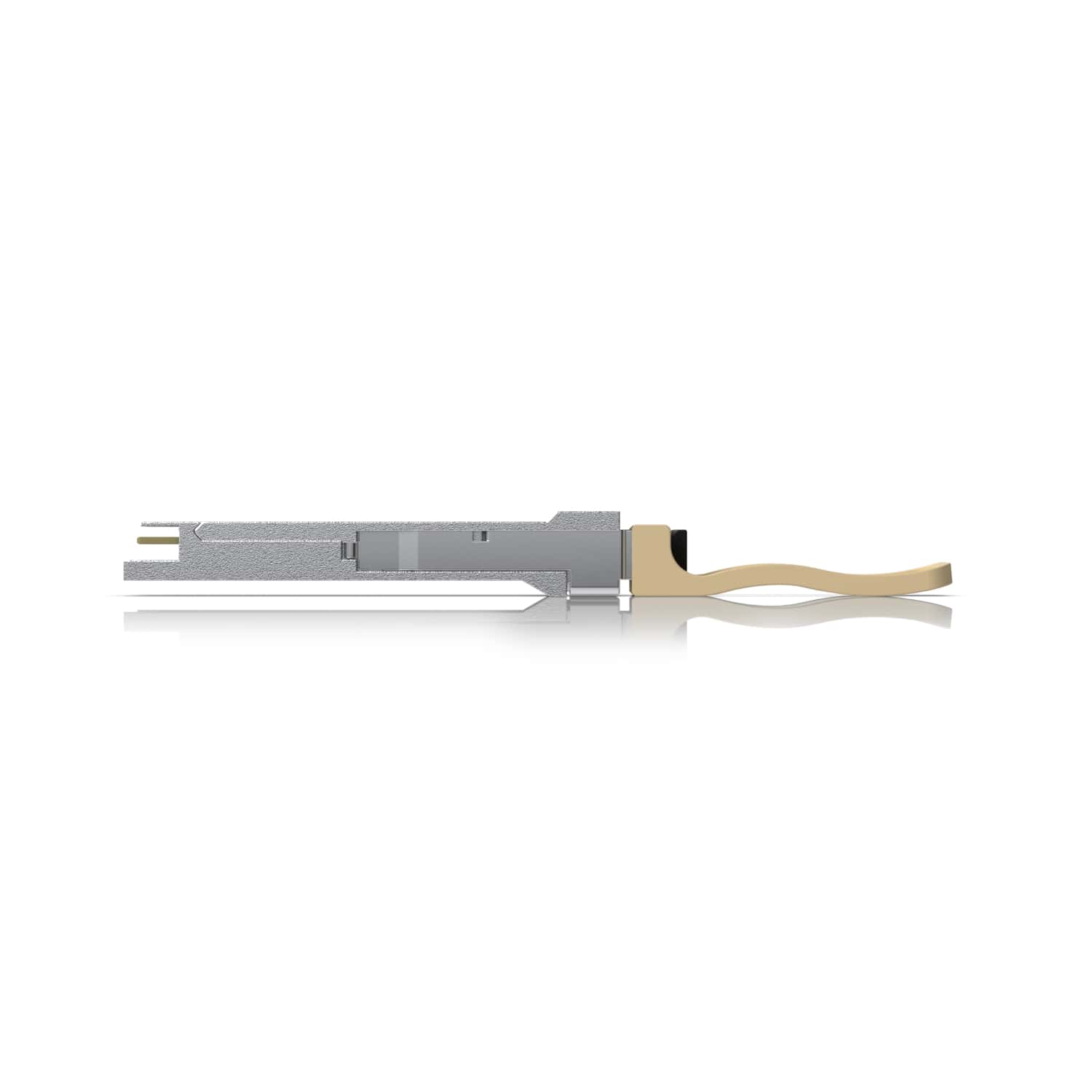

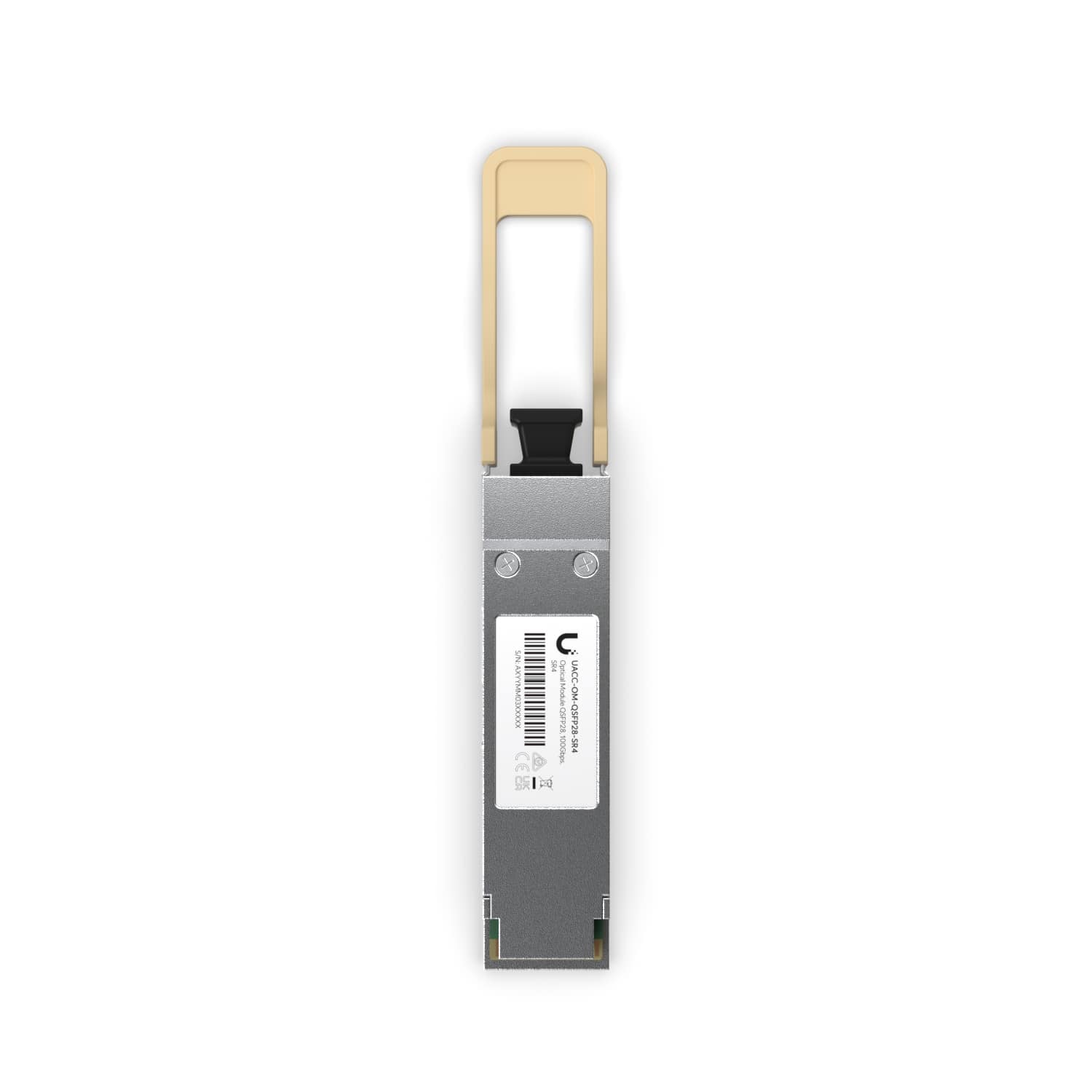

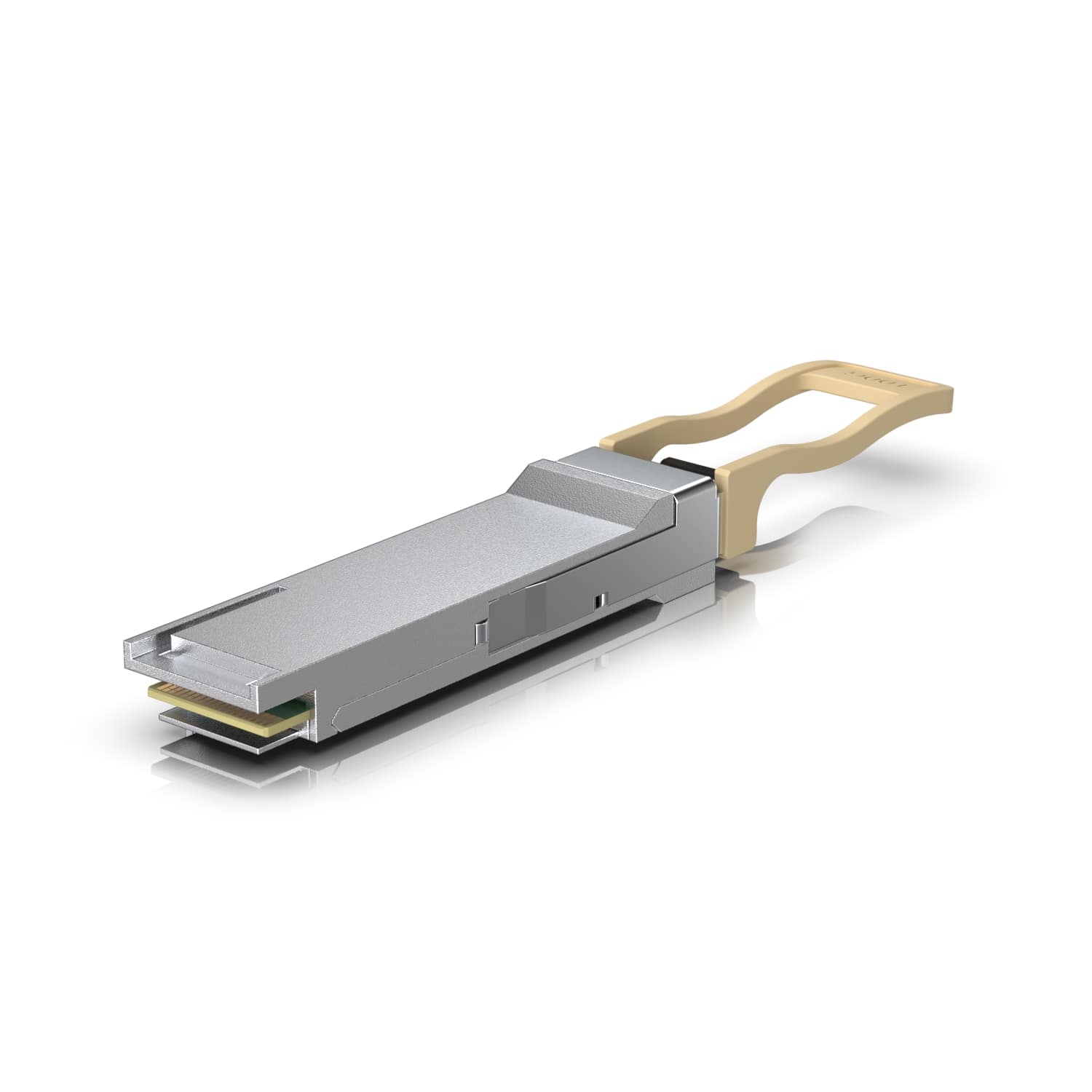

The Ubiquiti 100G SR4 Multi-Mode Optical Module is a QSFP28 transceiver that supports 100G connections up to 100 m using multi mode fiber with an MPO-12 Type B UPC connector. With a maximum data rate of 100 Gbps, it is compatible with QSFP28 and QSFP+ interfaces and supports cable distances of up to 100 m over OM4 and 70 m over OM3 fiber. Operating at an 850 nm wavelength with a maximum power consumption of 2.5W, it provides an efficient high speed fiber connectivity solution. Please note a fiber cable is not included.
Features
- Maximum data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- MPO-12 Type B UPC connector
- Supports multi mode fiber connections up to 100 m
- Fiber cable is not included
Specifications
- Form factor: QSFP28
- Connector: MPO-12 Type B UPC
- Supported media: Multi mode fiber
- TX wavelength: 850 nm
- RX wavelength: 850 nm
- Supported data rate: 40 / 100 Gbps
- Supported cable distance: OM4 100 m (328 ft), OM3 70 m (229 ft)
- Maximum power consumption: 2.5W
- Pack options: Single unit
- Ambient operating temperature: 0 to 70° C (32 to 158° F)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Package Contents
- Ubiquiti 100G SR4 Multi-Mode Optical Module
