Description

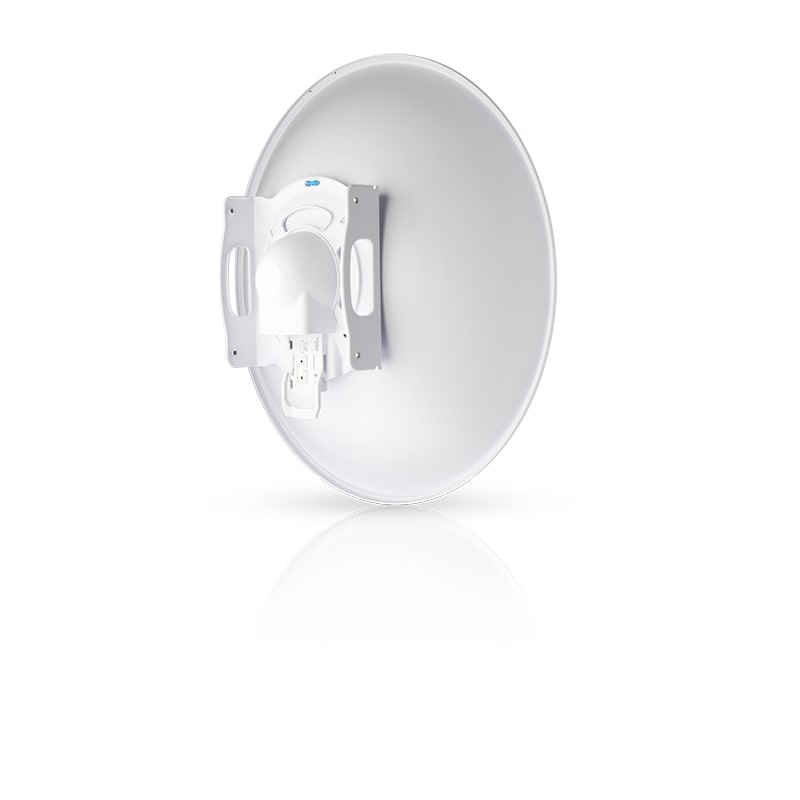

The Ubiquiti airFiber X is a 5 GHz, 23 dBi antenna ideal for long range Point to Point (PtP) links. Featuring a Slant 45 degree signal angle for optimum interference avoidance, it delivers 2x2 dual polarity performance for reliable wireless connectivity. Built with a robust mechanical design suited for outdoor applications, the antenna includes weatherproof RF connectors and secure pole mounting, making it a dependable choice for demanding environments. It is fully compatible with airFiber X radios.
Features
- 2x2 dual polarity performance
- Robust mechanical design for outdoor application use
- Secure pole mounting
- Compatible with airFiber X radios
- Weatherproof RF connectors
- Slant 45 degree signal angle for optimum interference avoidance
Specifications
- Dimensions: 378 x 378 x 290 mm (14.88 x 14.88 x 11.42 inches)
- Weight with mount: 3.4 kg (7.5 lb)
- Frequency: 5.1 to 5.9 GHz
- Gain: 23 dBi
- Maximum VSWR: 1.5:1
- Wind survivability: 200 km/h (125 mph)
- Wind loading: 190 N at 200 km/h (43 lbf at 125 mph)
- Polarization: Dual Linear
- F/B ratio: 33 dB
- ETSI specification: EN 302 326 DN2
- Mounting: Universal pole mount for Ø 38 to 64 mm (Ø 1.5 to 2.5 inch) poles
- NDAA Compliant: Yes
Package Contents
- Ubiquiti airFiber X Dish Antenna
- Universal pole mount
