Description

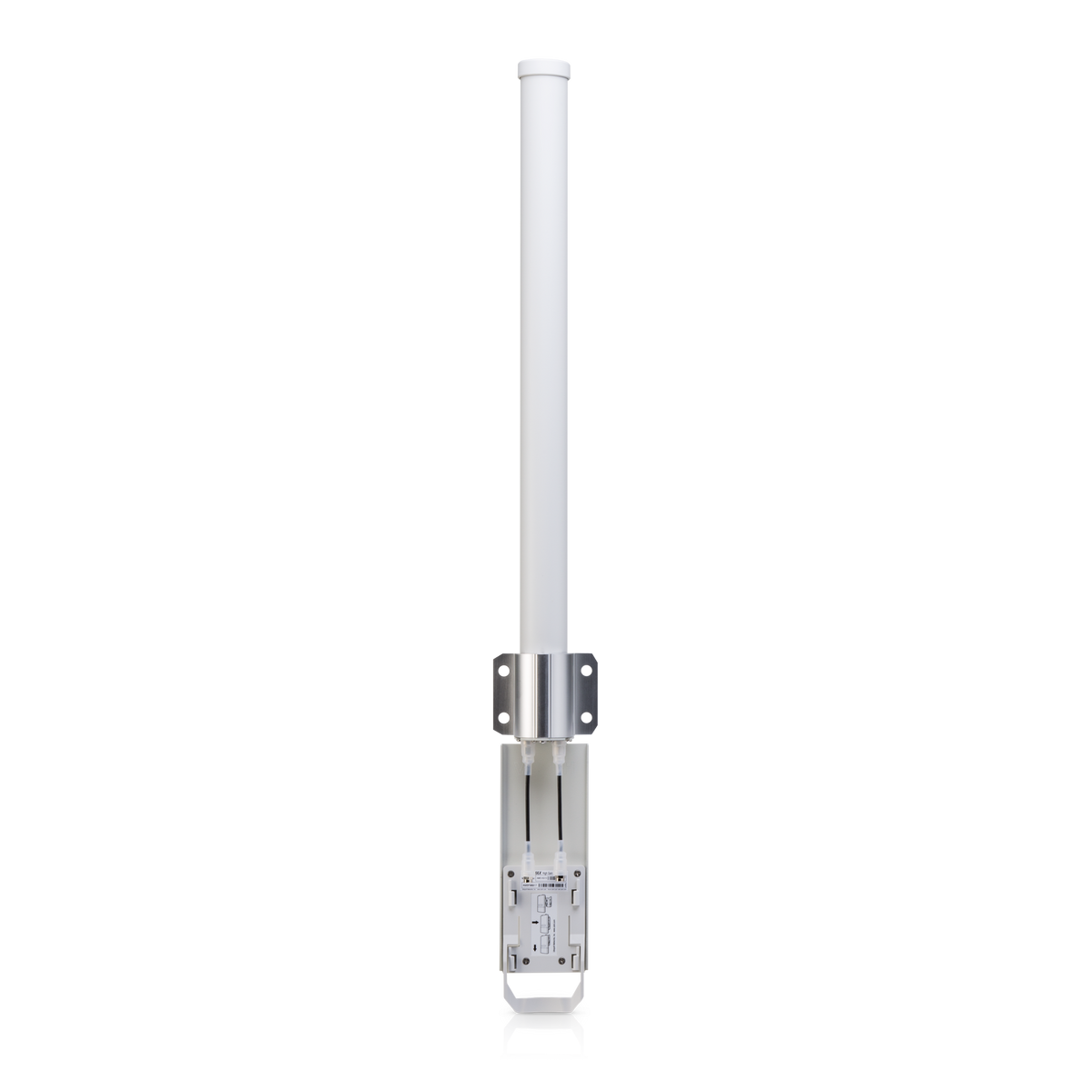

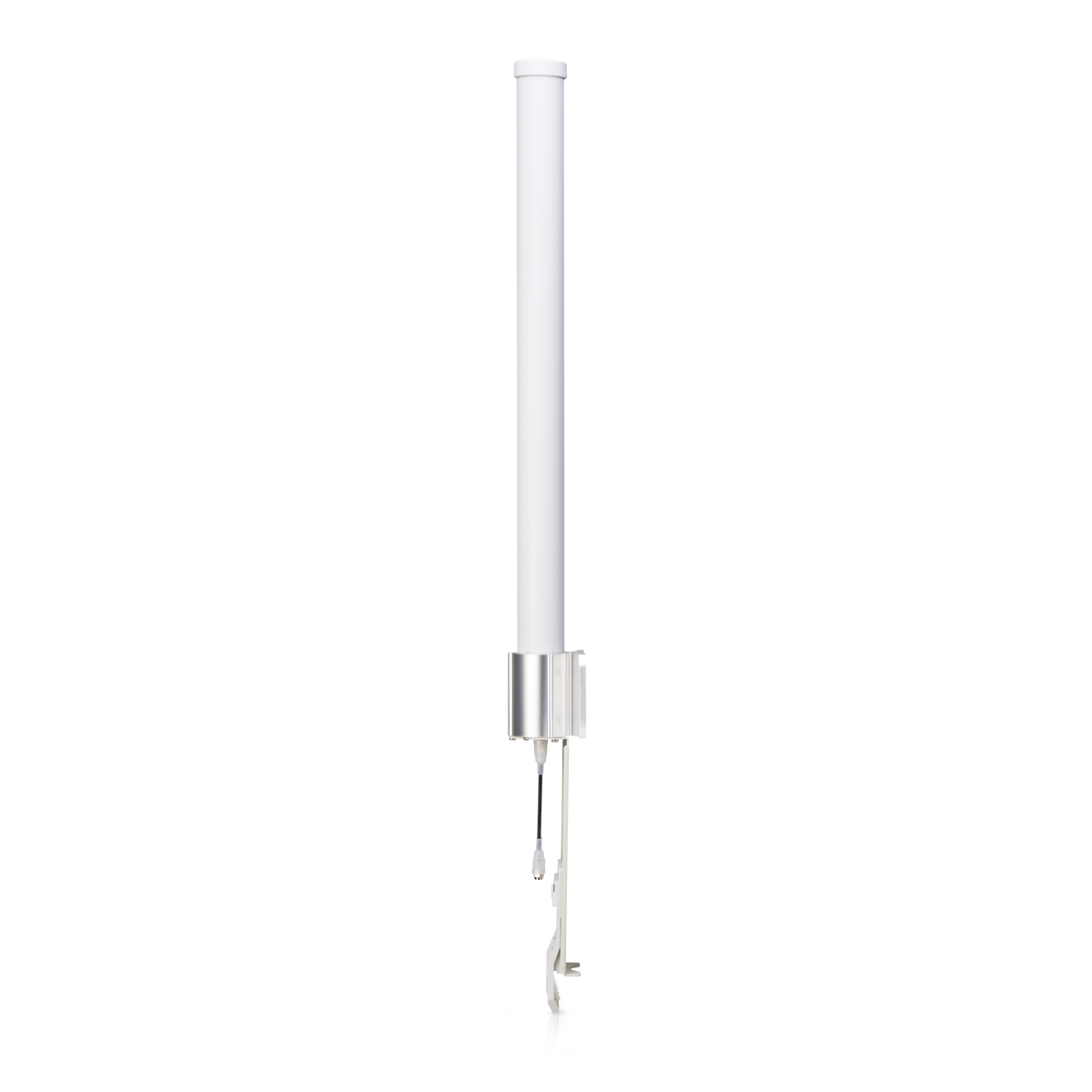

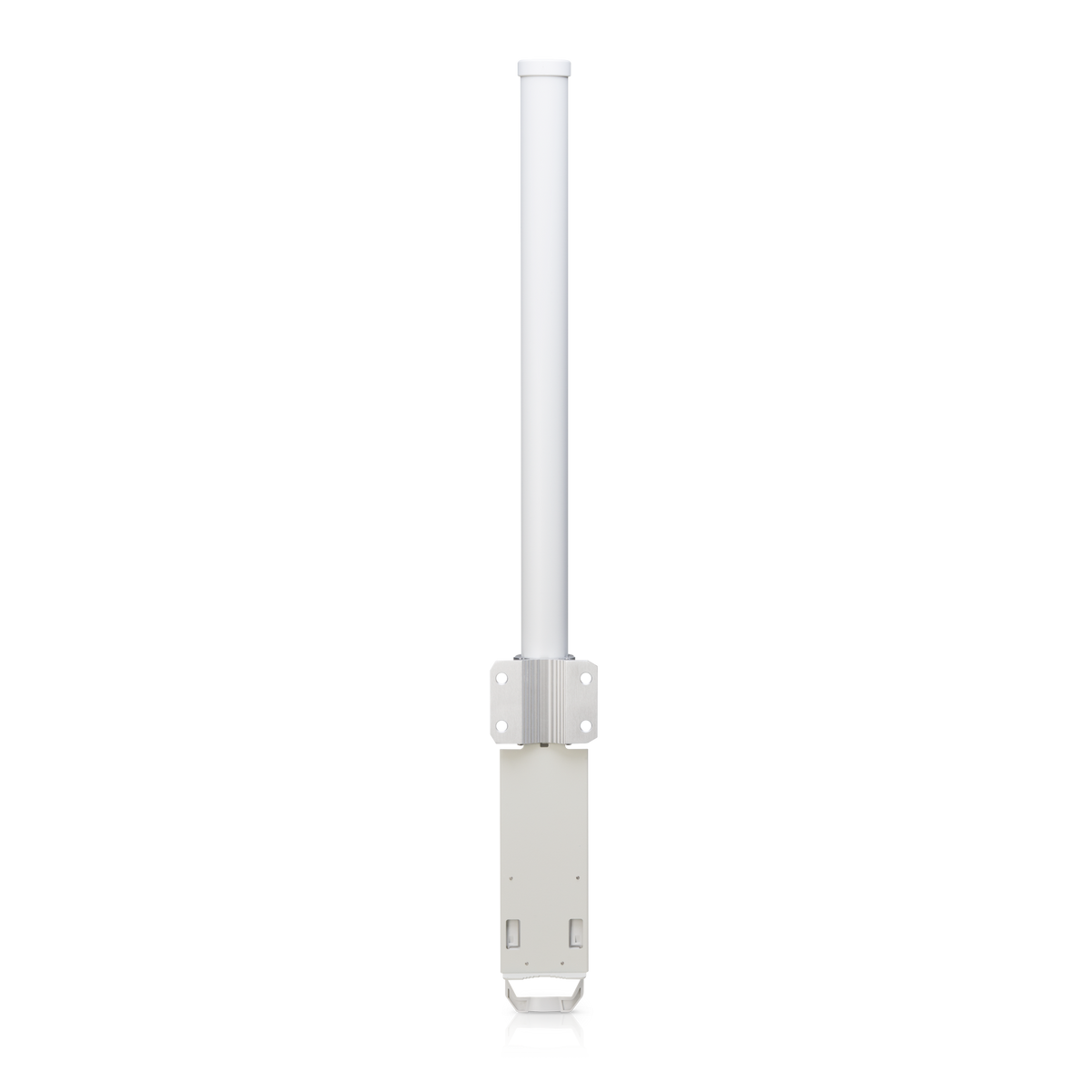

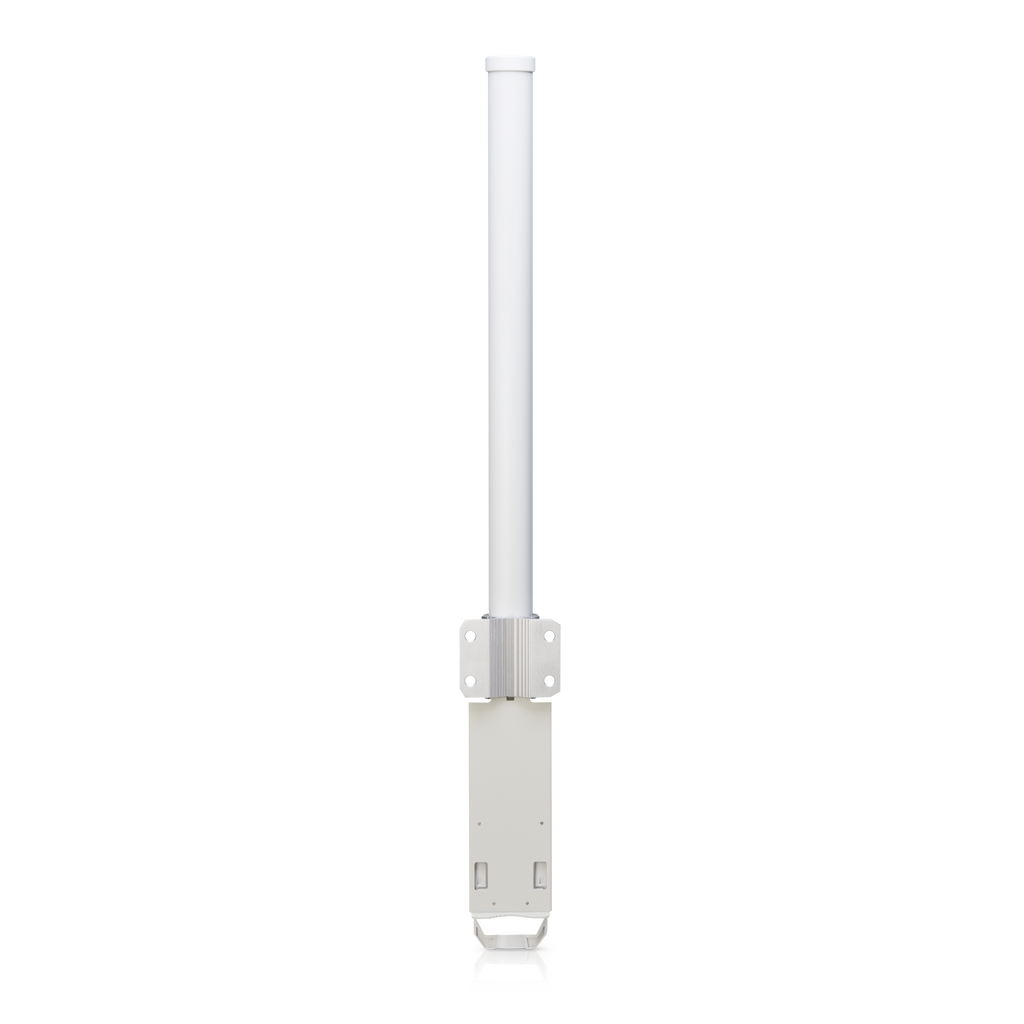

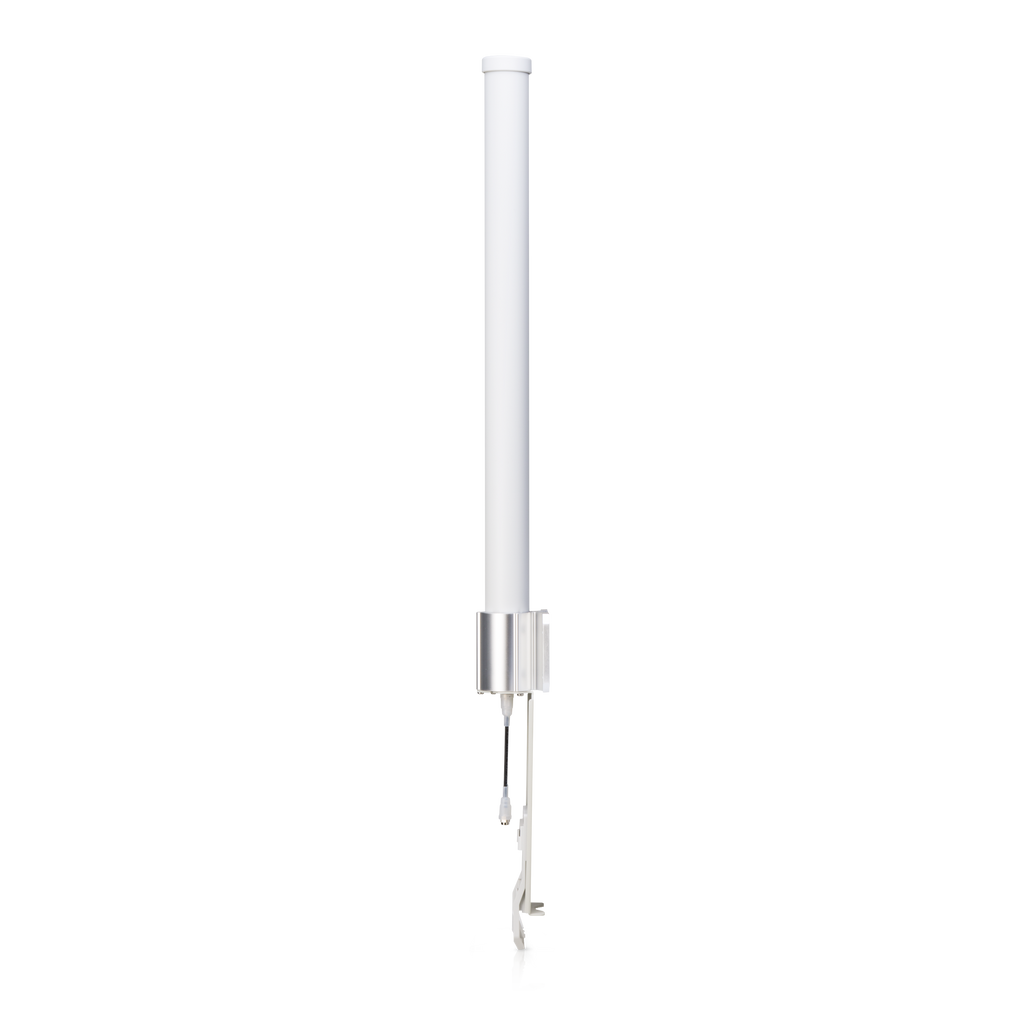

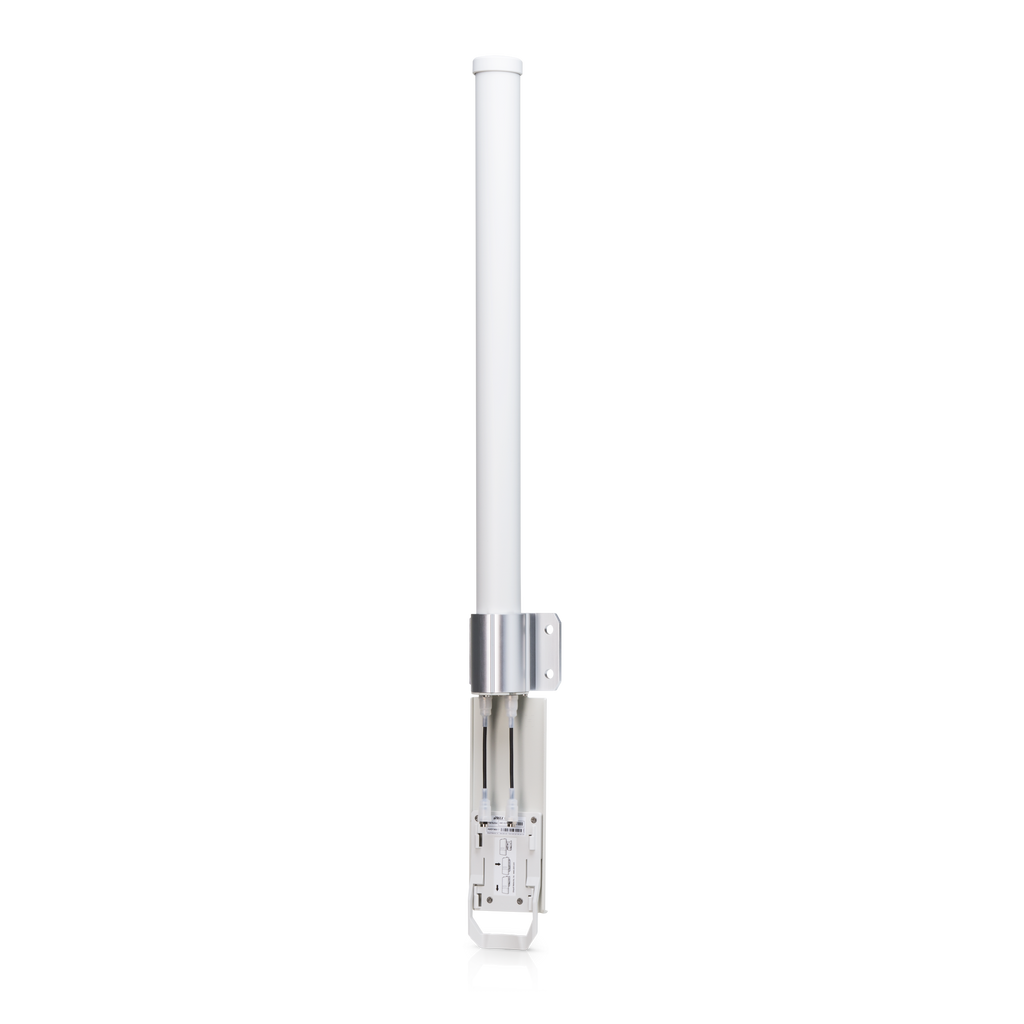

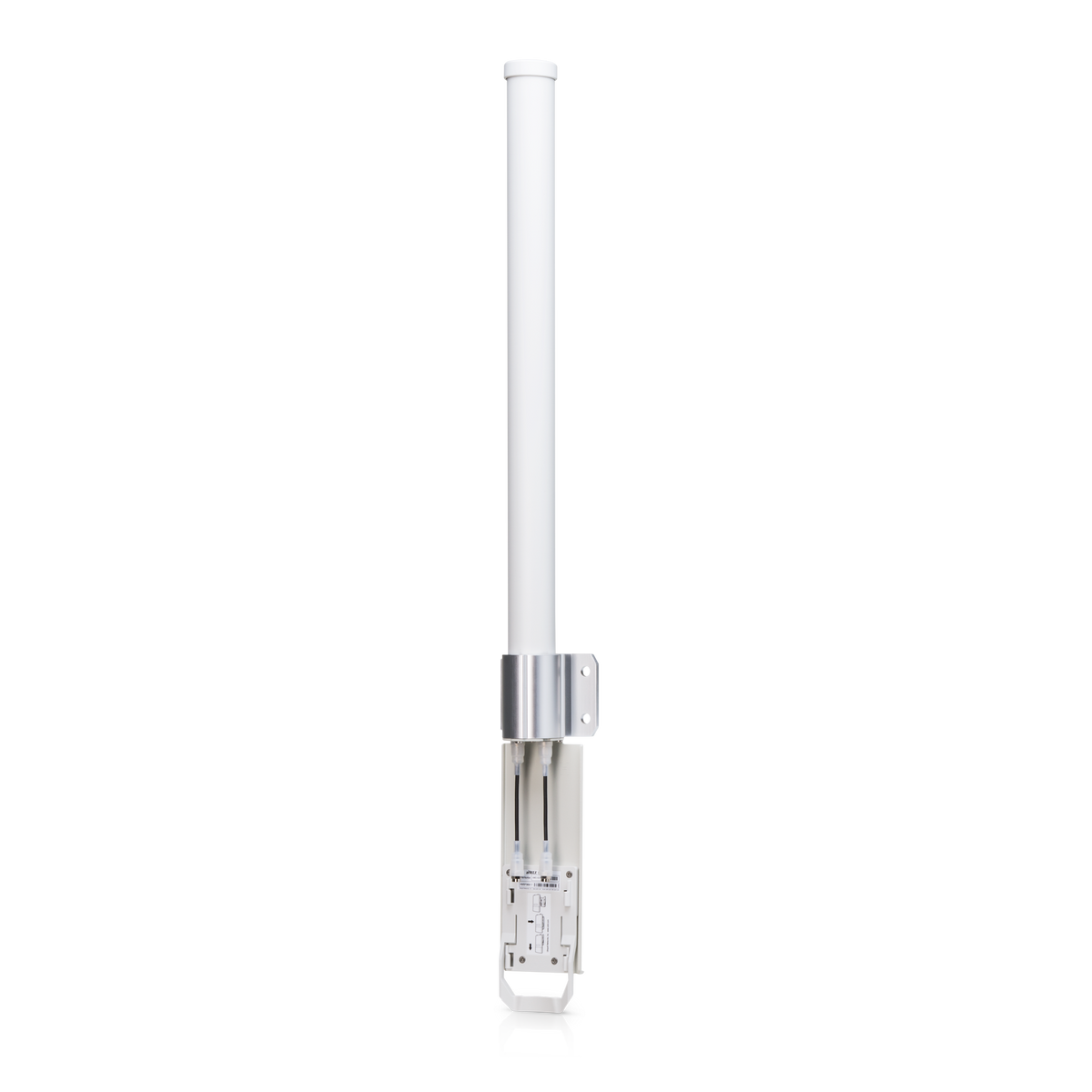

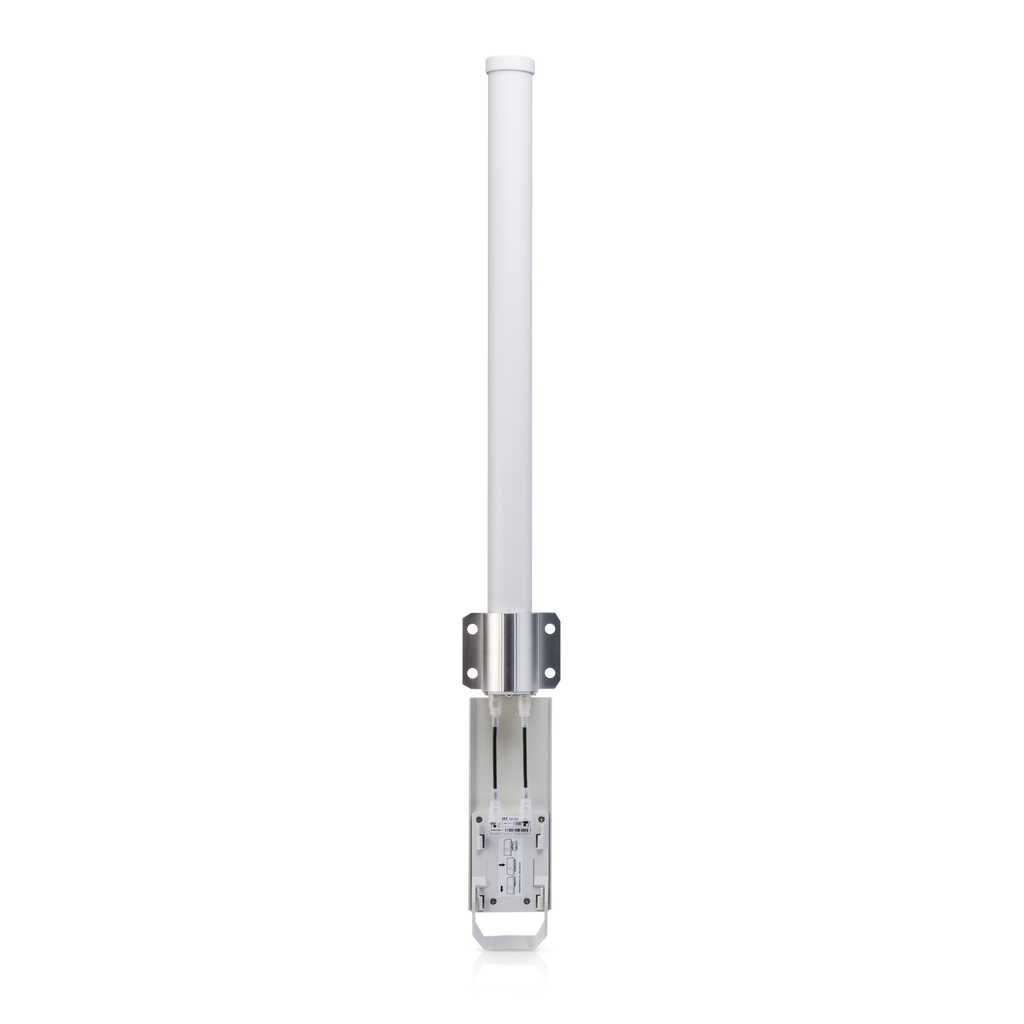

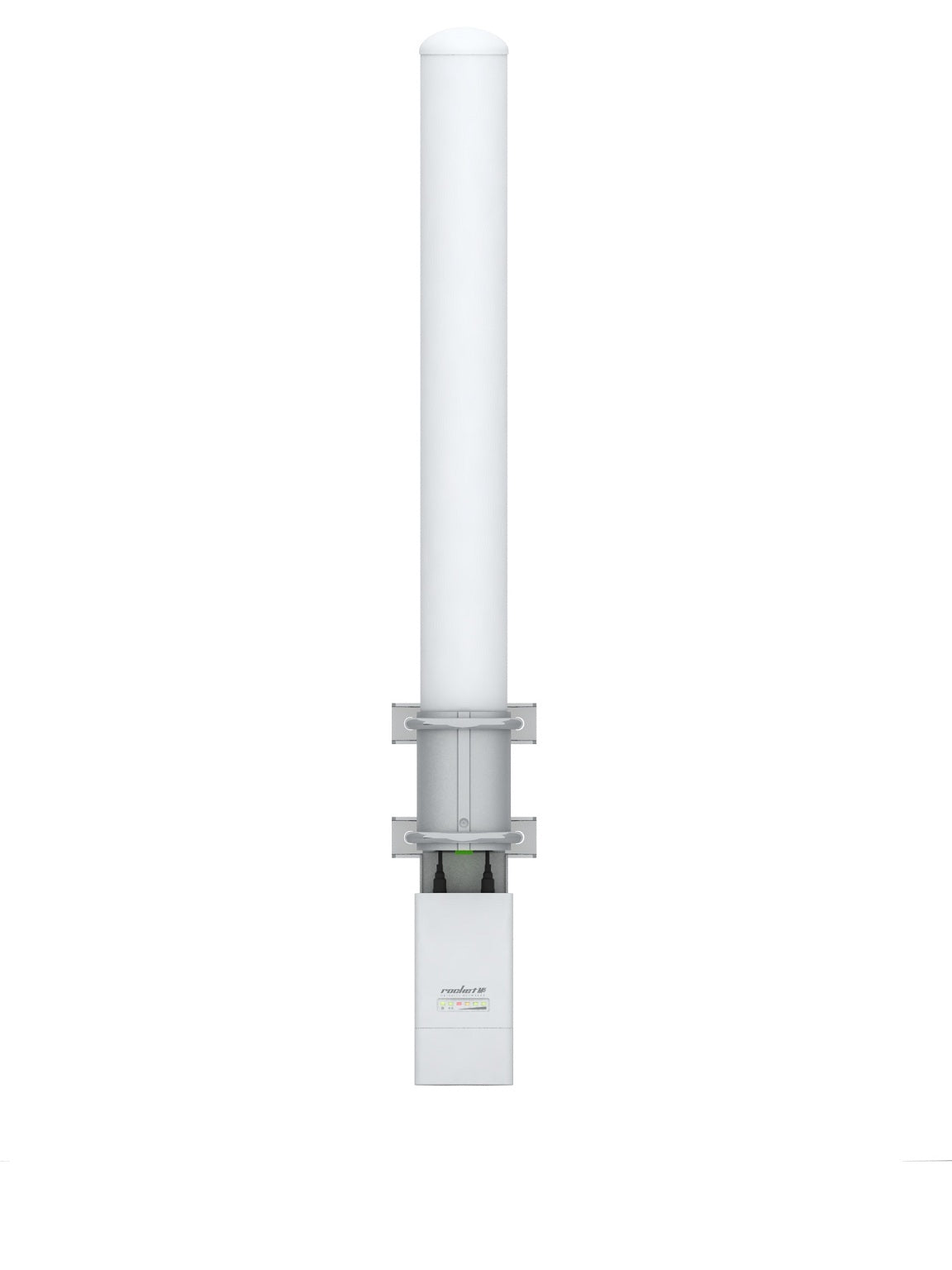

The Ubiquiti airMAX Omni is a 5 GHz, 13 dBi carrier class 2x2 dual polarity MIMO omnidirectional antenna. The first of its kind, airMAX Omni antennas deliver carrier class, 2x2 dual polarity, omnidirectional MIMO performance with complete 360 degree coverage. Designed for seamless integration with Ubiquiti airMAX Rocket hardware, the antenna is easy to assemble and compatible with RocketPrism. All mounting accessories and brackets are included for convenient installation.
Features
- 2x2 dual polarity MIMO
- 360 degree coverage
- Easy to assemble
- Compatible with RocketPrism
- Designed for seamless integration with Ubiquiti airMAX Rocket hardware
- All mounting accessories and brackets included
Specifications
- Dimensions: 799 x 90 x 65 mm (31.5 x 3.5 x 2.6 inches)
- Weight: 820 g (1.8 lb)
- Wind survivability: 200 km/h (125 mph)
- Wind loading: 84.52 N at 200 km/h (19 lbf at 125 mph)
- Downtilt: 2 degrees
- Frequency range: 5.45 to 5.85 GHz
- Antenna gain: 13 dBi
- Elevation beamwidth: 7 degrees
- Maximum VSWR: 1.5:1
- Polarization: Dual Linear
- Cross-pol isolation: 25 dB minimum
- ETSI specification: EN 302 326 DN2
- NDAA Compliant: Yes
Package Contents
- Ubiquiti airMAX Omni Antenna
- Mounting accessories and brackets
