Description

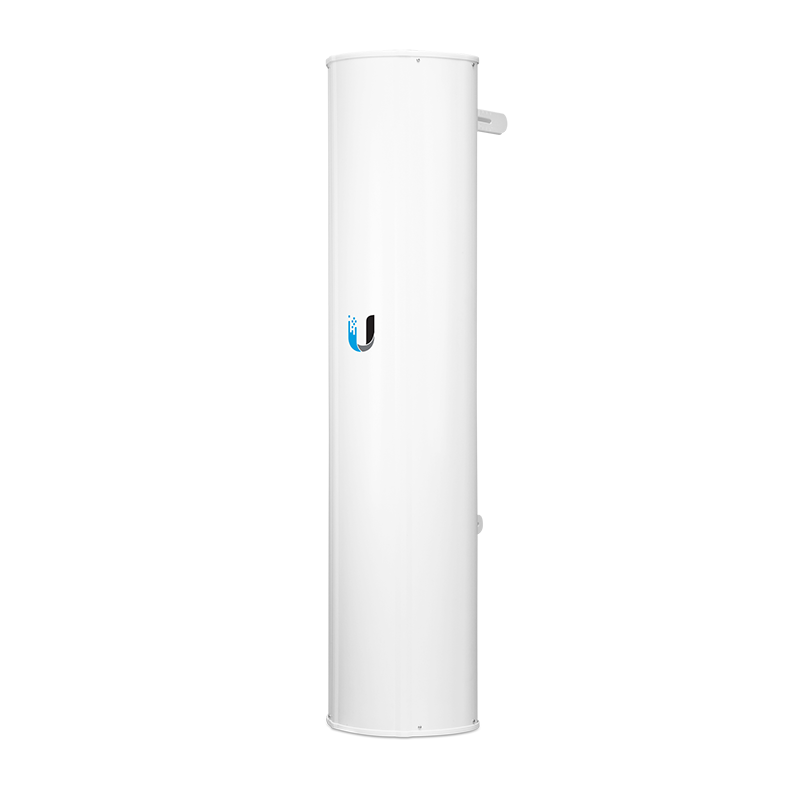

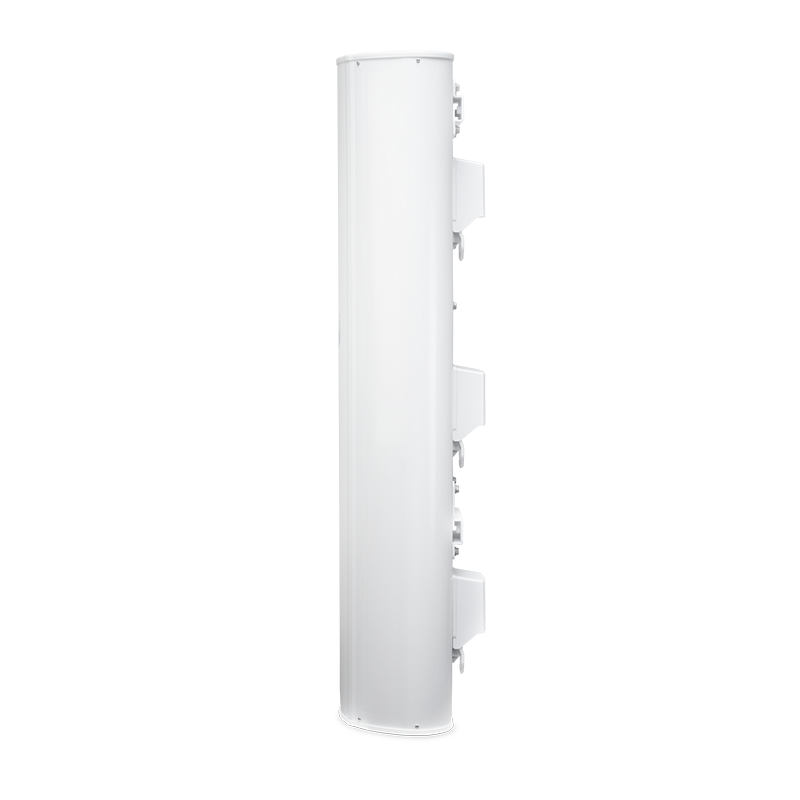

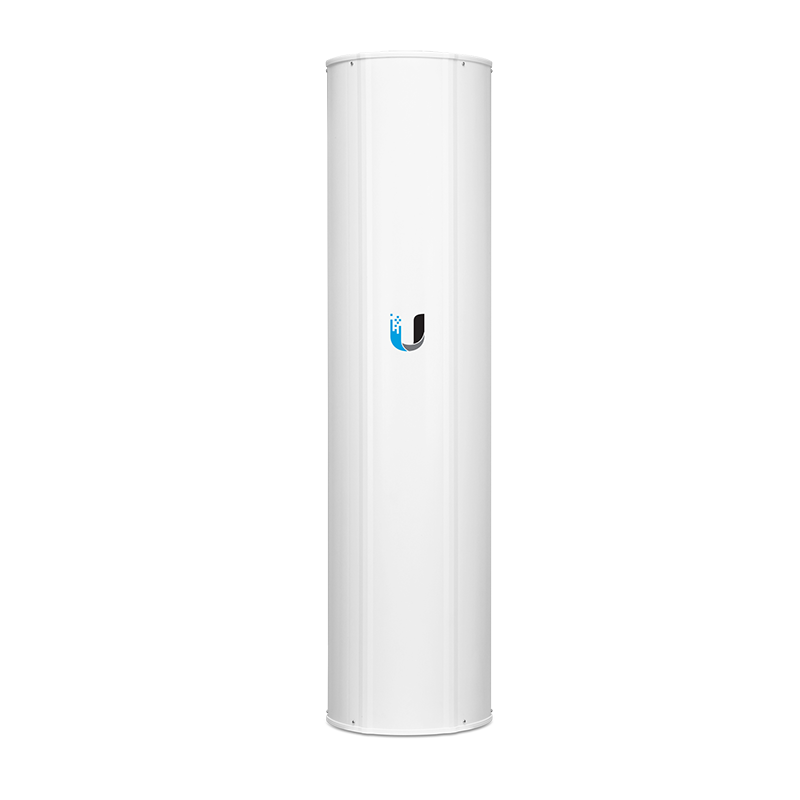

The Ubiquiti airPRISM is a 5 GHz, 22 dBi sector antenna designed for Point to MultiPoint (PtMP) applications. Combining three sector antennas in one, it provides 3 x 30 degree beamwidth for a total of 90 degrees of high density coverage. The antenna delivers powerful performance for high density areas while its efficient footprint helps reduce tower costs. It is fully compatible with the Rocket Prism 5AC radio and includes a pole mount kit along with all mounting accessories and brackets for straightforward installation.
Features
- Powerful performance for high density areas
- Efficient footprint for reduced tower costs
- Compatible with Rocket Prism 5AC
- Three sector antennas in one providing 3 x 30 degree coverage totaling 90 degrees
- All mounting accessories and brackets included
Specifications
- Dimensions with mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18 inches)
- Weight with mount: 13.1 kg (28.9 lb)
- Frequency range: 5.15 to 5.85 GHz
- Gain: 22 dBi
- HPOL beamwidth: 3 x 30 degrees (6 dB)
- VPOL beamwidth: 3 x 30 degrees (6 dB)
- Elevation beamwidth: 8 degrees
- Electrical downtilt: 2 degrees
- Polarization: Dual Linear
- Maximum VSWR: 1.75:1
- Wind survivability: 200 km/h (125 mph)
- Wind loading: 534 N at 200 km/h (120 lbf at 125 mph)

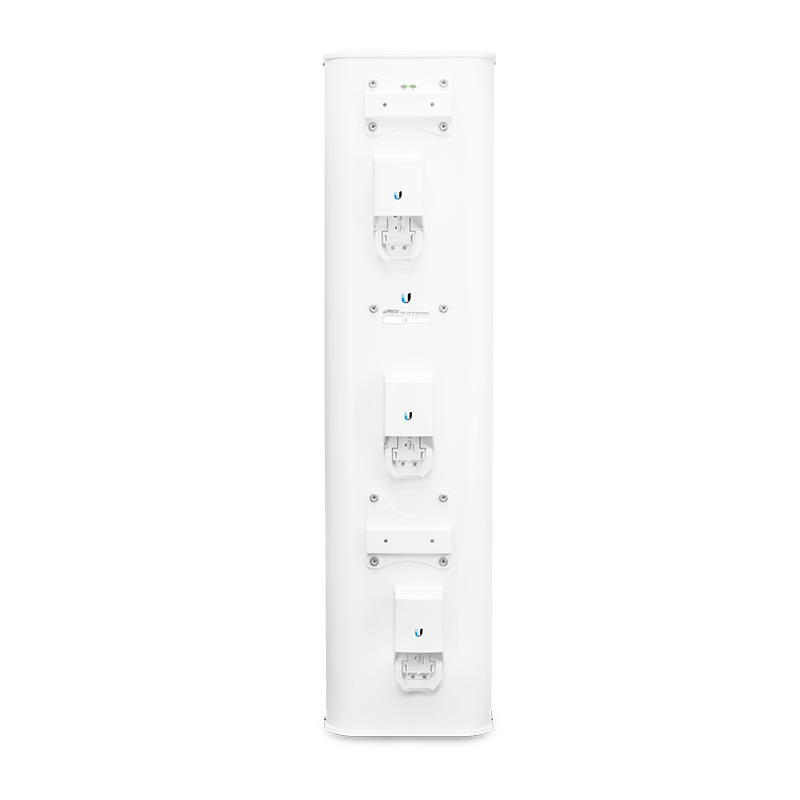

- Interfaces: 6 RP-SMA connectors (weatherproof)
- Compatible radio: Rocket5ac Prism
- Mounting: Pole mount (kit included)
- ETSI specification: EN 302 326 DN2
- Certifications: CE, FCC, IC
Package Contents
- Ubiquiti airPRISM HD Sector Antenna
- Pole mount kit
- Mounting accessories and brackets
