Description:

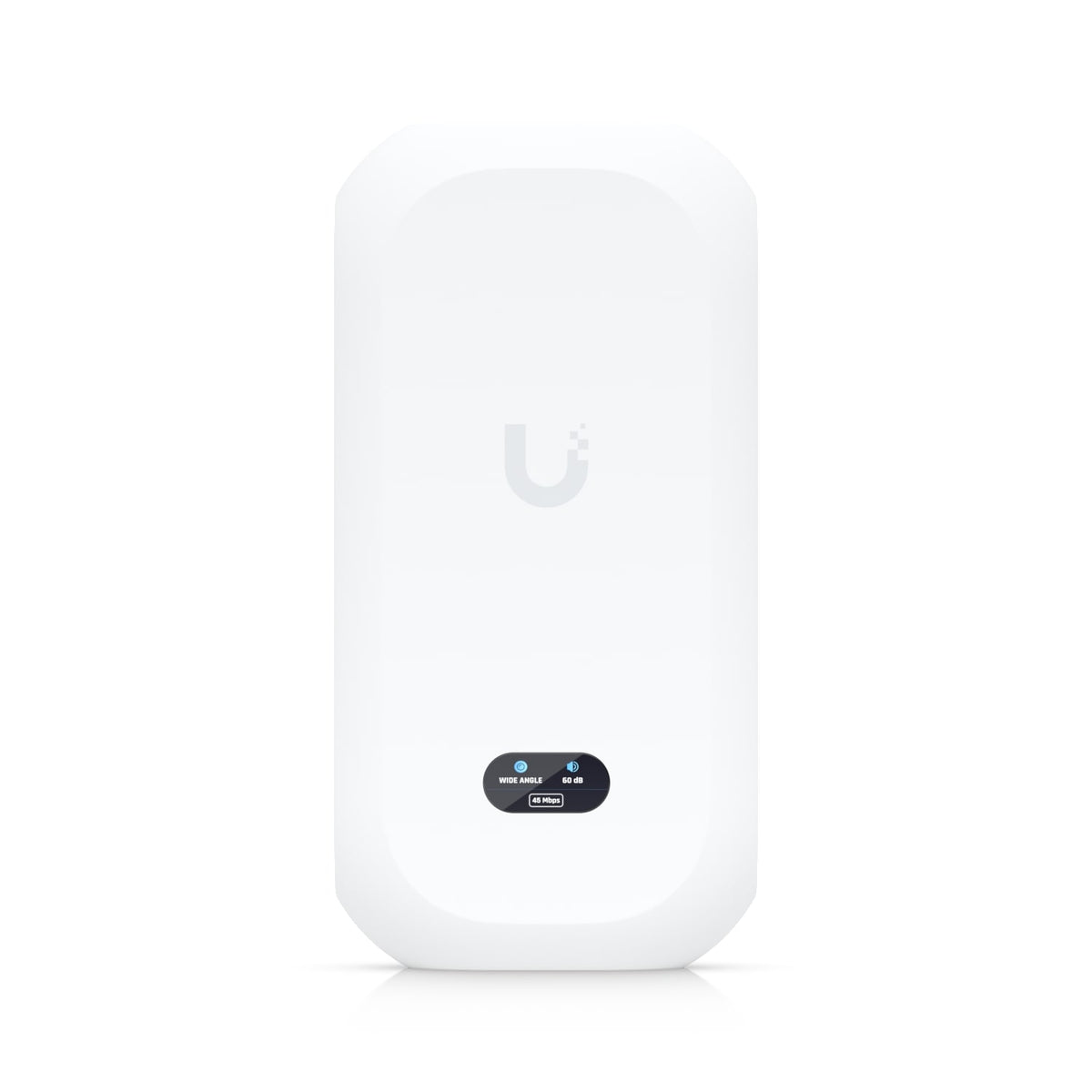

The Ubiquiti AI Theta Hub is a remote processing hub designed for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio module. It includes one video port and one audio port for connecting a lens and audio module, and supports both AI Theta Standard and Professional Lenses with an included cable for lens connection.
Features:

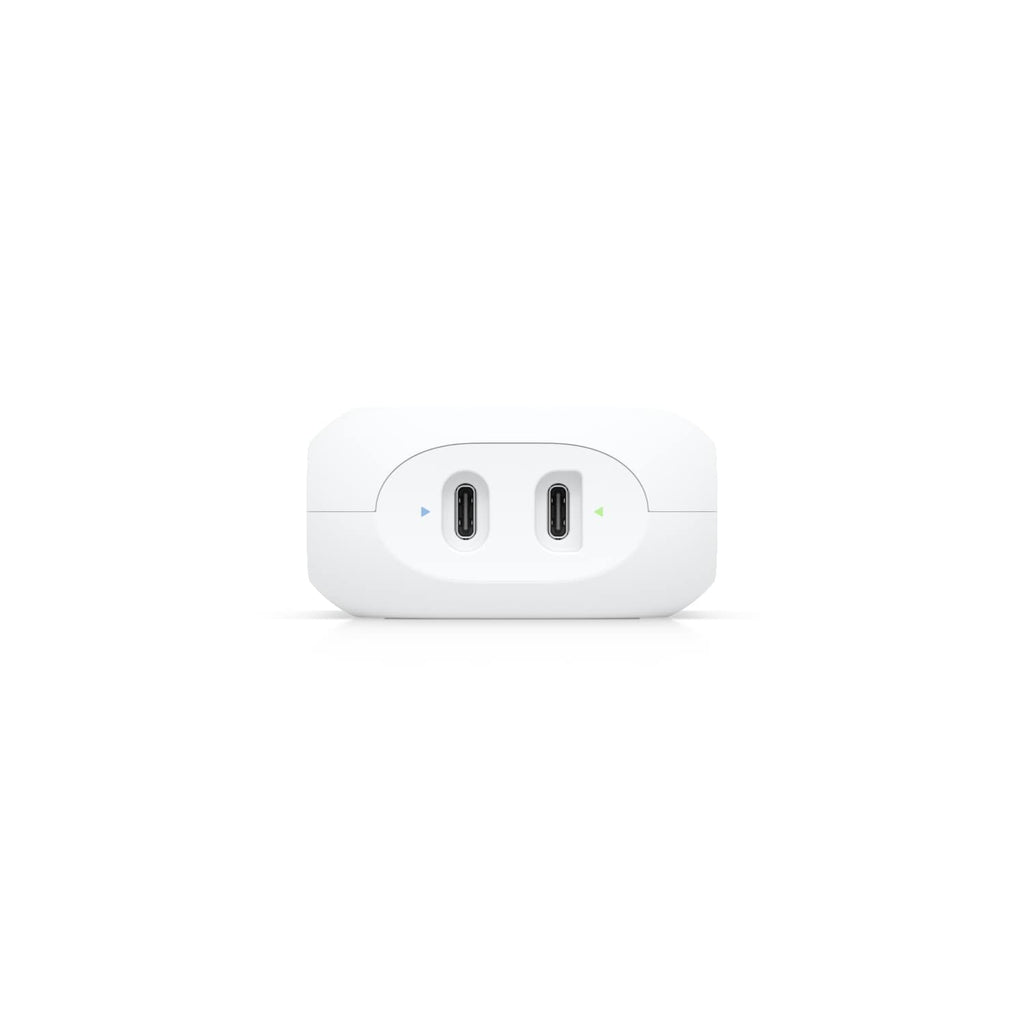

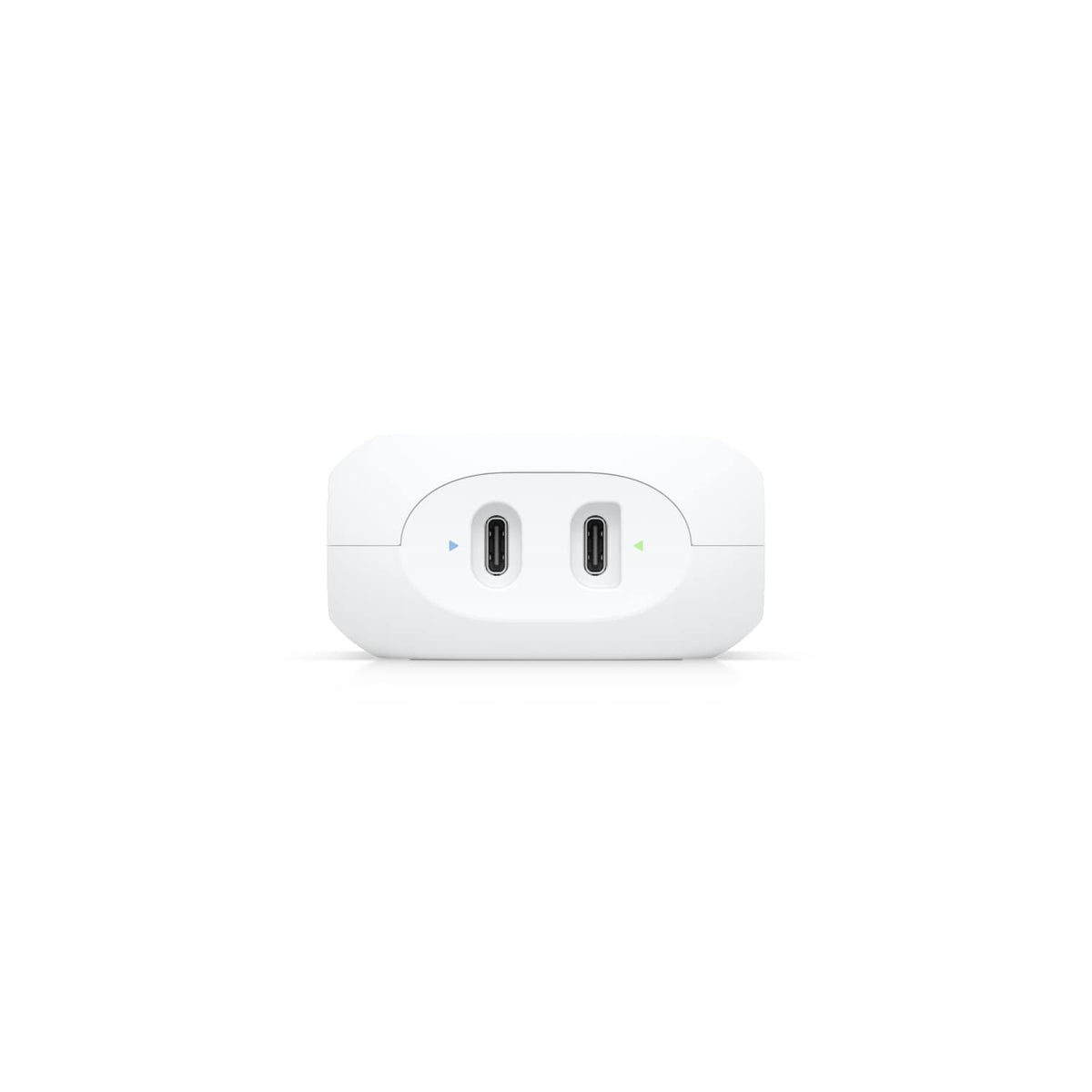

- One video port and one audio port for connecting a lens and audio module
- Supports AI Theta Standard and Professional Lenses
- Includes one cable for connecting a lens
- Connect and power using PoE
- Supports optional AI Theta Audio module for two way audio
Specifications:
- Dimensions: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5 inch)

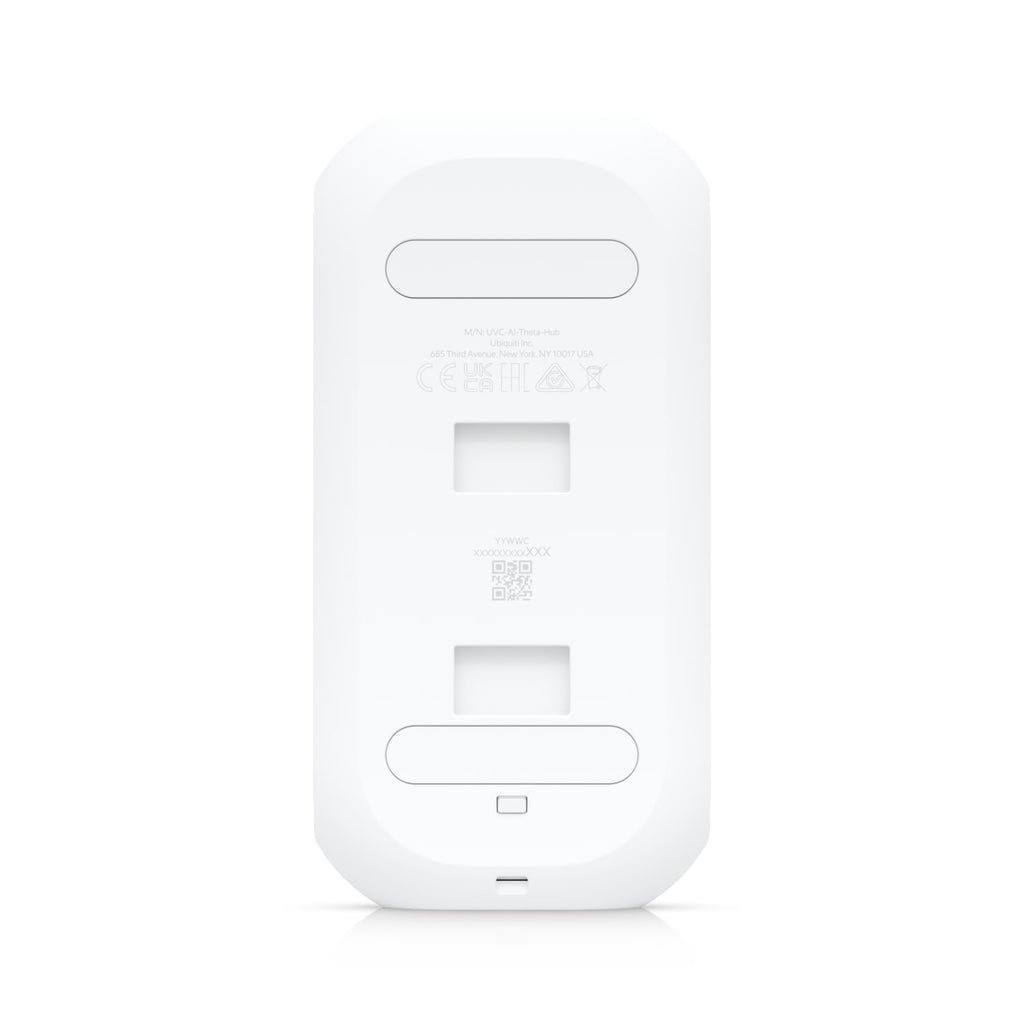

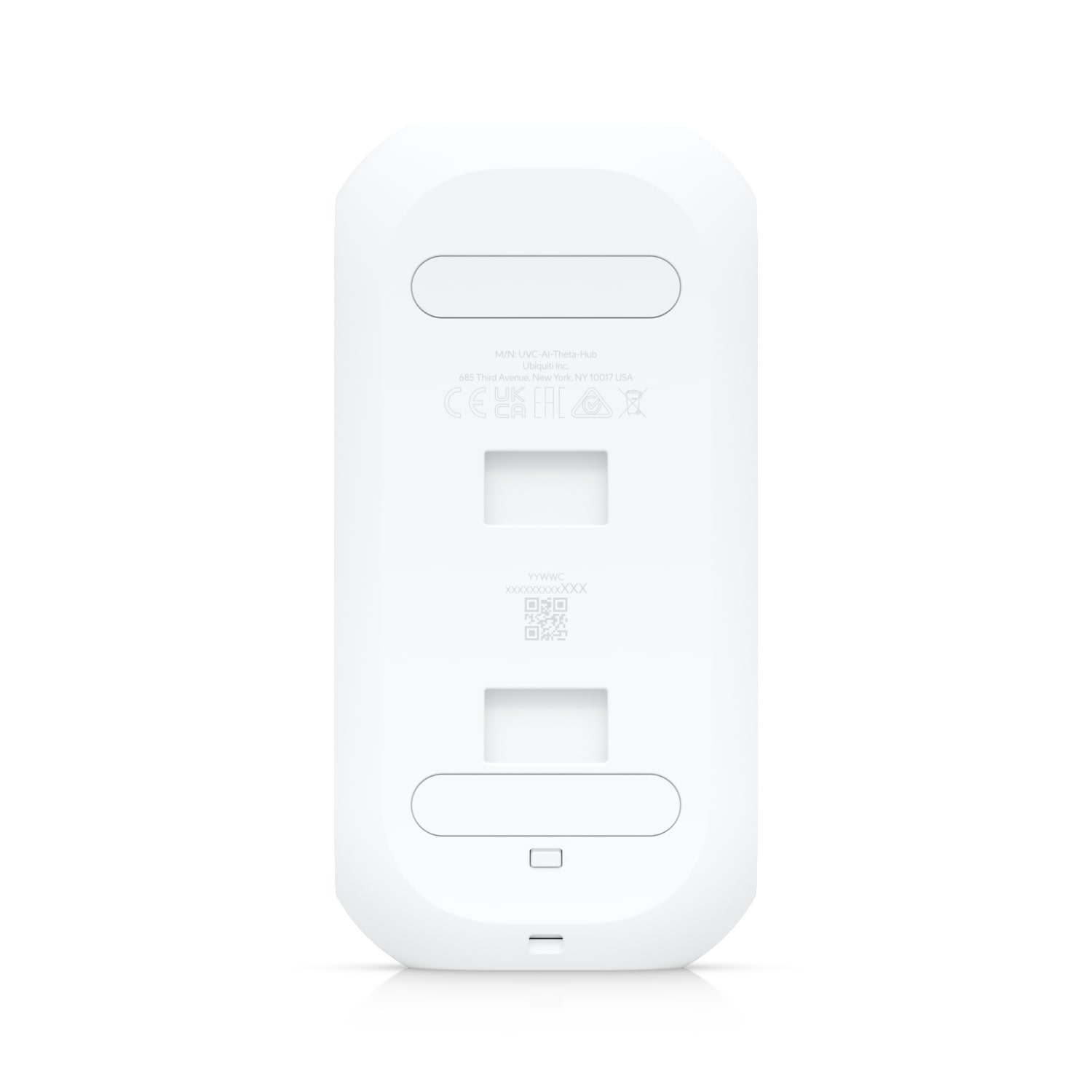

- Mounting: Wall, ceiling mount included

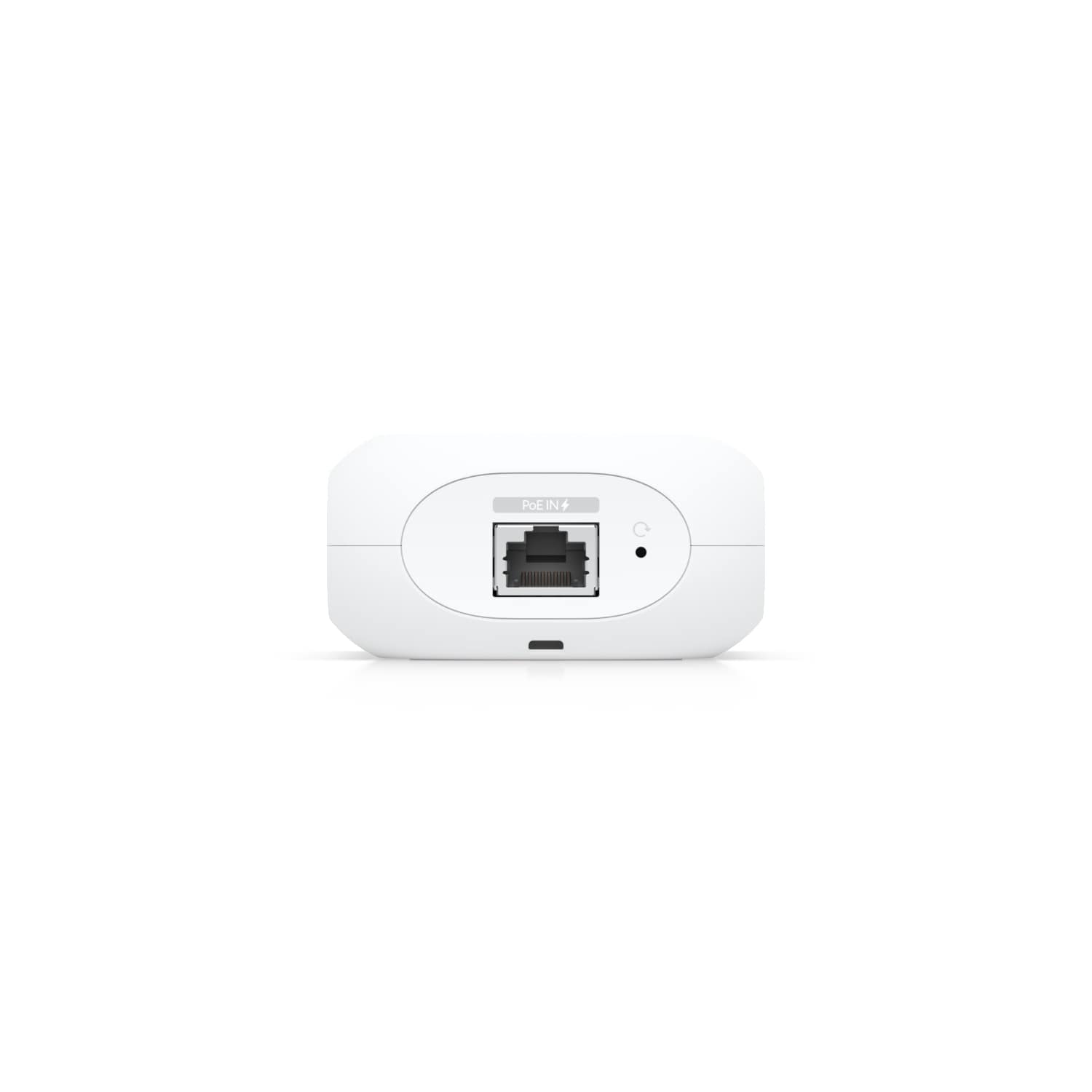

- Networking Interface: GbE RJ45 port, Theta audio port, Theta lens port
- Video Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- Processor: Quad core Arm Cortex A53 based chip
- Enclosure Material: Aluminium alloy
- Mounting Material: Aluminium alloy
- Weight Hub: 330 g (11.6 oz)
- Weight Hub Mount: 35 g (1.2 oz)
- Power Method: PoE
- Supported Voltage Range: 37 to 57V DC
- Max Power Consumption: 12.5W
- Power Output: 5V DC, 1A per port
- LCM Display: 0.96 inch display
- Button: 1 x Factory reset
- Ambient Operating Temperature: -20 to 40 degree C (-4 to 104 degree F)
- Ambient Operating Humidity: 10 to 90 percent noncondensing
- NDAA Compliant: Yes
- Certifications: FCC, IC, CE
