Description
The Ubiquiti airCube is a high performance home WiFi access point designed to work seamlessly with airMAX CPE devices and can be managed remotely through UISP. Supporting the 802.11ac wireless standard, it operates across both 2.4 GHz and 5 GHz frequency bands to deliver combined wireless data rates of up to 1167 Mbps. For devices that benefit from a wired connection, four Gigabit Ethernet ports allow clients to connect Ethernet enabled equipment for greater reliability. The airCube can be powered through a 24V Passive PoE connection, or alternatively through the included power adapter when PoE power is not available.
Features
- 802.11ac 2x2 wireless technology
- Dual band operation on 2.4 GHz and 5 GHz frequencies
- Wireless data transfer rates of up to 1167 Mbps
- Four Gigabit Ethernet ports for wired connections
- Integrated 24V PoE passthrough via included PSU
- UISP support for remote network management
- Interoperates with airMAX CPE devices
- Super antenna for wide area coverage
Specifications
- Dimensions: 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5 inches)
- Weight: 280 g (9.9 oz)

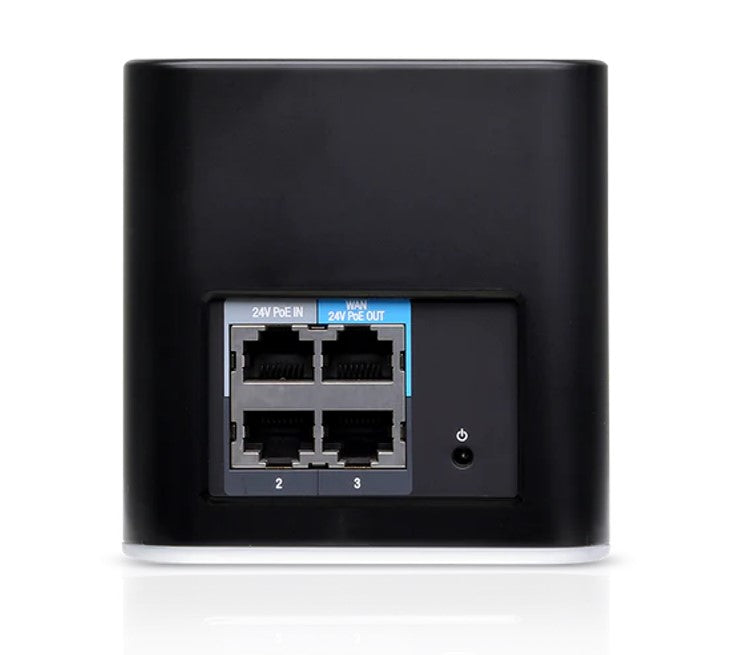

- Networking interface: 4 GbE RJ45 ports
- Management interface: Ethernet
- Power method: Micro USB adapter (included), 24V DC 0.83A PoE 24V In on Ethernet port 1
- Power supply: 24V
- Supported voltage range: 22 to 27V DC
- Maximum power consumption: 8.5W
- PoE Out: Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN port
- Operating frequency: 2.4 GHz and 5 GHz
- Antenna gain: 4 dBi at 2.4 GHz, 5 dBi at 5 GHz
- Maximum speeds: 300 Mbps at 2.4 GHz, 866.7 Mbps at 5 GHz
- Maximum TX power: 22 dBm
- ESD/EMP protection: ± 24 kV Contact / Air
- LED: Status
- Ambient operating temperature: -10 to 50° C (14 to 122° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
