Description:
The Ubiquiti Cloud Gateway Fiber is a desktop 10G cloud gateway featuring an integrated 4-port 2.5 GbE switch, an NVR storage slot, and full support for the UniFi application suite. It offers UniFi routing and cybersecurity in a compact form factor, with Site Manager readiness, multi-WAN load balancing, and full IPS security.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Full UniFi application suite for device management, including Network, Protect, Access, Talk, and Connect
- Multi-WAN load balancing
- Site Manager ready, plug-and-play setup with no CloudKey required
- Dual 10G WAN ports (10G SFP+ and 10 GbE RJ45)
- Compact desktop form factor
- Stateful firewall
- Application-aware Layer 7 firewall
- DPI and traffic identification
- Zone-based firewall with advanced filtering for regions, domains, and apps
- Content filtering
- Intrusion prevention (IPS/IDS) with 55,000+ signatures using CyberSecure
- Ad blocking
- VLAN/subnet-based traffic segmentation
- License-free SD-WAN
- Site-to-site VPN through Site Magic, IPsec, and OpenVPN
- VPN server support including Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, and L2TP
- VPN client support for OpenVPN and WireGuard
- Dynamic routing with OSPF
- Advanced QoS
- Multicast DNS (mDNS)
- Advanced NAT including SNAT, DNAT, Masquerade, NAT Pooling, and 1-to-1 NAT
- Integrated RADIUS server
- RADIUS over TLS (RadSec)
- Additional internet failover with UniFi LTE backup
- Internet quality and outage reporting
Specifications:
- Dimensions: 212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")
- UniFi Application Suite: Network, Protect, Access, Talk, Connect
- Managed UniFi Devices: 50+
- Managed Cameras: HD 15, 2K 8, 4K 5
- Simultaneous Users Connected: 500+

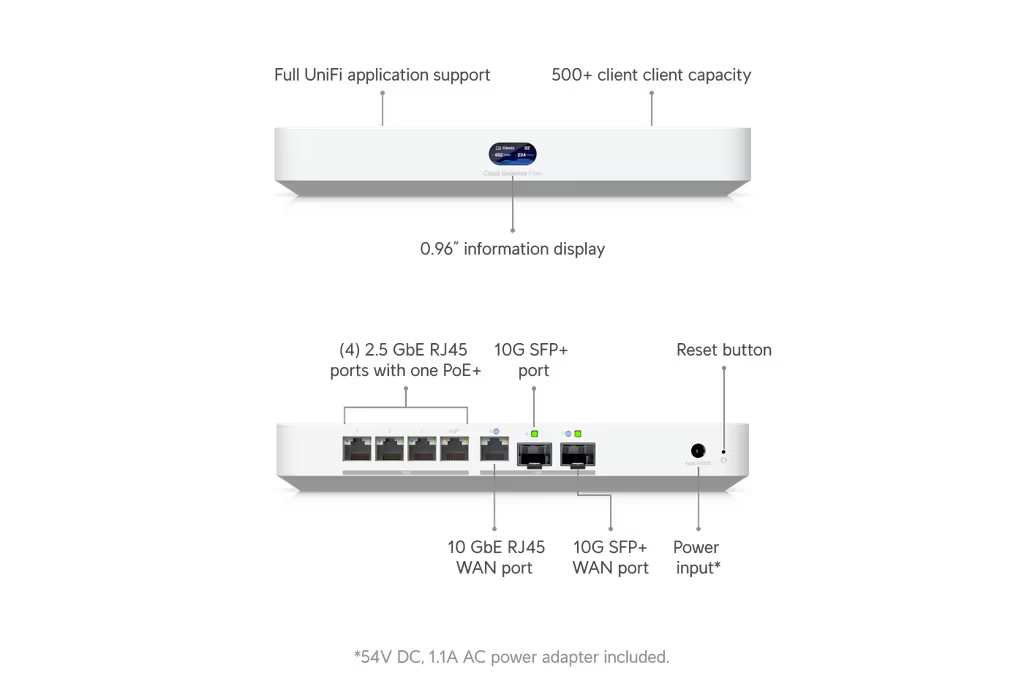

- Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45

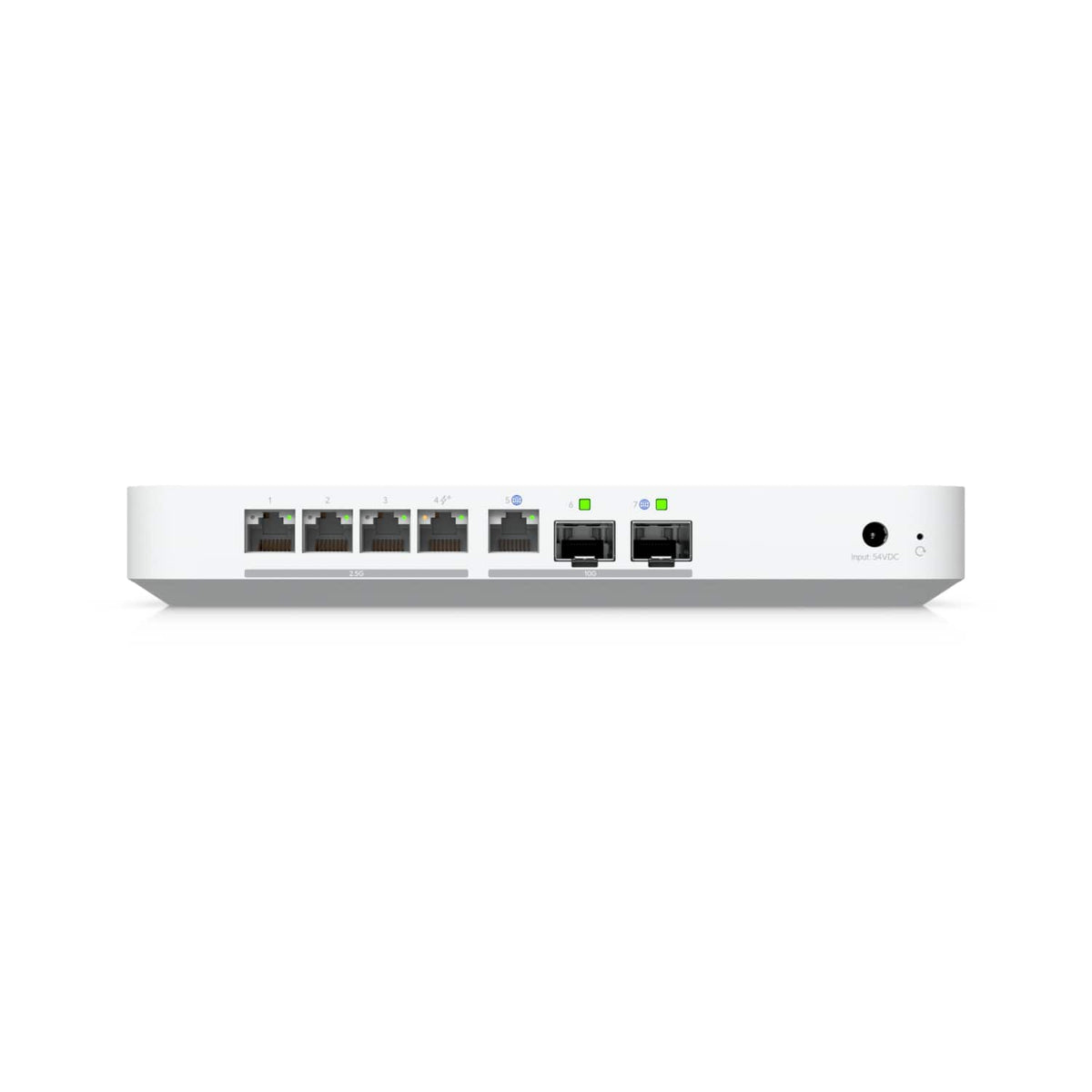

- LAN Ports: (1) 10G SFP+, (4) 2.5 GbE RJ45
- IDS/IPS Throughput: 5 Gbps
- Form Factor: Compact desktop
- MAC Address Table Size: 4,000
- NVR Storage: NVMe SSD not included; third-party SSD installation requires tray accessory
- PoE Budget: 30W
- Max PoE Wattage per Port by PSE: PoE+ 30W
- Voltage Range PoE Mode: 50-57V
- Max Power Consumption: 29.4W excluding PoE output
- Power Method: DC jack (54V DC/1.1A)
- Power Supply: 54V DC/1.1A, adapter included
- Supported Voltage Range: 100-240V AC
- Processor: Quad-core ARM Cortex-A73 at 2.2 GHz
- System Memory: 3 GB
- Weight Without SSD: 675 g (1.5 lb)
- Enclosure Material: Polycarbonate
- LCM Display: 0.96" status display
- Management: Ethernet, Bluetooth
- LEDs: Ethernet, SFP+
- ESD/EMP Protection: Air ±8kV, contact ±4kV
- Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
- Button: (1) Factory reset
