Description:
The Ubiquiti Device Bridge Pro is a 5 GHz wireless bridge with PoE output that connects at distances exceeding 5 km or seamlessly uplinks to UniFi WiFi. It enables high-speed wireless links over long distances, making it ideal for connecting remote sites or extending networks without physical cabling, and its robust design ensures reliable performance even in challenging environments.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- 5+ km (3.1 mi) maximum range
- Up to 867 Mbps throughput
- 5 GHz radios
- PoE/PoE+ power method, PoE adapter included
- Uplink with (2) GbE ports and (1) PoE output
- Outdoor ready
- Seamless UniFi WiFi uplink for remote site connectivity
- Centralised management through UniFi Network Controller
- Power and data delivery over a single Ethernet cable via PoE
Specifications:
- Dimensions: Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
- WiFi Standard: WiFi 5
- Spatial Streams: 2
- Coverage Area: 5 km (3.1 mi)

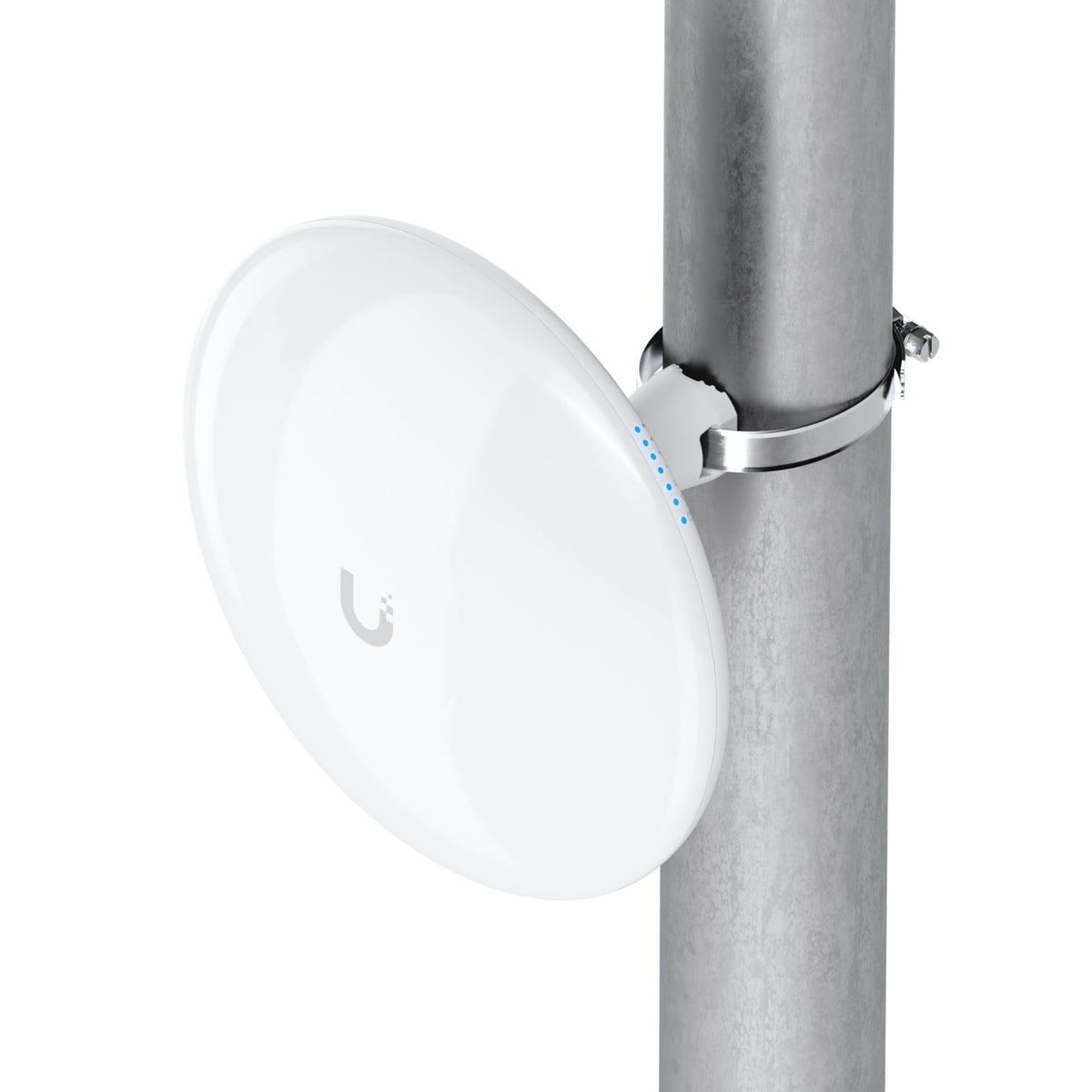

- Mounting Locations: Wall, pole
- Weatherproofing: IPX6
- Power Method: PoE, PoE+ required for PoE output
- MIMO: 5 GHz 2x2
- Max Data Rate: 5 GHz 867 Mbps (BW80)
- Antenna Gain: 5 GHz 19 dBi
- Max TX Power: 5 GHz 25 dBm
- Max Conducted TX Power: 25 dBm combined
- Supported Data Rates: 802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0-MCS9 NSS1/2, VHT 20/40/80); 802.11n 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40); 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Wireless Security: WPA2 AES, always on
- Max Power Consumption: 9W
- Supported Voltage Range: 42.5-57V DC
- Networking Interface: (2) GbE RJ45 ports
- Antennas: Internal
- Management: (1) PoE in (PoE output not used), (1) passive PoE output
- Wind Loading: 69 N at 200 km/h (15.5 lbf at 125 mph)
- Weight Device Only: 431 g (0.95 lb)
- Weight With Mount: 515 g (1.1 lb)
- Mount Material: UV-stabilised polycarbonate, stainless steel
- Enclosure Material: UV-resistant polycarbonate
- Pole Mount Diameter: 0.8-2.1" (20-53.1 mm)
- Button: (1) Factory reset
- LEDs: Power, Ethernet, (4) signal strength
- Channel Bandwidth: 20/40/80 (MHz)
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
- Operating Frequency Worldwide: 5150-5875 MHz
- Ambient Operating Temperature: -40 to 60°C (-40 to 140°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
