Description:

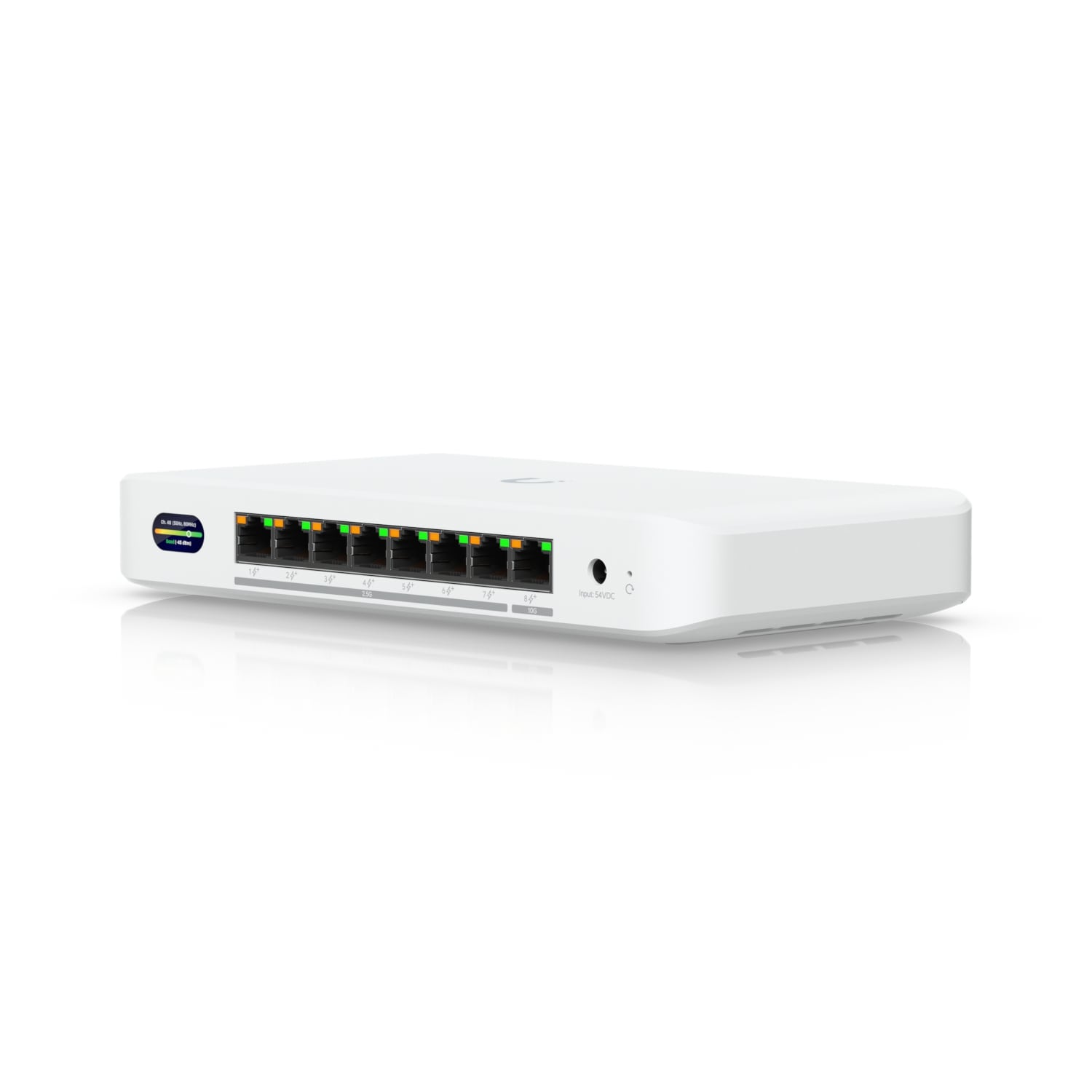

The Ubiquiti Device Bridge Switch is a compact PoE+ switch featuring one 10 GbE port, seven 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi. Part of the new UniFi Device and Building Bridging system, it makes it remarkably easy to connect remote network points and clients without trenching cables or dealing with complex configurations.
Features:
- Up to 5.8 Gbps throughput
- 5GHz and 6GHz radios
- DC jack power method (54V DC/1.1A)
- (1) 10 GbE port and (7) 2.5 GbE ports for uplink
- Deploy and point setup with UniFi Auto-Link technology
- Combines PoE switch, WiFi 7 uplink, and 10 Gb port in one device
- Up to 185W PoE output capability
- Eliminates need for wired uplinks
Specifications:
- Dimensions: 212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Mounting Locations: Desktop, wall
- Power Method: DC jack (54V DC/1.1A)
- Power Supply: 54V DC/1.1A, adapter included
- MIMO: 6 GHz 2x2, 5 GHz 2x2
- Max Data Rate: 6 GHz 5.8 Gbps (BW320), 5 GHz 4.3 Gbps (BW240)
- Antenna Gain: 6 GHz 8 dBi, 5 GHz 8 dBi
- Max TX Power: 6 GHz 23 dBm, 5 GHz 26 dBm
- Max Conducted TX Power: 26 dBm combined
- Supported Data Rates 802.11be (WiFi 7): 6 GHz 7.3 Mbps to 5.8 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/320); 5 GHz 7.3 Mbps to 4.3 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/240)
- Supported Data Rates 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0-MCS11 NSS1/2, HE 20/40/80/160)
- Supported Data Rates 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0-MCS9 NSS1/2, VHT 20/40/80/160)
- Supported Data Rates 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
- Supported Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Wireless Security: WPA3 SAE, always on
- Max Power Consumption: 25W excluding PoE output
- Supported Voltage Range: 42.5-57V DC
- Networking Interface: (1) 10 GbE RJ45 port, (7) 2.5 GbE RJ45 ports
- PoE Interface: (8) PoE+ ports
- Max PoE Wattage per Port: 30W
- Total PoE Availability: 35W with 60W AC adapter input, 185W with 210W AC adapter input (210W adapter sold separately)
- Antennas: (1) Internal
- Management: Ethernet, WiFi
- Channel Bandwidth: 20/40/80/160/240/320 MHz
- Weight Device Only: 548 g (1.21 lb)
- Weight With Mount: 563 g (1.24 lb)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- LCM Display: 0.96" status display
- Button: (1) Factory reset
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
- Operating Frequency Worldwide: 5150-5875 MHz, 5945-7125 MHz
- Ambient Operating Temperature: -30 to 40°C (-22 to 104°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Application Requirements: UniFi Network version 10.0.156 or later
