Description:

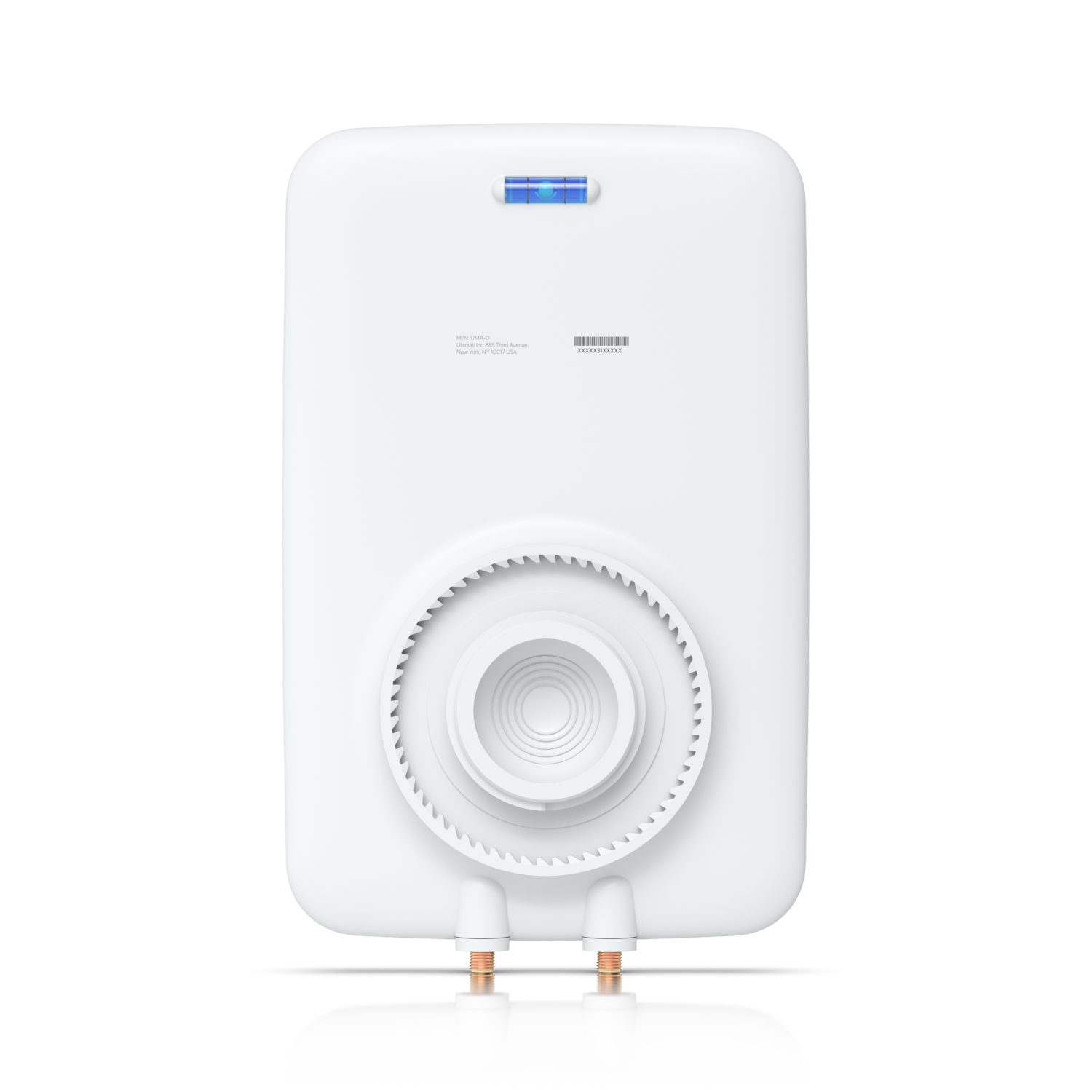

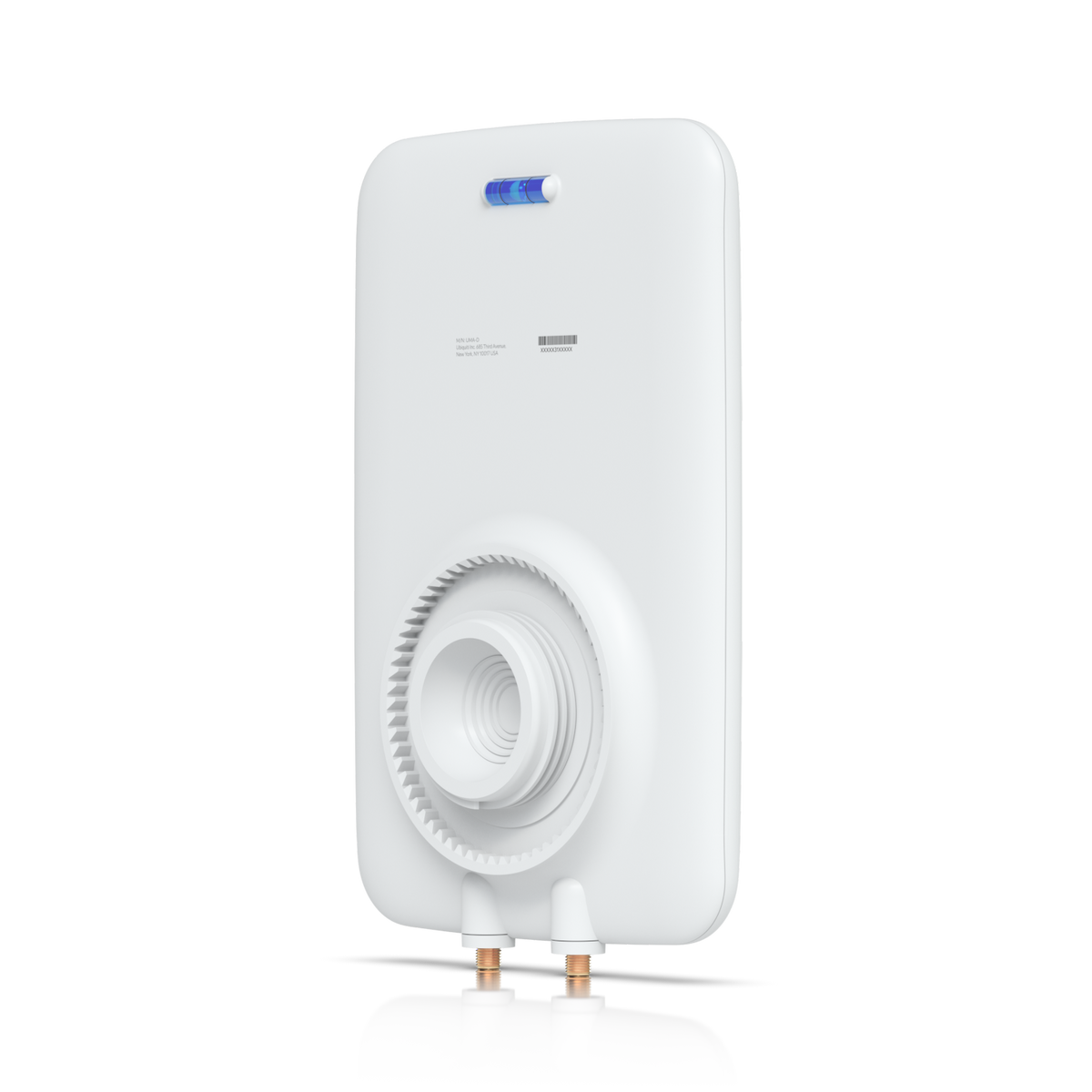

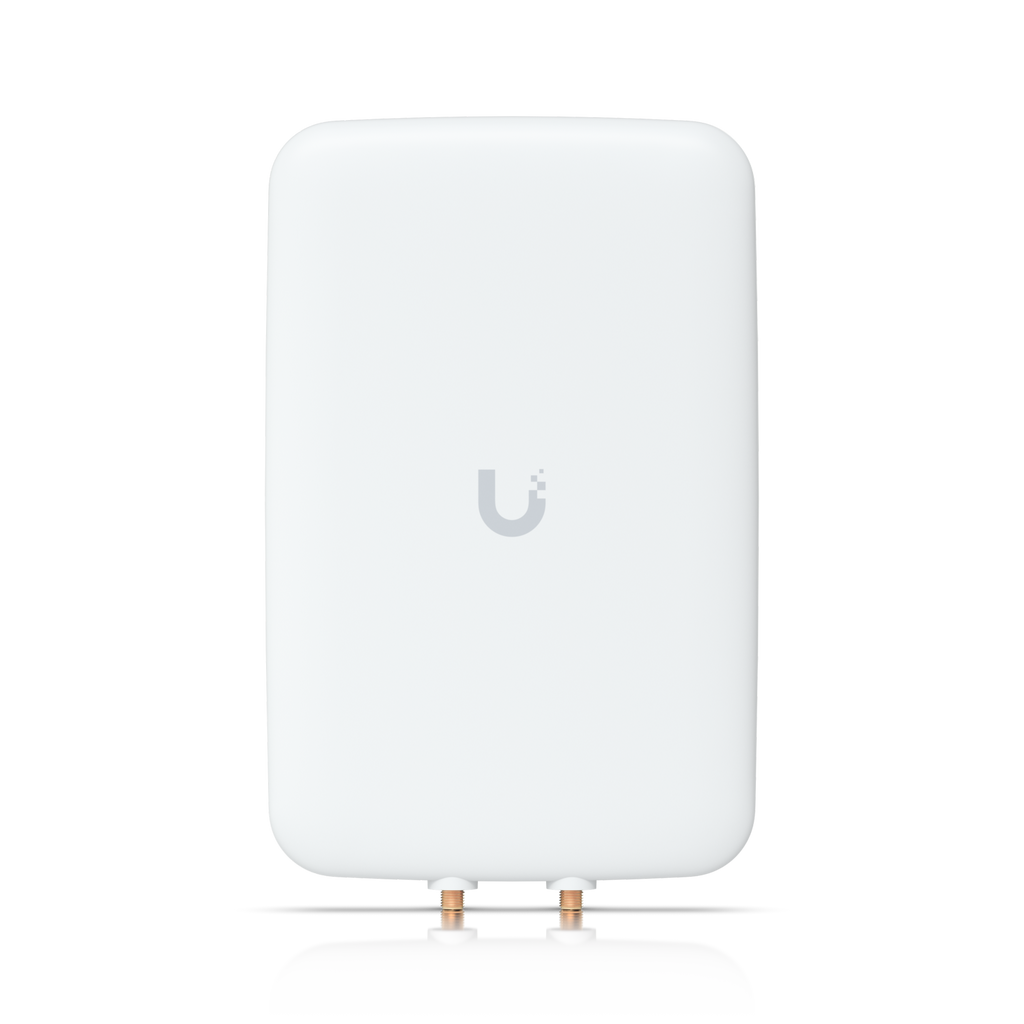

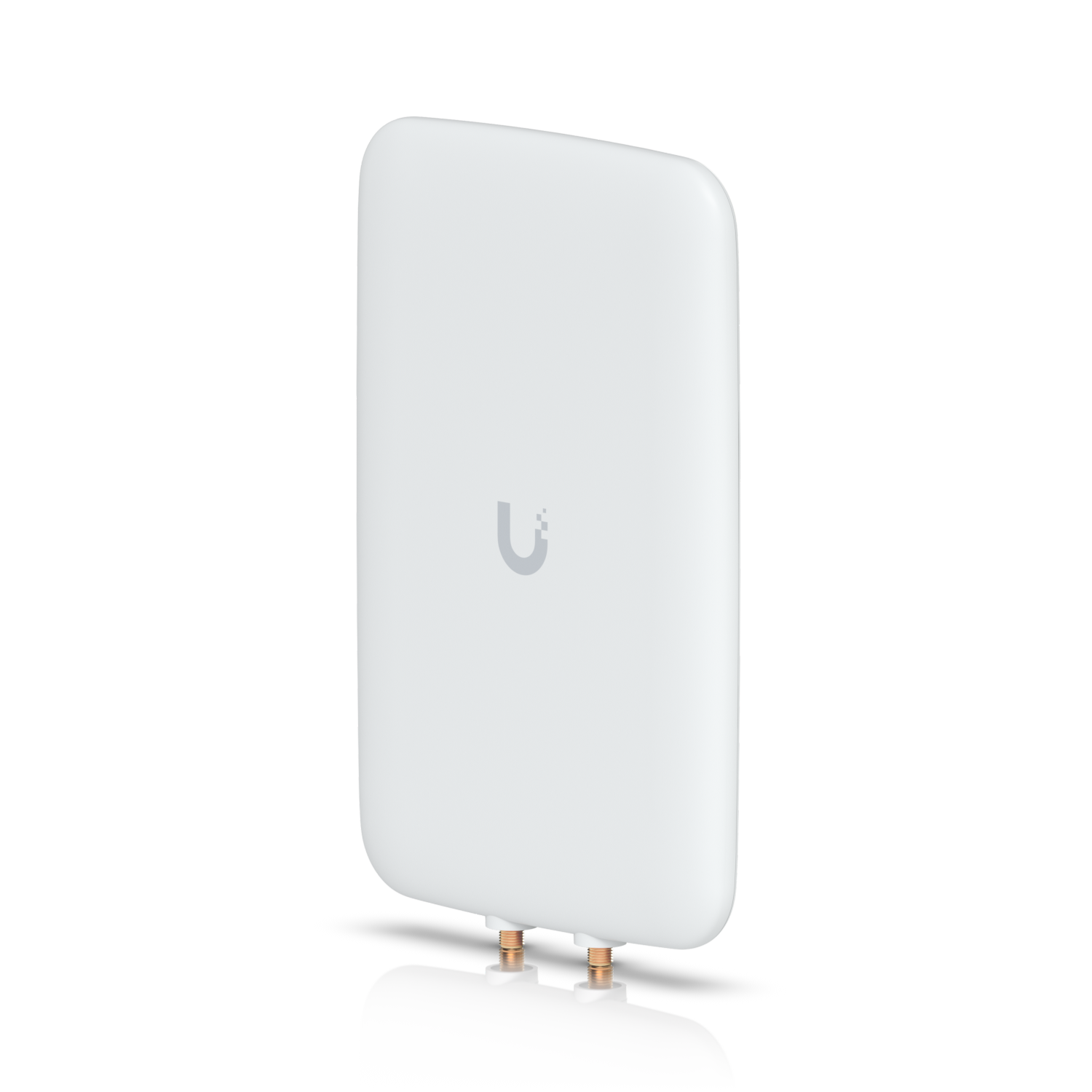

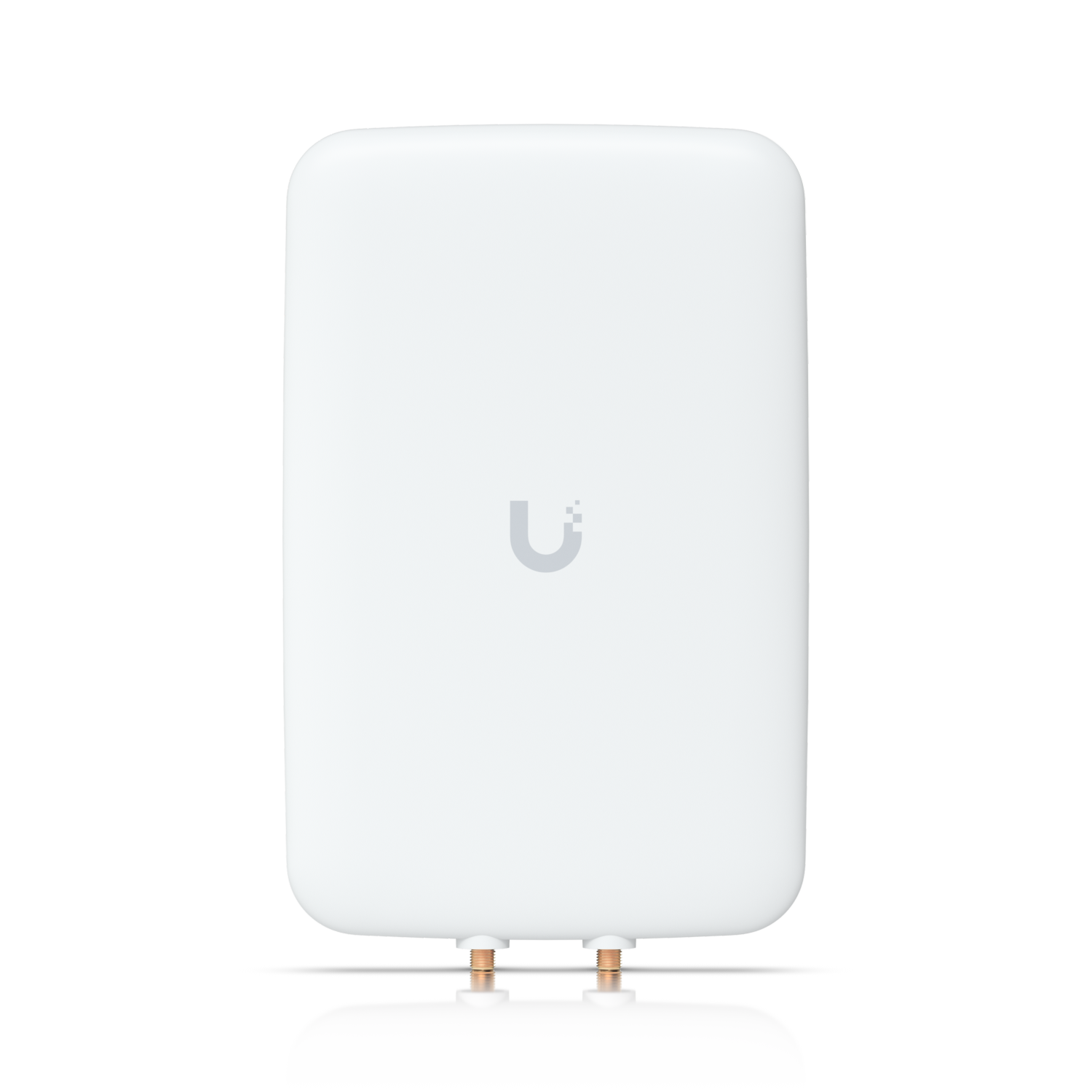

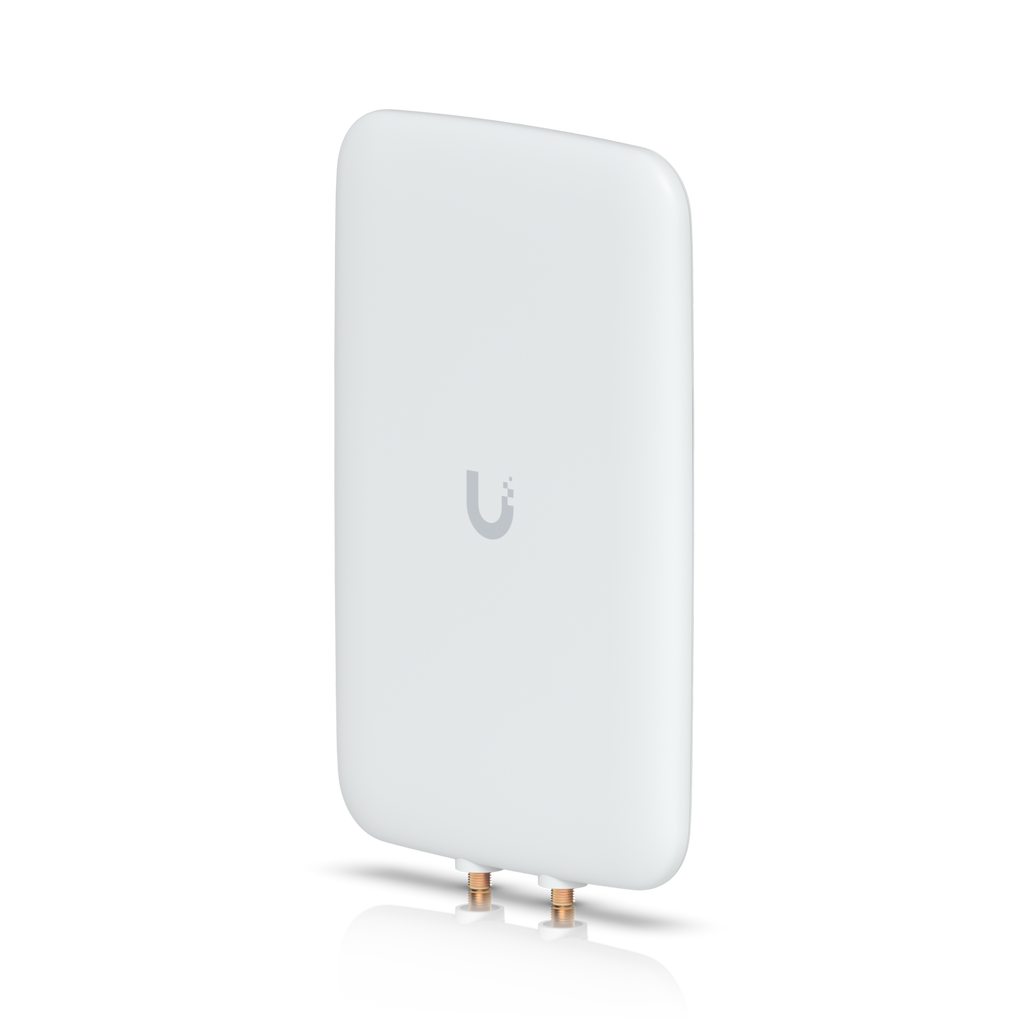

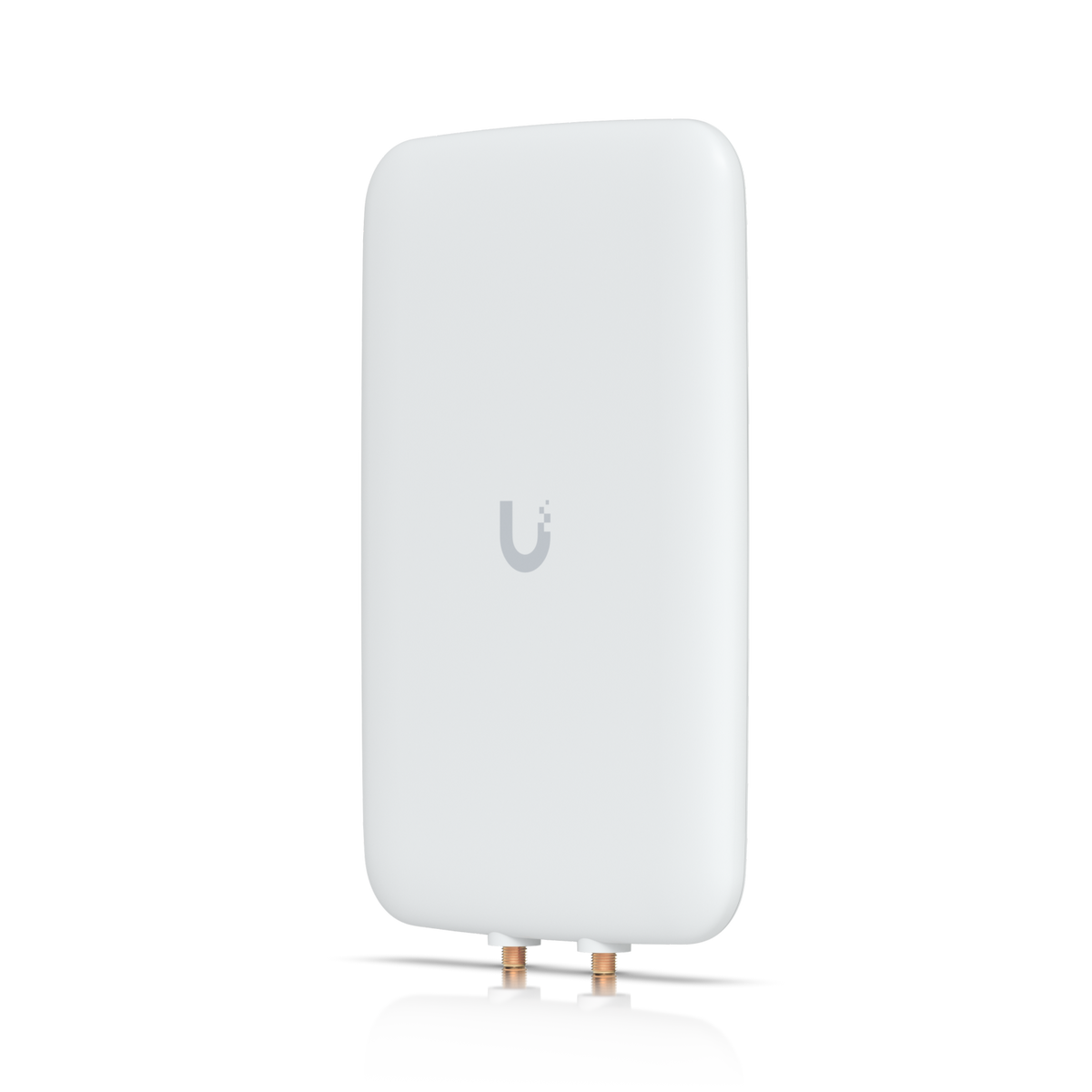

The Ubiquiti Directional Dual-Band High Gain Mesh Antenna is an optional add-on designed to work with the AC Mesh, offering an outdoor weather-resistant enclosure and a high-efficiency directional radiation pattern.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Compatible with UAP-AC-M and UAP-AC-M-5
- Outdoor weather-resistant enclosure
- High-efficiency directional radiation pattern
- Dual-band, dual-polarity optimized for 802.11ac
- Ball joint 3-axis mount for precise aiming
- Wall and pole mount included
Specifications:
- Dimensions: 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3")
- Weight Without Mount: 400 g (0.9 lb)
- Weight With Mount: 480 g (1.1 lb)
- Enclosure Material: Outdoor UV-stabilized plastic
- Supported Frequency Range: 2.4-2.5 GHz, 5.1-5.9 GHz

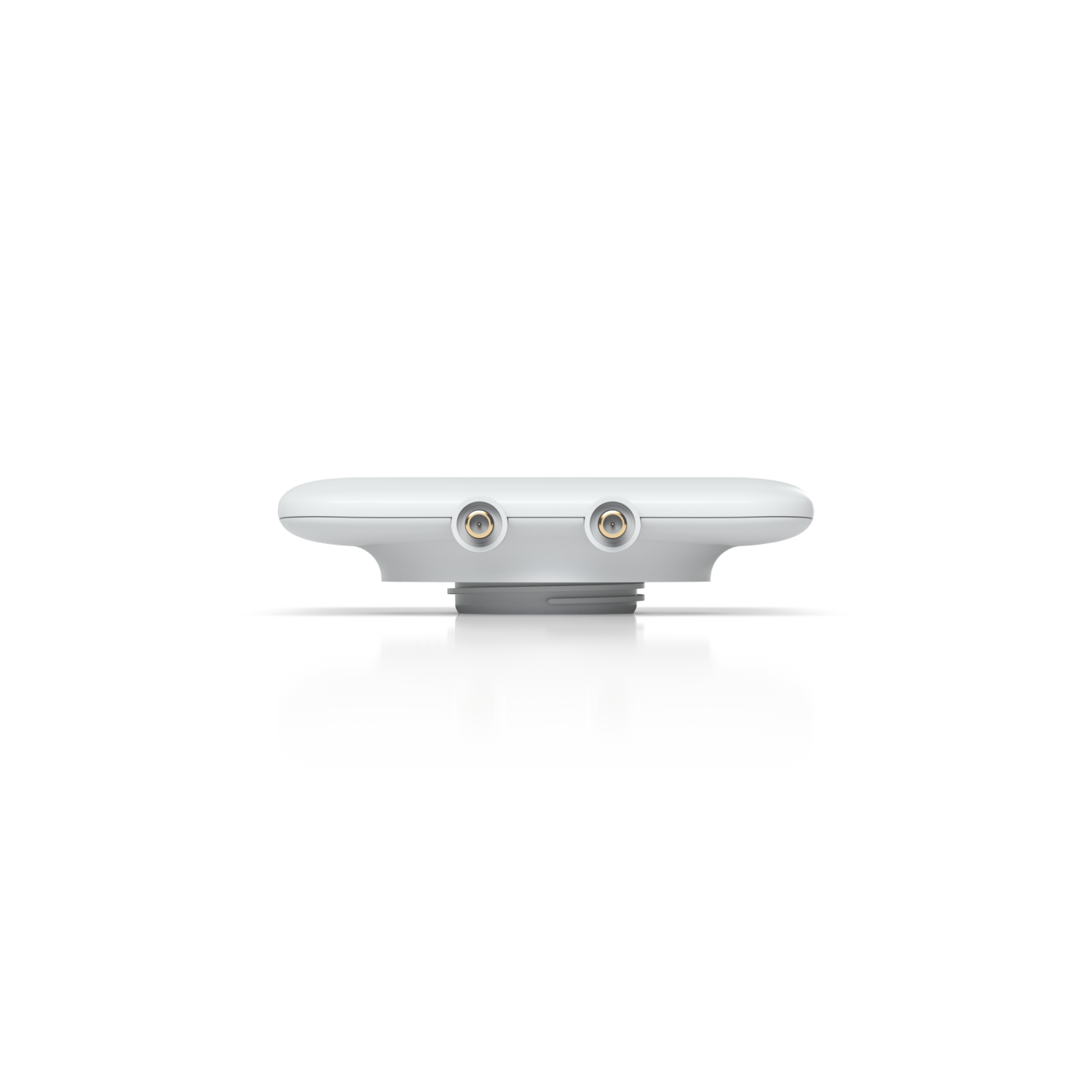

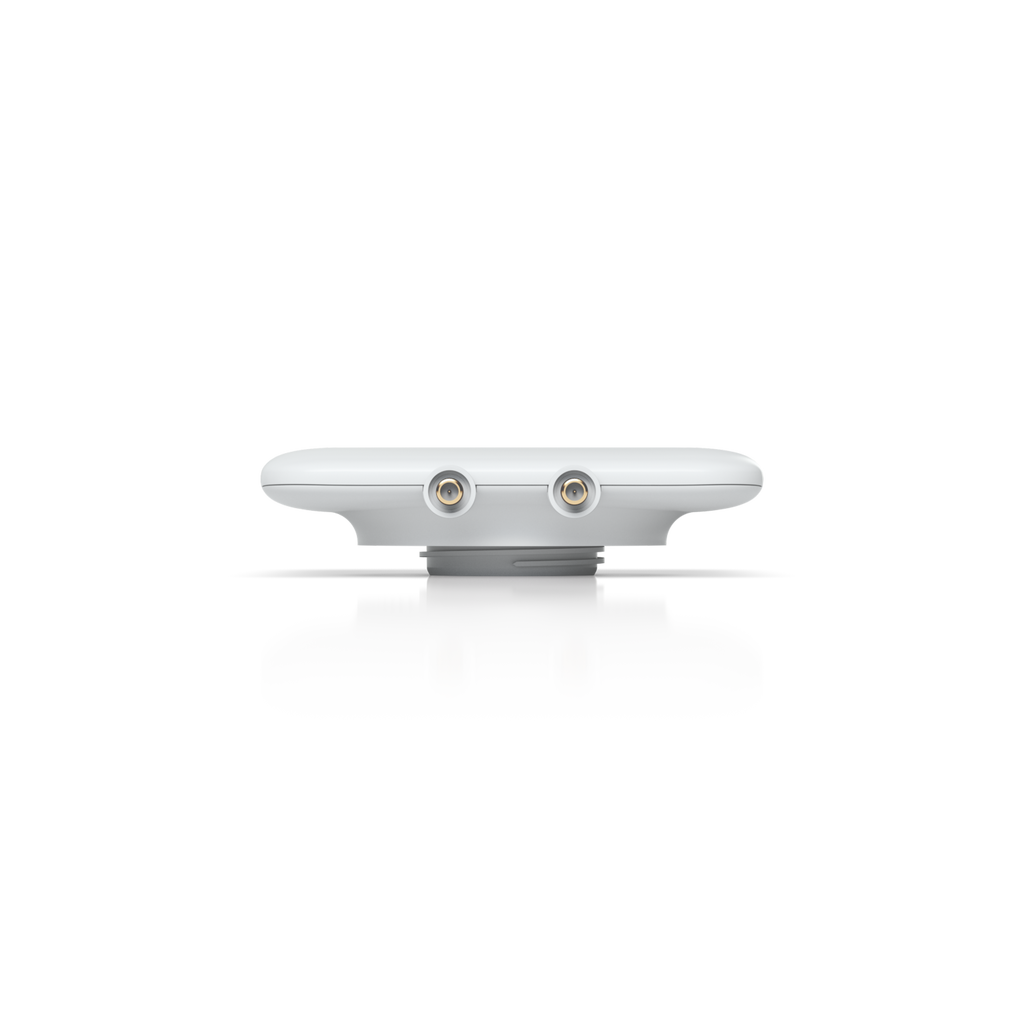

- RF Connections: (2) RP-SMA
- Gain: 5 GHz 15 dBi, 2.4 GHz 10 dBi
- HPOL Beamwidth: 5 GHz 45°, 2.4 GHz 90°
- VPOL Beamwidth: 5 GHz 45°, 2.4 GHz 90°
- Elevation Beamwidth: 5 GHz 45°, 2.4 GHz 90°
- Max VSWR: 2:1
- Polarization: Dual-linear
- Cross-Pol Isolation: 5 GHz 30 dB, 2.4 GHz 25 dB
- NDAA Compliant: Yes
- Certifications: Anatel 06187-19-08356
