Description

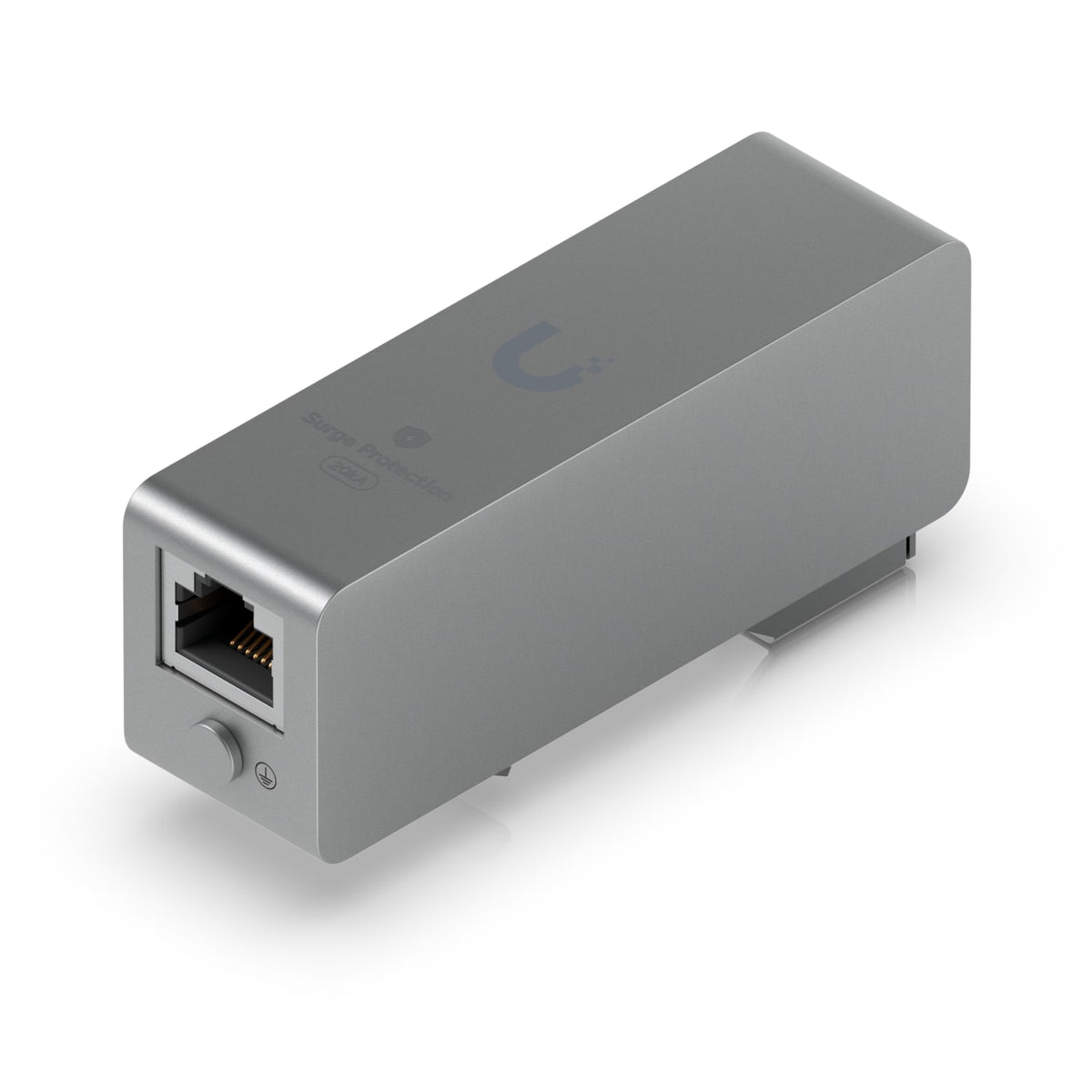

The Ubiquiti Ethernet Surge Protection provides bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation. Housed in a polycarbonate and SGCC steel enclosure, it features two RJ45 female connectors, wall or DIN rail mounting options, and multiple grounding points. ESD/EMP protection absorbs transient current in response to surge voltage from 100V/s to 1kV/µs, safeguarding data lines up to 10 Gbps with full PoE support.
Features
- Bidirectional protection for up to 10 GbE and PoE++
- 20kA surge discharge
- Indoor installation

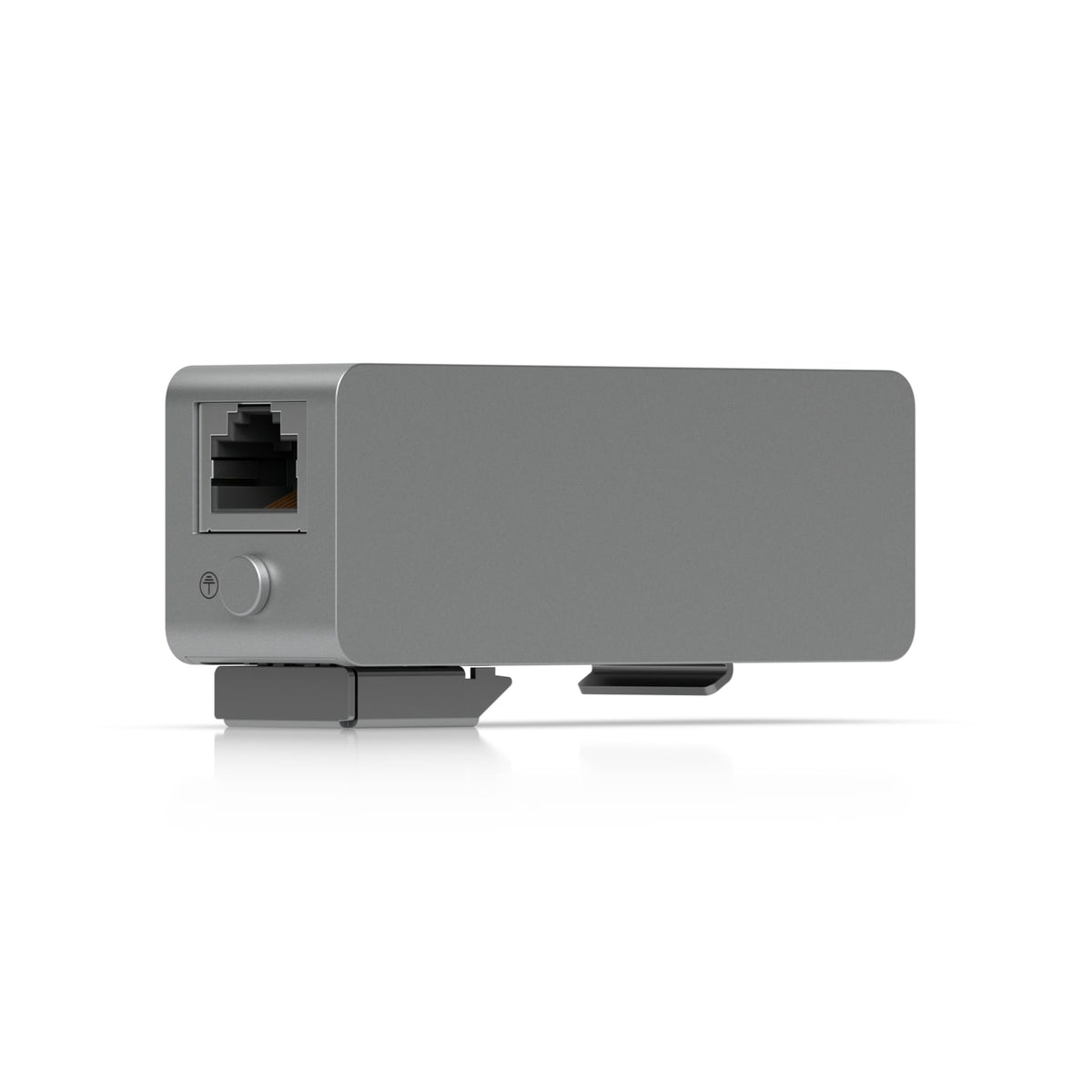

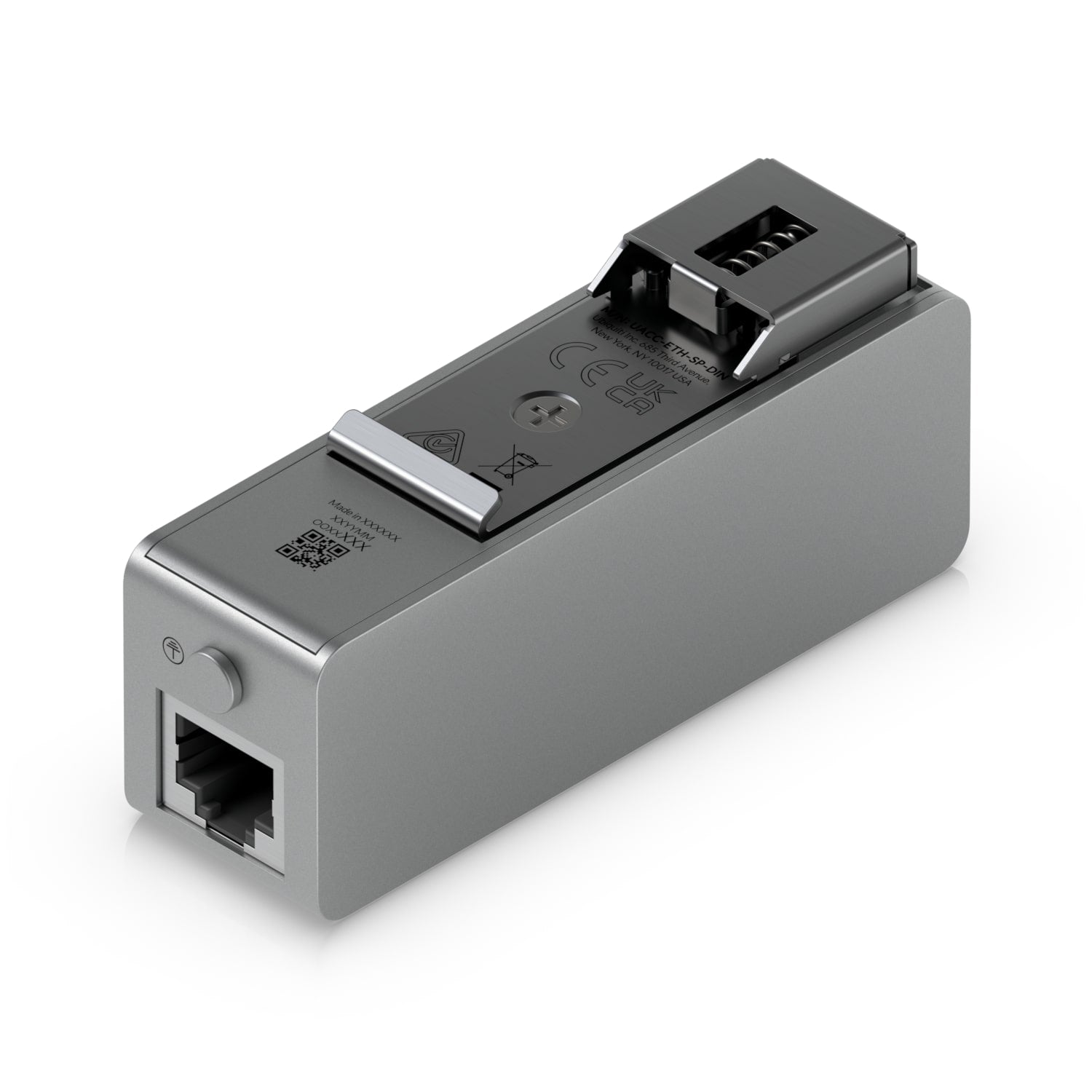

- Wall/DIN rail mount
- Multiple grounding points
Specifications
- Dimensions: 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5 inches)
- Weight: 74 g (2.6 oz)
- Enclosure material: Polycarbonate, SGCC steel

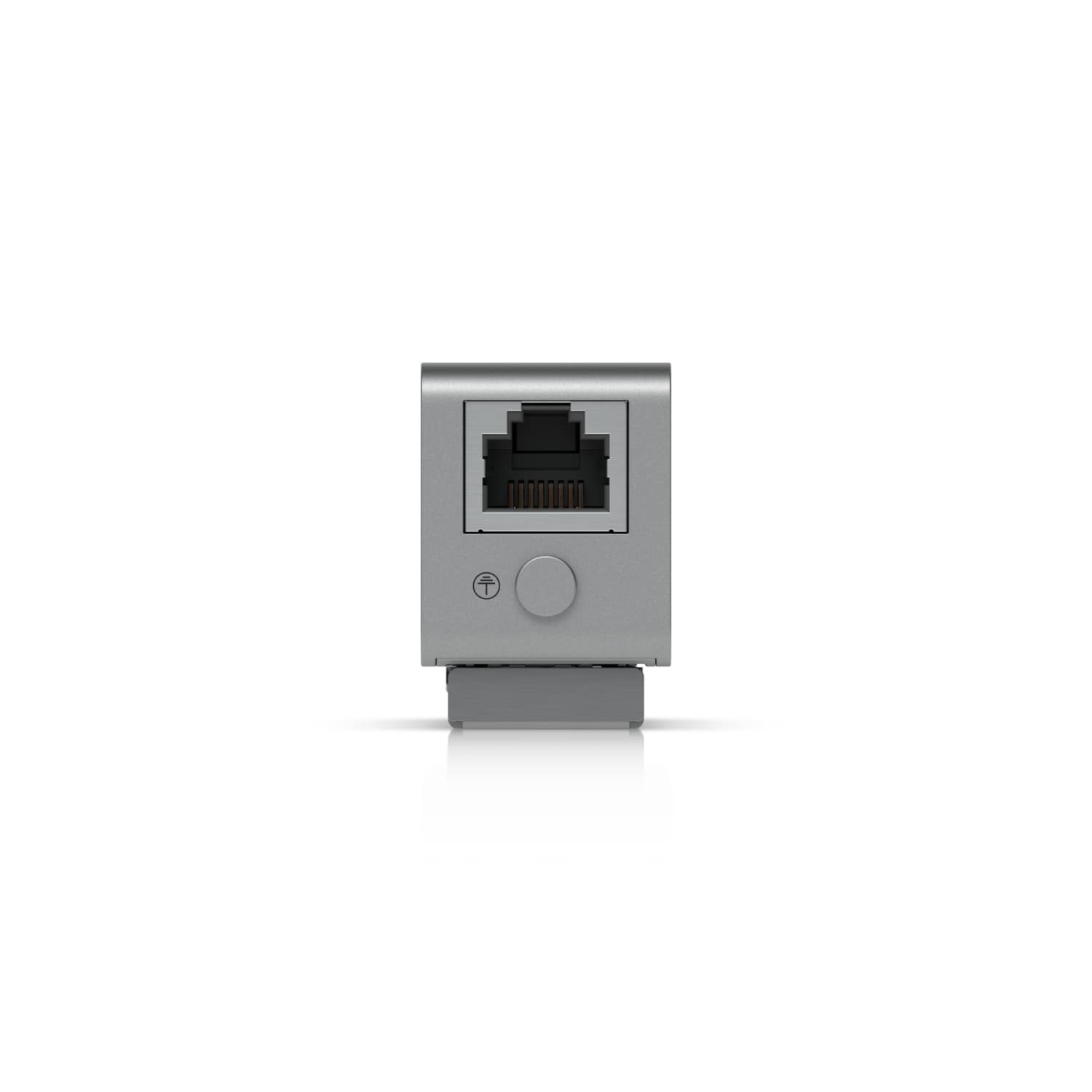

- Networking interface: 2 RJ45 female connectors
- DC spark over voltage: 90V @ 100V/s
- Maximum impulse spark over voltage: 600V @ 1kV/µs
- Discharge current: 20kA
- Insulation: Maximum resistance 1G ohm @ 50V
- Maximum capacitance: 1.0 pF @ 1 MHz
- Data line protection: Up to 10 Gbps
- PoE support: Yes
- ESD/EMP protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Ambient operating temperature: -40 to +80° C (-40 to 176° F)
- Ambient operating humidity: 10 to 90% noncondensing
Note: For installation assistance, you can contact us or reach out directly to the brand.
Package Contents
- Ubiquiti Ethernet Surge Protection
