Description:

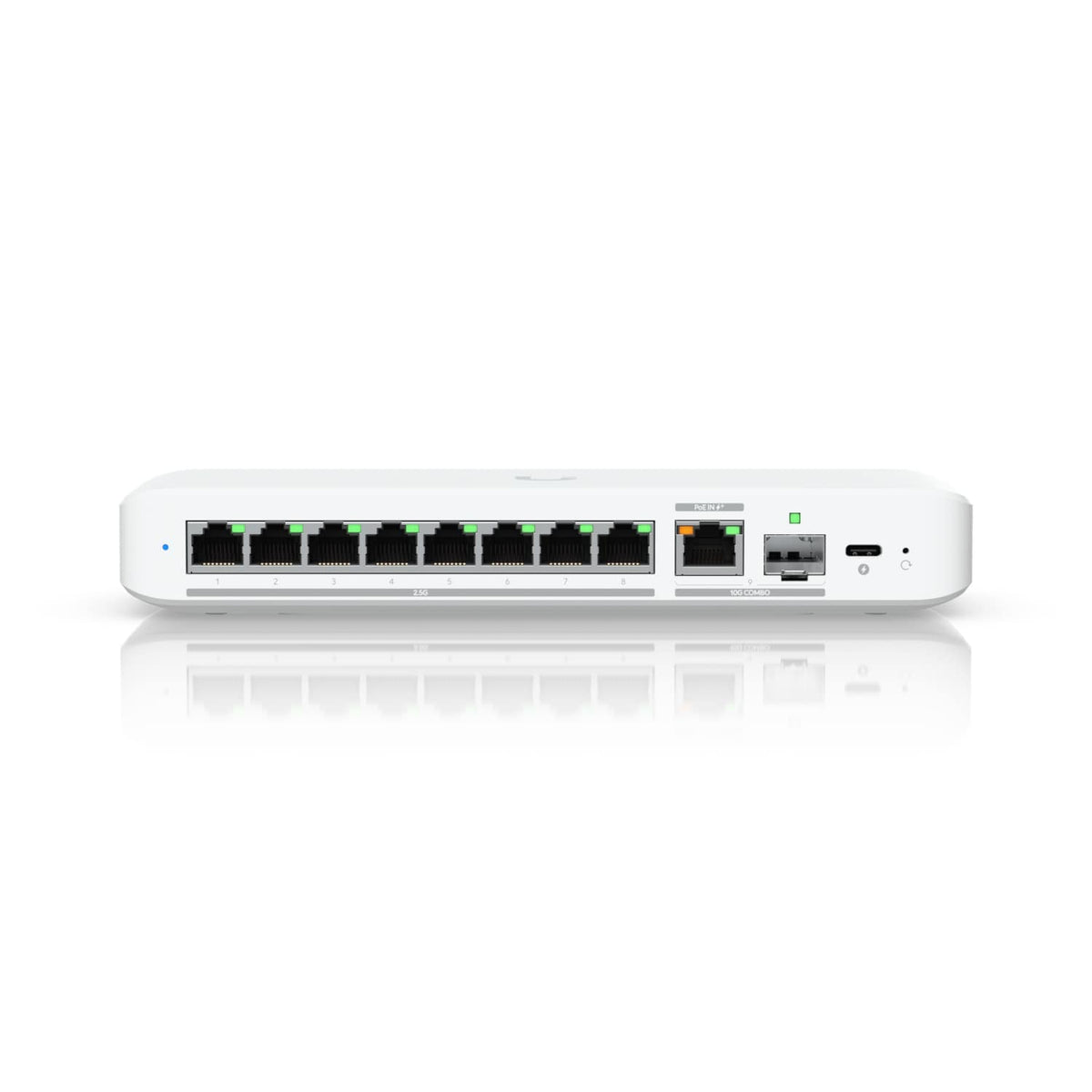

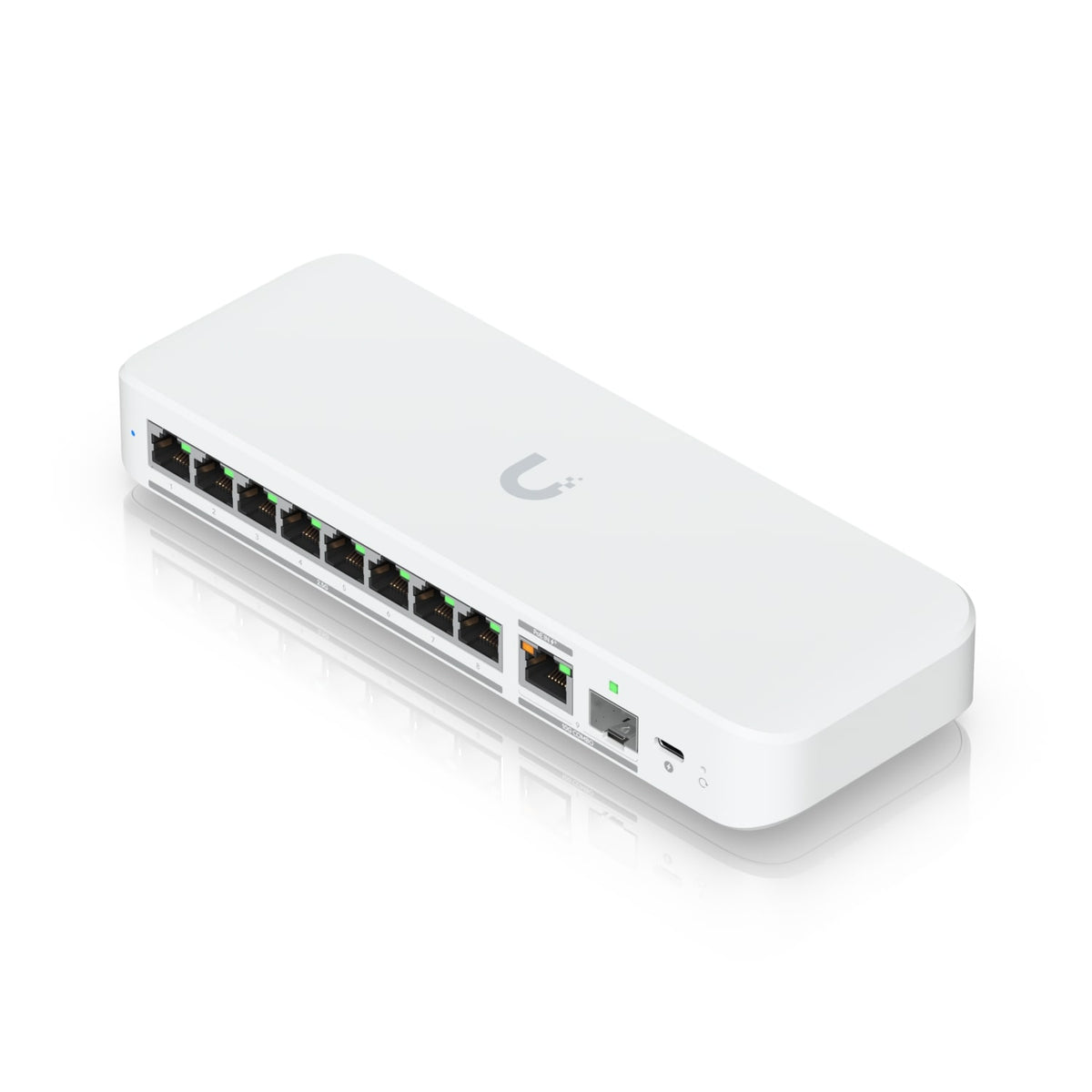

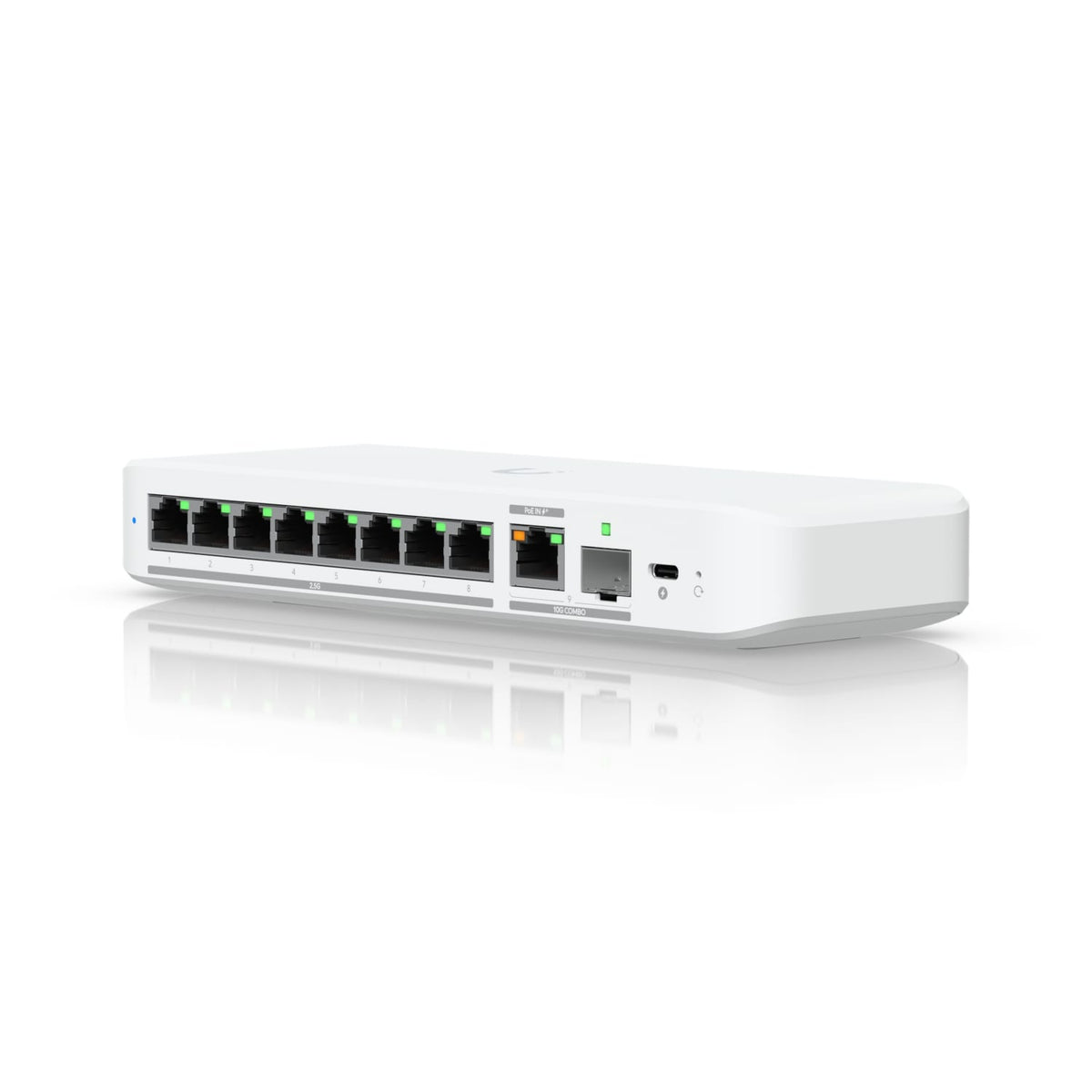

The Flex 2.5G is a flexible, 8 port switch delivering 2.5 Gigabit Ethernet speeds, ideal for bandwidth intensive applications that require faster data transfer. Its compact form factor makes it well suited for space constrained environments such as home offices or small businesses.
Features:
- 10 GbE RJ45/SFP+ combination uplink port for flexible high speed connections
- Compact form factor suited for space constrained environments
- Flexible power options through USB-C or PoE+ adapter
- Switching capacity of 60 Gbps with 45 Mpps forwarding rate
- STP and RSTP, storm control, and loop protection support
- Port isolation and port mirroring for enhanced network management
- Seamless integration with the UniFi Network application

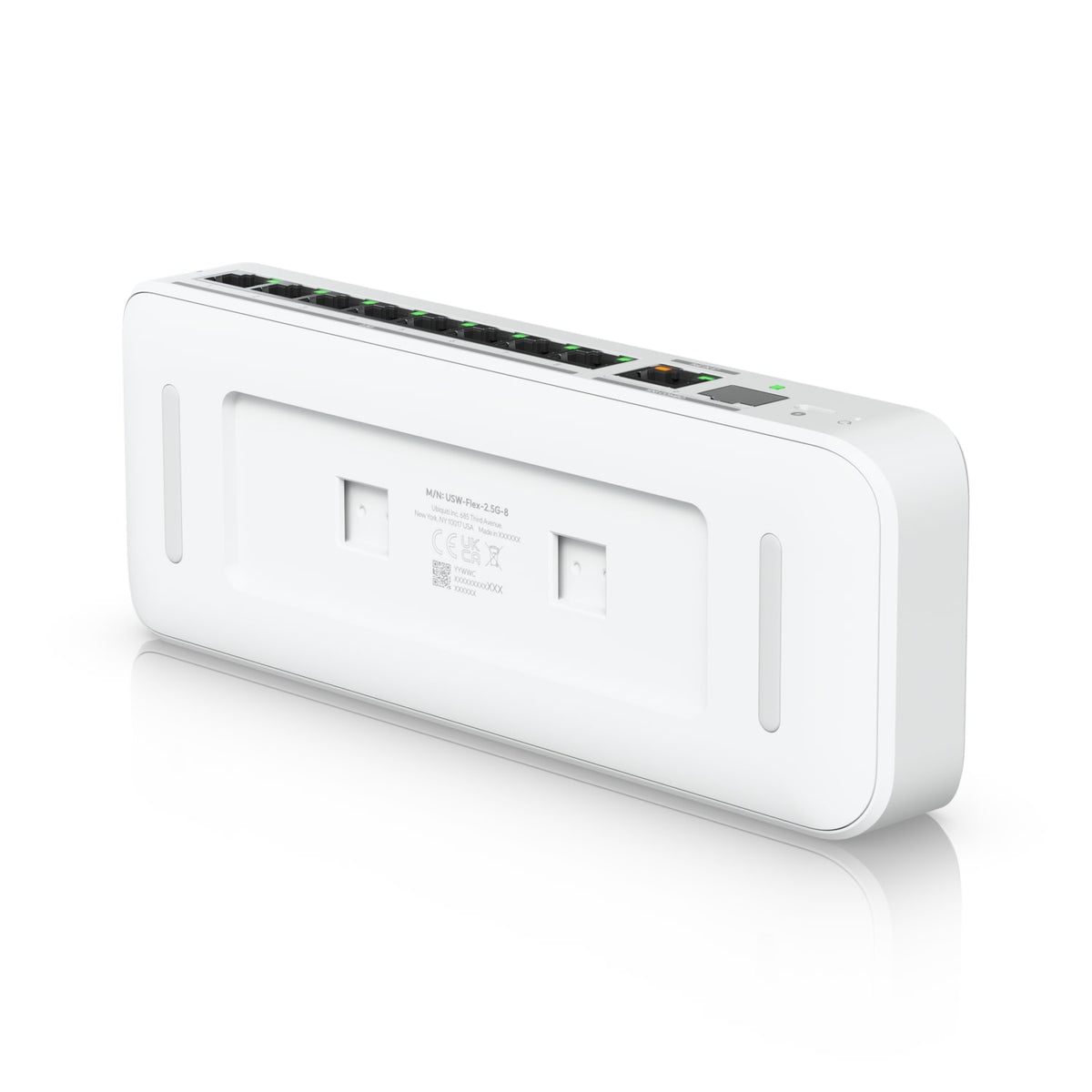

- Multiple mounting options including desktop, wall, DIN, and magnetic
Specifications:
- Dimensions: 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3 inches)
- Port Layout: 8 2.5 GbE RJ45 ports at 2.5G/1G/100M/10M, 1 10 GbE RJ45 port at 10G/5G/2.5G/1G/100M, 1 10G SFP+ port
- Form Factor: Compact desktop, wall, DIN, magnetic
- Switching Capacity: 60 Gbps
- Total Non Blocking Throughput: 30 Gbps
- Forwarding Rate: 45 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features: STP and RSTP, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, port isolation, port mirroring, jumbo frames, loop protection
- Maximum Power Consumption: 14W with PoE input, 14W with AC adapter input
- Power Method: One USB Type-C, 5V DC, 3A; one PoE+
- Power Input Method: USB input, PoE
- Power Supply: AC/DC, external, 15W
- Supported Voltage Range: 4.8 to 5.2V DC/USB, 44V to 57V PoE
- Management: Ethernet
- Weight: 395 g (0.87 lb)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Operating Temperature Range: Minus 20 to 45 degrees Celsius (Minus 4 to 113 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- Certifications: CE, FCC, IC
- NDAA Compliance: Yes
- Application Requirement: UniFi Network Version 9.0.114 and later
