Description:
The Flex Mini 2.5G is a compact, 5 port switch delivering 2.5 Gigabit Ethernet speeds for faster data transfer in bandwidth intensive environments. Its small form factor makes it ideal for space constrained setups such as home offices or small businesses. The switch offers flexible power options, supporting either Power over Ethernet or a USB-C adapter, allowing easy integration into existing network setups without additional power infrastructure.
Features:
- 2.5 Gbps downlink and uplink speeds for bandwidth intensive applications
- Compact form factor suited for space constrained environments
- Flexible power options through PoE or USB-C adapter
- Energy efficient operation with low maximum power consumption
- Seamless integration with the UniFi Network application
- Centralized management and full network visibility
Specifications:
- Dimensions: 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8 inches)

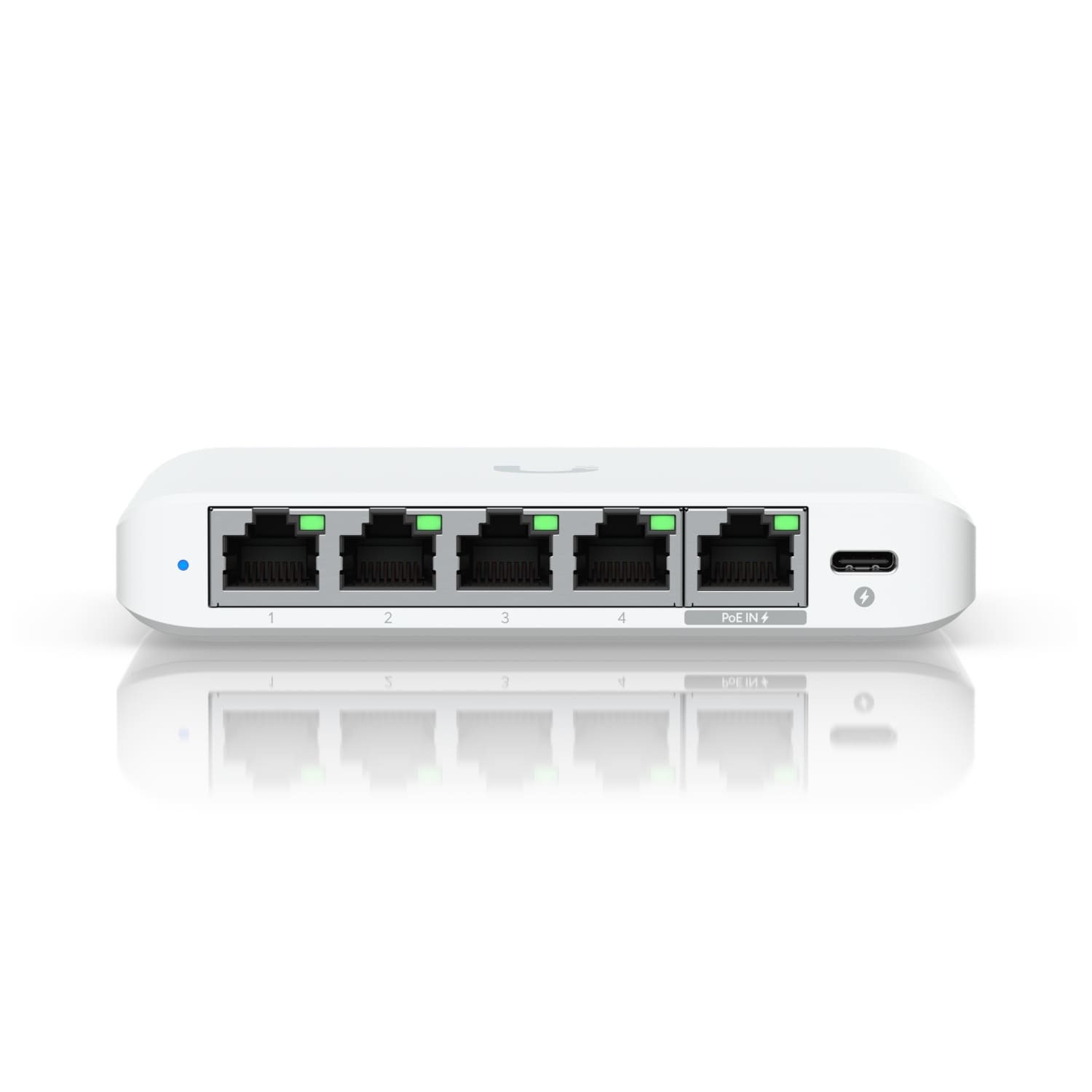

- Port Layout: 5 2.5 GbE RJ45 ports at 2.5G/1G/100M/10M
- Form Factor: Compact desktop
- Switching Capacity: 25 Gbps
- Total Non Blocking Throughput: 12.5 Gbps
- Forwarding Rate: 19 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features: STP and RSTP, egress rate limit, flow control, storm control, multicast and broadcast rate limiting, port isolation, port mirroring, jumbo frames, loop protection
- Maximum Power Consumption: 5W with AC/DC input, 6.4W with PoE input
- Power Method: One USB Type-C, 5V DC, 1A; one PoE
- Power Input Method: USB input, PoE
- Power Supply: AC/DC, external, 5W
- Supported Voltage Range: 4.8 to 5.2V DC/USB, 44V to 57V PoE
- Management: Ethernet
- Weight: 206 g (7.3 oz)
- Enclosure Material: Polycarbonate
- Operating Temperature Range: Minus 20 to 45 degrees Celsius (Minus 4 to 113 degrees Fahrenheit)
- Operating Humidity Range: 10 to 90 percent, noncondensing
- Certifications: CE, FCC, IC
- NDAA Compliance: Yes
- Application Requirement: UniFi Network Version 8.6.9 and later
