Description:

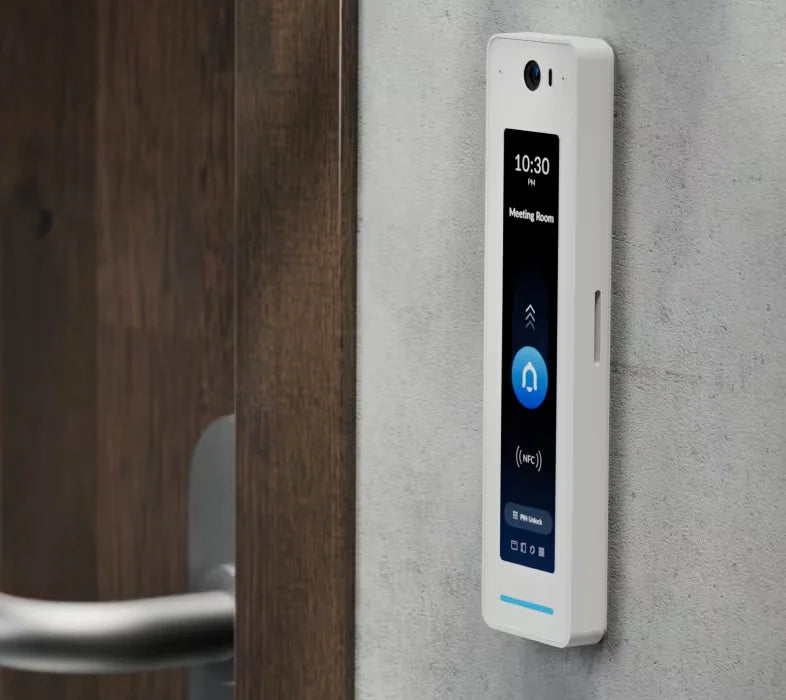

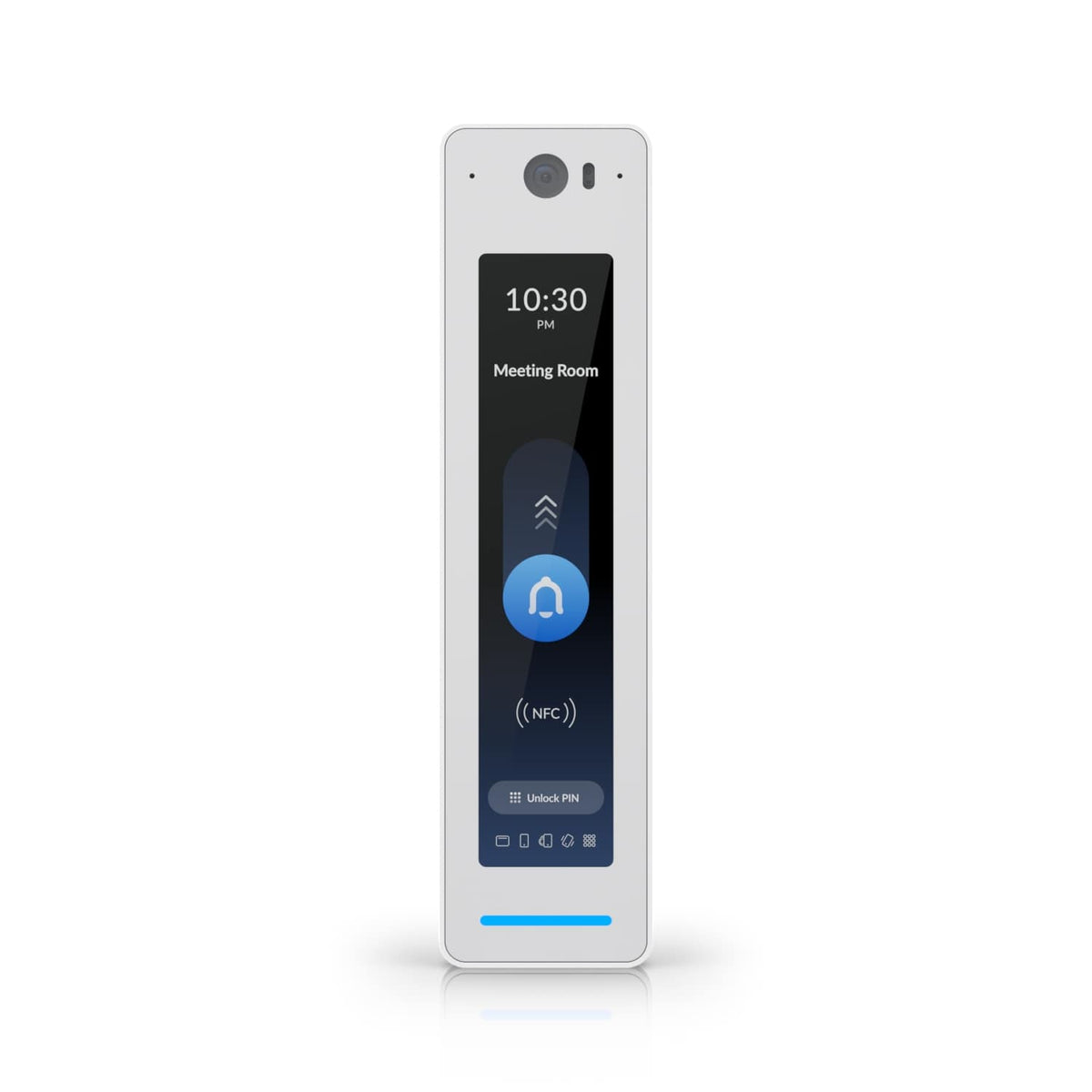

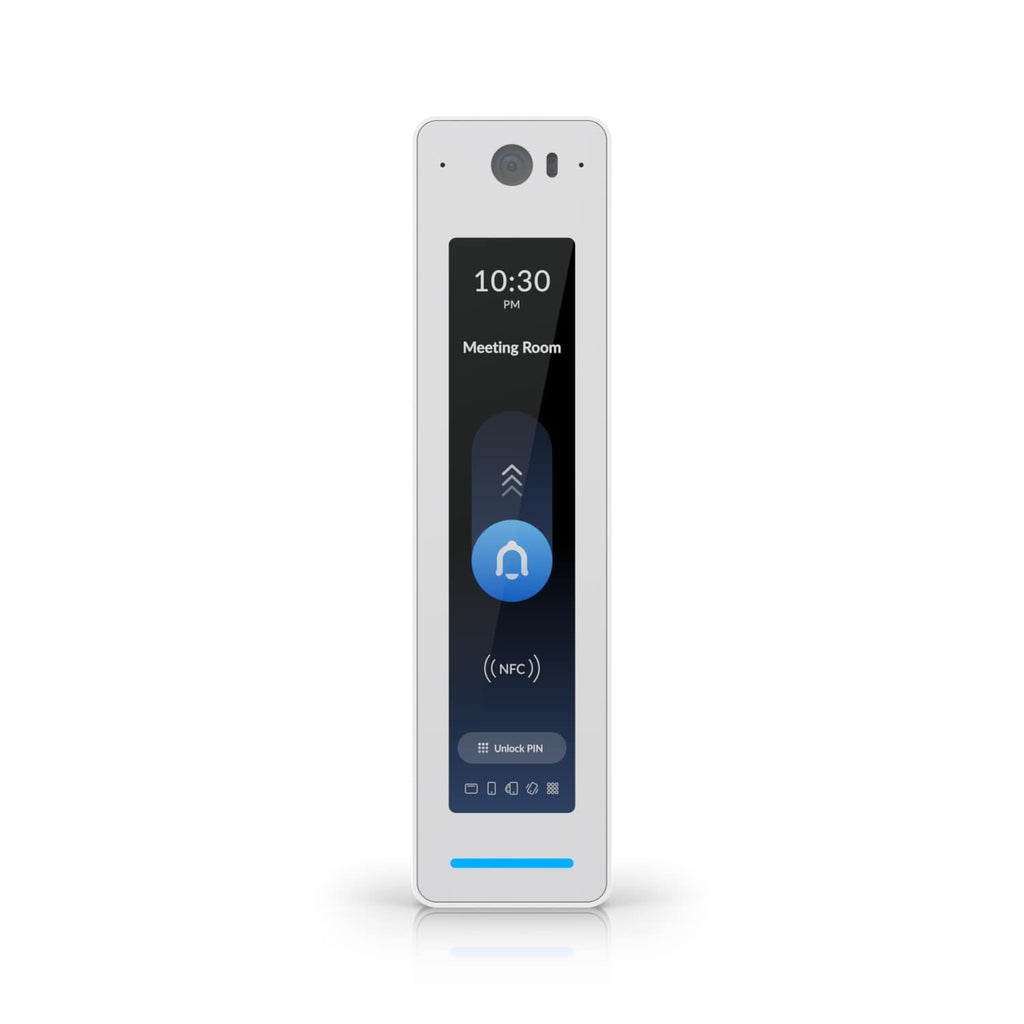

The G3 Reader Pro is a third generation indoor and outdoor NFC reader and intercom that supports Touch Pass through Apple Wallet and Google Wallet. It offers versatile authentication through NFC cards and keyfobs, PIN codes, and UniFi Identity mobile access, giving users flexibility to meet a range of security requirements. Built with a durable polycarbonate and glass enclosure and rated IP55, it is suited for both indoor and outdoor installations. The reader integrates seamlessly with the UniFi Access ecosystem, enabling centralised management of users, schedules, and access policies through the UniFi Access Controller.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Outdoor ready design
- Powered via PoE using UniFi Control Hub
- Durable polycarbonate and glass enclosure with IP55 rating
- Seamless integration with the UniFi Access ecosystem
- 2 person authentication support for enhanced security
Specifications:
- Colour: White
- Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- Integrated Camera: Yes
- NFC Card and Keyfob Access: Yes
- PIN Access: Yes
- Apple/Google Wallet: Yes
- Mobile Unlock: Yes
- Two Way Intercom and Doorbell Access: Yes
- NDAA Compliant: Yes
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- Weatherproofing: IP55
- Weight: 136 g (4.8 oz)
- Enclosure Material: Polycarbonate, glass
- Mount Material: Aluminium alloy

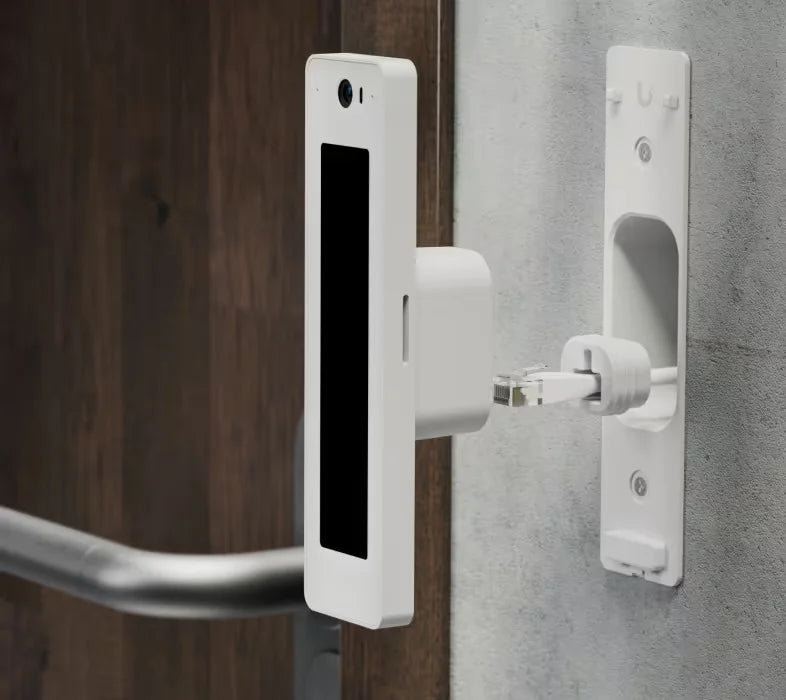

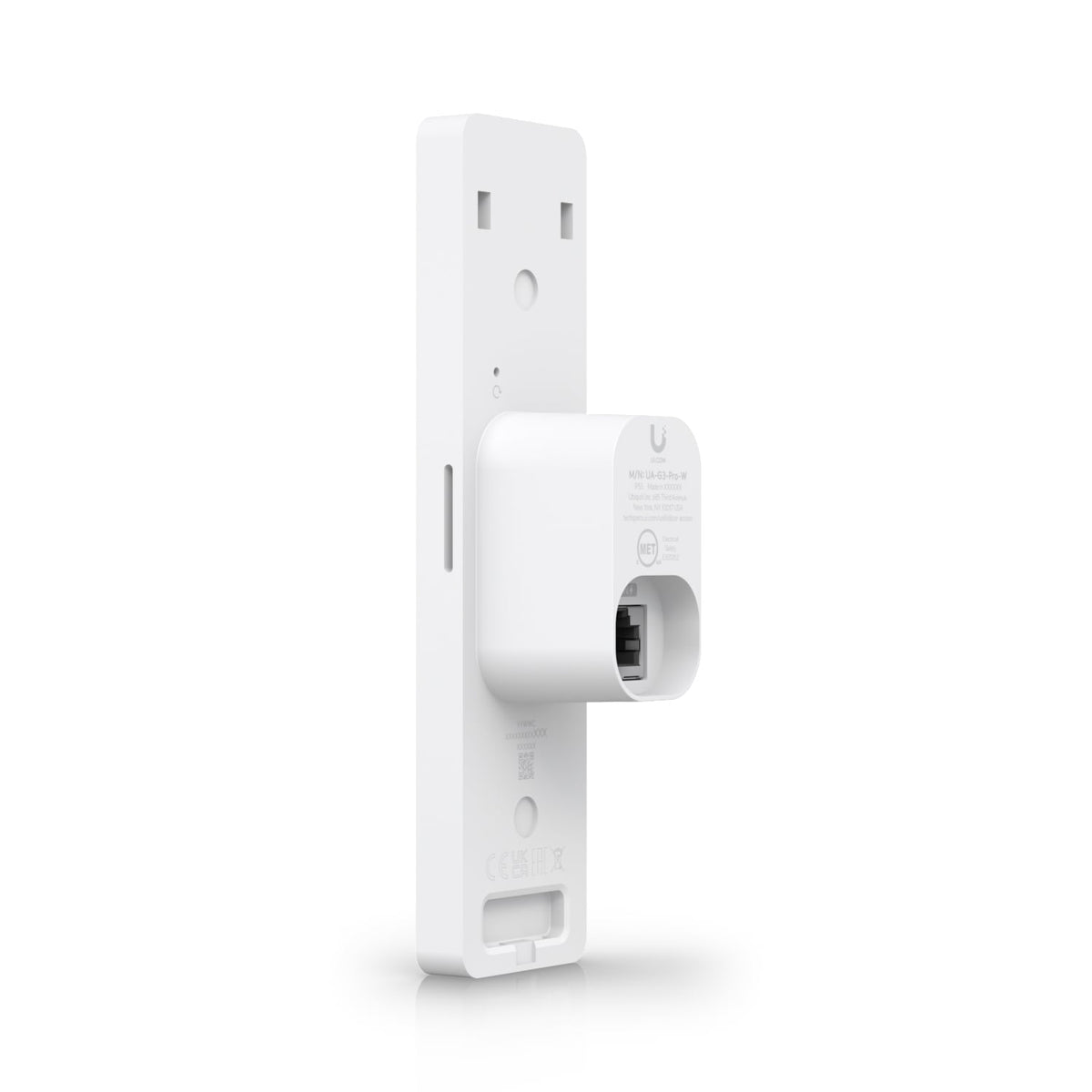

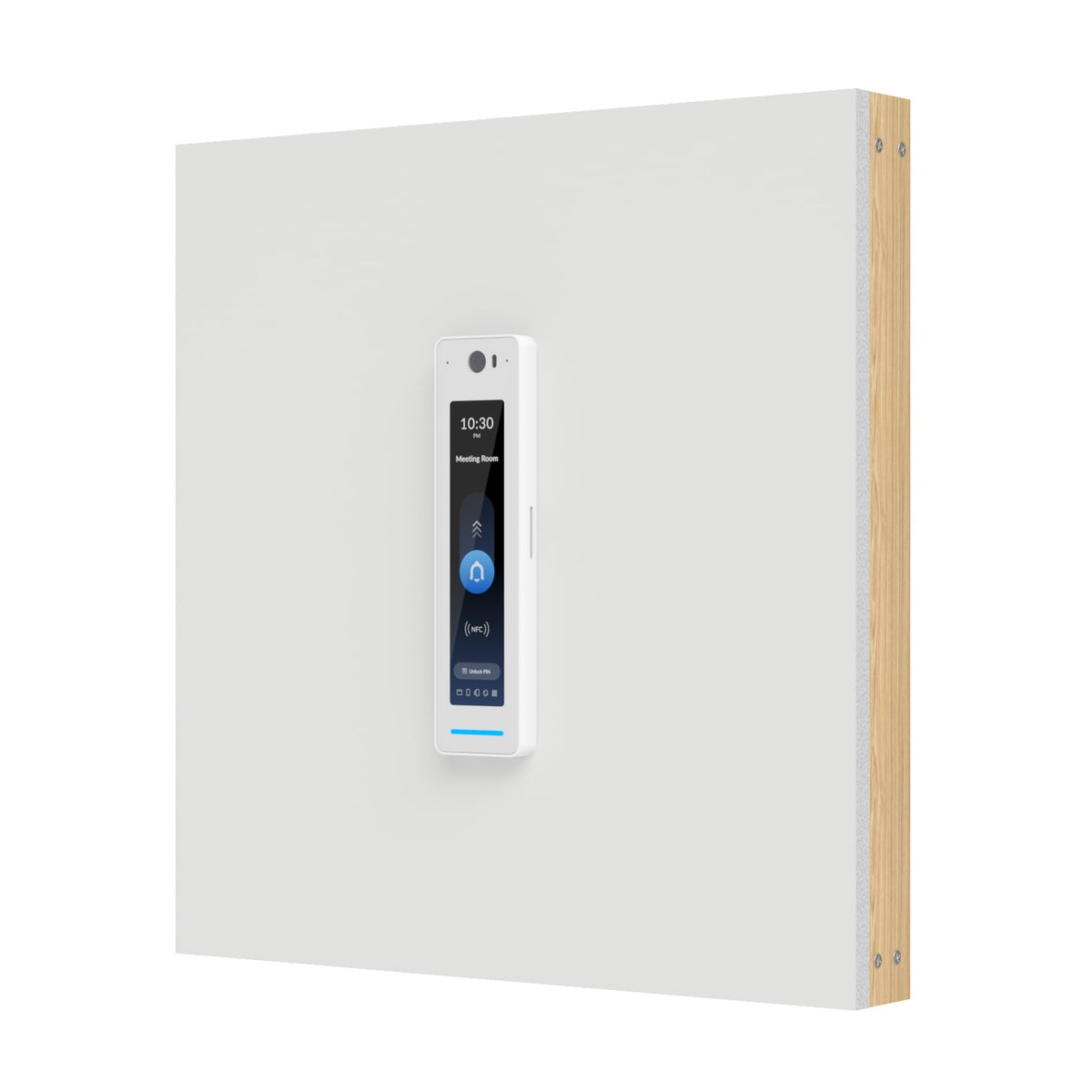

- Mounting: Wall, gang box mount (included), angle mount and junction box (optional)
- Indoor and Outdoor Use: Yes
- Ambient Operating Temperature (Device): -30 to 45°C (-22 to 113°F)
- Ambient Operating Temperature (Display): -10 to 45°C (14 to 113°F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Networking Interface: One GbE RJ45 port
- Connectivity: BLE 4.2, NFC
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 6W
- Supported Voltage Range: 48V DC
- ESD/EMP Protection: Air ±15kV, contact ±8kV
- Sensors: Proximity sensor
- Display Size: 120 mm (4.7") diagonal
- Touch Screen Technology: Capacitive touch
- Display Luminance: 480 nits (typical)
- Screen Orientation: Portrait
- Resolution: 1280 x 286 px
- Microphone: Yes
- Speaker: One, 1.5W
- LEDs: R/G/B/W/Amber
- Button: One factory reset button
- NFC Frequency: 13.56 MHz
- NFC Read Range: Less than 30 mm (1.18")
- NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic, MIFARE DESFIRE, Sony FeliCa (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Management Application: Access
