Description:
This all in one starter kit is designed to manage a single door with one reader, offering a simple way to set up UniFi Access. It supports seamless installation and Apple Touch Pass, providing a modern and secure access control experience. The kit includes ten free 1 year Touch Passes to help get access control up and running quickly.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:
- Includes one Door Hub Mini
- Includes one G3 Reader
- Includes two Pocket Keyfobs
- Supports seamless setup and Apple Touch Pass
- Includes 10 free 1-year Touch Passes
Specifications:

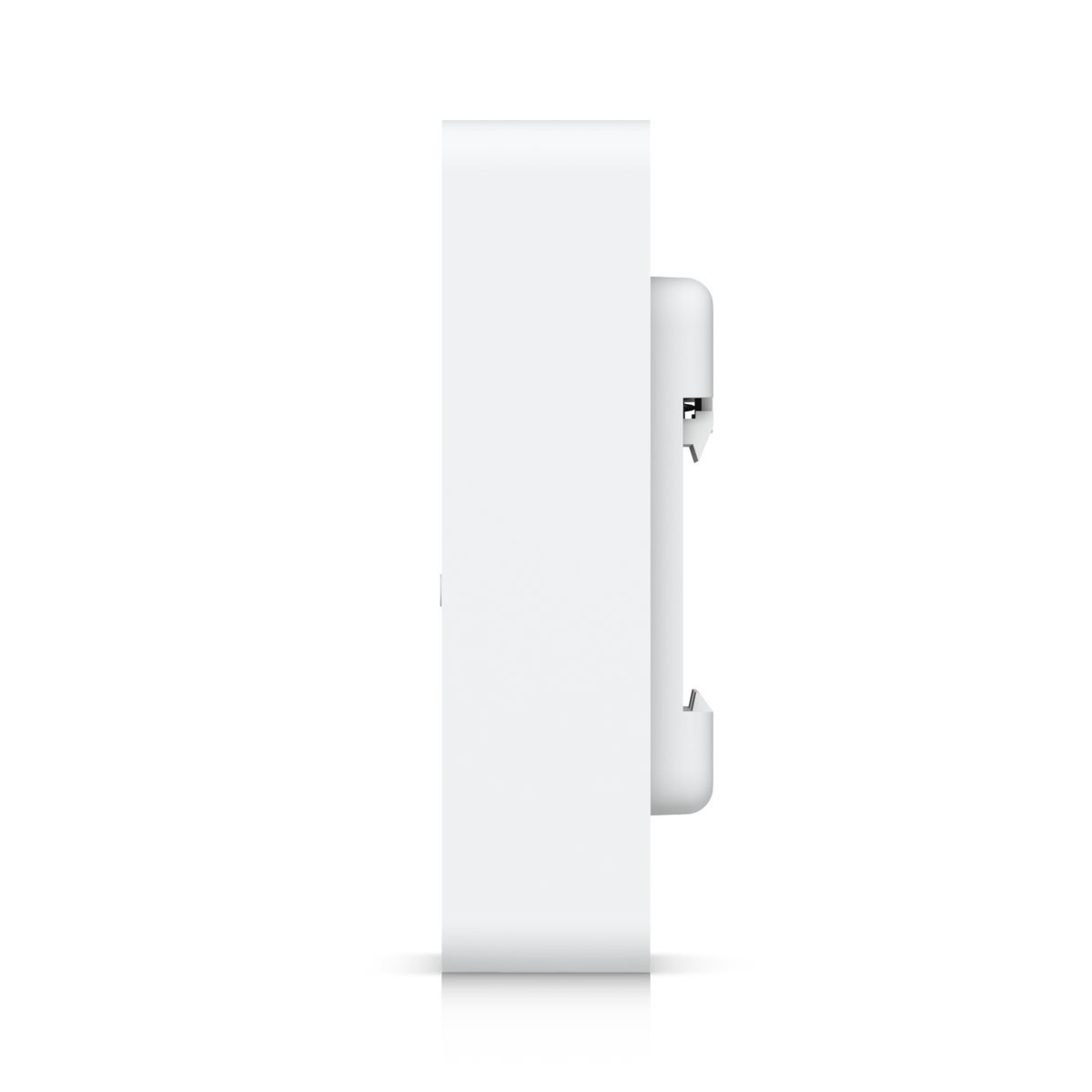

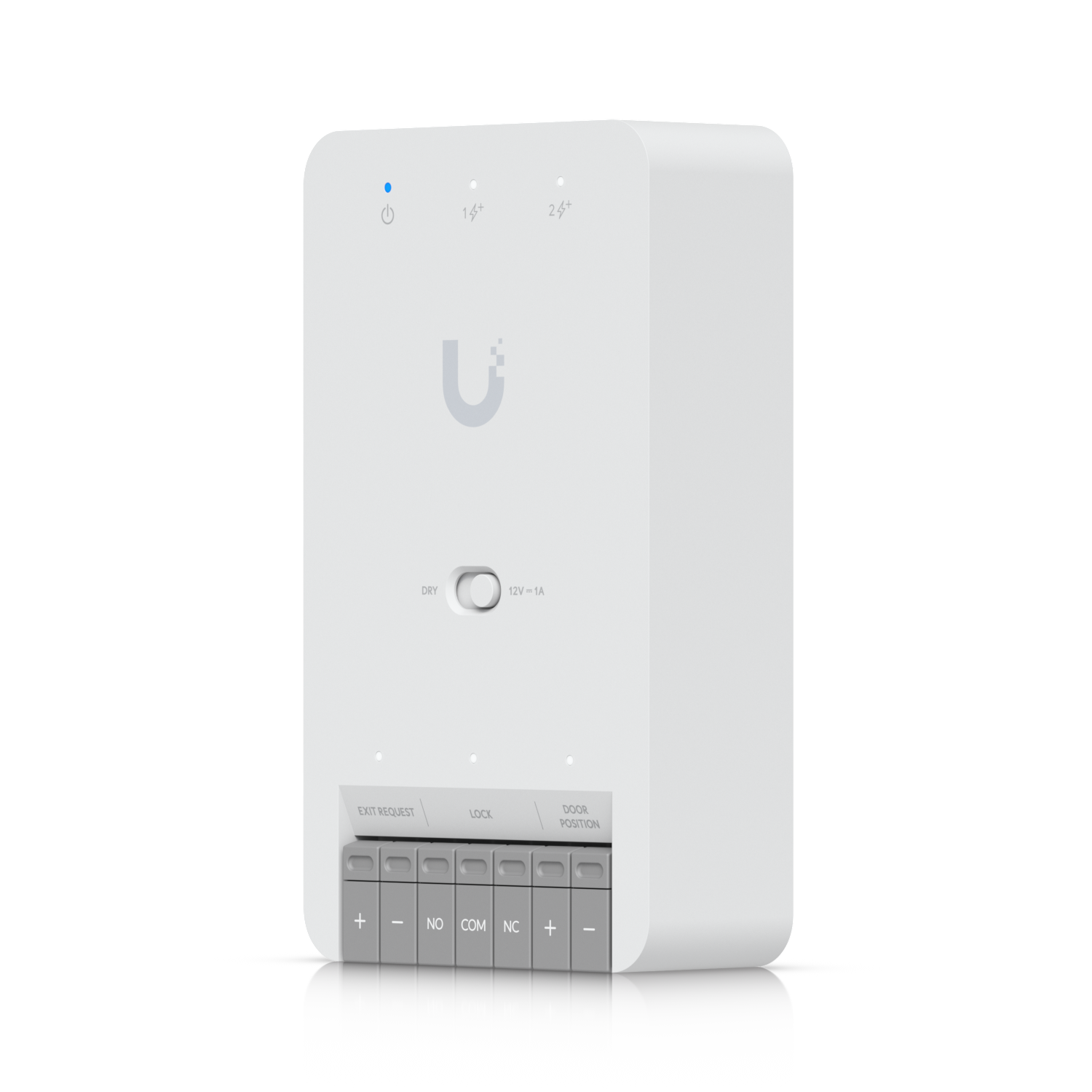

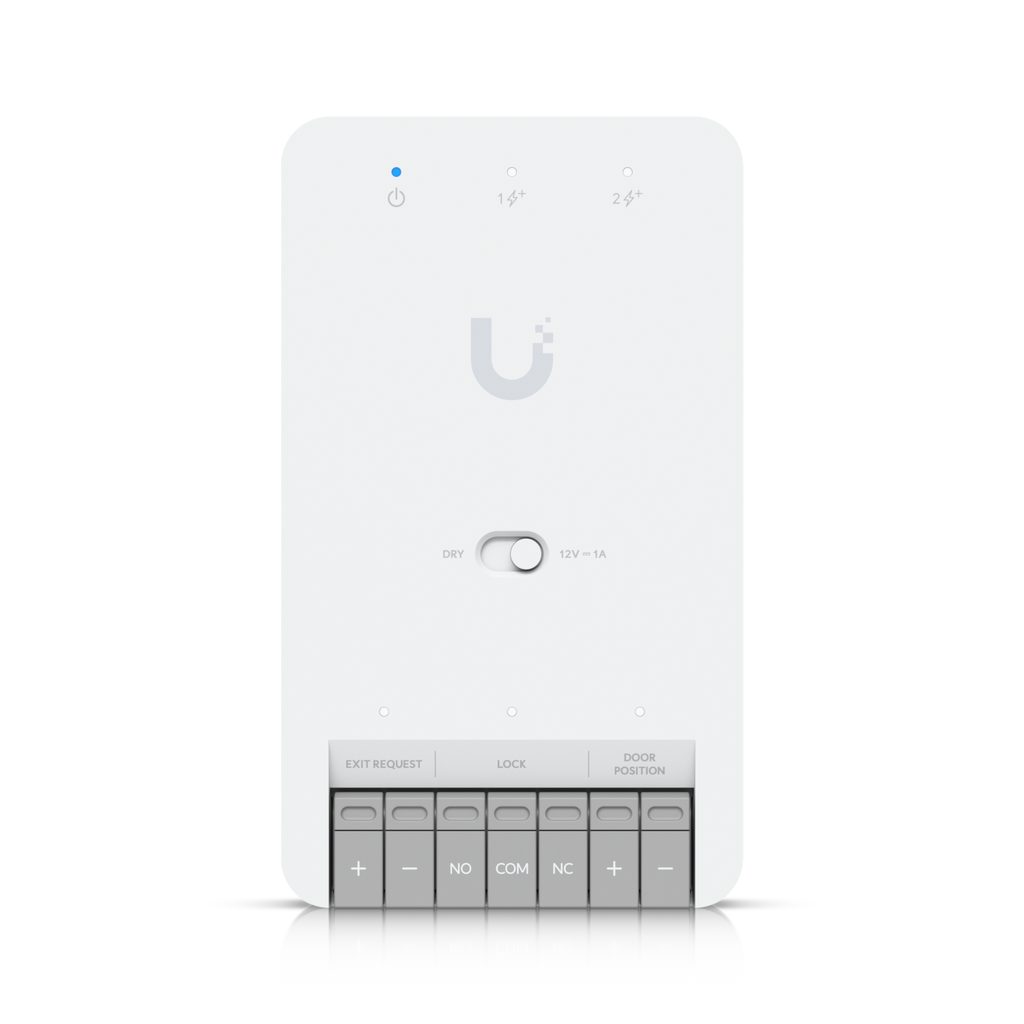

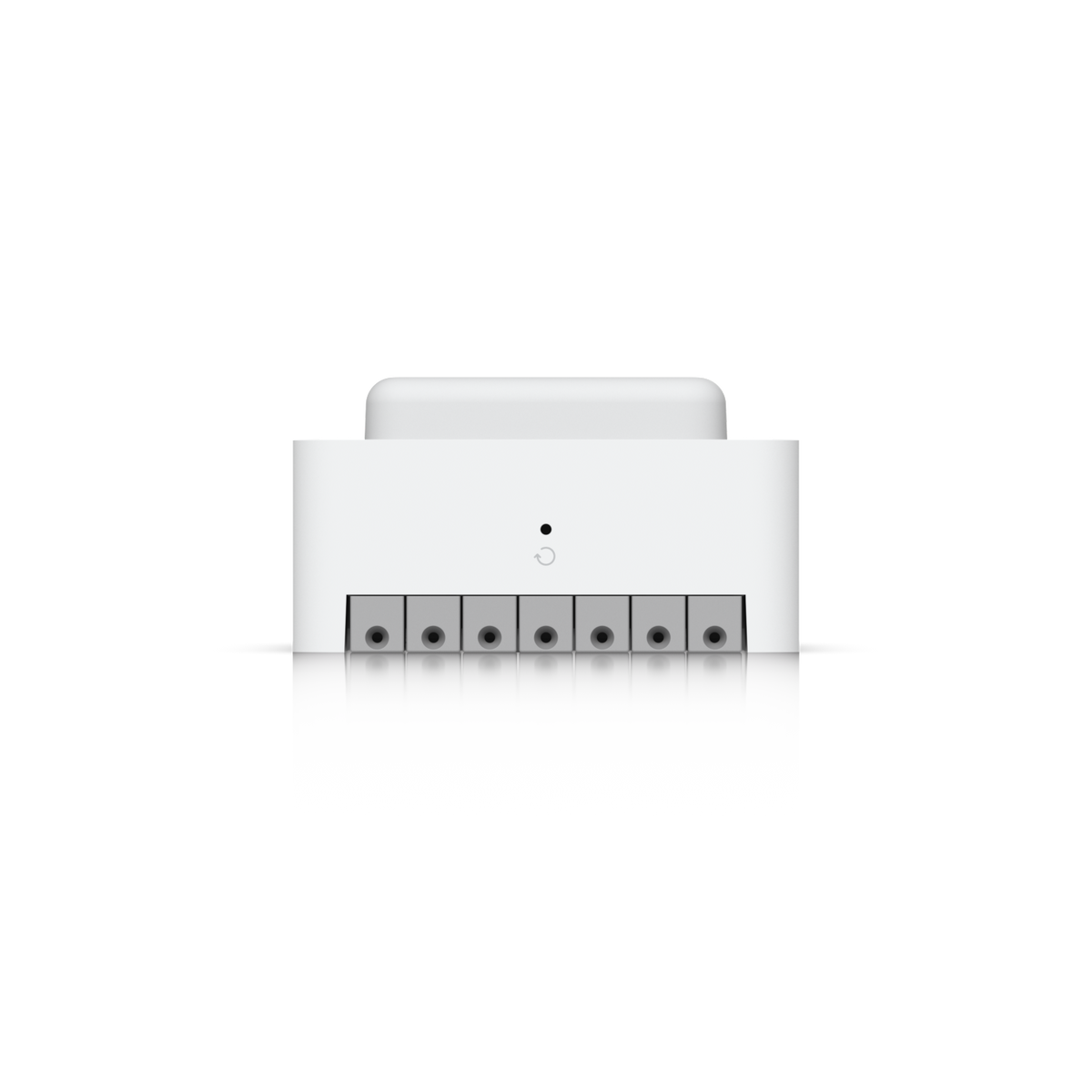

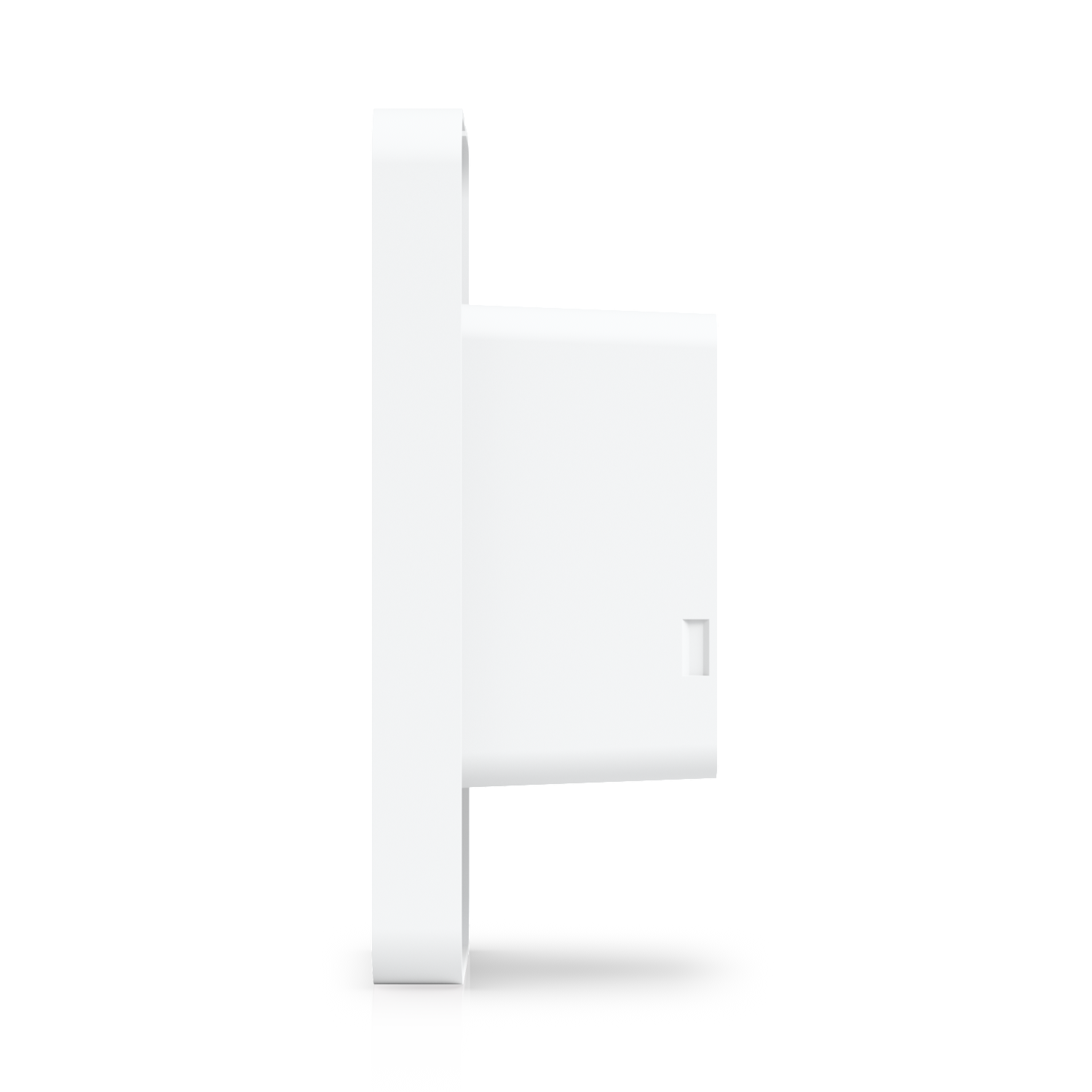

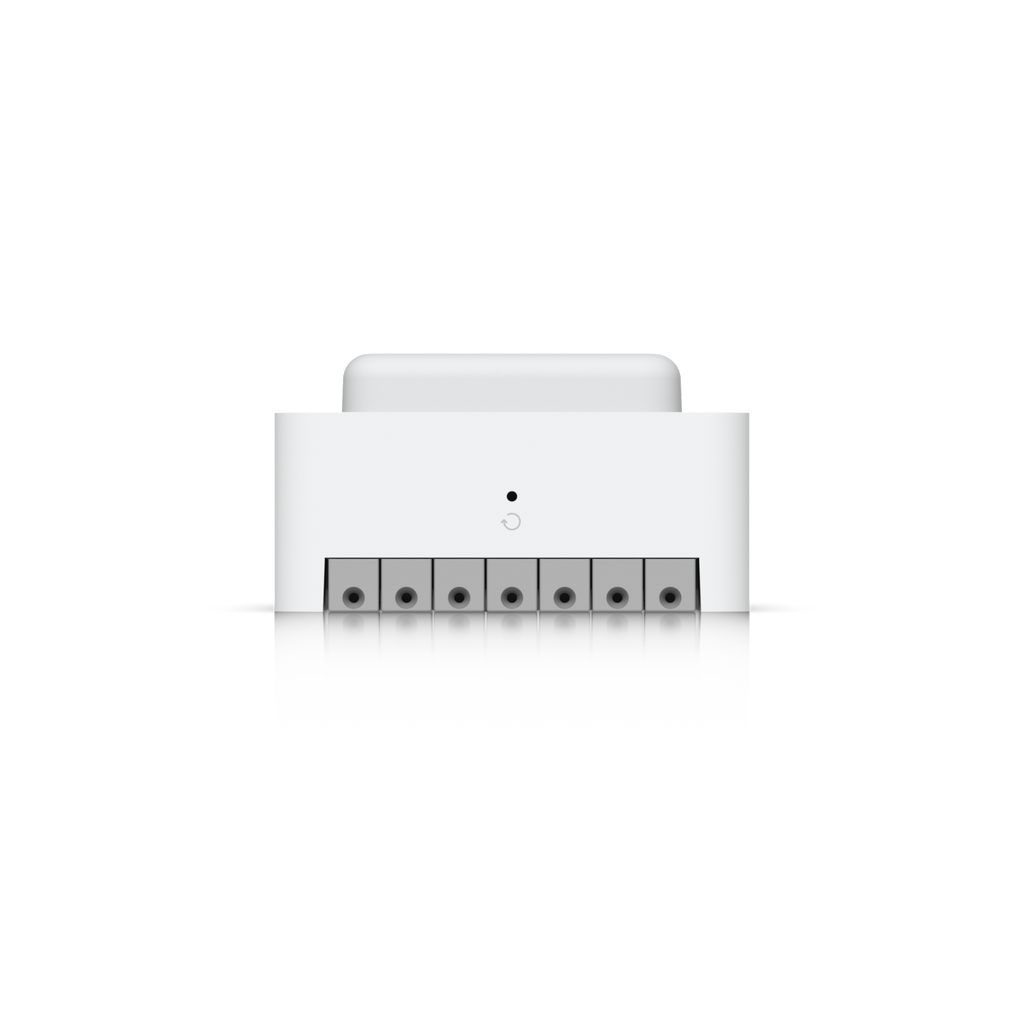

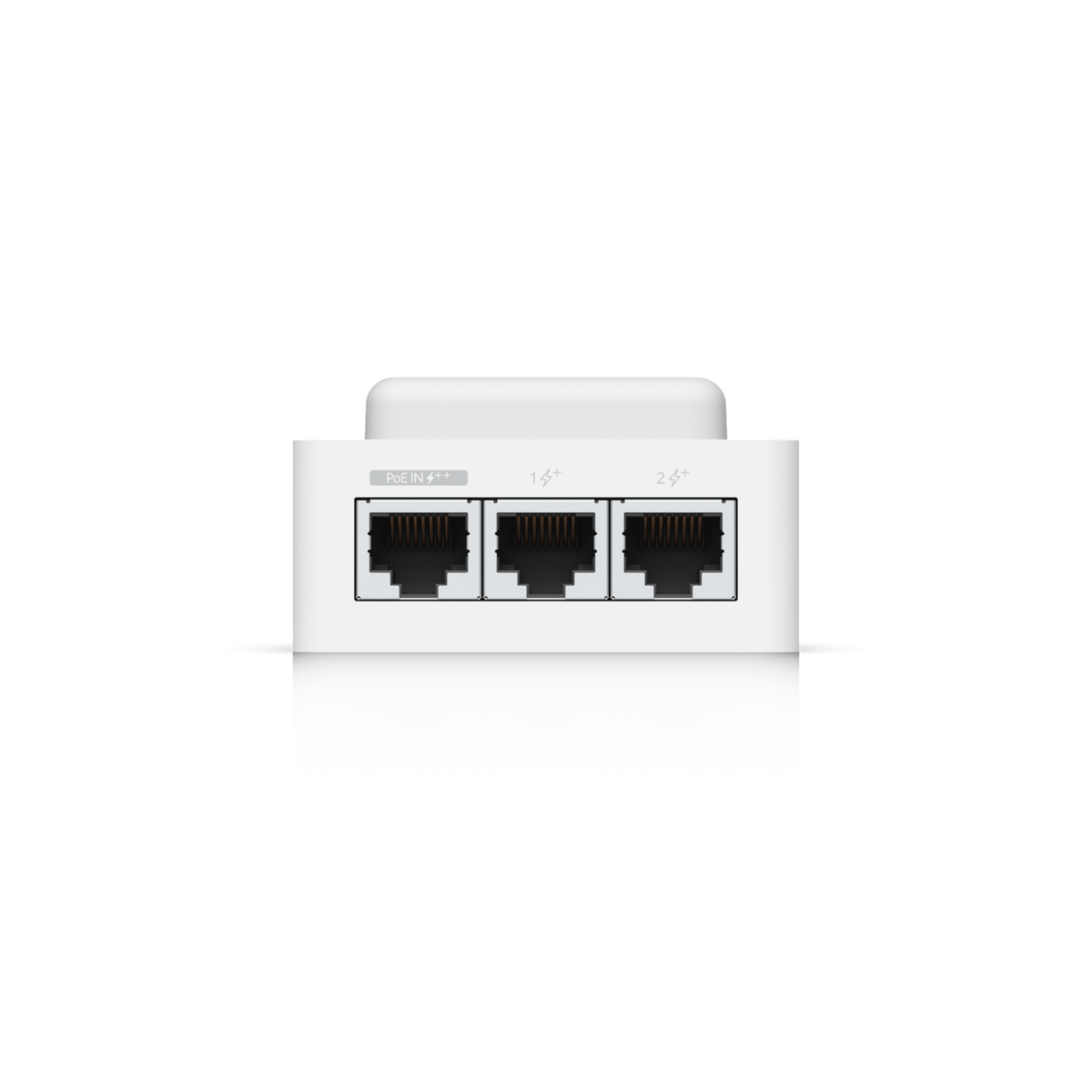

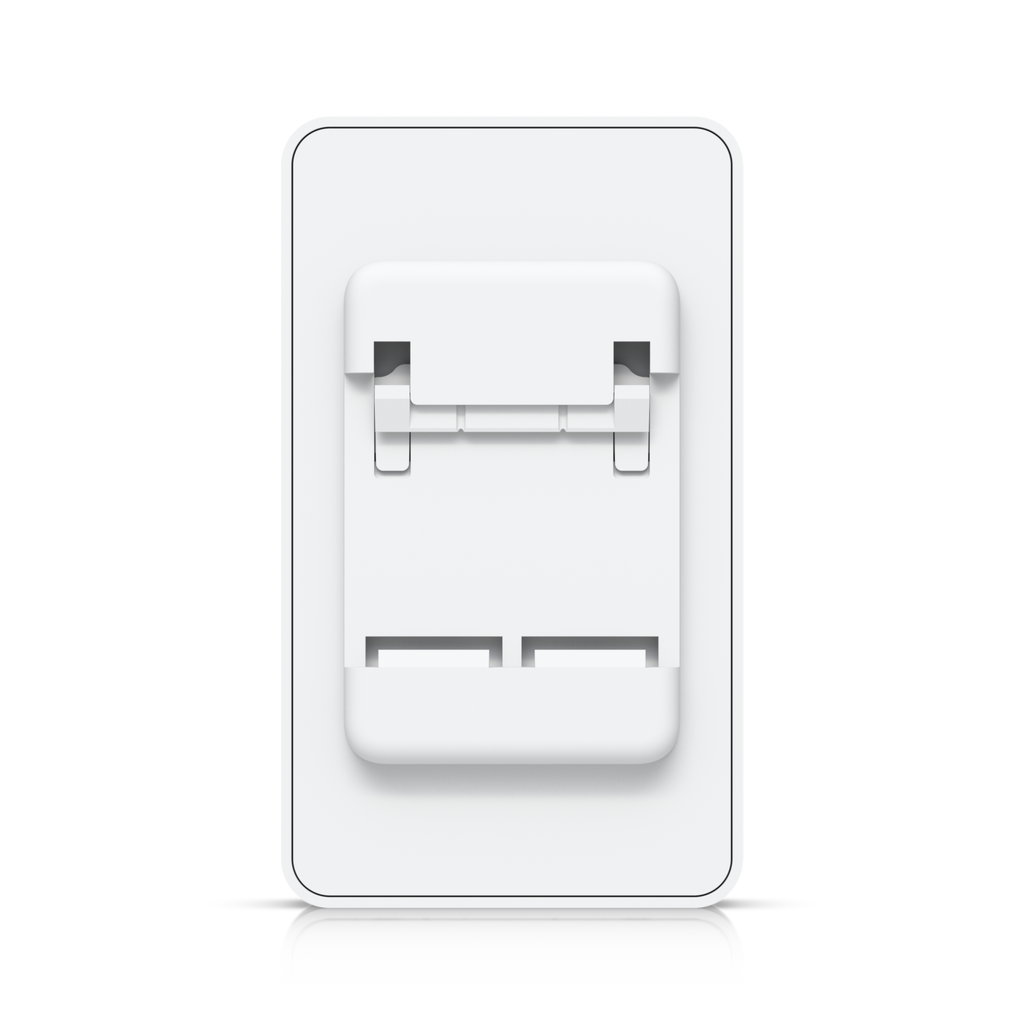

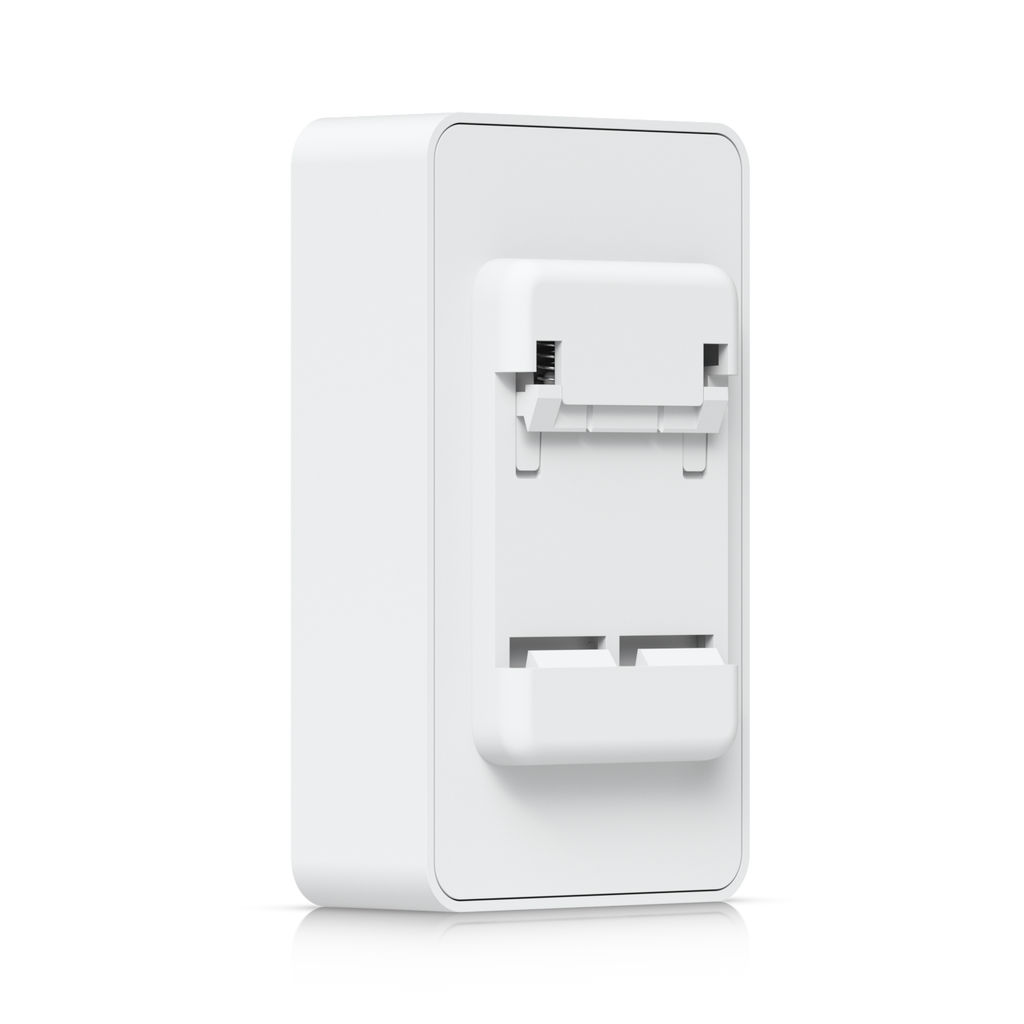

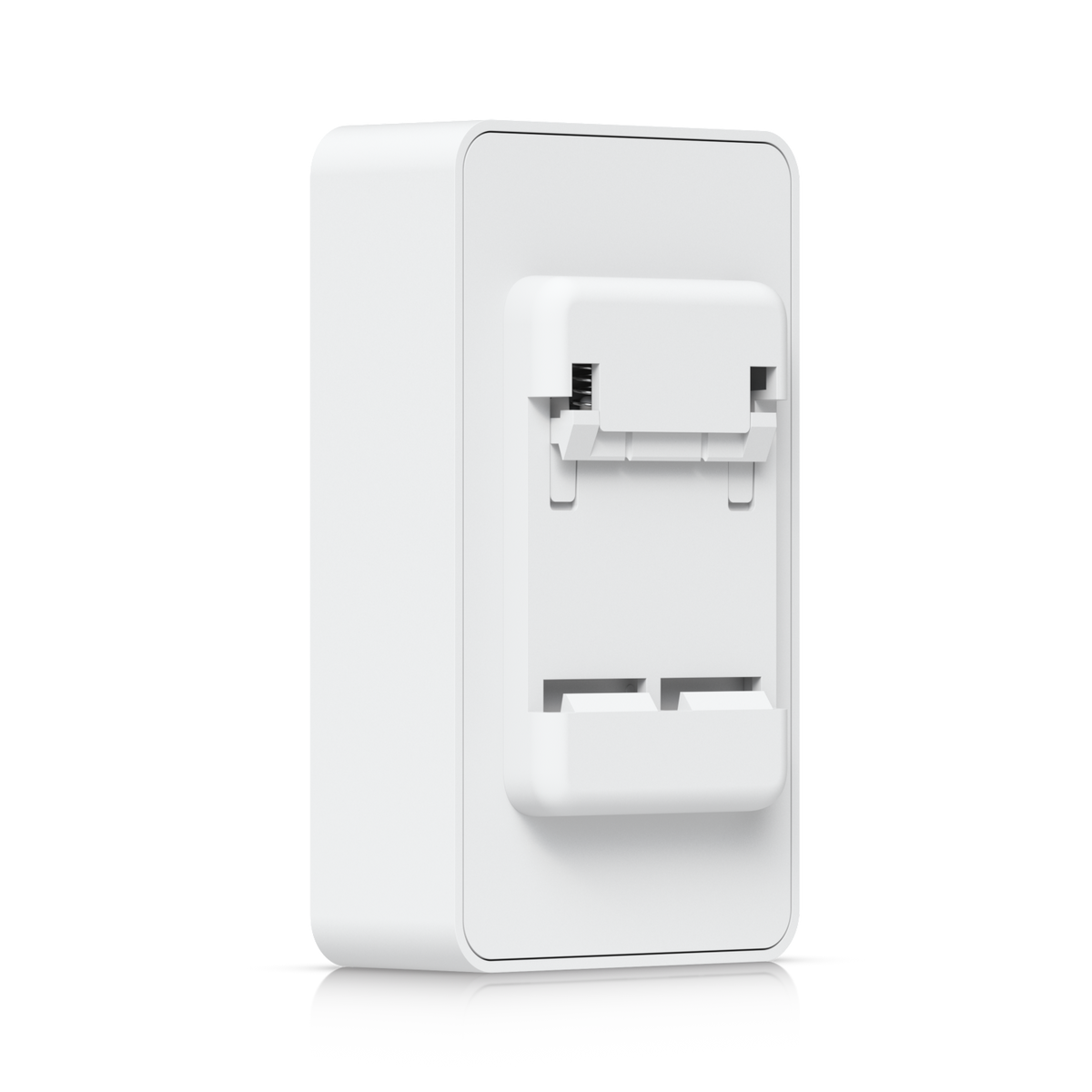

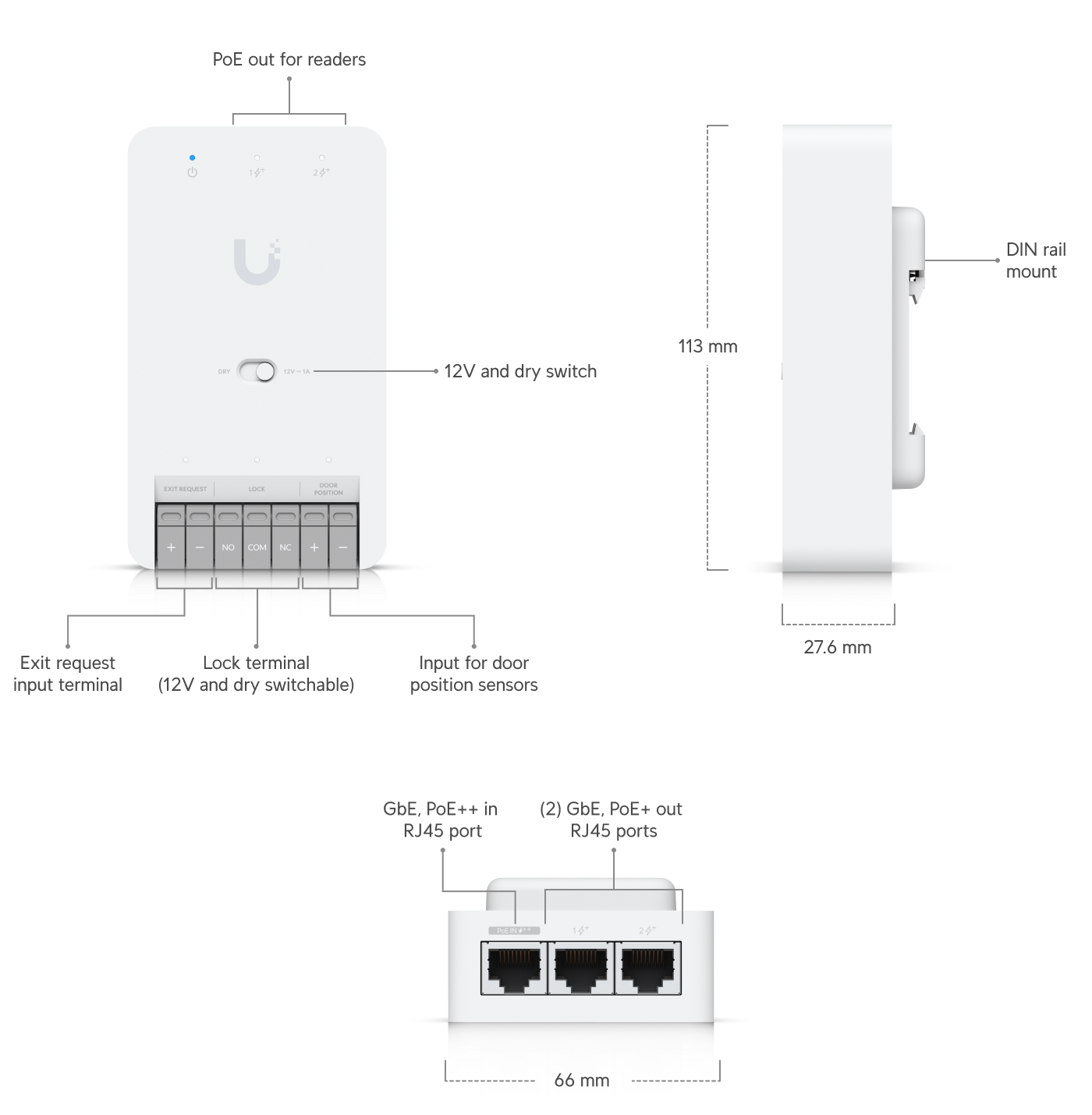

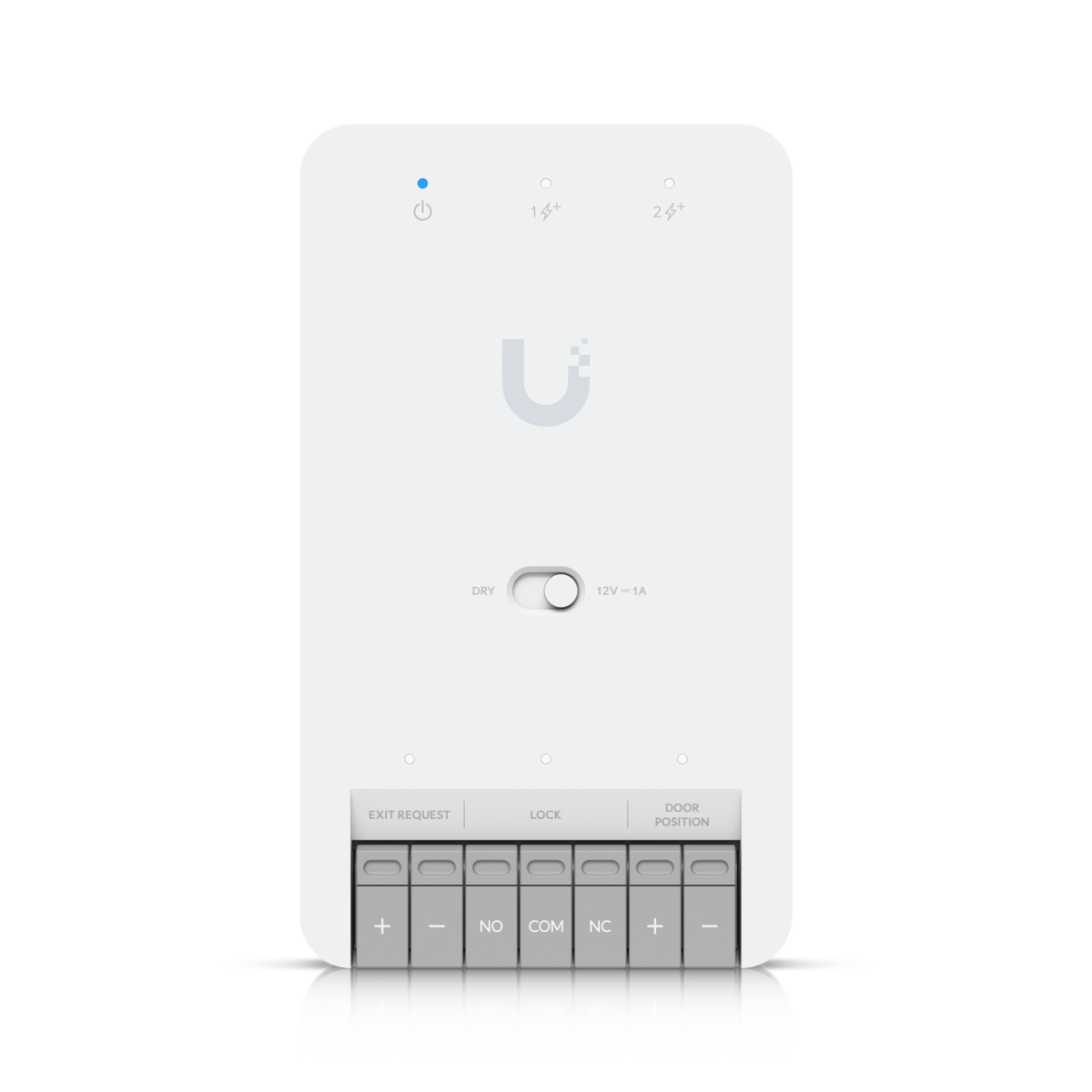

Door Hub Mini:
- Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
- Supported Doors: 1
- Maximum User Count: 3,000
- Input Terminals: One door exit request, one door position
- Power Method: PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Weight: 190 g (6.7 oz)
- Enclosure Material: Polycarbonate, metal

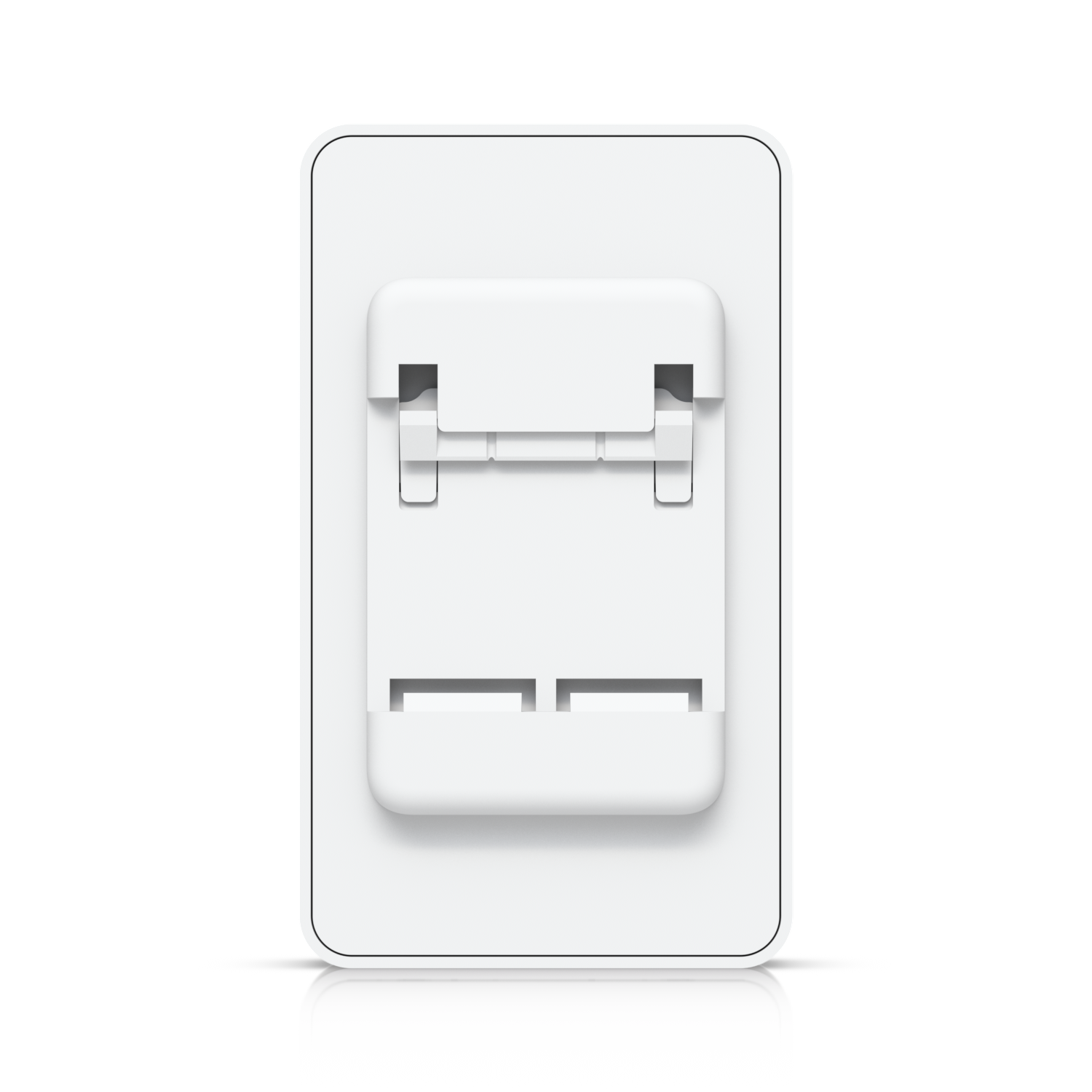

- Mounting: DIN-rail (included)

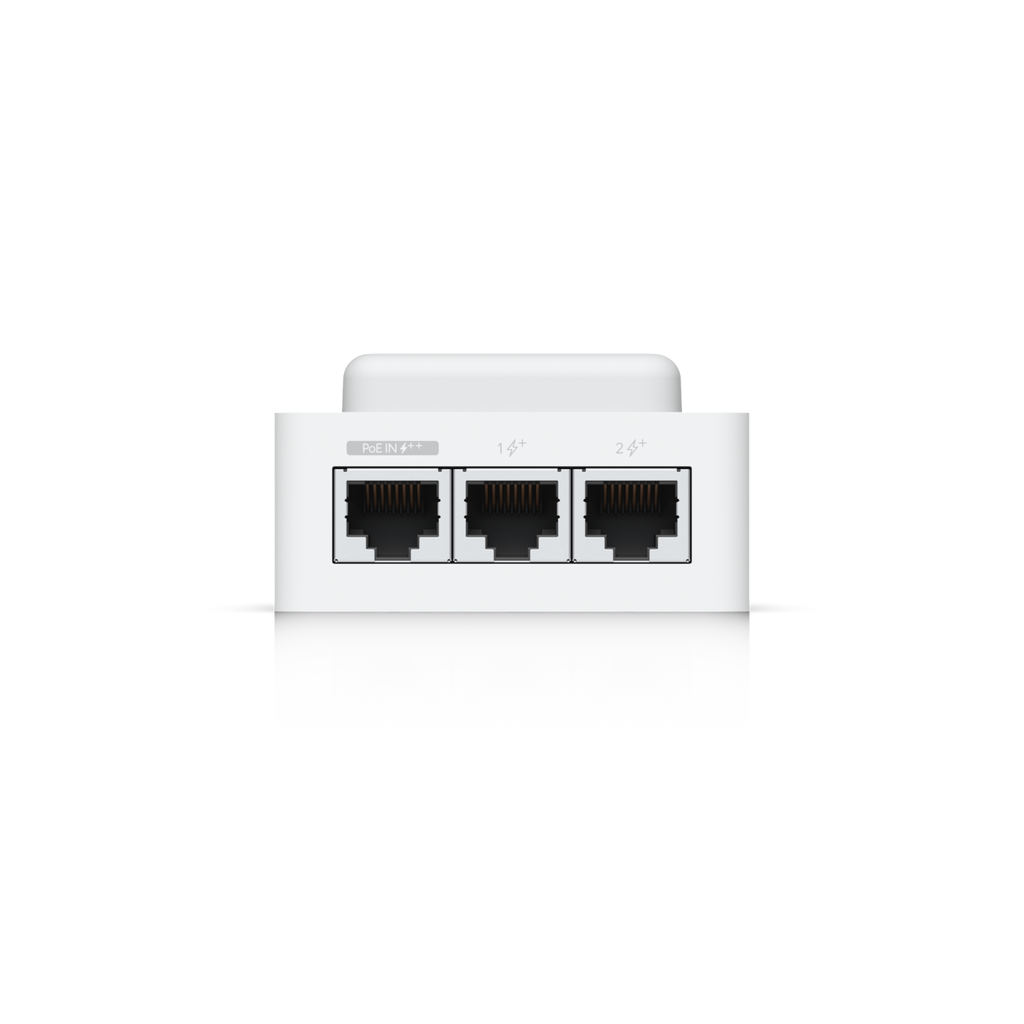

- Networking Interface: Three GbE RJ45 ports
- PoE Interface: One PoE++ input, 50V DC, 1A; two PoE outputs, 50V DC, 30W per port (max 45W aggregated)
- Maximum Power Consumption: 19W without PoE output, 50W with PoE output
- Digital Input: Request to exit, door position sensor
- Dry Output Relay: 30V DC, 1A
- Wet Output Relay: 12V DC, 1A
- LEDs: Bicolour (B/W)
- Button: One factory reset, one dry/wet switch
- PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended, matched to the transmission speed required at the installation site. Minimum conductor gauge is 26 AWG (0.13 mm²) for patch cords and 24 AWG (0.21 mm²) for horizontal or riser cable
- UL 294 Level: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
- UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
- CAN/ULC-60839-11-1 Grade: Grade assignment I
- Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Management Application: UniFi Access

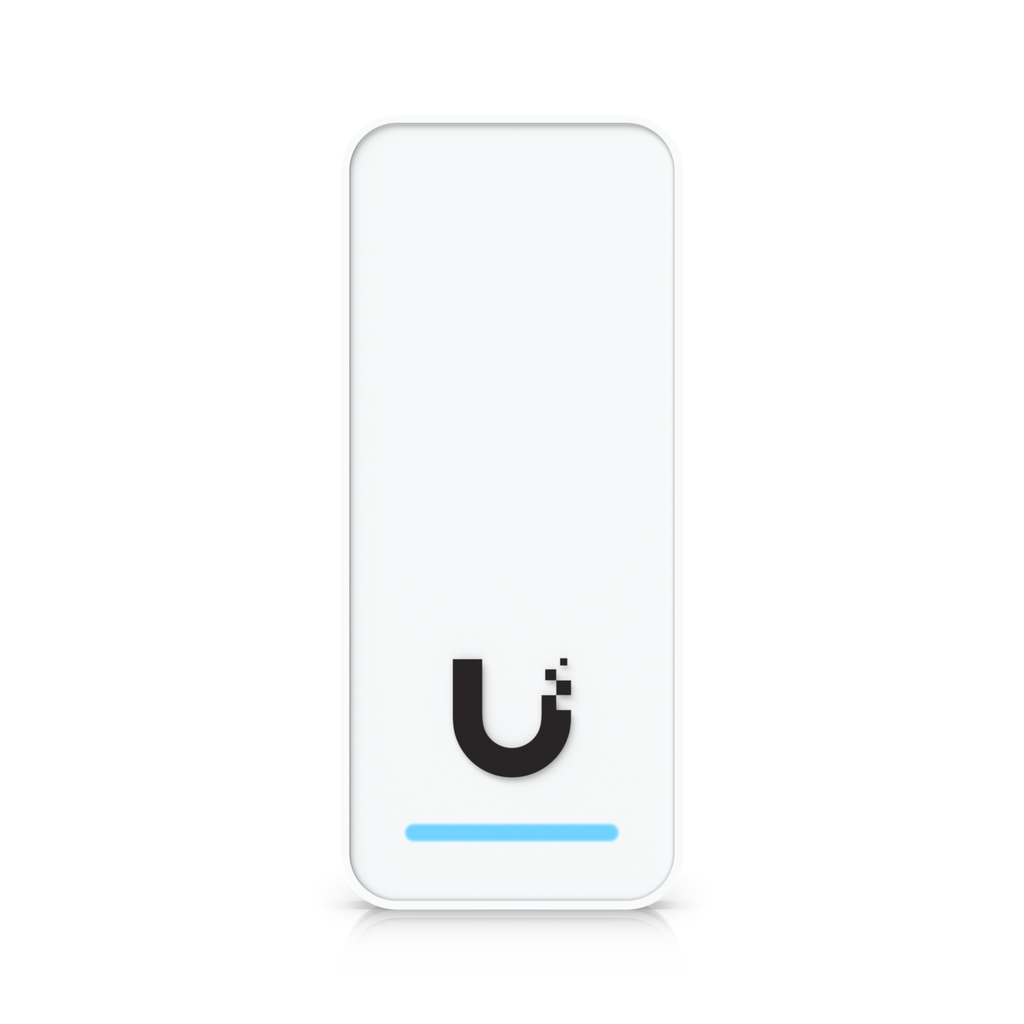

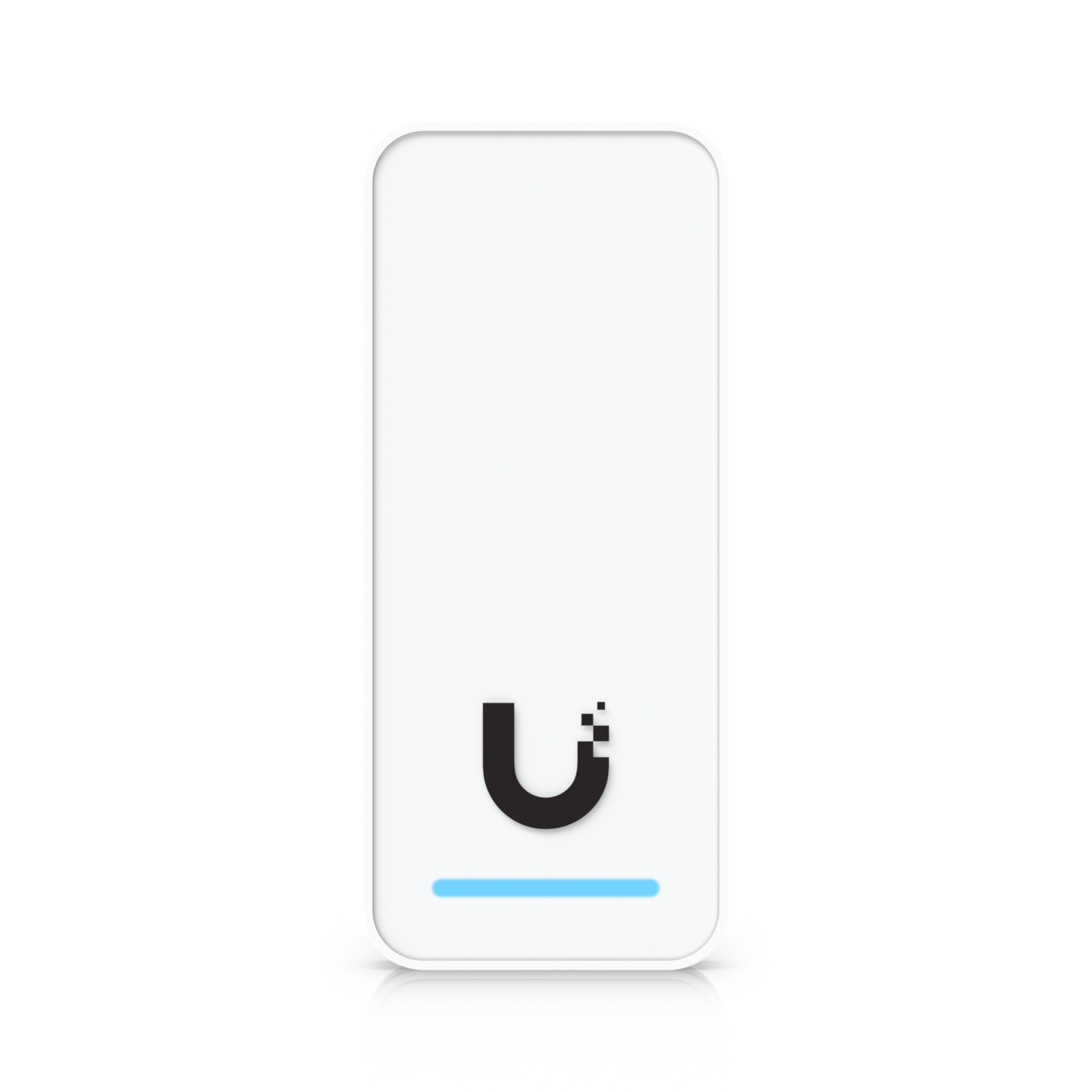

G3 Reader:
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- NFC Card and Keyfob Access: Yes
- Apple/Google Wallet: Yes
- Mobile Unlock: Yes
- Handwave Request to Exit: Yes
- Weatherproofing: IP55
- Weight: 82 g (2.9 oz)
- Enclosure Material: Polycarbonate, glass
- Mount Material: Aluminum alloy
- Mounting: In-wall, gang box (included), junction box (optional)
- Indoor and Outdoor Use: Yes
- Networking Interface: One 10/100 MbE RJ45 port
- Connectivity: BLE 4.1, NFC
- Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum Power Consumption: 5W
- Supported Voltage Range: 48V DC
- ESD/EMP Protection: Air ± 15kV, contact ± 8kV
- Sensors: Proximity sensor
- Speaker: One, 0.7W
- LEDs: R/G/B/W
- Button: One factory reset
- NFC Frequency: 13.56 MHz
- NFC Read Range: Less than 30 mm (1.18")
- NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic, MIFARE DESFIRE, Sony FeliCa (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0
- Ambient Operating Temperature: -30 to 45°C (-22 to 113°F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Management Application: UniFi Access

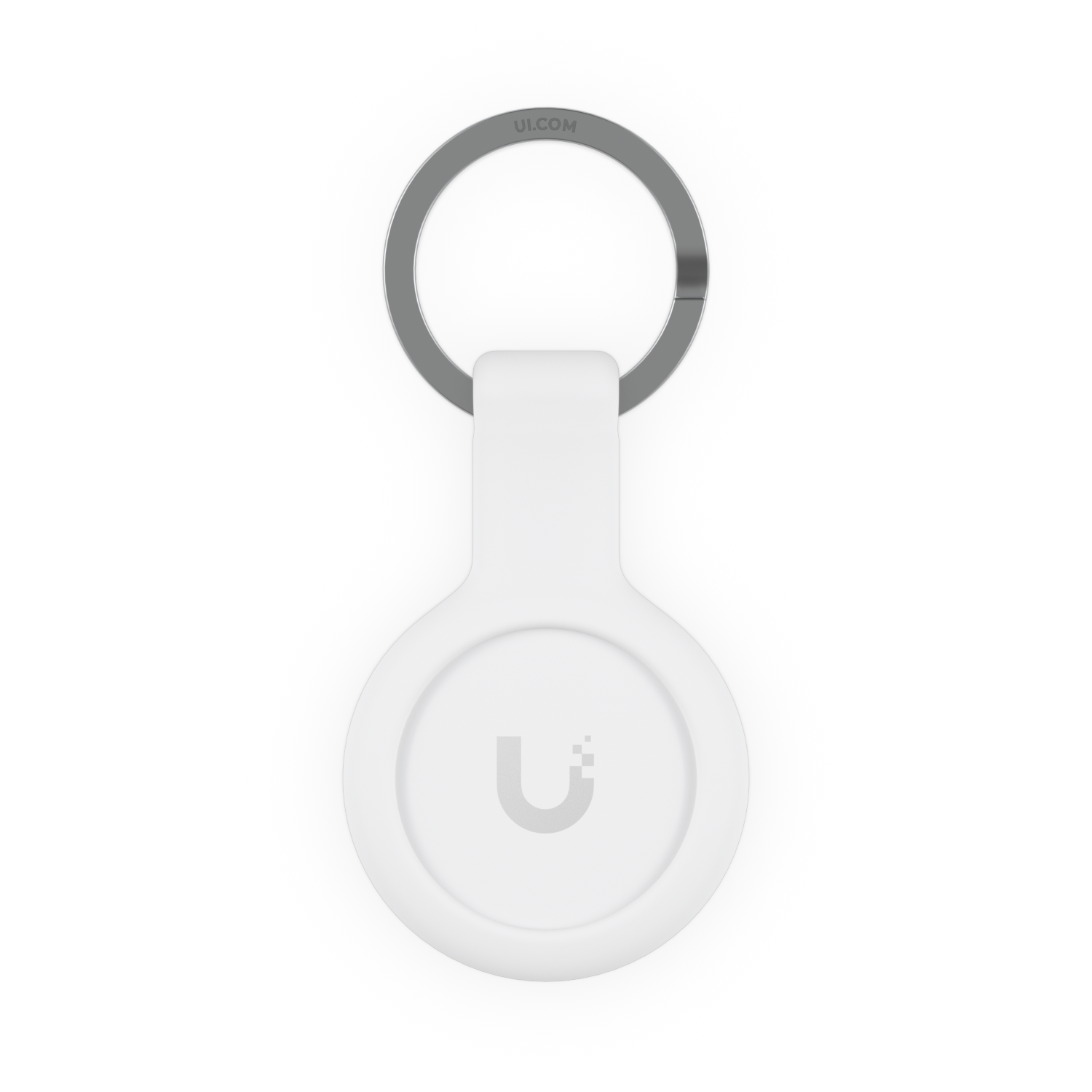

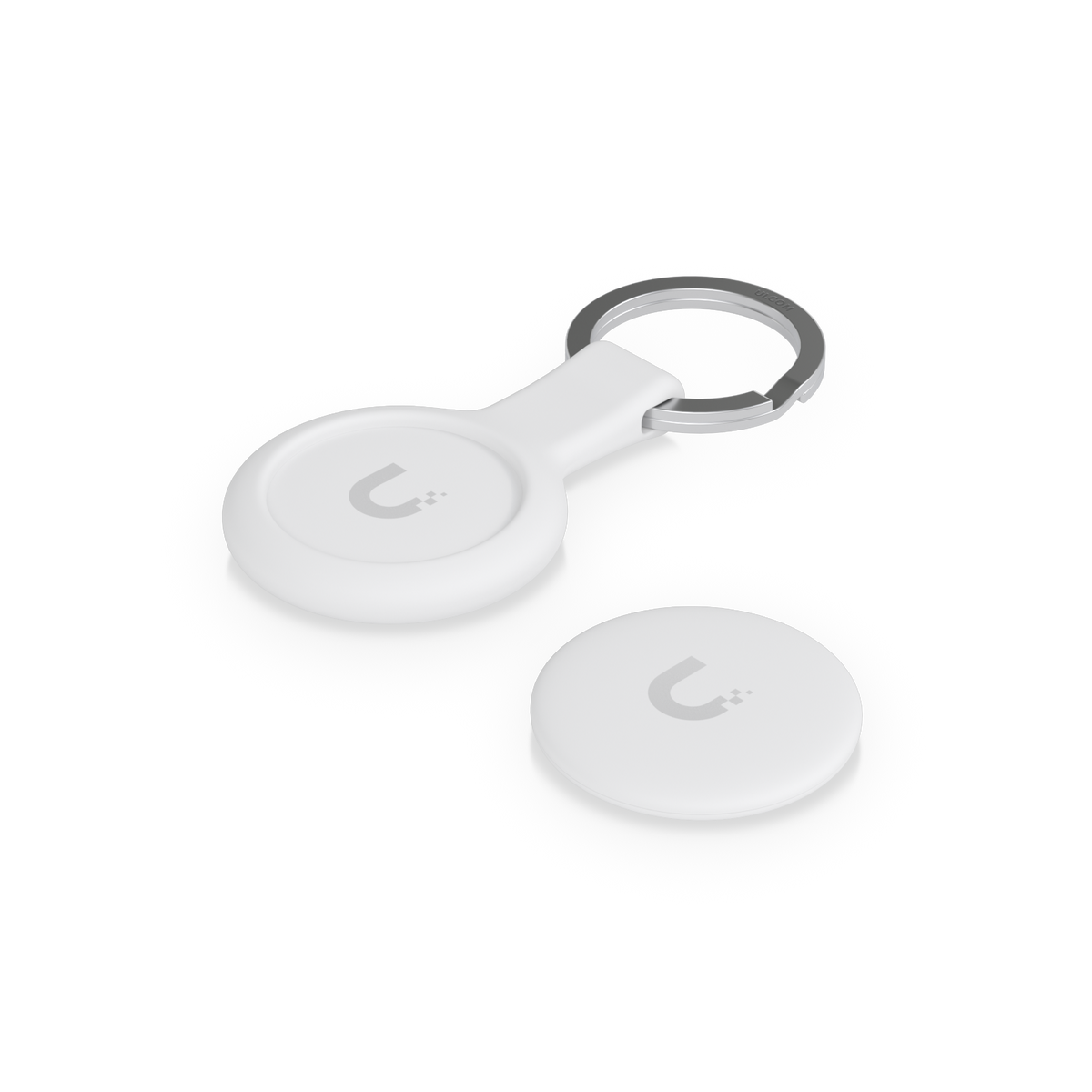

Pocket Keyfob:
- Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
- Weight: 16 g (0.56 oz)
- Enclosure Material: Polycarbonate, stainless steel, silicone rubber
- Weatherproofing: IP54
- Ambient Operating Humidity: 10 to 90% noncondensing
- Ambient Operating Temperature: -10 to 45°C (14 to 113°F)
- NFC Frequency: 13.56 MHz
- NFC Technology: ISO/IEC 14443 Type A, MIFARE DESFire EV3 4K, UniFi Access Proprietary Security Protocol
- NDAA Compliant: Yes
- Certification: CE

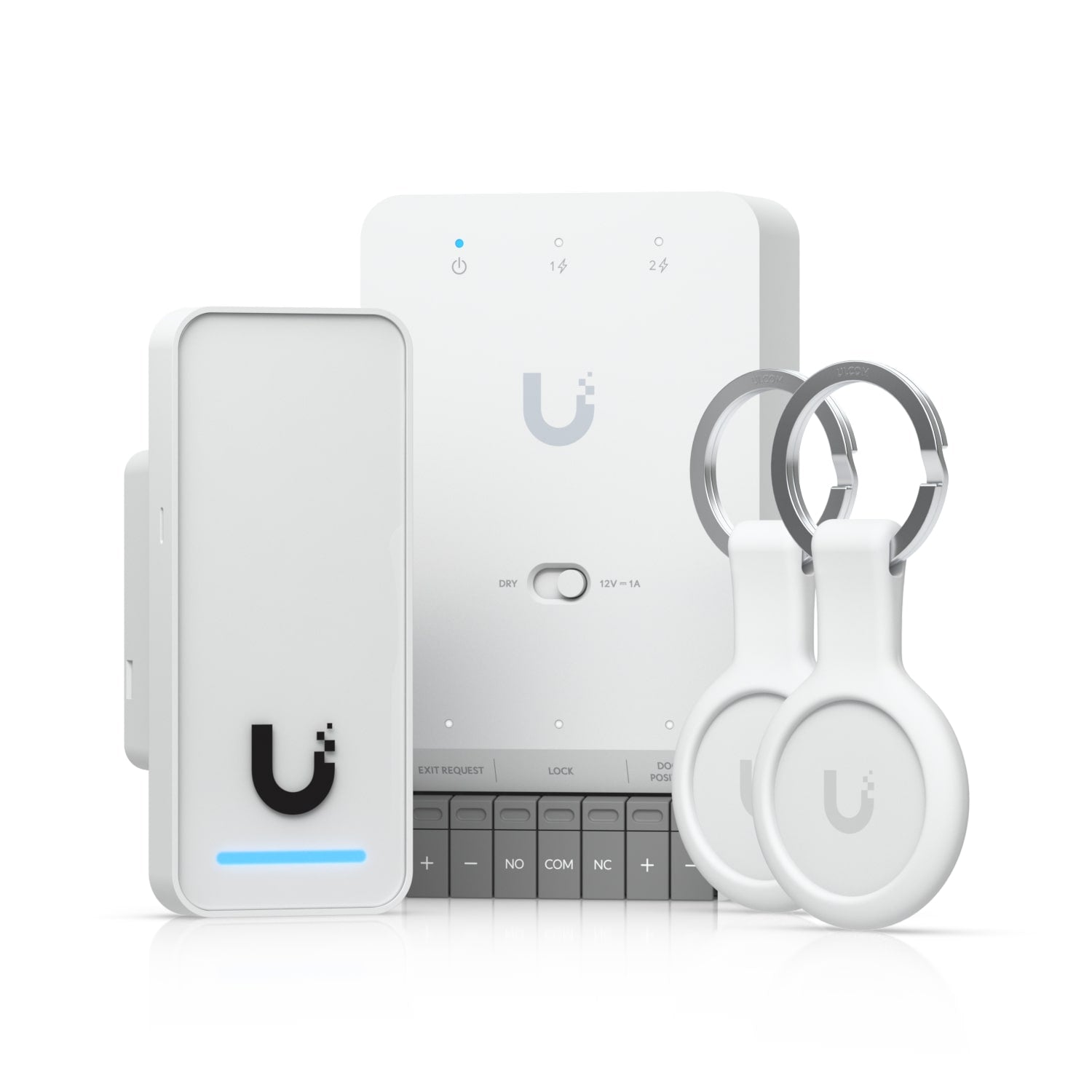

Package Contents
- 1 x Door Hub Mini
- 1 x G3 Reader
- 2 x Pocket Keyfobs
