Description:

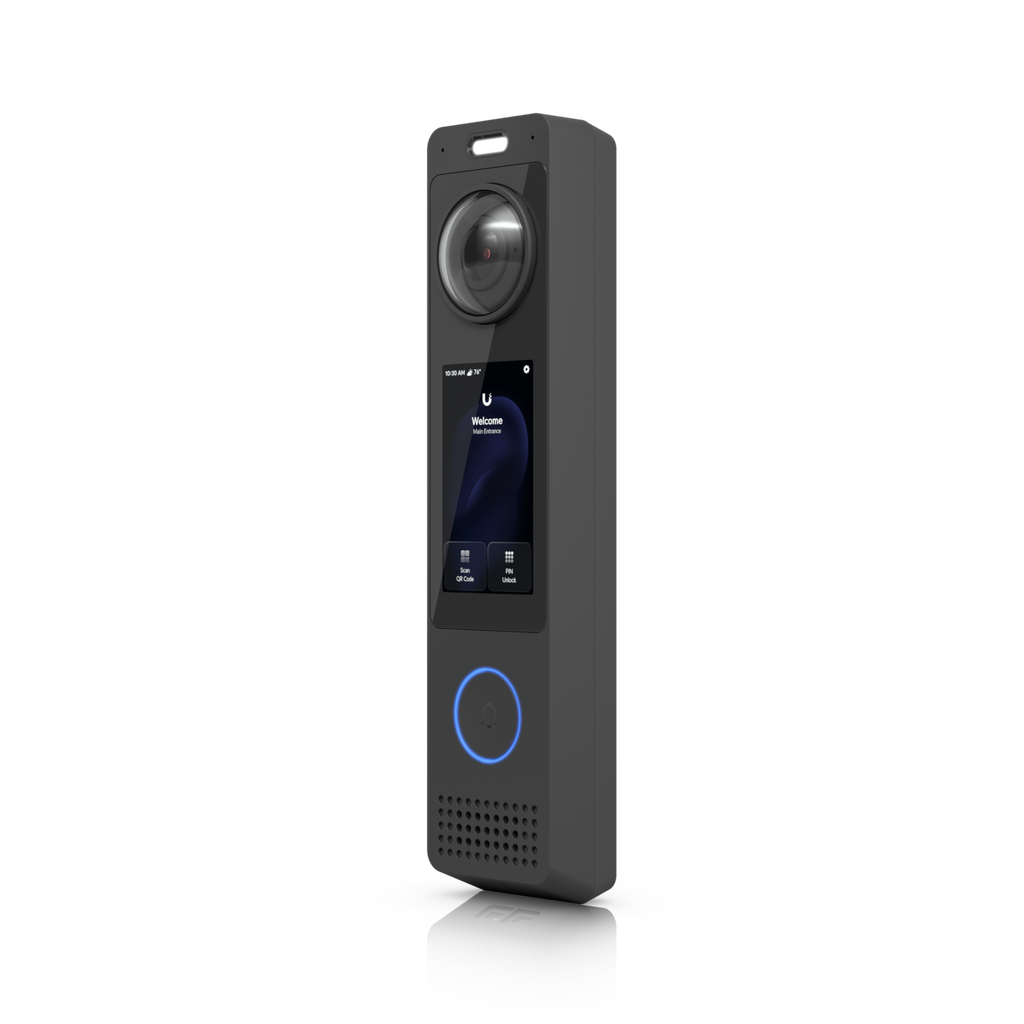

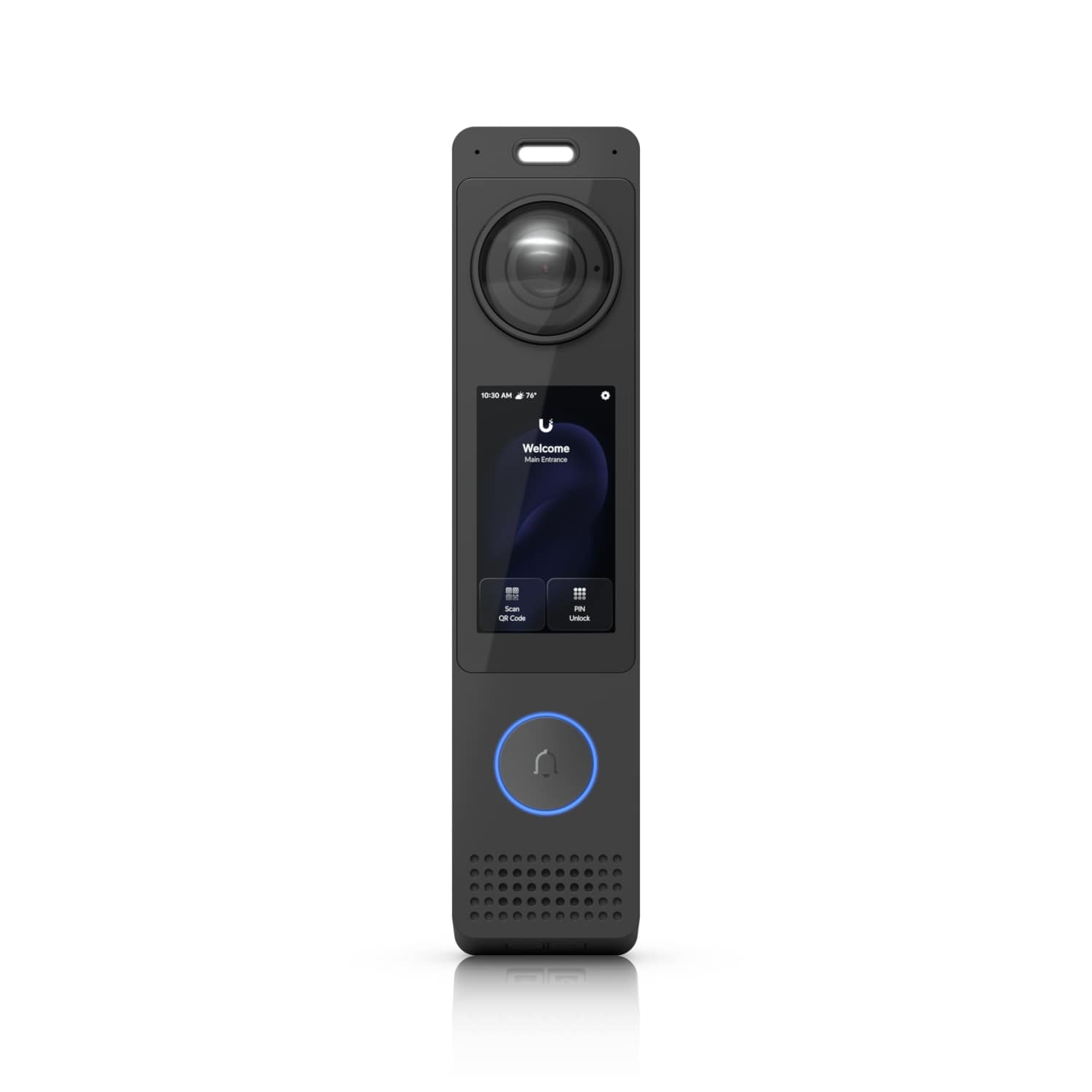

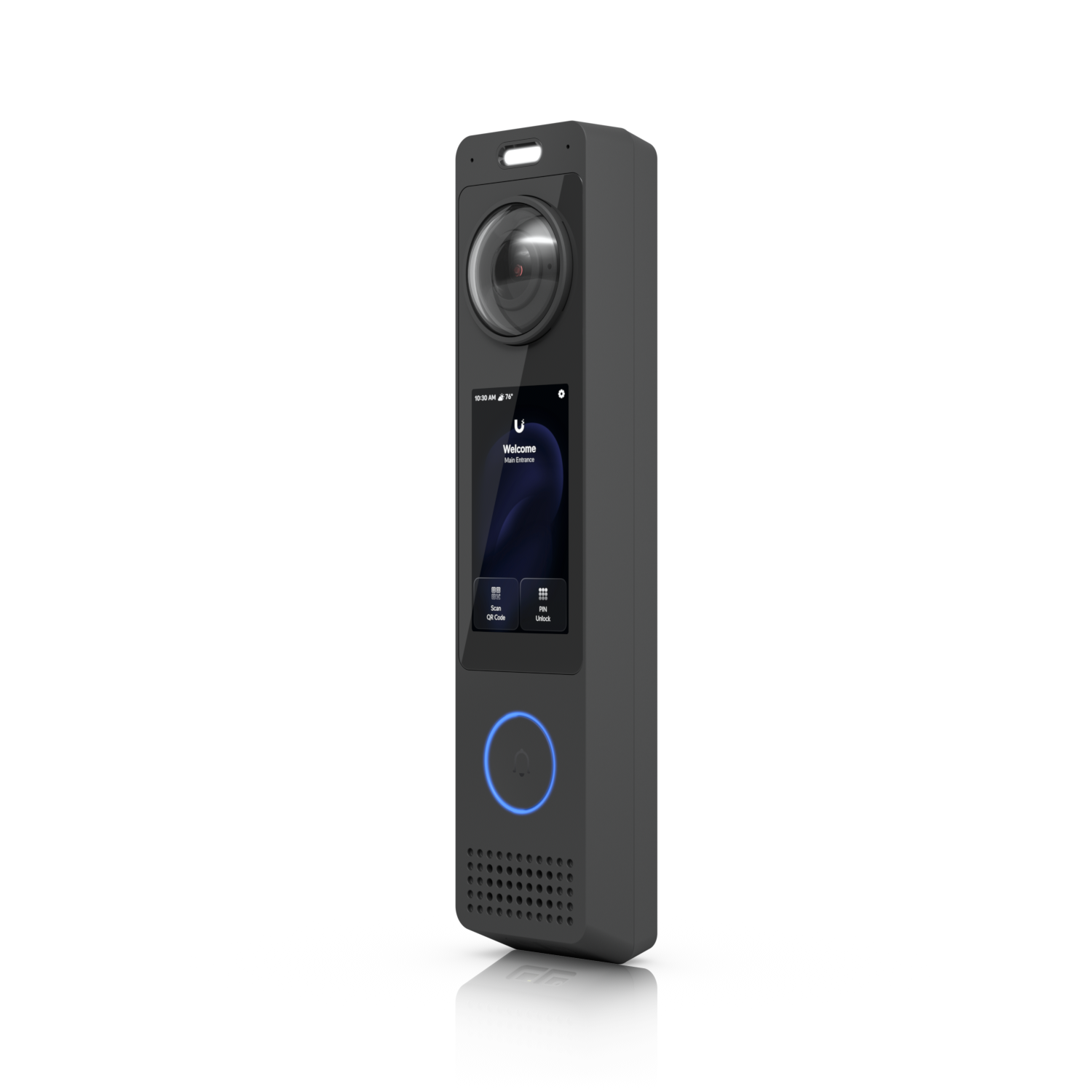

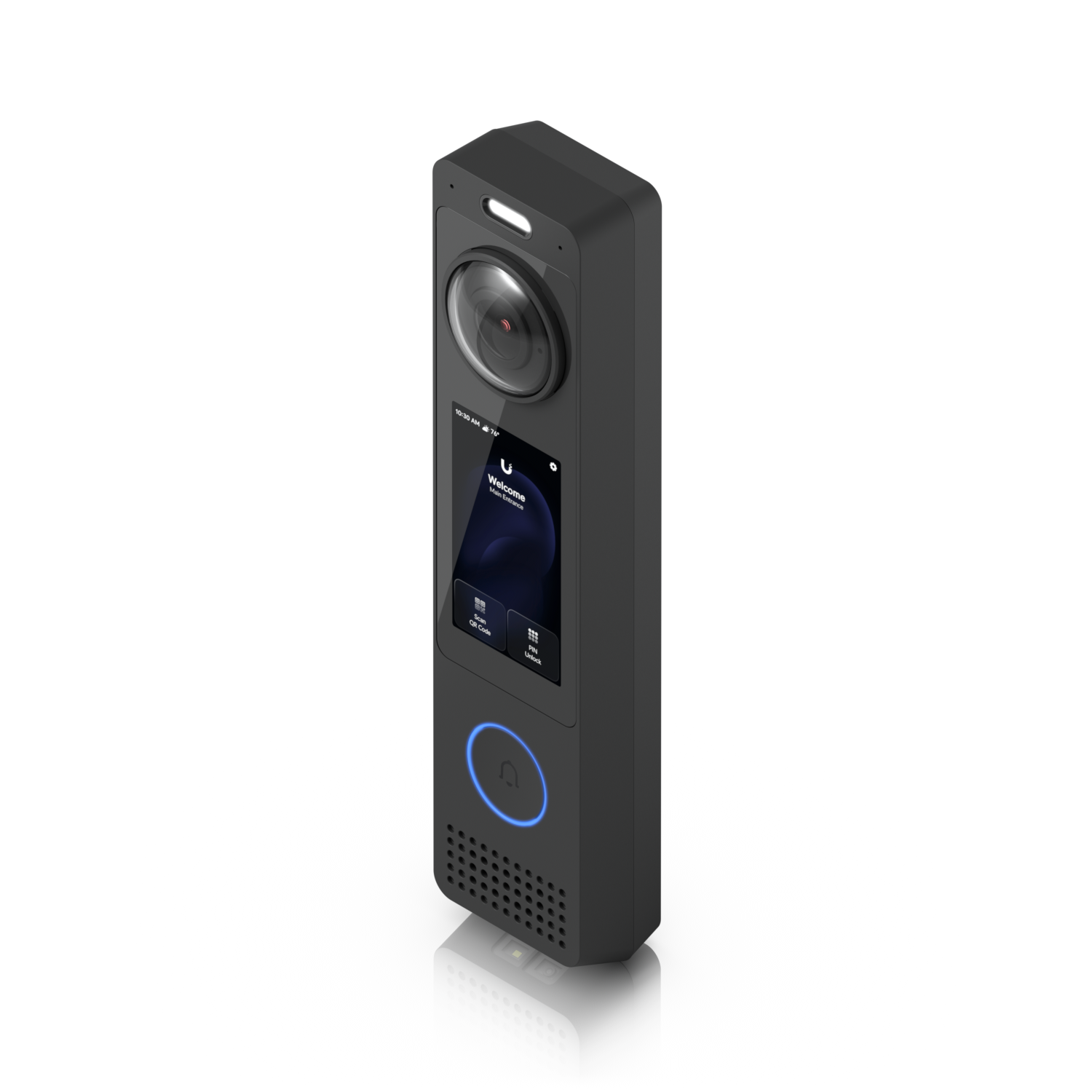

The G6 Pro Entry is a smart video door entry system built for seamless integration with UniFi Protect and UniFi Access. It combines a high resolution 12MP camera, clear two-way audio, and a responsive 3 inch touch display to deliver a complete access control and monitoring solution at the door.
Note: For installation assistance, you can contact us or reach out directly to the brand.
Features:

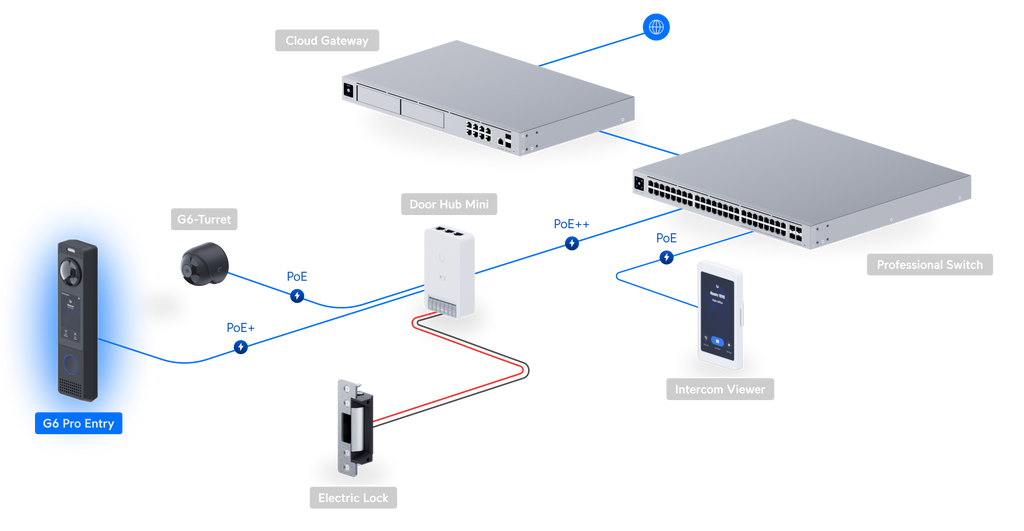

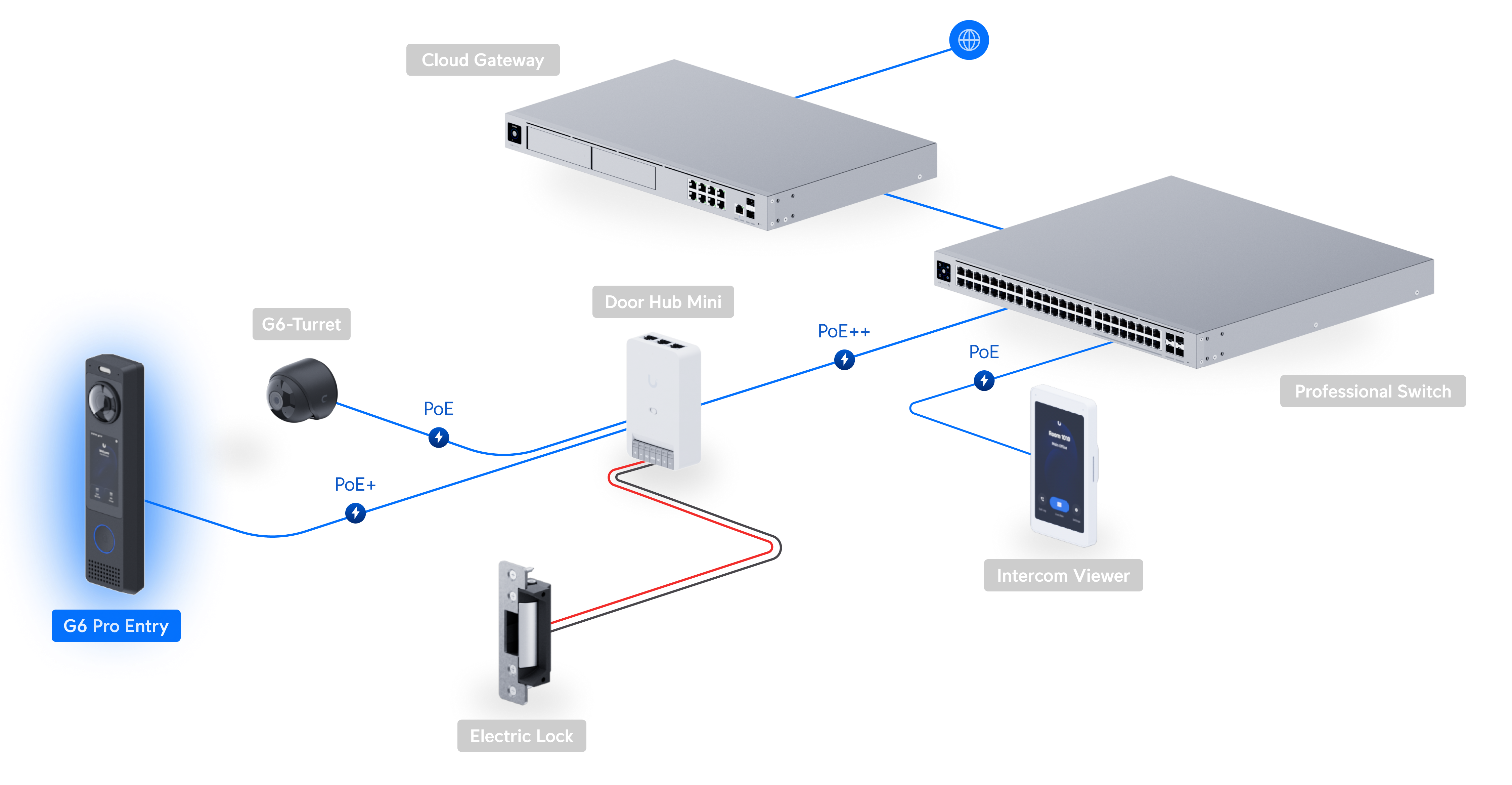

- Native integration with UniFi Protect and UniFi Access applications
- Two-way intercom and doorbell audio communication
- 3 inch capacitive multi touch display with portrait orientation
- Face recognition based unlock
- NFC card and keyfob access support
- PIN code access entry
- QR code unlock functionality
- Apple and Google Wallet support
- Mobile unlock capability
- Built-in smart detections for people, vehicles, and animals
- Built-in IR night vision up to 5 m with IR cut filter for night mode
- IP55 rated weatherproof enclosure for indoor and outdoor use
- IK07 tamper resistant enclosure with IK04 rated LCM
- NDAA compliant device
- Touch Pass supported in all countries except Brazil, China, Vietnam, and Nepal
Specifications:

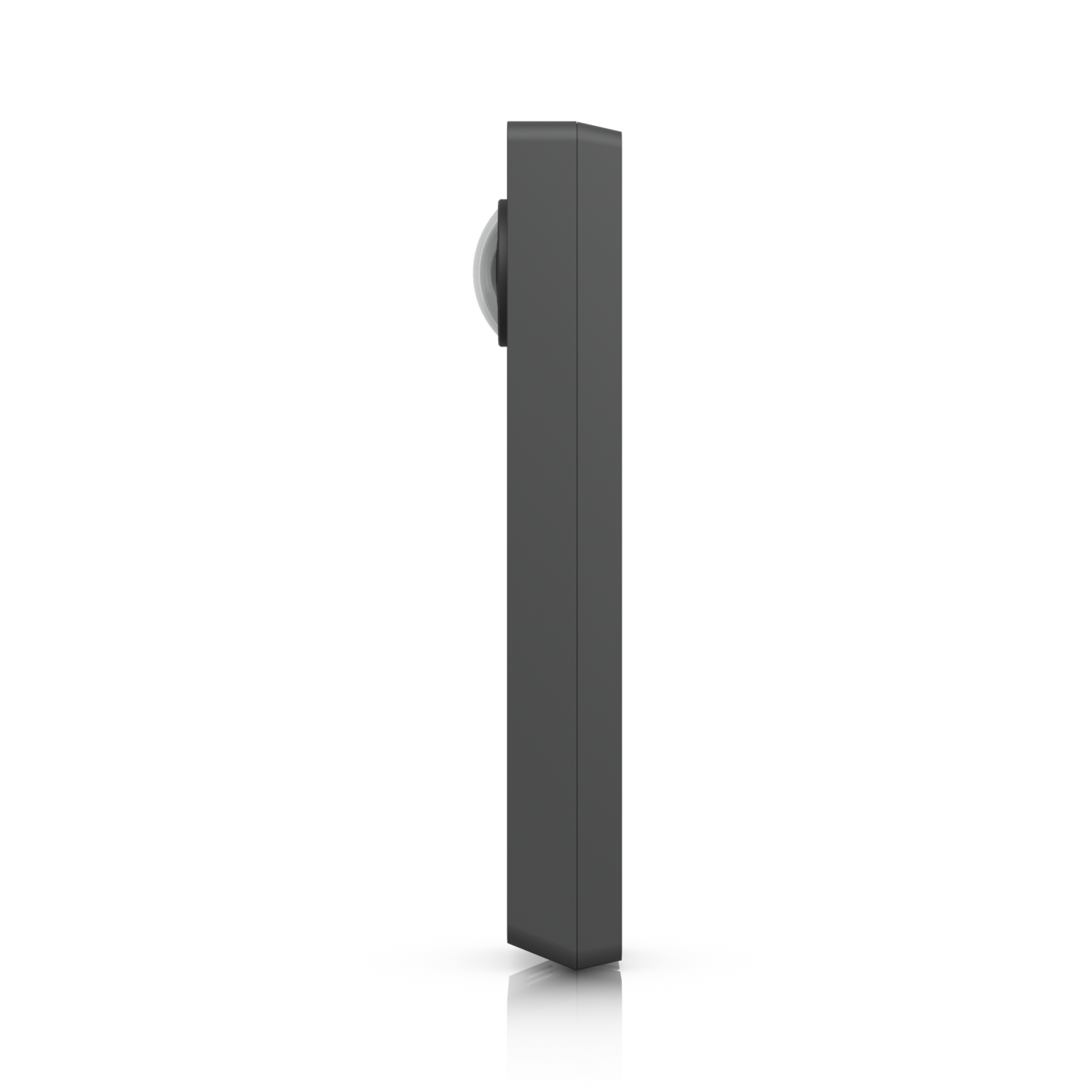

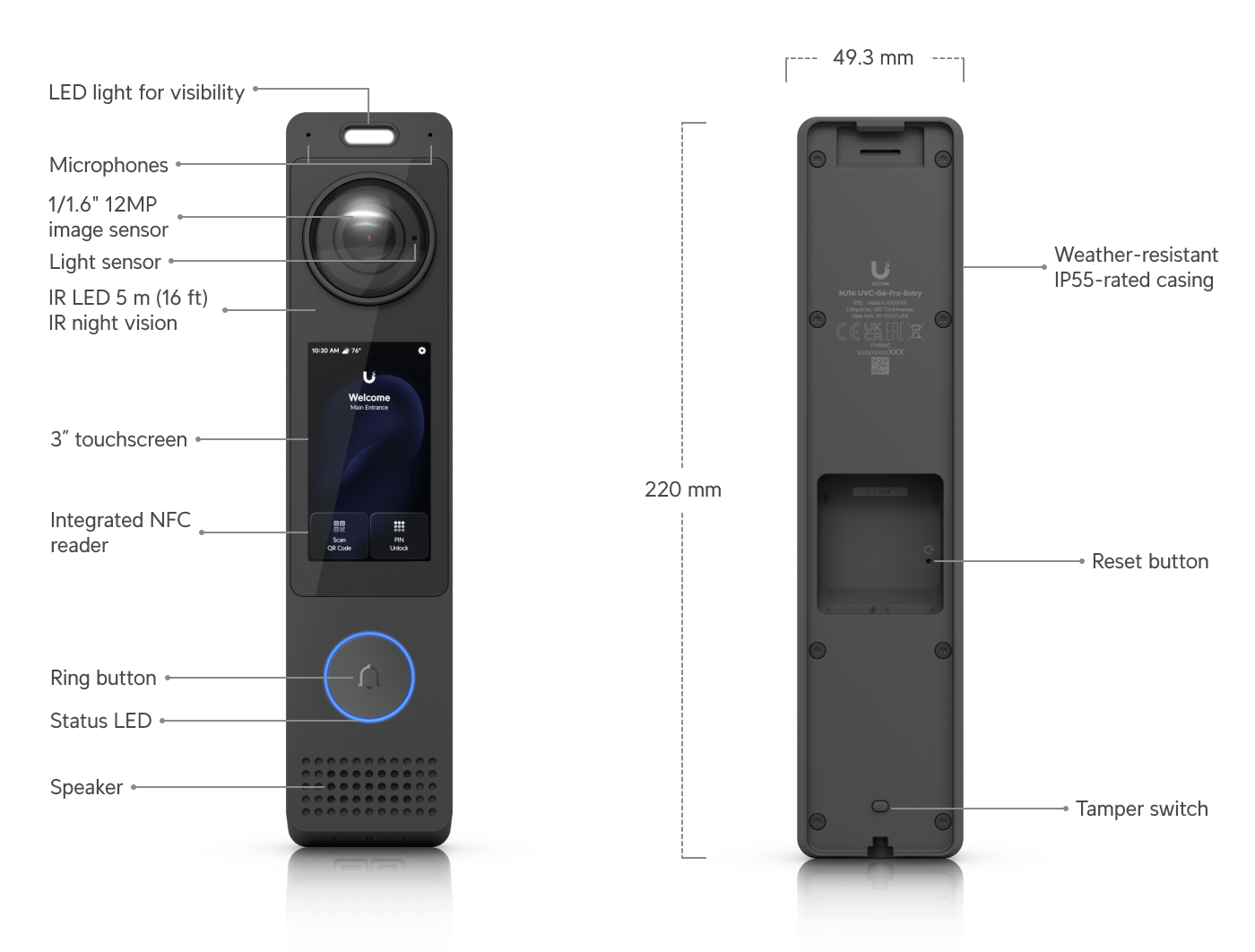

- Dimensions: 220 x 49.3 x 29.6 mm (8.7 x 1.9 x 1.2 in)
- Weight: 360 g (12.7 oz)
- Enclosure Material: Aluminum
- Mount Material: Wall mount in stainless steel, gangbox mount plate in SGCC steel, gangbox mount cover in polycarbonate, wedge mount in aluminum
- Mounting Options: Wall mount, gangbox mount plate, 20 degree wedge mount, optional junction box
- Installation: Suitable for indoor and outdoor use

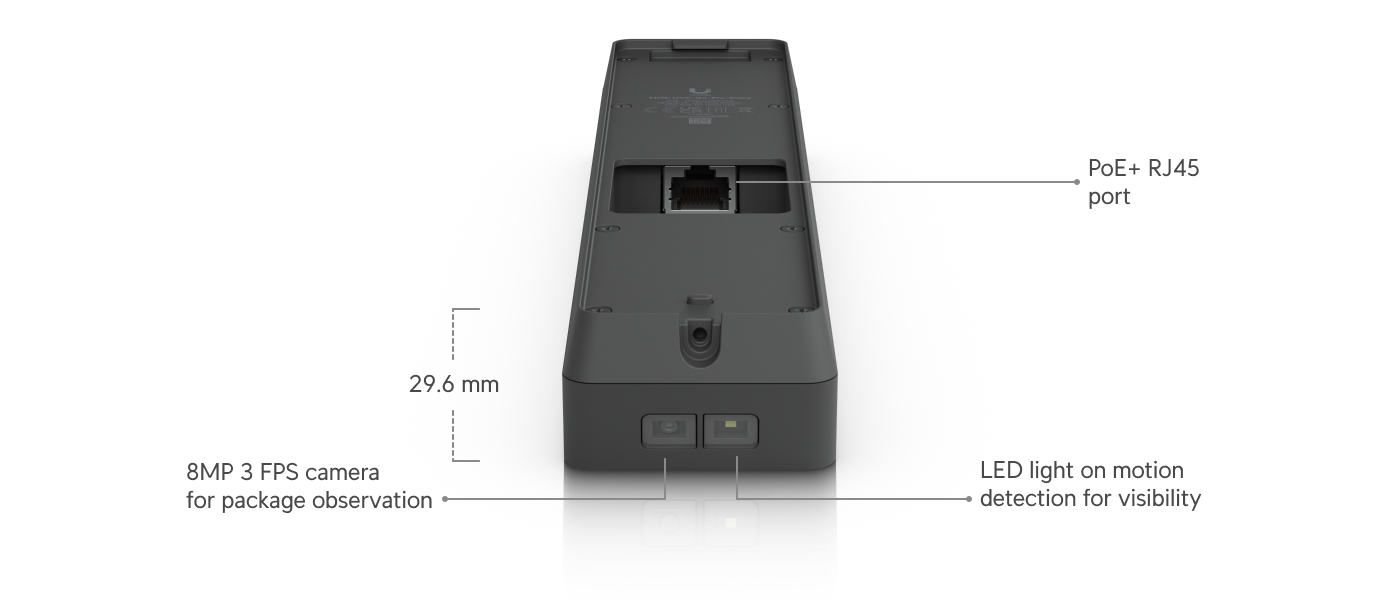

- Networking Interface: GbE RJ45 port
- Connectivity: BLE 4.1, NFC
- Power Method: PoE+
- Max Power Consumption: 18W
- Supported Voltage Range: 42 to 57V DC
- Main Camera Resolution: 12MP, 3024 x 4096 (3:4) or 8MP, 2160 x 3840 (9:16)

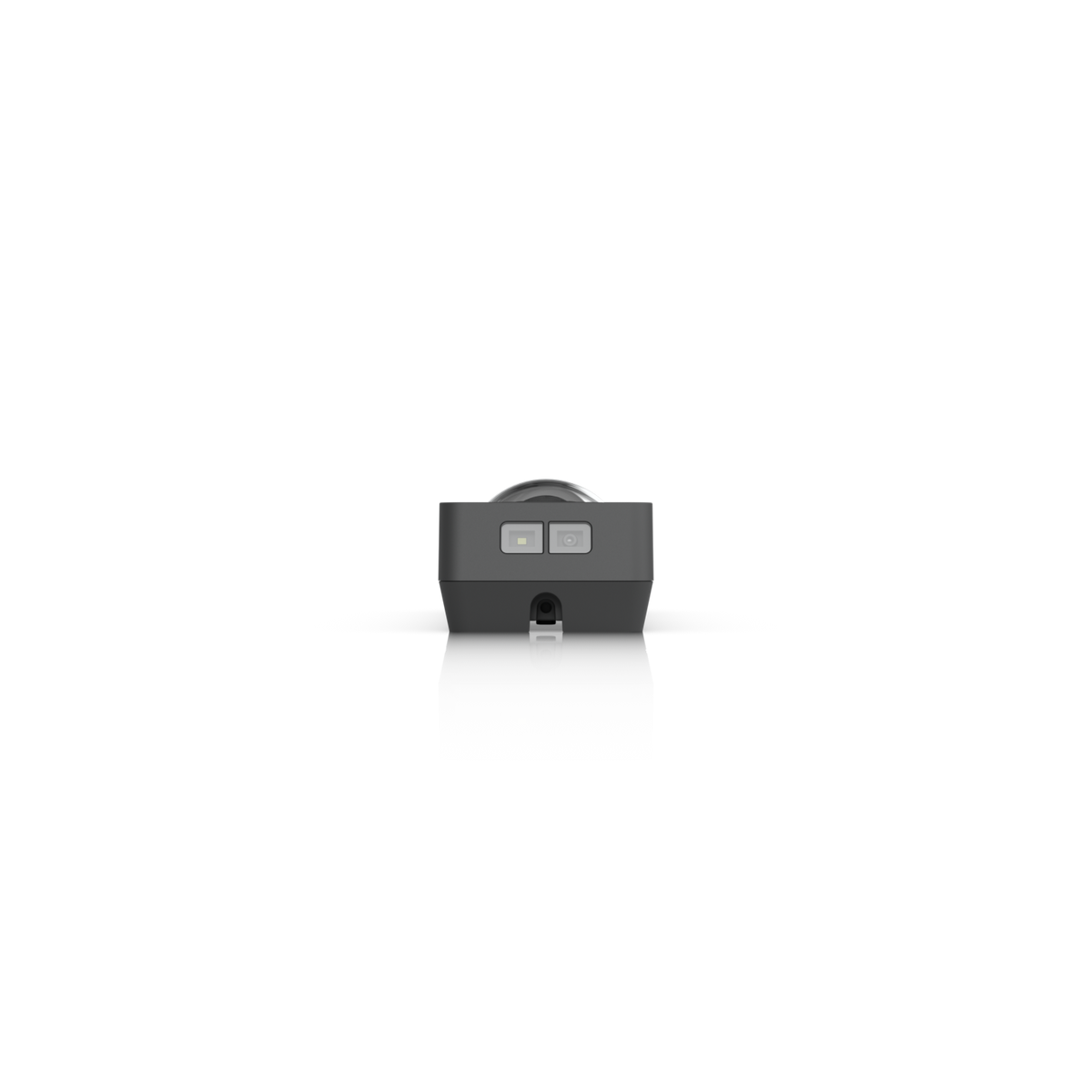

- Package Camera Resolution: 8MP, 3264 x 2448 (4:3)
- Main Camera Frame Rate: 12MP at 20 FPS or 8MP at 30 FPS
- Package Camera Frame Rate: 3 FPS
- Main Camera Sensor: 12MP CMOS
- Package Camera Sensor: 8MP CMOS
- Lens: Fixed focal length
- Field of View, Main Camera (12MP): Horizontal 100 degrees, Vertical 136.3 degrees, Diagonal 176.4 degrees
- Field of View, Main Camera (8MP): Horizontal 70.9 degrees, Vertical 127.5 degrees, Diagonal 147.4 degrees
- Field of View, Package Camera: Horizontal 66 degrees, Vertical 51.7 degrees, Diagonal 78 degrees
- Night Mode: Built-in IR LED illumination with IR cut filter
- IR Night Vision Range: 5 m (16 ft)
- Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Display Size: 75 mm (3 in) diagonal
- Screen Technology: Capacitive multi touch
- Screen Orientation: Portrait
- Display Resolution: 480 x 854 px
- Luminance: Max 1000 nits (typical)
- LEDs: Red, Green, Blue, White, Amber

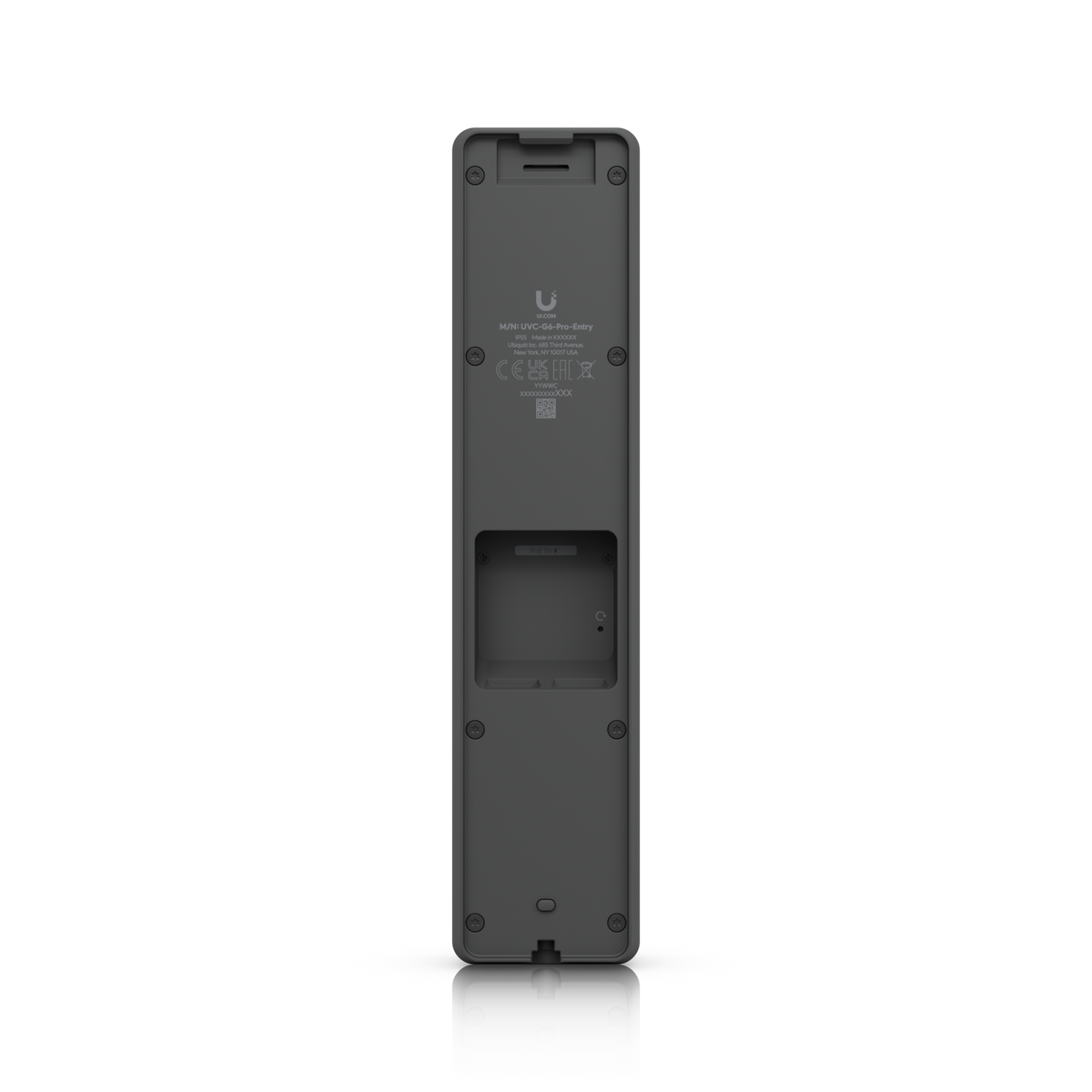

- Buttons: One ring button, one factory reset button, one tamper switch
- Processor: Quad core Arm Cortex-A53 based chip
- Audio: Two-way audio
- Weatherproofing: IP55
- Tamper Resistance: IK07 enclosure, IK04 LCM
- NDAA Compliance: Yes
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: Device -30 to 50 degrees C (-22 to 122 degrees F), Display -25 to 50 degrees C (-13 to 122 degrees F)
- Ambient Operating Humidity: 5 to 90 percent noncondensing
Package Contents:
- G6 Pro Entry Door Entry Unit
- Wall Mount
- Gangbox Mount Plate
- 20 Degree Wedge Mount
